Height adjustable motherboard tray design that allows for three different installation positions.
Optimized removable and reversible upright graphics card bracket to support GPU installation on the side.
Removable support column for uninterrupted view of the interior.
Reversible frame.
USB module supported in 3 locations.
+
+
Overview
Specs
Reviews (40)

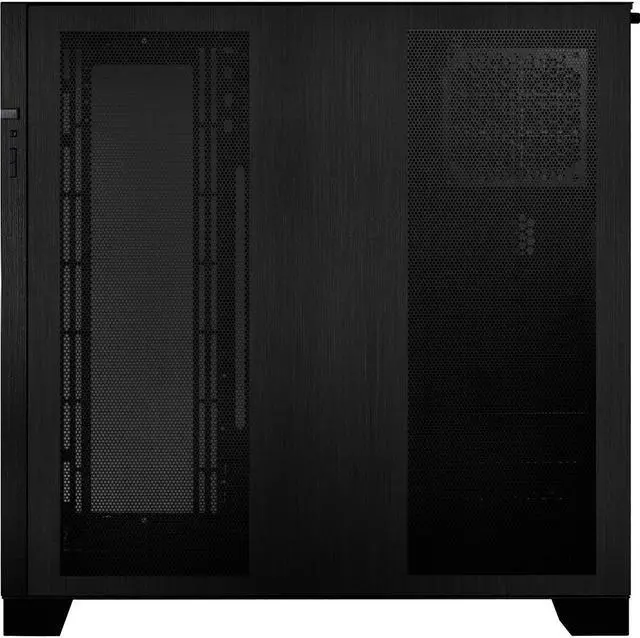

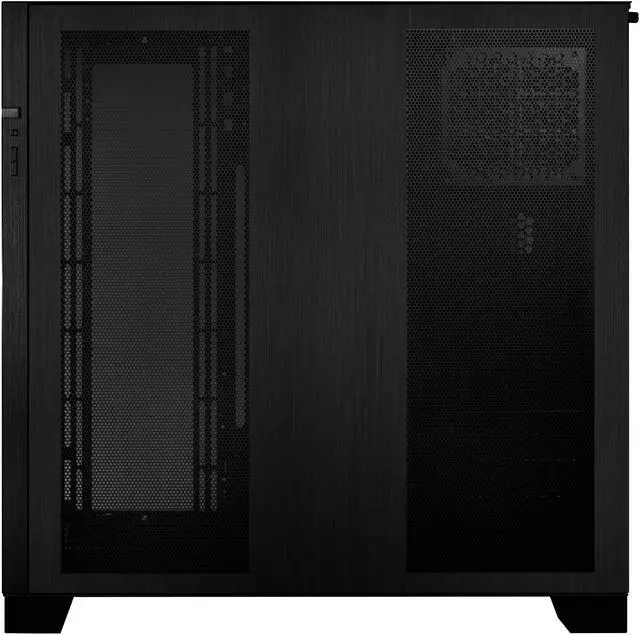

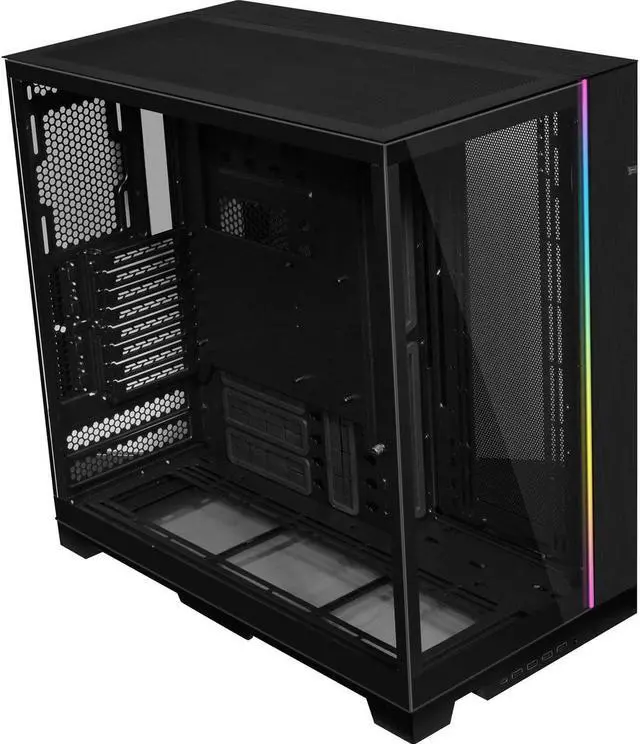

What sets the O11 Dynamic EVO XL ATX Full Tower Gaming Computer Case apart is its impressive size and modularity, designed to meet the diverse needs of PC enthusiasts. This enlarged case, a derivative of the O11D EVO, offers two display modes for a left or right view, easily customizable with a few simple steps. The O11D EVO XL is not just about size; it's about style and performance too. The top and side panels are crafted from high-quality aluminum with a fine mesh finish, providing a superior cooling solution compared to the O11D XL.

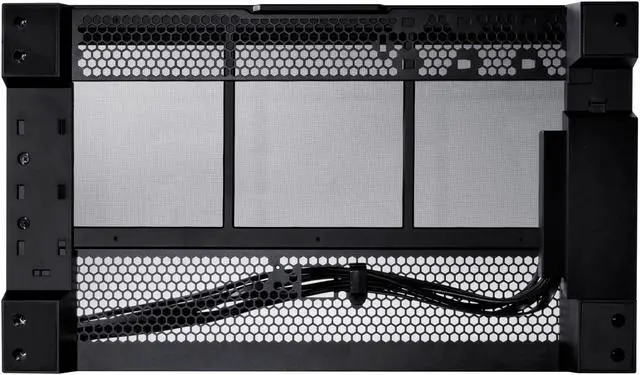

The fully open bottom panel, complemented by three dust filters, ensures optimal airflow while keeping dust at bay. One of the standout features of the O11D EVO XL is the removable front pillar, offering an unobstructed view of your hardware without compromising the case's structure. This feature, combined with the built-in ARGB strip lighting that syncs to your motherboard, makes this case a showstopper. The O11D EVO XL is 38% larger than the O11D EVO, offering ample space for modern, powerful, and large components. It supports up to 3x 420mm radiators, ensuring sufficient cooling for your system.

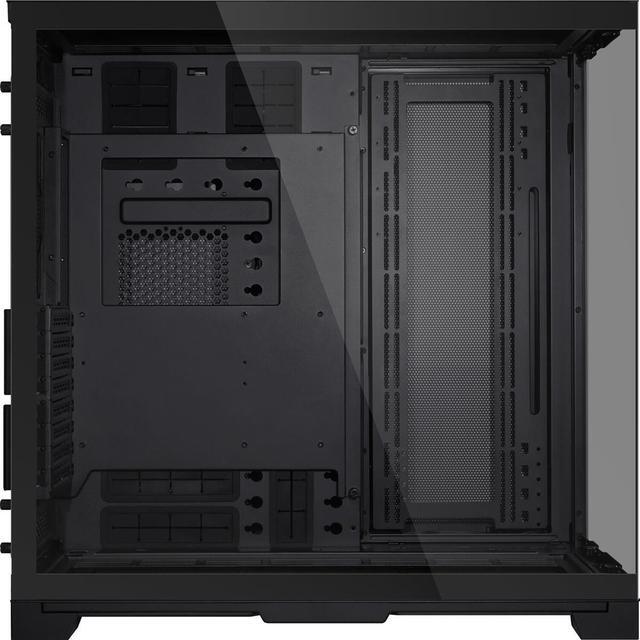

The adjustable motherboard tray, which can accommodate a maximum of E-ATX (width 280mm) motherboard, offers three levels of height to fit different fan and radiator combinations. Installation is a breeze with the O11D EVO XL. The anti-sag bracket (GB-003) allows for easy height adjustment to support heavy GPUs. The quick-release fan brackets can be easily removed or installed, and the side bracket can be oriented in two ways depending on your fan intake/exhaust position. The O11D EVO XL also offers a flexible storage capacity, supporting up to 7x SSDs or 4x HDDs + 3x SSDs.
The modular I/O port, which can be relocated to three different locations, includes 1x USB Type C and 4x USB Type A ports. With water cooling in mind, the O11D EVO XL offers a hidden mounting point for D5 or DDC pumps. The case also includes 3 dual-layer cable clips for customizable cable management, and a removable cable management bar to keep your system tidy and aesthetically pleasing. In conclusion, the O11 Dynamic EVO XL ATX Full Tower Gaming Computer Case is a perfect blend of size, style, and functionality, designed to meet the needs of any PC enthusiast.
Learn more about the Lian Li O11DEXL-X
Model
Brand
LIAN LI
Model
O11DEXL-X
Details
Type
ATX Mid Tower
Color
Black
Case Material
Aluminum / Steel / Tempered Glass
With Power Supply
No
Motherboard Compatibility
ATX / E-ATX / Micro ATX / Mini ITX
Side Panel Window
Yes
LED
ARGB
Dust Filters
Bottom / Side / Top
Expansion
Internal 2.5" Drive Bays
3
Expansion Slots
8
Front Panel Ports
Front Ports
4 x Buttons, 4 x USB 3.0, 1 x USB Type-C, 1 x Audio
Cooling System
Fan Options
Bottom - 3 x 120mm / Bottom - 3 x 140mm / Rear - 2 x 120mm / Side - 3 x 120mm / Side - 3 x 140mm / Top - 3 x 120mm / Top - 3 x 140mm
Radiator Options
Bottom - Up to 420mm / Side - Up to 420mm / Top - Up to 420mm
Dimensions & Weight
Max GPU Length
460 mm
Max CPU Cooler Height
167 mm
Max PSU Length
220 mm
Dimensions (H x W x D)
(D)522 mm x (W) 304 mm x (H) 531.9 mm
Additional Information
Date First Available
October 13, 2023
