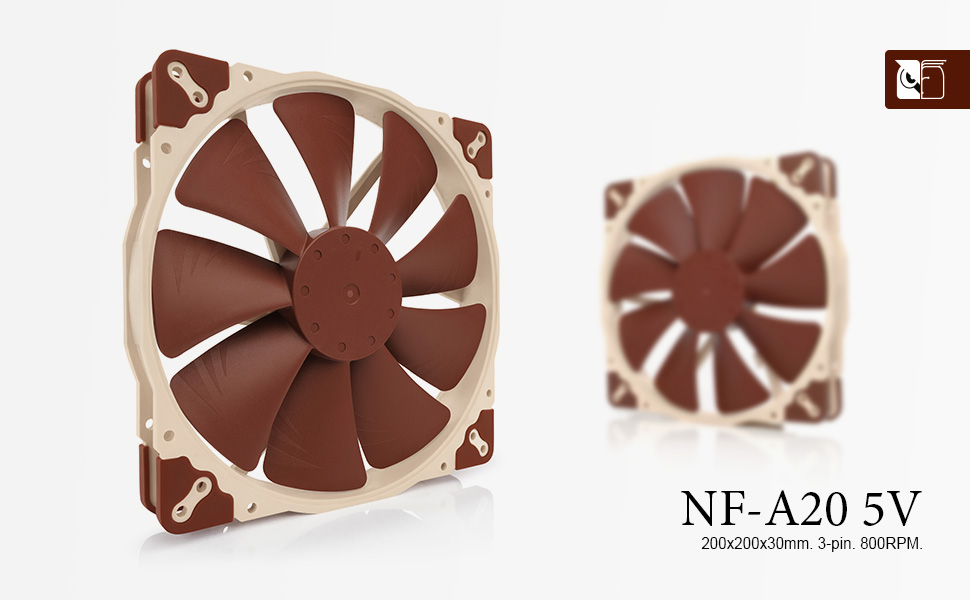

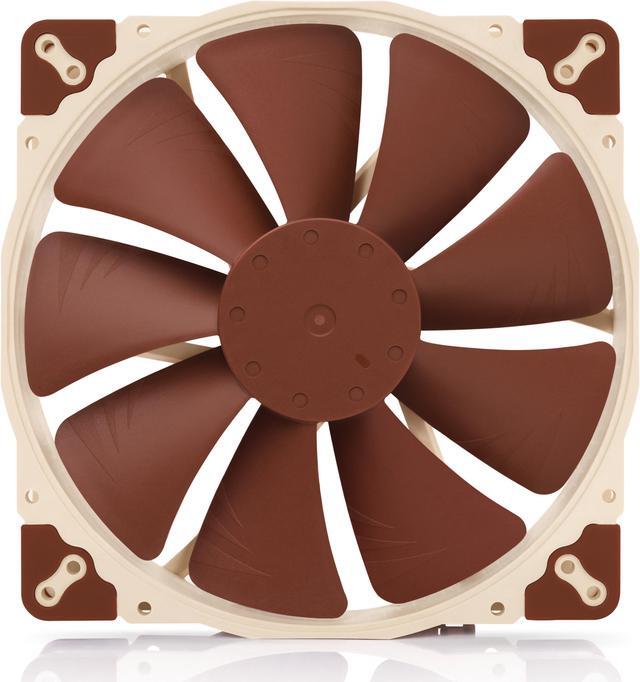

Noctua NF-A20 5V, Premium Quiet Fan with USB Power Adaptor Cable, 3-Pin, 5V Version (200x30mm, Brown)

  • PWM
  • FLX
  • 5V PWM
  • 5V
  • chromax

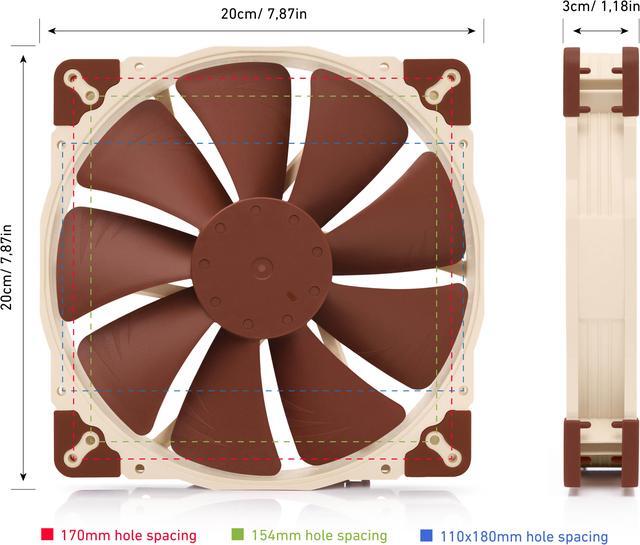

  • Premium quiet fan, 200x200x30 mm, 5V, 3-pin Molex, 800 RPM, 18.1 dB(A), >150,000 h MTTF
  • Award-winning 200x30mm A-series design with Flow Acceleration Channels and Advanced Acoustic Optimisation frame for superior quiet cooling performance

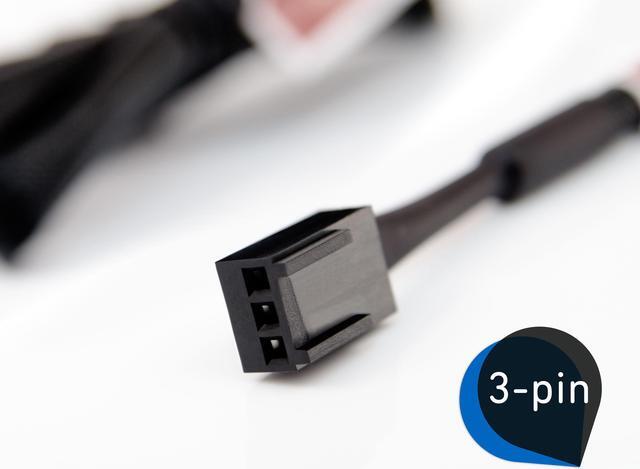

  • 5V 3-pin version (800rpm) with polarity protection for 5V-based industrial applications or replacing 5V fans in various devices
  • USB power adaptor cable allows the fan to run on devices with USB host ports, power banks or USB power supplies such as those used by smartphones
  • Includes anti-vibration mounts, fan screws, extension cable and OmniJoin adaptor set for connection to proprietary fan headers
+
+
Overview
Specs
Reviews (63)
logo
header

The NF-A20 5V is a dedicated 5V version of Noctua's award-winning, premium-quality NF-A20 200mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame and sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A20 5V is renowned for its superior performance and outstanding quietness of operation. Smooth Commutation Drive technology and Noctua's reference class SSO2 bearing assure superb running smoothness and excellent long-term stability. Topped off with the included USB power adaptor cable and OmniJoin adaptor set, the NF-A20 5V is a premium choice for demanding 5V applications.




5V

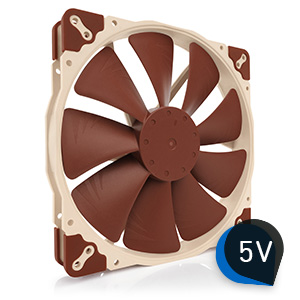

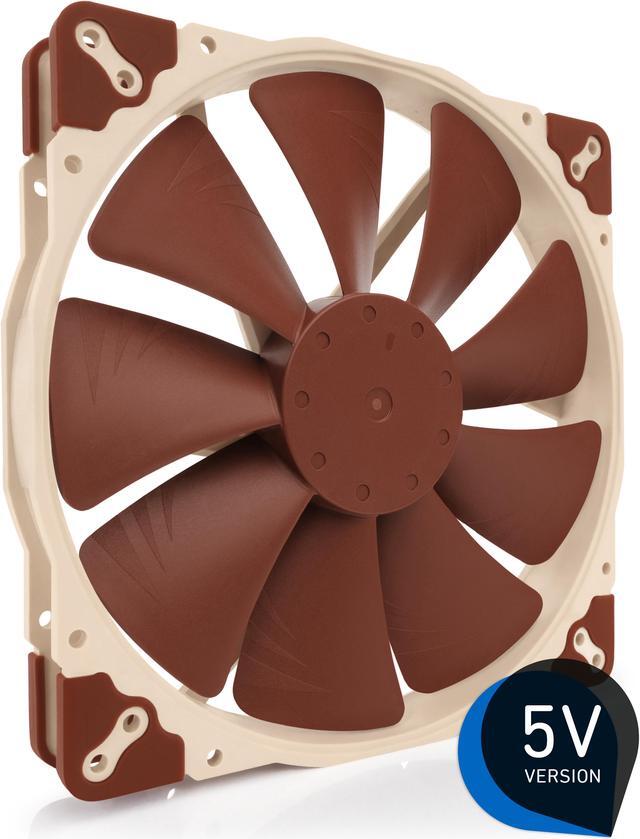

5V version

5V fans are used in various devices and applications. With the included USB power adaptor cable and OmniJoin adaptor set, the NF-A20 5V is a proven premium solution that gives you full flexibility both for replacing existing 5V fans and for new, custom applications.

Please Note: Being a 5V fan, the NF-A20 5V cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.

FAC
Flow Acceleration Channels

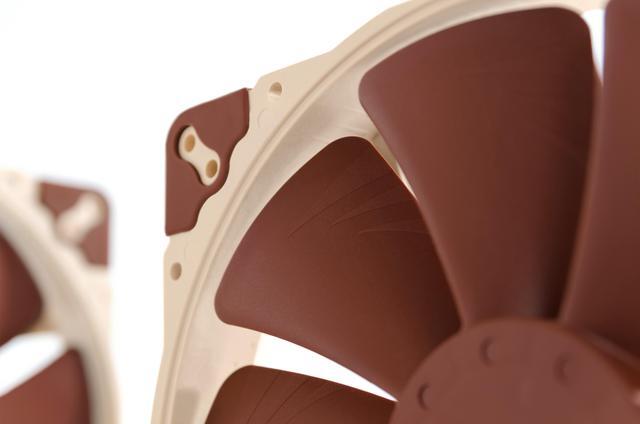

The NF-A20 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
SSO2
SSO2 bearing

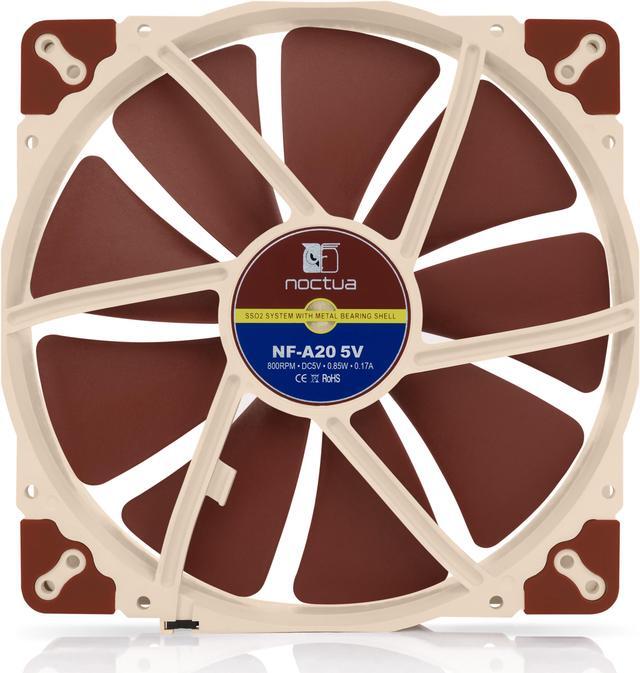

The NF-A20 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
AVP
Integrated anti-vibration pads
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
USB
USB power adaptor cable
The fan includes a USB power adaptor cable that allows it to run on power banks, devices with USB host ports or USB power supplies such as those used for smartphones, giving you near endless possibilities for using the fan in your home, in your car or wherever a need for cooling occurs!



Please Note:

Being a 5V fan, the NF-A20 5V cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.



banner
Products
Connector 4-pin PWM 3-pin 4-pin PWM 3-pin 4-pin PWM
Voltage 12V 12V 5V 5V 12V
RPM Max: 800 / Min: 350 800 Max: 800 / Min: 350 800 Max: 800 / Min: 350
RPM with L.N.A. 550 550 No No No
Acoustical Noise 18,1 dB(A) 18,1 dB(A) 18,1 dB(A) 18,1 dB(A) 18,1 dB(A)
Acoustical Noise with L.N.A. 10,7 dB(A) 10,7 dB(A) No No No
Size 200x200x30 mm 200x200x30 mm 200x200x30 mm 200x200x30 mm 200x200x30 mm
Colour Brown & Beige Brown & Beige Brown & Beige Brown & Beige Black with swappable coloured anti-vibration pads
The NF-A20 5V is a dedicated 5V version of Noctua’s award-winning, premium-quality NF-A20 200mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame and sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A20 5V is renowned for its superior performance and outstanding quietness of operation. Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearing guarantee superb running smoothness and excellent long-term stability. Topped off with the included USB power adaptor cable, OmniJoin adaptor set and 6-year manufacturer’s warranty, the NF-A20 5V is a premium choice for demanding 5V applications.


Please note:

Being a 5V fan, the NF-A20 5V cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

  • Return for refund within: 30 days
  • Return for replacement within: non-replaceable
  • This item is covered by Noctua Cooling Solutions Return Policy
  • *Subject to applicable law
  • Warranty Notice:

    This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.

Manufacturer Contact Info

LOADING...

The Noctua NF-A20 5V is a quiet 200 mm, 3-pin cooling fan rated at 800 RPM, 146.9 m³/h airflow and 18.1 dB(A), suited to users cooling 5V-compatible devices who want high airflow with low noise.

Recommended For

  • People replacing a failed 5V, 200mm fan in a device or custom installation who can verify the mounting pattern and connect its fan header; the included OmniJoin adapter supports some proprietary connectors.
  • DIY builders making a USB-powered desk, laptop, or camping fan who want a large, quiet airflow source and are prepared to provide a stable stand or protective grille.
  • Users who need quiet, broad airflow for a 5V-powered project and can run the fan at its fixed full speed; it reaches up to 800 RPM and is rated at 18.1 dB(A).
  • Makers powering a fan from a USB power supply, compatible USB host port, or power bank, who want a 200mm fan without building a separate 5V power adapter.

Real-World Use Scenarios

  • To move warm air out of a compatible network or equipment cabinet, a user can mount the NF-A20 5V and power it from USB; its large fan format is intended for cabinet cooling, and community discussions describe using 200mm fans to exhaust trapped heat.
  • For a modem, router, or access point that runs hot, a user can place the fan beneath or near the device and power it from USB; community users report this kind of added airflow helping with equipment temperatures, though the result depends on placement and ventilation.
  • To build a simple laptop cooling stand, a user can connect the fan to USB and direct airflow toward the laptop’s underside; DIY users report quieter operation and improved cooling, but the benefit varies with the laptop’s vent layout.
  • When a device uses a compatible 5V fan with proprietary wiring, a user can replace it with the NF-A20 5V using the included OmniJoin adaptor set; this can restore airflow without relying on a standard PC fan header.
  • For a custom desk or home airflow project, a user can run the fan from a USB power supply or power bank; this offers a way to add broad, low-noise airflow where a compatible 200mm fan can be mounted or safely supported.
