Features
· Supports one SATA host to up to 5-port 6.0Gbps SATA III hard drives
· Output swing control and automatic impedance calibration for SATA III PHY
· Supports asynchronous signal recovery
· Supports spread spectrum clocking
· Supports partial / slumber power saving mode
· Automatically speed negotiation
· Supports BIST and loopback mode
· Supports staggered spin-up (Optional)
· Supports Hot-Plug
· Supports asynchronous notification
· Supports ATAPI drives
· Supports command-based and FIS-based swit

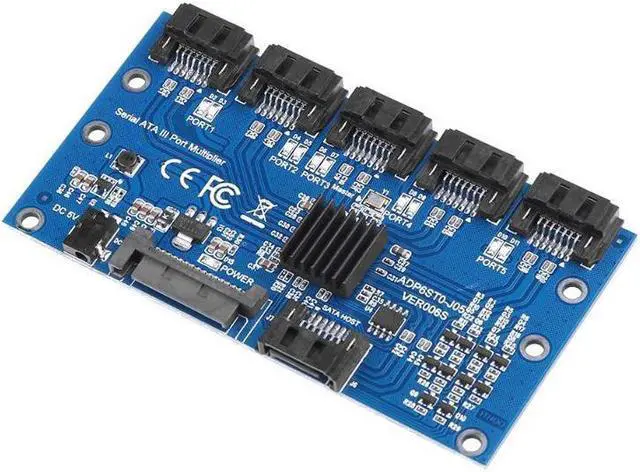

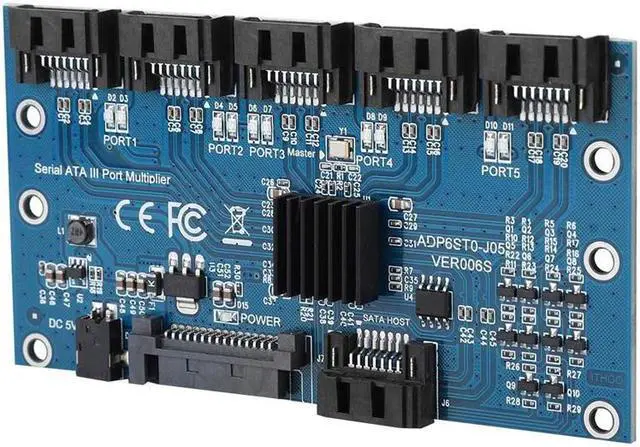

- 5 ports SATA 3.0 HDD expansion card
- Data transfer speed up to SATA III 6Gb/s
- The card requires motherboard or riser card supporting SATA Interface Multiplier function to recognize 5 hard drives.
- If not, only one hard disk can be recognized.
- Normal motherboard SATA does not support this function.
- One SATA host to 5 ports SATA hard drives
- Power by SATA 15Pin or DC 5V interface
- 5V power is necessary for the card
- One SATA host to 5 ports SATA hard drives
- Supports SATA III PHY output swing control and automatic impedance calibration.
- Compliant with Serial ATA Port Multiplier/Selector Specifications.
- Compliant with Annex Specifications ATA Series High Speed Serialization.
- Support part/dormancy power saving mode.
- Compliant with Serial ATA Port Multiplier Spec. Revision 1.2
- Compliant with Serial ATA Port Selector Spec. Revision 1.0
- Compliant with Serial ATA PHY Electrical Spec. Revision 1.0
- Compliant with Serial ATA High Speed Serialized AT Attachment Spec. Revision 3.1
- Compatible with WINXP WIN7 WIN8 WIN10.
Note:
- This expansion card requires Motherboard or riser card supporting SATA Port Multiplier Funtion to identify 5 hard disks.If not support, only one hard disk can be identified.
- Normal motherboard SATA does not support this function.
- SATA 15pin or DC2.5 power cable connection is necessary for expansion card power providing
Specification
| Type | SATA3.0 1 to 5 Expansion Card |
|---|---|
| Chipset | JMICRON JMB575 |
| Host | SATA 7PIN input |
| Devices | 5 Ports SATA 7Pin output |
| Power | SATA 15pin or DC2.5mm 5V |
| Data Transfer Speed | SATAIII 6Gpbs |
| System | For WINXP, WIN7, WIN8, WIN10 |
| Requirement | Motherboard or riser card must support SATA Port Multiplier function |
