21.5 Inch Multi Points IR Touch Screen Infrared Touch Panels Overlay USB Free Driver HID Compatible

Be the first to review this product...
  • Muilti points 21.5 inch IR Infrared Touch Screen overlay panel with 3mm anti-vandal glass.
  • Just only can use for your 21.5 inch display or monitor, can't use on other size.
  • Anti-light interference,no drift even in the sunlight, simple for installing, easy for integration.
  • Free driver for Windows, Android and Linux, support Mac iOS with HID driver.
  • Design for Kiosks, Touch Monitor, Touch all in one,and so on.
+
+
Overview
Specs
Reviews

BUSINESS FOCUS

Goodtouch Electronics (Guangzhou) Co., LTD is the professional manufacturer and supplier of touch screen product whose with over ten years experience, including Infrared touch overlay, P-cap touch panel, touch monitor, touch AIO PC, touch kiosks. Industry sector cover Kiosks, Digital Signage, Interactive display and Whiteboard and so on. We can provide ODM/OEM service.

DETAIL SPEC


Detection Method: Infrared rays


Size: 21.5 inch IR infrared touch screen overlay panel


Ratio: 16:10


Touch Points: 2 points


Object Touch Size: = Ø3mm


Touch Activation Force: Non Minimum activation force


Touch Durability: Over 60 millions for single touch


Touch Resolution: 32768*32768


Position Accuracy: 2mm


Fault Tolerance: Workable even 75% sensors are damaged


Frames per Second: Up to 450 fps


Touch Response Time: 8ms


Draw Response Time: 8ms


Altitude: 3, 000m


Light Transmission: 100% without glass


Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Android

Need to install the HID driver in Mac OS(Does not support Smart TV Android system, Raspberry Pi)

(Does not support Smart TV Android system, Raspberry Pi)


Second-development Support: free SDK, support C/C++, C#, Java etc.

ElECTRICAL


Operating Voltage: DC 4.5V ~ DC 5.5V


Power Supply: Single USB Connection


Power Consumption: 1.0W (200mA at DC 5V)

ENVIRONMENT


Operating Temperature: -20°C~70°C


Storage Temperature: -30°C~80°C


Operating Humidity: 10%~90%RH(Non-condensing)


Storage Humidity: 0~95%RH


Certification: FCC, CE, ROHS


Warranty: 3 year

deyowo logo
21.5 inch IR touch screen
Product description

1-This item is Deyowo 21.5 inch 2 points interactive infrared touch screen , design and use for touch LCD monitor,Touch Kiosks, and etc.

2-The out frame of Infrared Touch using metal material, product is strong and durabel, including tempered glass.

3-The infrared touch screen is anti-sunshine, there are no light interference, no drift even if it be uesed under the sunshine directly.

4-This item just only matching 55 inch display or monitor, we showed the detail dimension drawing on webpage, you can check if your display or monitor can match this item.

5-The infrared touch screen is Free driver for Windows, Android and Linux. Support Mac iOS with HID driver, you can sent E-mail to us on Amazon and get Mac driver. Don't support Android TV box

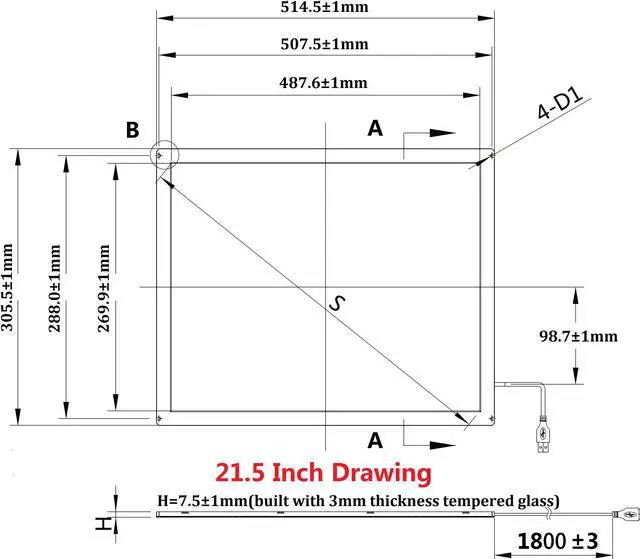

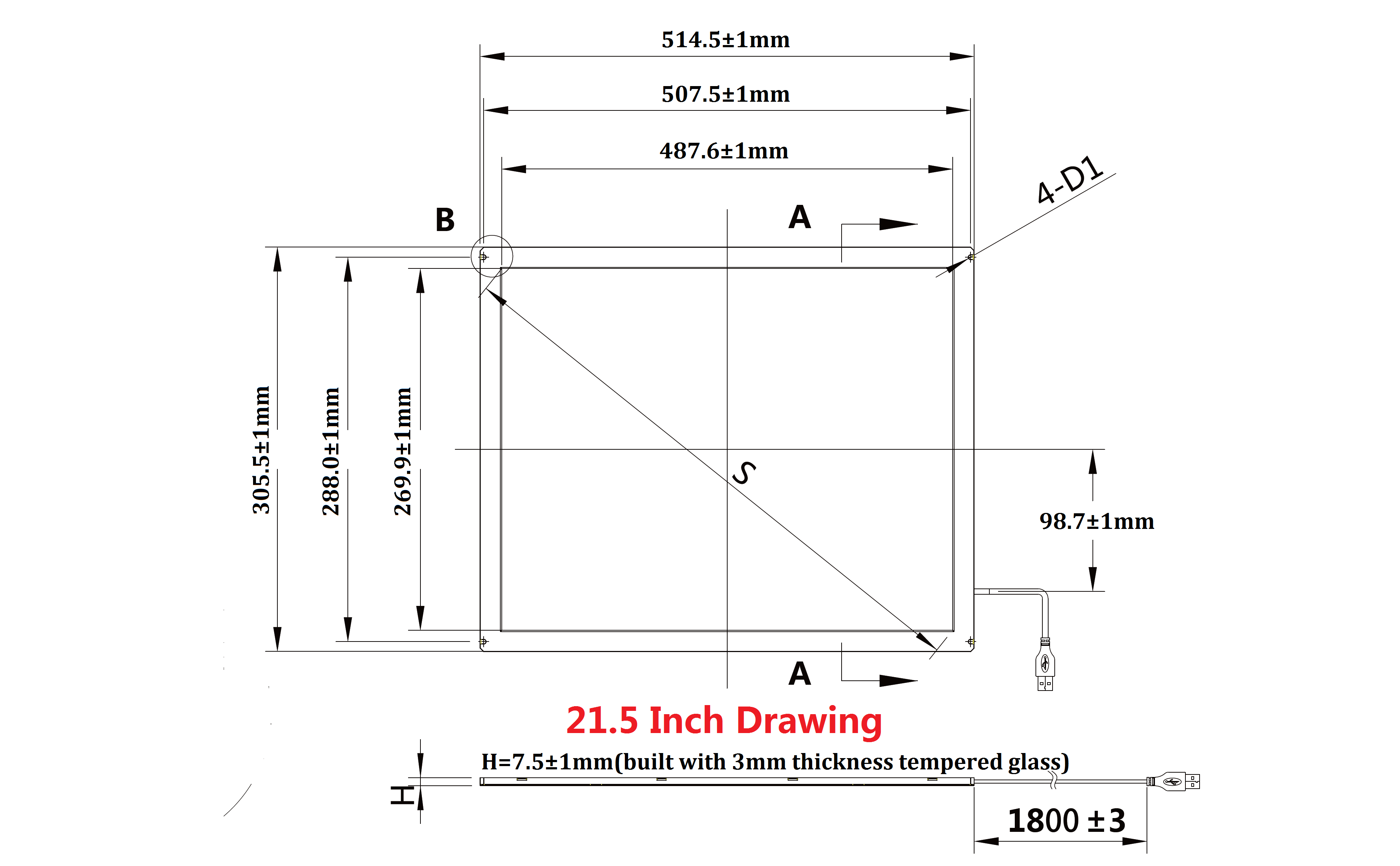

drawing for 21.5 inch IR touch screen
Product drawing

1-This item just only matching 21.5 inch display or monitor, we showed the detail dimension drawing on webpage, you can check if your display or monitor can match this item.

2-This item is only touch frame for sale which be without glass, the installation is very simple and very easy, we will provide Installation Manual.

Product advantage
10 points touch
multi points touch

Support multi points interactive touch, design and use for interactive board, touch LCD monitor, touch display TV. Touch Kiosks, Touch Digital Signage, Whiteboard, Exhibition and etc.

Anti light interference
Anti light interference

Anti light interference function, it can run well even if it is under sunshine.

OS support
OS support

1-Driver free for Windows7, Windows8, Windows10, Native Linux and Android OS.

2-Need to install the HID driver on Mac OS

3-Does not support Smart TV Android system, Raspberry Pi

Interface port connecting
Interface port connecting

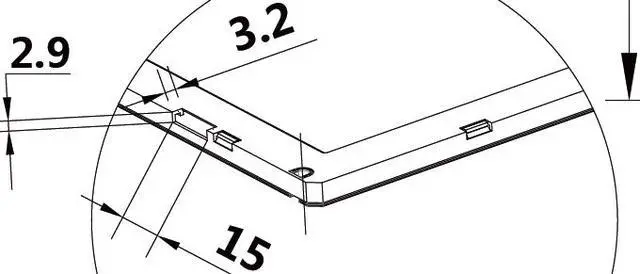

Slot design for four corner interface ports connecting, A to A, B to B, C to C and D to D. Easy and simple

Product specification
Product name interactive IR infrared touch scree
Detection Method Infrared rays
Touch Activation Force Non Minimum activation force
Object Touch Size min Ø5mm
Touch Durability Over 60 millions for single touch
Touch Resolution 32768*32768
Position Accuracy 2mm
Fault Tolerance Workable even 75% sensors are damaged
Frames per Second Up to 450 fps
Touch Response Time 8ms
Draw Response Time 8ms
Altitude 3000m
Light Transmission 92% with glass
