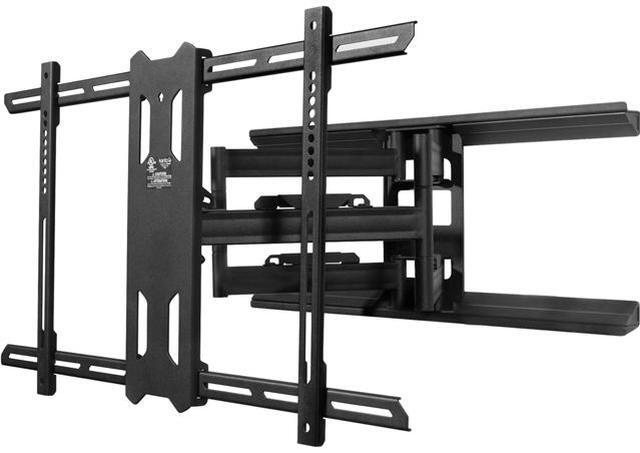

Kanto PDX680 Full Motion Mount for 39-inch to 80-inch TVs (Black)
- Dual articulating arms easily hold up to 125 pounds
- Allows to sit a mere two inches from the wall when fully retracted
- Sitting a mere 2” from the wall and extending up to 24”, the PDX680 is the perfect solution for versatility
- PDX680 offers 18° of tilt and a 27” wall plate to accommodate up to 24” studs
- With integrated cable management and plastic caps to hide the lag bolts in the wall, the PDX680 is not only functional, but easy on the eyes too
Overview
Specs
Reviews (4)
Design at its Finest
Low Profile Design
Extends Up to 24 Inches
Supports 125 Pounds
18 Degrees of Tilt
Wide Range of Swivel
Everything You Need
Meet PDX680 the standard in full motion mounts from Kanto. Sitting a mere 2" from the wall and extending up to 24" the PDX680 is the perfect solution for versatility. It offers 18 of tilt and a 27" wall plate to accommodate up to 24" studs. With integrated cable management and plastic caps to hide the lag bolts in the wall the PDX680 is not only functional but easy on the eyes too.
Low Profile Design
The unique design of the PDX680 allows your TV to sit 2" from the wall when fully pushed in.
Extends Up to 24 Inches
With 24" of extension the PDX680 is perfect for reaching over fireplaces or out of alcoves and recessed locations.
Supports 125 Pounds
Designed with strength in mind the PDX680's solid steel frame can hold up to 125 lbs. with no concern even at full extension.
18 Degrees of Tilt
PDX680 offers 18 of tilt allowing you to find the perfect viewing angle. Once your TV is in the right position tighten the bolts on the tilt mechanism to ensure your TV stays where you want it.
Wide Range of Swivel
The articulating arms allow you to swivel your TV 85 in either direction depending on your TV size allowing you to achieve the perfect viewing angle.
Everything You Need
Kanto supplies you with everything except a toolbox to ensure that your installation goes smoothly. Instruction manuals are in English French and Spanish as well as all the parts you need to mount your TV safely and securely.

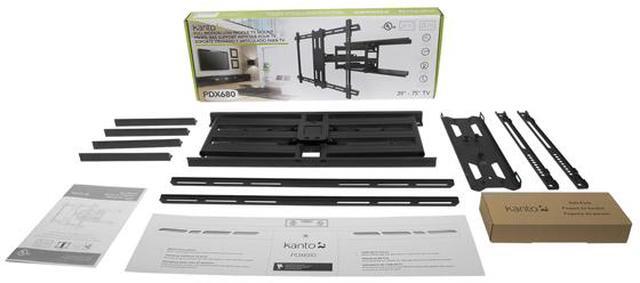

What's in the Box:- PDX680 Articulating Full-Motion TV Mount
- Manual
- Mounting hardware
- Fits most flat panel TVs from 39" to 80"
- Supports TVs up to 125 lbs.
- Accommodates VESA sizes from 200x100 to 700x400
- 85 of swivel in either direction
- Sits 2" from the wall
- Extends up to 24" from the wall
- 27" dual stud wall plate accommodates up to 24" stud spacing
- Weight: 22.5 lbs.

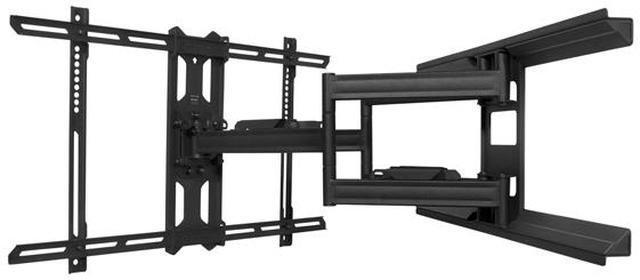

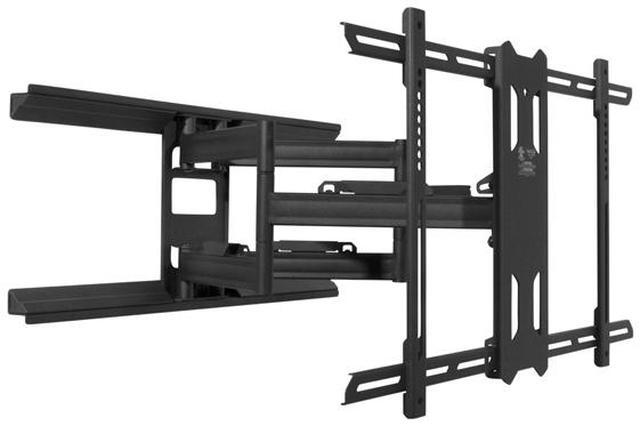

PDX680
Full Motion TV Mount
Meet PDX680, the standard in full motion mounts from Kanto. Sitting a mere 2” from the wall and extending up to 24”, the PDX680 is the perfect solution for versatility. PDX680 offers 18° of tilt and a 27” wall plate to accommodate up to 24” studs. With integrated cable management and plastic caps to hide the lag bolts in the wall, the PDX680 is not only functional, but easy on the eyes too.
TV Size 39" – 80"
Max Weight 125 lb (57 kg)
Supports VESA 100×100 – 700×400
Extends 2" – 24" (5cm – 61cm)
FEATURES
With 24? of extension, the PDX680 gives you unparalleled viewing options.

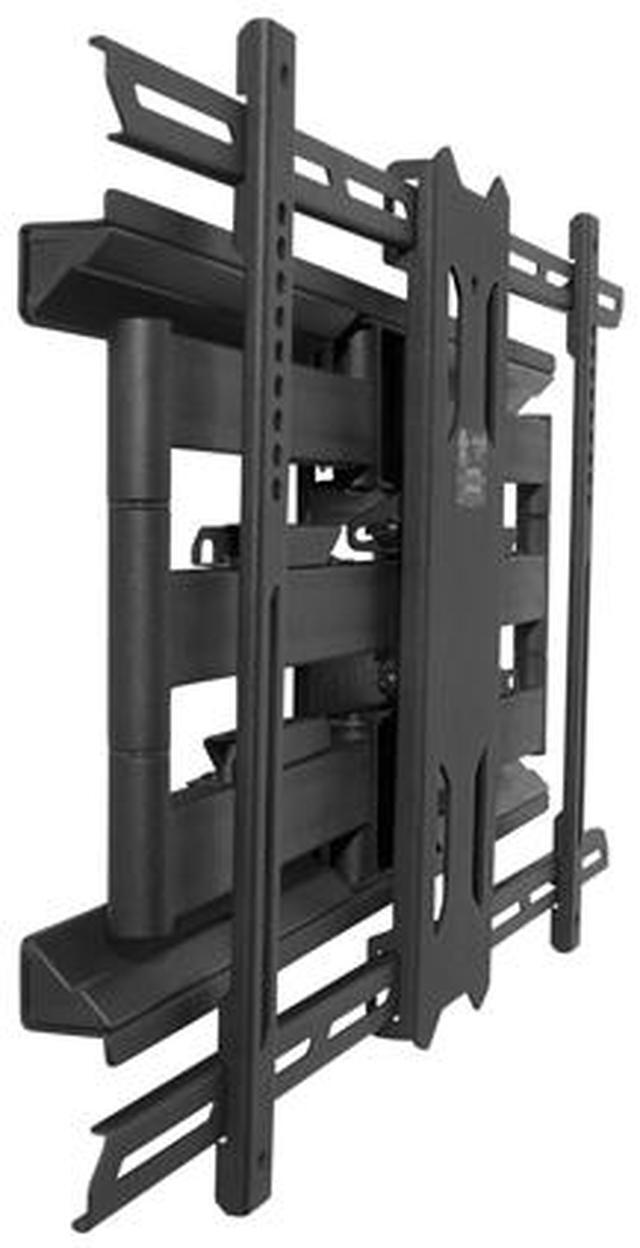

LOW PROFILE DESIGN
The unique design of the PDX680 allows your TV to sit 2 inch’s from the wall when fully pushed in.

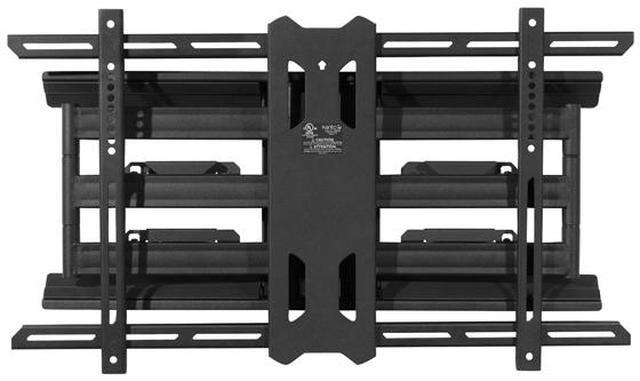

FITS VESA SIZES TO 700 x 400

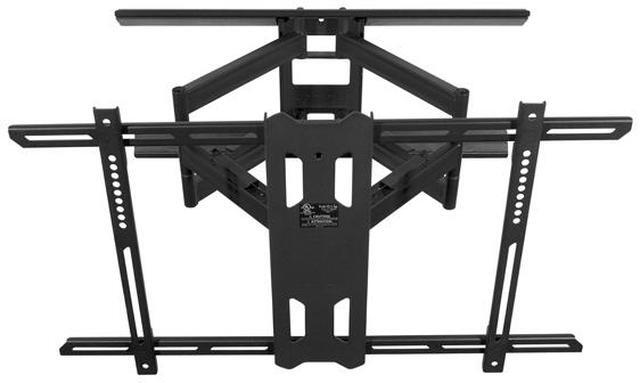

The H Frame mounting bracket accommodates VESA sizes from 100×100 to 700×400. The mounting arms come with plenty of options to raise or lower the TV depending on the VESA pattern on the TV.

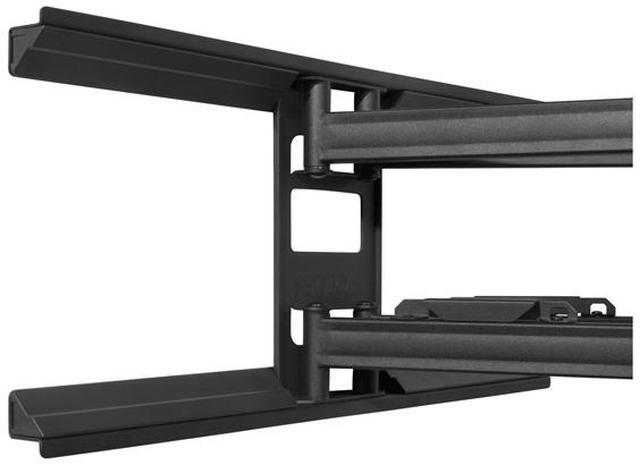

MAGNETIC LAG BOLT COVERS
Magnetic covers go over the lag bolts to give the wall plate an elegant look. Remove the covers when you install or remove the wall plate from the wall.
EXTENDS 24 INCHES
Even with its low-profile design the PDX680 can extend 24” from the wall, giving you plenty of room for tilting and swiveling your TV, or for reaching out from alcoves.
SUPPORTS 125 POUNDS
Designed with strength in mind, the PDX680’s solid steel frame can hold up to 125 lb (57 kg) with no concern, even at full extension.

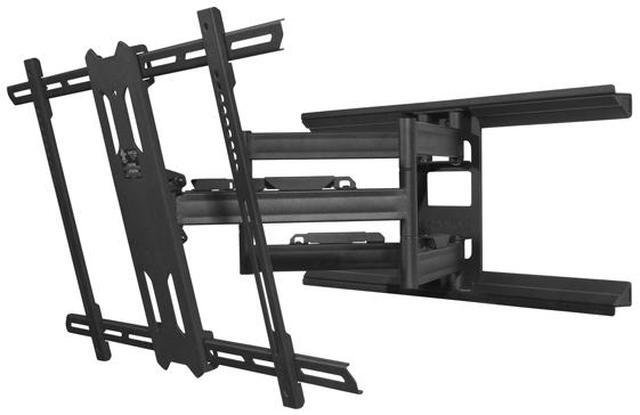

SWIVELS UP TO 170 DEGREES
The articulating arms on the PDX680 allow for a maximum of 170 degrees (with a 39" TV). The larger the TV, the less swivel the PDX680 will have

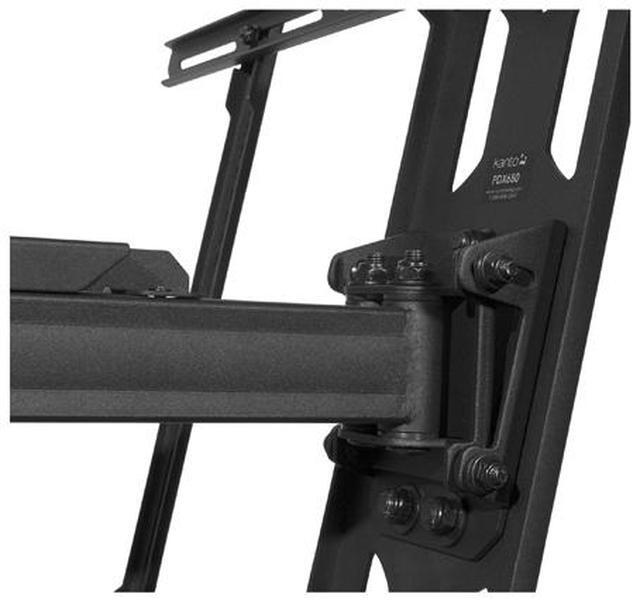

TILT MECHANISM
The accessible tilt mechanism makes it easy to angle your TV 15° forward or 3° backward. Once you’ve found the best viewing angle, tighten the nuts to secure your TV in place.

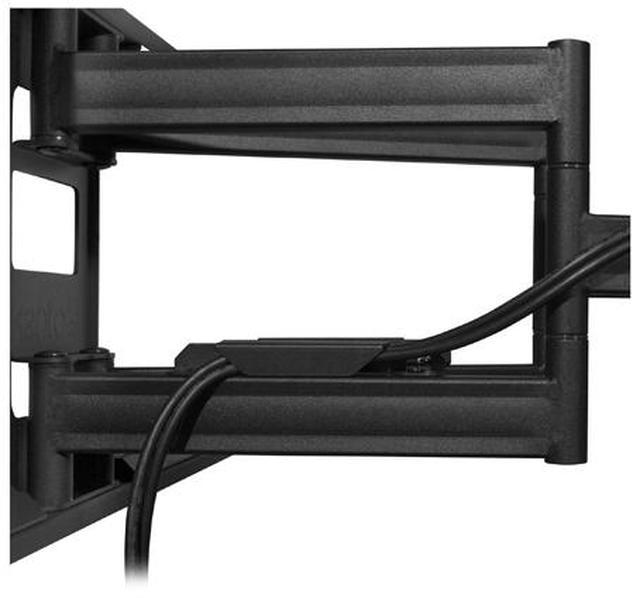

SLEEK CABLE MANAGEMENT
Four cable management raceways are attached to the bottom of the wishbone arms. These are easily accessed by loosening a screw, twisting them to the side, laying in the cable, and re-inserting the screw. Route multiple cables down one side, or power and HDMI down opposite sides – whatever works best.
EVERYTHING YOU NEED
We supply you with everything except a toolbox to ensure that your installation goes smoothly. Instruction manuals are provided in English, French, and Spanish, as well as the parts you need to mount your TV safely and securely. Easy-to-follow online videos and phone support are available to assist you along the way.

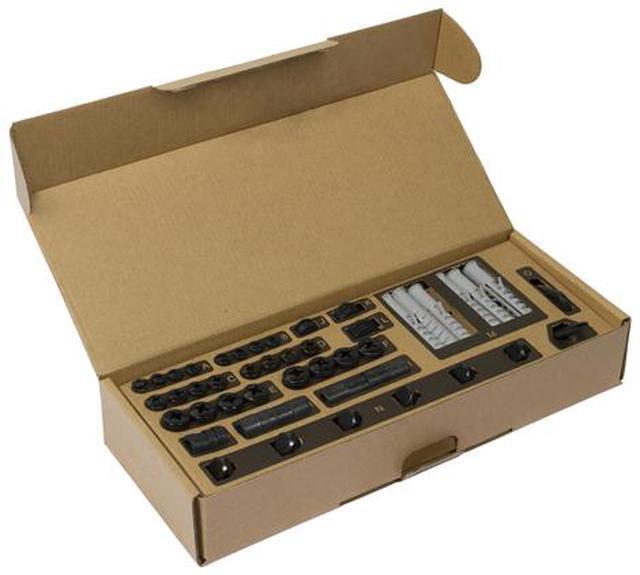

CONVENIENT BOLT PACK
The PDX680 includes a labeled bolt pack with a variety of bolt diameters and lengths, as well as several spacers to allow a custom fit. Lag bolts and concrete anchors are provided so you can mount to wood studs and concrete walls.
