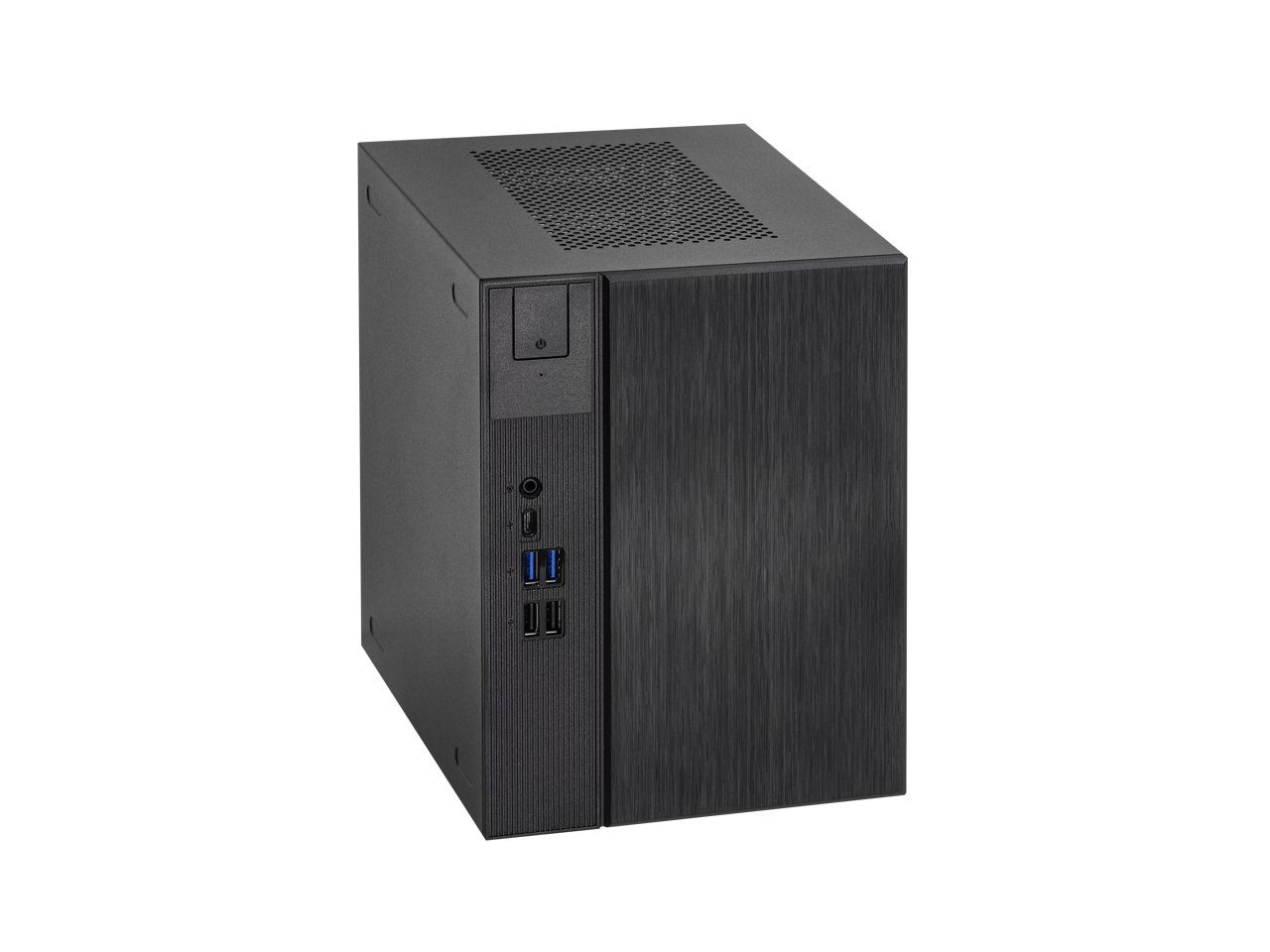

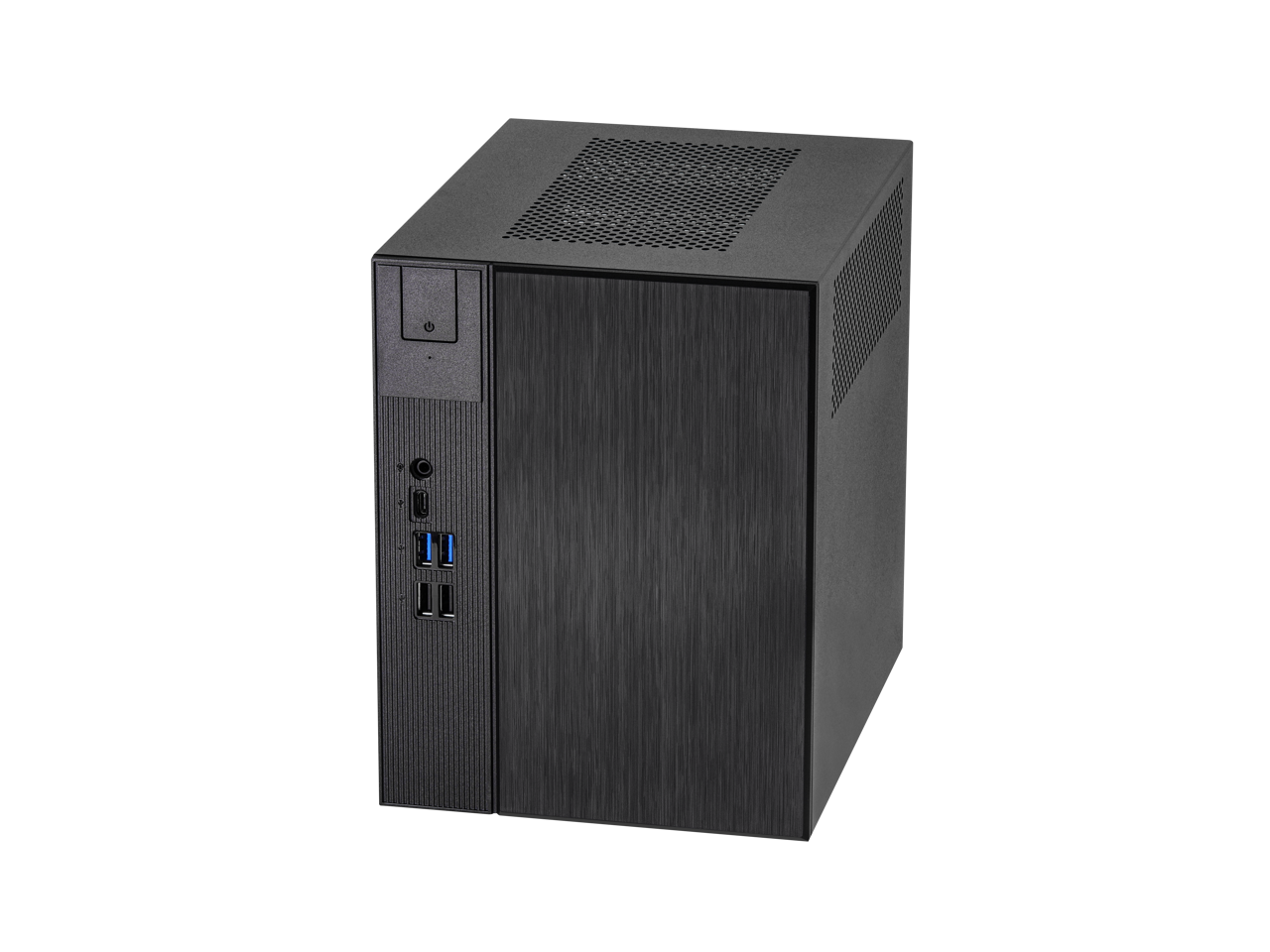

ASRock DESKMEET B660 Intel 12th Gen Mini PC Barebone System Supports a discrete ITX Video Card slot, CPU, video card , Memory, Storage are not included 8 Liter compact size
See more "deskmeet"
In stock. Limit 5 per customer.
Ships from United States.
- Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors
- Supports MAX Height 54mm CPU Cooler
- Supports 4 x DDR4-3200MHz DIMMs, up to 128GB
- Supports a discrete Dual slot Graphics card up to 20CM; ITX Video Card
- 1 x PCIe 4.0 x16
- Graphics Output Options:DisplayPort, HDMI & D-Sub
- 3 x SATA3
- 1 x Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 1 x Hyper M.2 (PCIe Gen4 x4)
- 1 x USB 3.2 Gen1 Type-C Port
- 4 x USB 3.2 Gen1 Type-A port (2 Front, 2 Rear)
- 4 x USB 2.0 Type-A port (2 Front, 2 Rear)
- 1 x M.2 Key-E for Wi-Fi
- 500W power supply (80+ Bronze)
- 8 Liter compact size
- *May require a BIOS update to boot the 13th gen Intel Core desktop processors.*
Specs
Reviews
Learn more about the ASRock DESKMEET B660W/B/BB/BOX/US
| Brand | ASRock |
|---|---|
| Model | DESKMEET B660W/B/BB/BOX/US |
| CPU Type | Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors *May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors.* |
|---|---|
| CPU Socket | Intel Socket LGA1700 |
| North Bridge | Intel B660 |
|---|
| Memory installed | No Memory |
|---|---|
| Memory slot | 4 x 288Pin DIMM |
| Memory Type Supported | Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 * Supports DDR4 3200 natively. |
| Max Memory Supported | 128GB |
| Dual Channel Memory Supported | Yes |
| PCI Express 4.0 x16 | 1 |
|---|---|
| Other | 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel CNVi (Integrated Wi-Fi/BT) |
| Hard Drive Installed | No Hard Drive |
|---|---|
| Serial ATA | 3 x SATA 6.0Gb/s |
| M.2 | 1 x Hyper M.2 Socket (M2_1), supports type 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64 Gb/s) modes* 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* * Supports Intel Optane Technology. * Supports NVMe SSD as boot disks. |
| SATA RAID | RAID 0, 1, 5, 10 |
| Onboard Audio | Realtek ALC897 |
|---|
| LAN | Intel I219V |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |

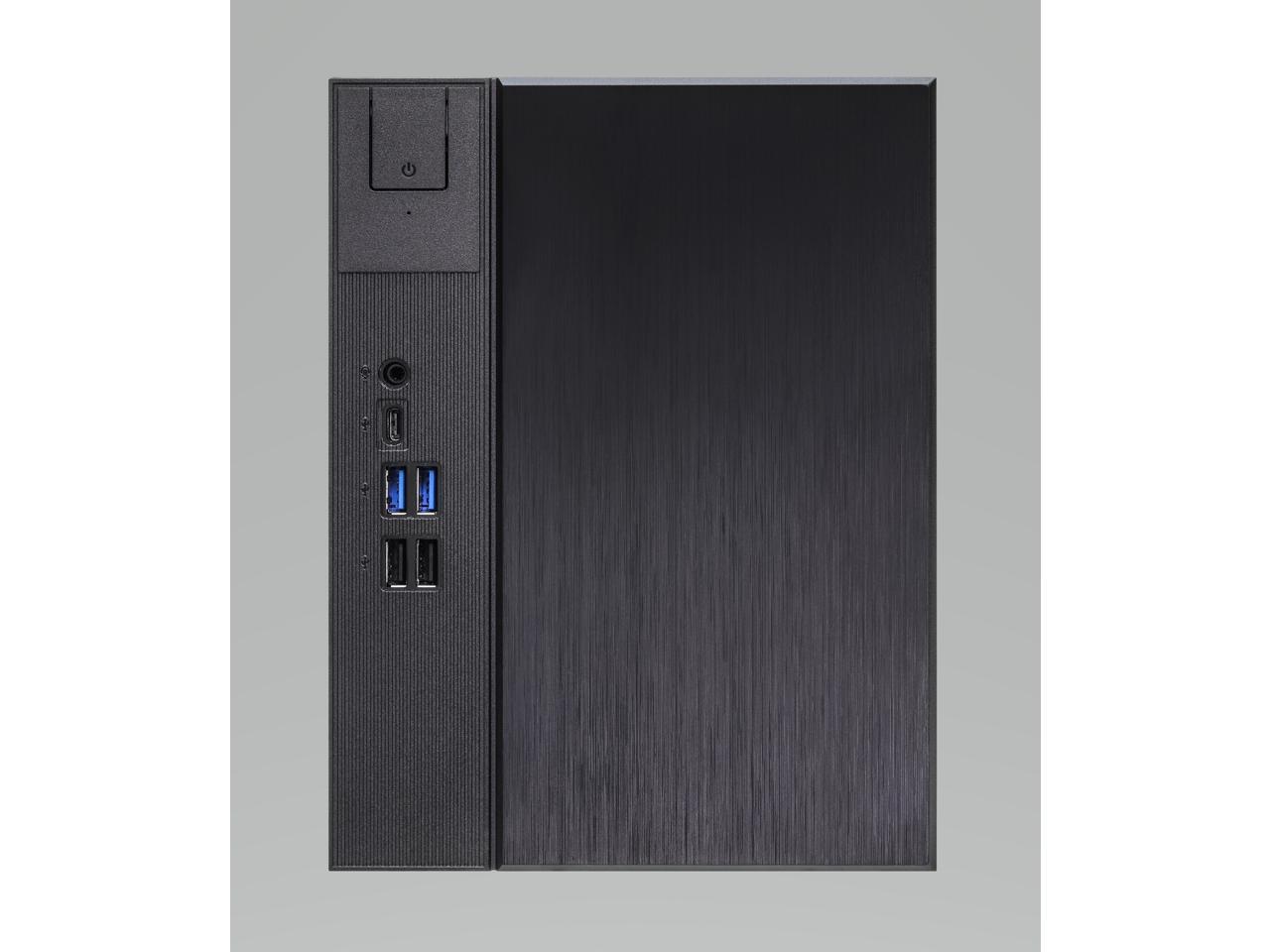

| Front USB | 1 x USB 3.2 Gen1 Type-C 2 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Type-A |
|---|---|
| Front Audio Ports | 1 x Headphone/Headset Jack |
| VGA | 1 x D-sub |
|---|---|
| HDMI | 1 |
| DisplayPort | 1 x DisplayPort |
| Rear USB | 2 x USB 2.0 2 x USB 3.2 Gen1 Type-A |
| RJ45 | 1 |
| Rear Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Other Rear Ports | Connectors: 1 x Chassis Intrusion Header 1 x CPU Fan Connector (4-pin) 1 x Chassis/Water Pump Fan Connectors (4-pin) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Header 1 x USB 2.0 Headers (Support 2 USB 2.0 ports) (Supports ESD Protection) |
| Power Supply | 500W power supply (80+ Bronze, peak 550W) |
|---|
| Dimensions | 8.59" x 6.61" x 6.61" (excl. Protrusions) 8.72" x 6.61" x 9.30" (incl. Protrusions) |
|---|

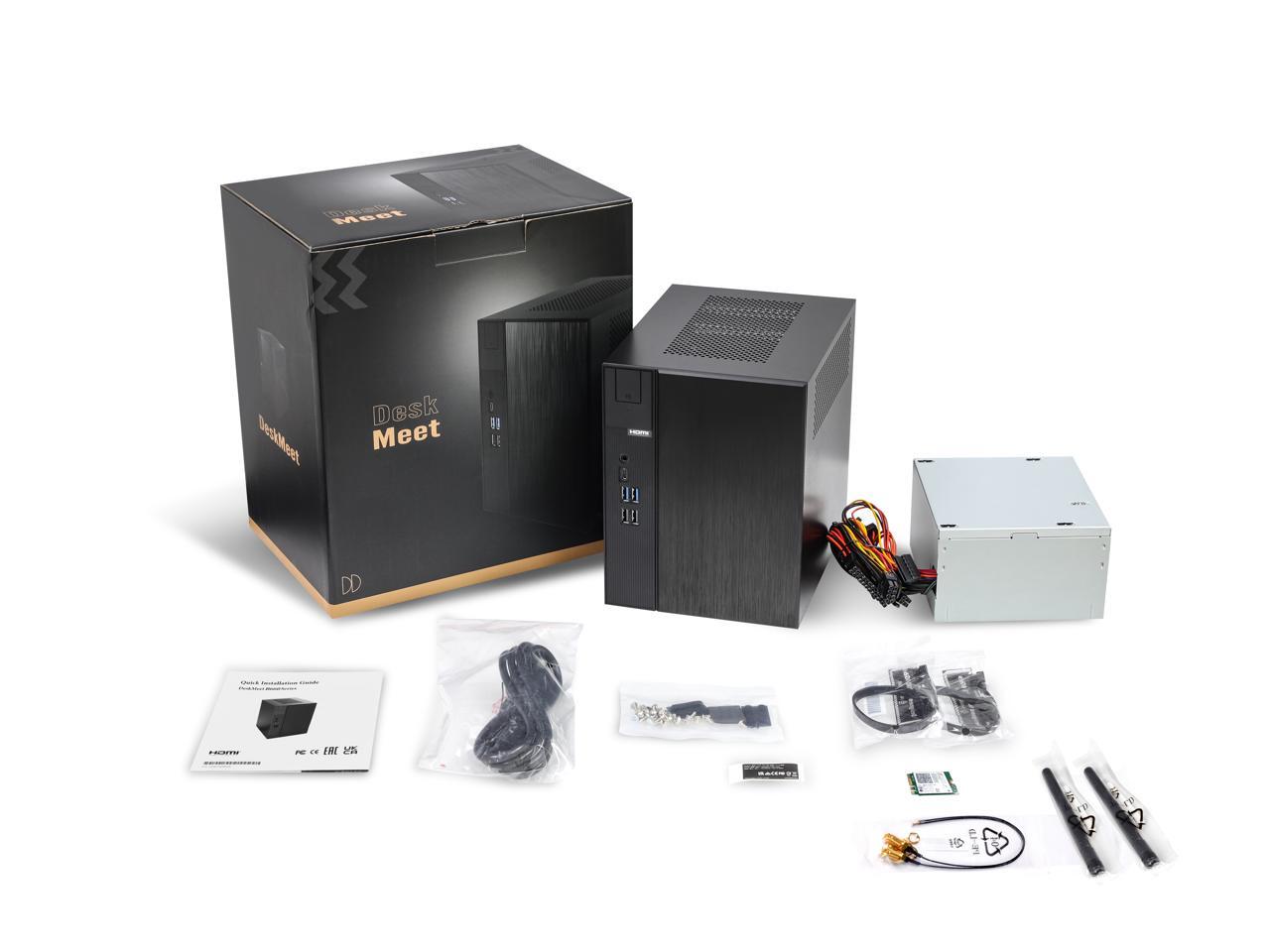

| Packaging | Accessories: Quick Installation Guide 2 x SATA Data Cables 1 x Screws Package 1 x Intel AC-3168 Wi-Fi Kit |
|---|
| Date First Available | July 08, 2022 |
|---|
