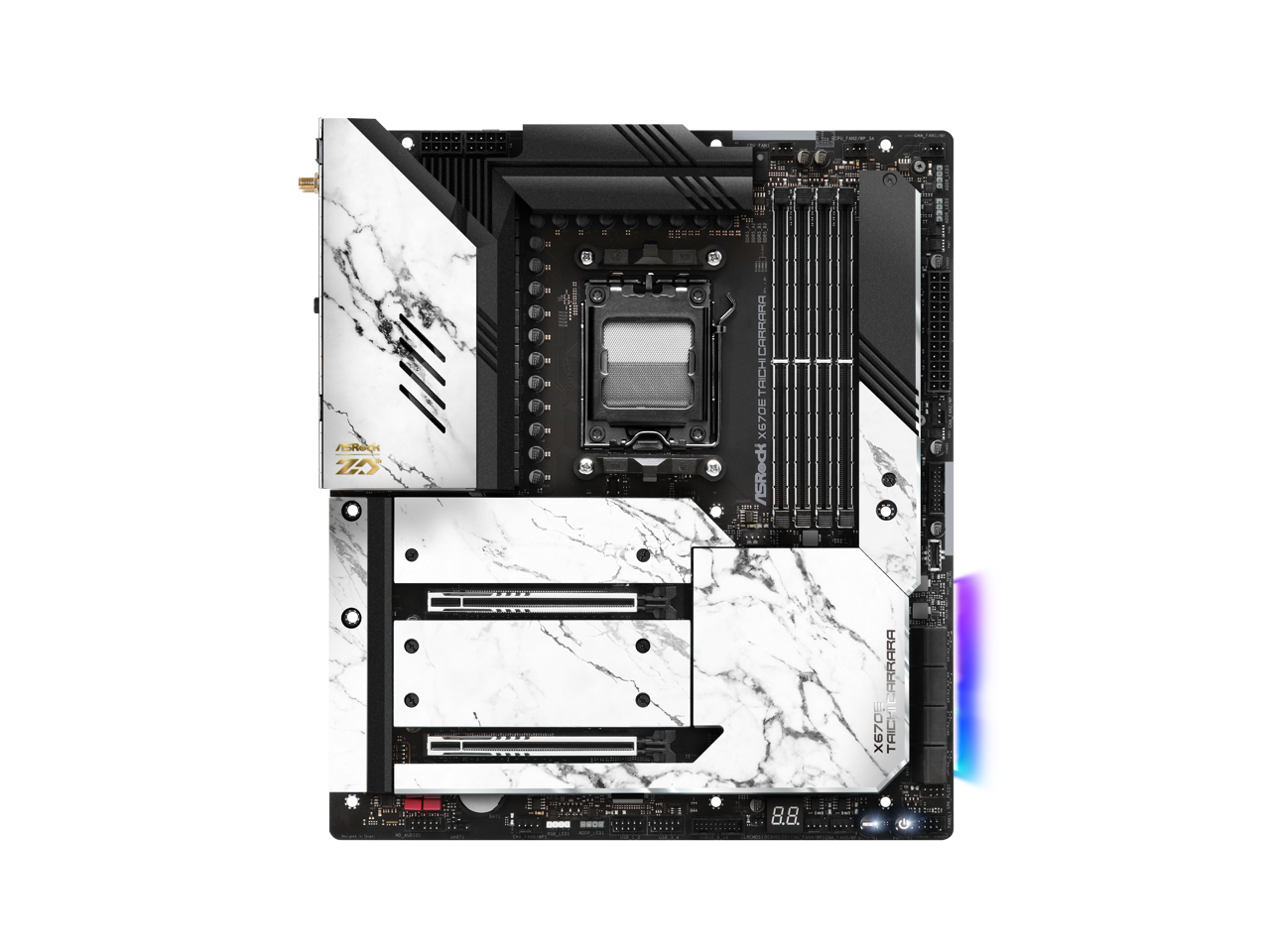

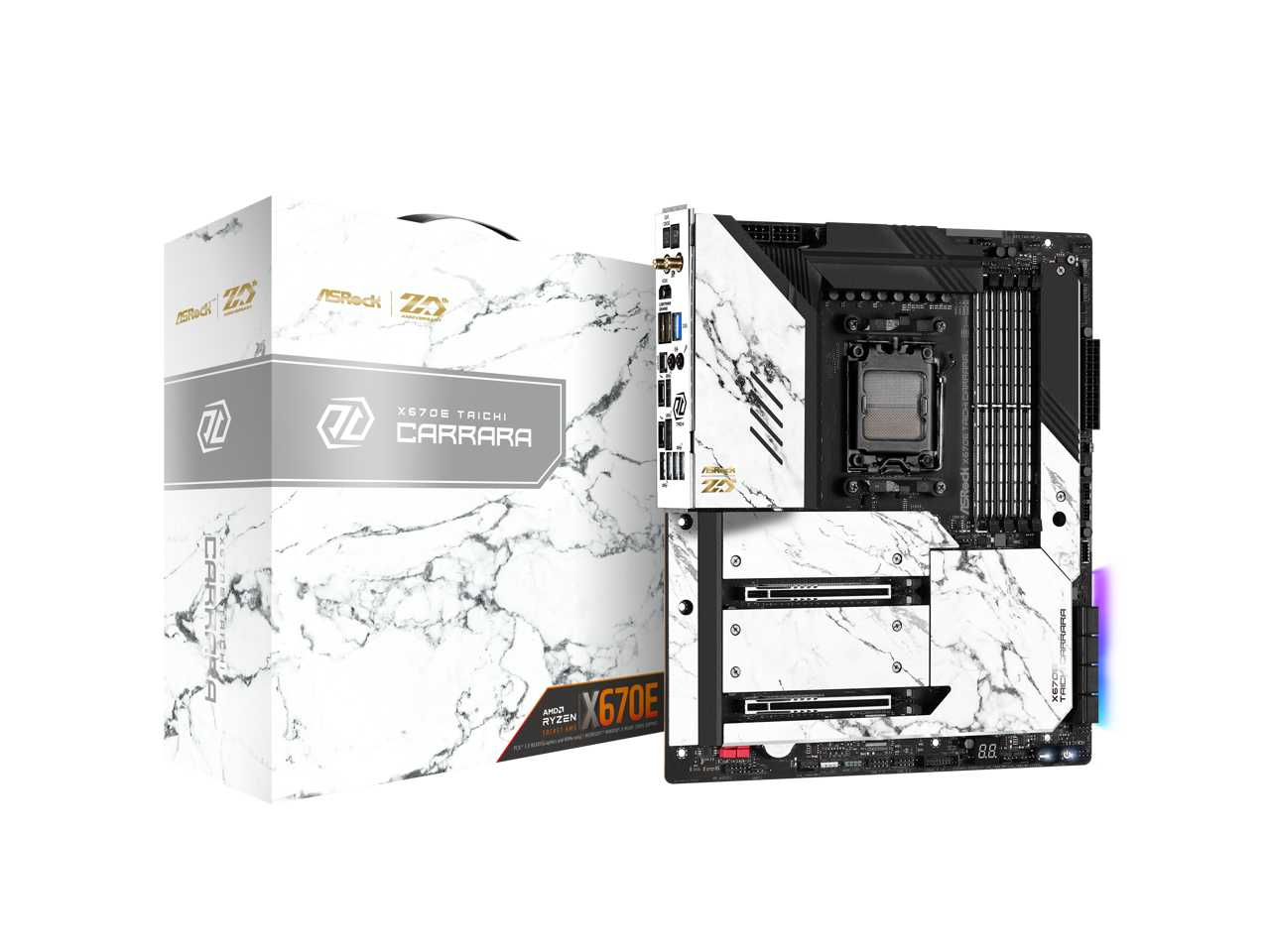

ASRock X670E Taichi Carrara AM5 EATX Mainboard. 4xDDR5 slots, 2 x PCIe 5.0 x16 Slots , AMD Cross Fire, Quad M.2 slots, 2.5GB LAN, WIFI-6E, 5,1 HD audio, HDMI 2.1, DP 1.4 ports, USB4 Type-C, 8 Layber PCB, 24+2+1 Phase Power Design, SPS.
See more "asrock taichi"
OUT OF STOCK.
- AMD X670E
- Supports AMD Ryzen 7000 Series Processors
- 24+2+1 Phase SPS Power Design
- 4 x DDR5 DIMMs, supports up to 6600+(OC)
- 5.1 CH HD Audio with Content Protection
- 2 PCIe 5.0 x16
Specs
Reviews
Learn more about the ASRock X670E Taichi Carrara
| Brand | ASRock |
|---|---|
| Model | X670E Taichi Carrara |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Supports AMD Ryzen 7000 Series Processors |
| Chipset | AMD X670E |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 6600+ (OC)* * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | 2 x PCI Express 5.0 x16 * Support x16 or x8/x8 modes. * Supports NVMe SSD as boot disks. * Actual support may vary by CPU. |
|---|---|
| Other Slots | 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| SATA 6Gb/s | 8 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* * Supports NVMe SSD as boot disks. * Supports ASRock U.2 Kit. ** If M2_2 is occupied by a SATA-type M.2 device, SATA3_A1 will be disabled. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Audio Chipset | Realtek ALC4082 |
|---|---|
| Audio Channels | 5.1 Channels |
| LAN Chipset | Killer E3100G |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | 802.11ax Wi-Fi 6E Module Supports IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth | Yes |
| Back I/O Ports | 2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB4 Type-C Ports (40 Gb/s)* 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (USB32_12 are Lightning Gaming Ports. USB32_3 supports Ultra USB Power.) 3 x USB 3.2 Gen1 Ports 1 x RJ-45 LAN Port 1 x Clear CMOS Button 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging. |
|---|
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
|---|---|
| Other Connectors | 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED * Supports in total up to 12V/3A, 36W LED Strip. ** Support in total up to 5V/3A, 15W LED Strip. *** CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP_3A supports the fan power up to 3A (36W). ***** CHA_FAN1~6/WP support the fan power up to 2A (24W). ***** CPU_FAN2/WP_3A and CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use |
| Form Factor | Extended ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 10.5" |
| Power Pin | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| Windows 11 | Supported |
|---|
| Features | Unique Feature: Superb Productivity - PCIe Gen5 (Graphics, M.2) - 12CM Carrara Edition Cooling FAN - Blazing M.2 Gen5 Fan Heatsink - Dual Channel DDR5 - USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability - Ultra Low-Loss PCB - 24+2+1 Power Phase, 105A SPS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Gaming - Killer 2.5G LAN, Killer 802.11ax Wi-Fi 6E Module - Killer DoubleShotTM Pro - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer BIOS Feature: - 256Mb AMI UEFI Legal BIOS with GUI support Software and UEFI: Software - ASRock Motherboard Utility (A-Tuning) - Killer Control Center - ASRock Polychrome SYNC * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash OS: - Microsoft Windows 11 64-bit Certifications: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|
| Package Contents | Accessories: - 1 x User Manual - 4 x SATA Data Cables - 1 x Wireless Dongle USB Bracket - 1 x Blazing M.2 Gen5 Fan Heatsink - 1 x 12CM Carrara Edition Cooling FAN - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 4 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket |
|---|
| Date First Available | September 27, 2022 |
|---|
