Fanless Industrial PC, Mini Computer, IPC, I3 6100T, HUNSN IX04, VGA, DP, HDMI, 6 x COM, 3 x LAN, PCIE X16 Slot, PCI Slot, DC Phoenix, 9 to 36V, Barebone, NO RAM, NO Storage, NO System
- Powered by intel core i3 6100t processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system

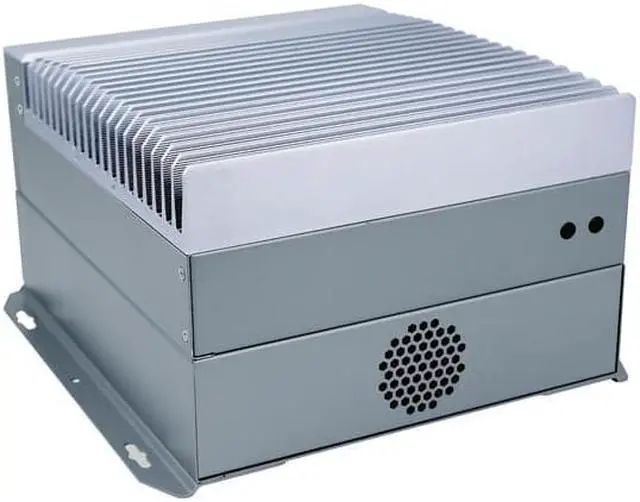

- Fanless passive cooling design, silent solution thats ultra energy-efficient
- HUNSN IX04 designed with sw, vga, dp, hdmi, 6 x com (com1,com2 rs232/422/485 optional), ps/2, 3 x lan, 8 x usb3.0, mic, 2 x speaker, 2 x expansion slot, dc phoenix connector, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, IPC type with mounting earsSize at 210 x 240 x 138mm, 4.7kgs, 12v 10a power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance, very powerful industrial comptuer
+
+
Overview
Specs
Reviews
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN IX04
Material: Aluminum
Chipset: Intel Q170
CPU: Intel® Core i3-6100T Processor 3M Cache, 3.20 GHz
Memory: 2 x SO DIMM DDR4-1866/2133, MAX. 64GB RAM
Storage: 1 x mSata SSD, 2 x 2.5 inch SATA SSD/HDD support RAID0/1
Network: 2 x Intel I211-AT, 1 x Intel I219-LM 1000M LAN support Vpro Technology
Expansion 1: 1 x Mini PCIE for WiFi/4G, with sim slot, 1 x Mini PCIE for mSATA/4G, with sim slot
Expansion 2: PCIE X16 slot, PCI slot, max length of expansion card: 210mm
WiFi: 802.11ac 2.4Ghz and 5Ghz
Bluetooth: 4.0/4.2

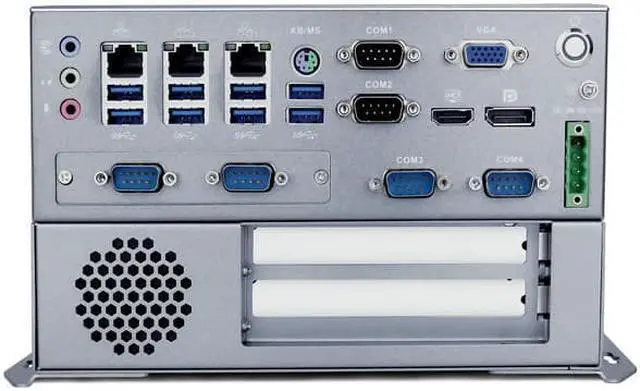

I/0 Port: SW, VGA, DP, HDMI, 6 x COM (COM1,COM2 RS232/422/485 Optional),PS/2, 3 x LAN, 8 x USB3.0, Mic, 2 x Speaker, 2 x Expansion Slot, DC Phoenix Connector
Input Voltage: DC 936V wide voltage Input, support positive pole and negative electrode connect reversely protection
Power Supply: DC100-240V AC/50-60Hz, DC 12V10A
Operating Temperature: 0°C~50°C Commercial HDD, -20°C~60°C Industrial SSD, surface air flow
Working Humidity: 5%~95% (non-condensing)
Size: 210 x 240 x 138mm
Weight: 4.7kgs
Consumption: 35W
Cooling system: Fanless
Function: Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level
Packing List: HUNSN IX04 industrial pc, bracket, power supply, power cord, WiFi antennas, warranty card
System Support: Windows 10/11, Linux Ubuntu
Model Number: HUNSN IX04
Material: Aluminum
Chipset: Intel Q170
CPU: Intel® Core i3-6100T Processor 3M Cache, 3.20 GHz
Memory: 2 x SO DIMM DDR4-1866/2133, MAX. 64GB RAM
Storage: 1 x mSata SSD, 2 x 2.5 inch SATA SSD/HDD support RAID0/1
Network: 2 x Intel I211-AT, 1 x Intel I219-LM 1000M LAN support Vpro Technology
Expansion 1: 1 x Mini PCIE for WiFi/4G, with sim slot, 1 x Mini PCIE for mSATA/4G, with sim slot
Expansion 2: PCIE X16 slot, PCI slot, max length of expansion card: 210mm
WiFi: 802.11ac 2.4Ghz and 5Ghz
Bluetooth: 4.0/4.2
I/0 Port: SW, VGA, DP, HDMI, 6 x COM (COM1,COM2 RS232/422/485 Optional),PS/2, 3 x LAN, 8 x USB3.0, Mic, 2 x Speaker, 2 x Expansion Slot, DC Phoenix Connector
Input Voltage: DC 936V wide voltage Input, support positive pole and negative electrode connect reversely protection
Power Supply: DC100-240V AC/50-60Hz, DC 12V10A
Operating Temperature: 0°C~50°C Commercial HDD, -20°C~60°C Industrial SSD, surface air flow
Working Humidity: 5%~95% (non-condensing)
Size: 210 x 240 x 138mm
Weight: 4.7kgs
Consumption: 35W
Cooling system: Fanless
Function: Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level
Packing List: HUNSN IX04 industrial pc, bracket, power supply, power cord, WiFi antennas, warranty card
System Support: Windows 10/11, Linux Ubuntu
