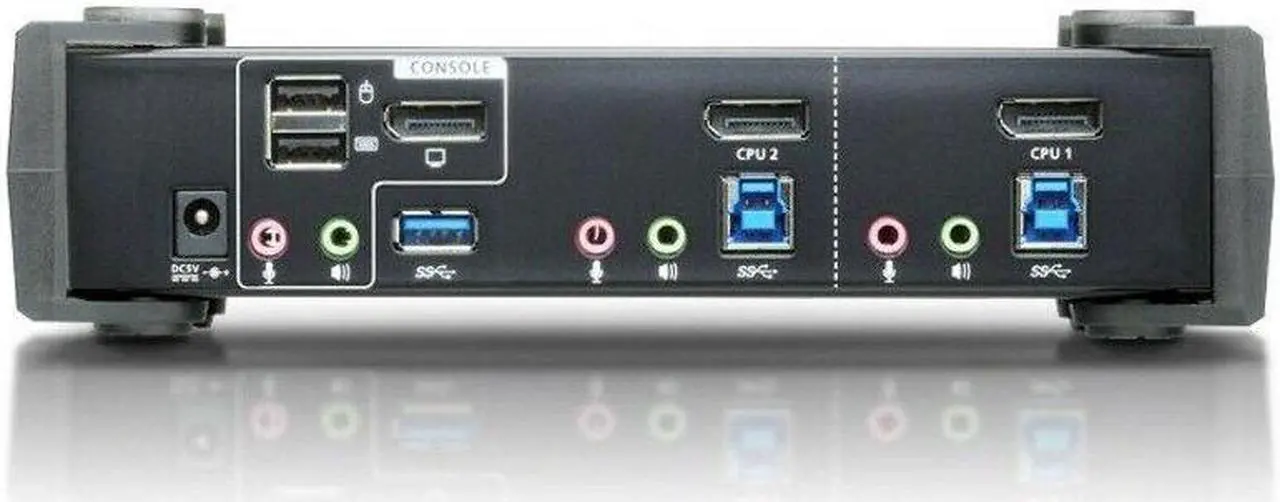

2 x USB3.1 Gen1 Type B Female (Blue) 2 x DisplayPort Female (Black) 2 x Mini Stereo Jack Female (Green) 2 x Mini Stereo Jack Female (Pink)
Console Connectors
2 x USB Type A Female (Black) 1 x DisplayPort Female (Black) 2 x Mini Stereo Jack Female (Green; 1 x front, 1 x rear) 2 x Mini Stereo Jack Female (Pink; 1 x front, 1 x rear)
Video Resolution
4096 x 2160 @ 60Hz
PC Selection
Hotkey, Pushbutton, Mouse
AutoScan Interval
1 - 99 Seconds (Default: 5 sec.)
LED Indicators
On Line /Selected: 2 (Orange) USB Link: 2 (Green)
Environmental
Temperature
0 to 50 degree C
Humidity
0% to 80%,Non-Condensing
Features
Power Features
Power: 1 x DC Jack Power Consumption: DC 5.0V; 3.3W
USB Features
2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)
Features

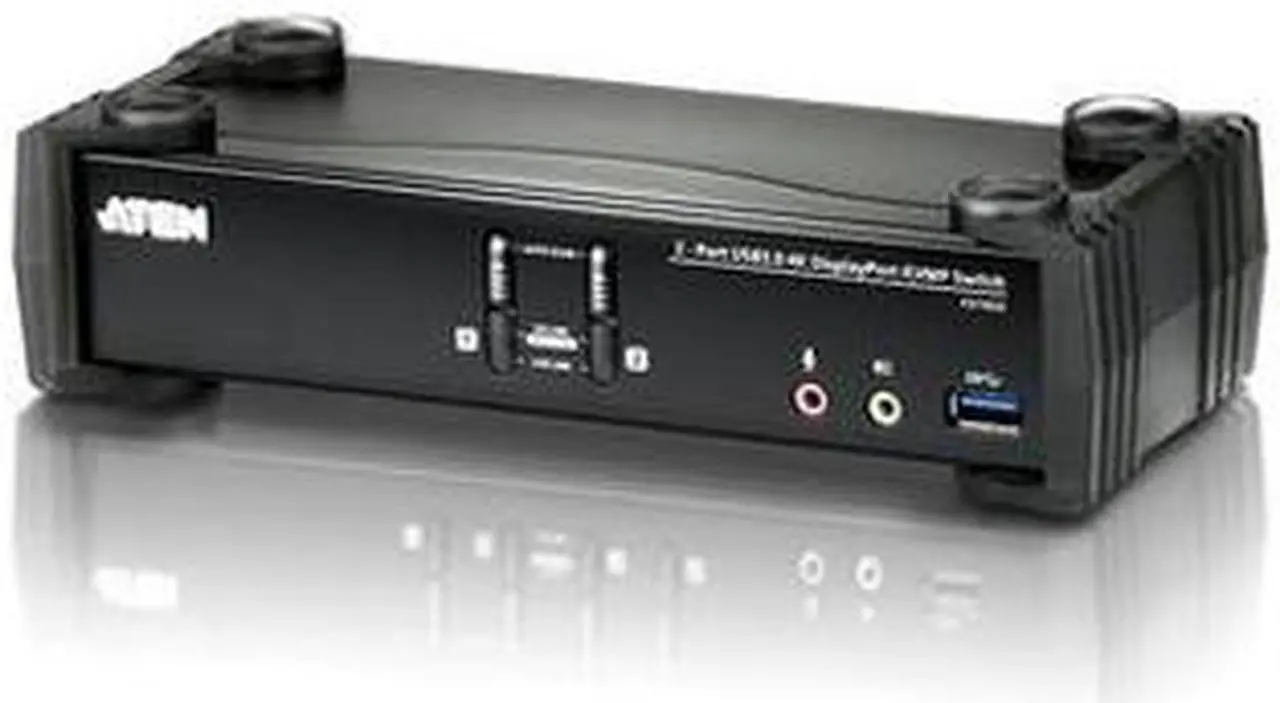

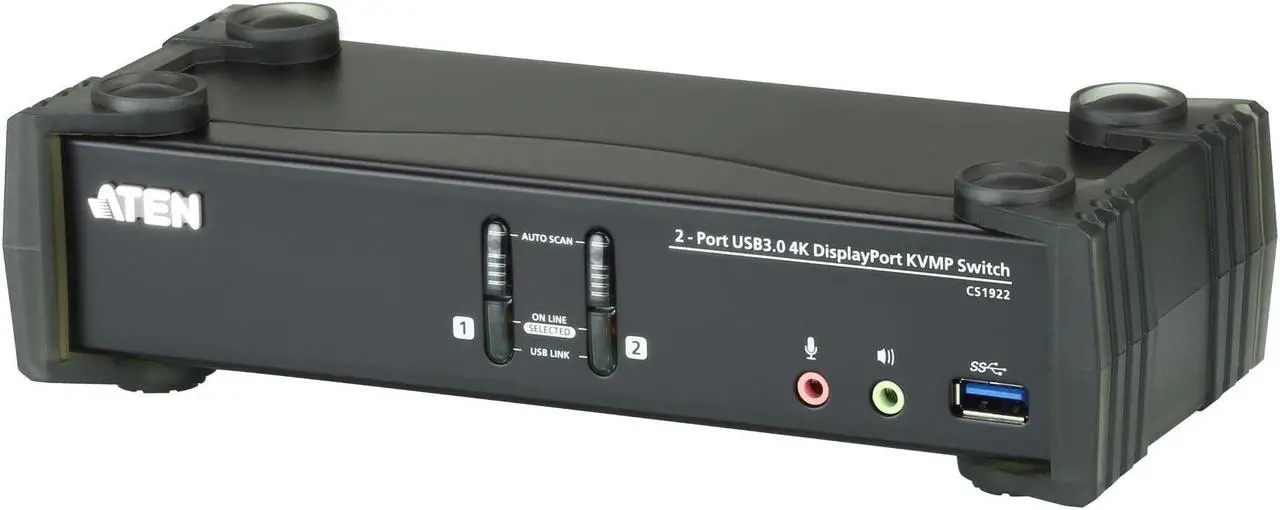

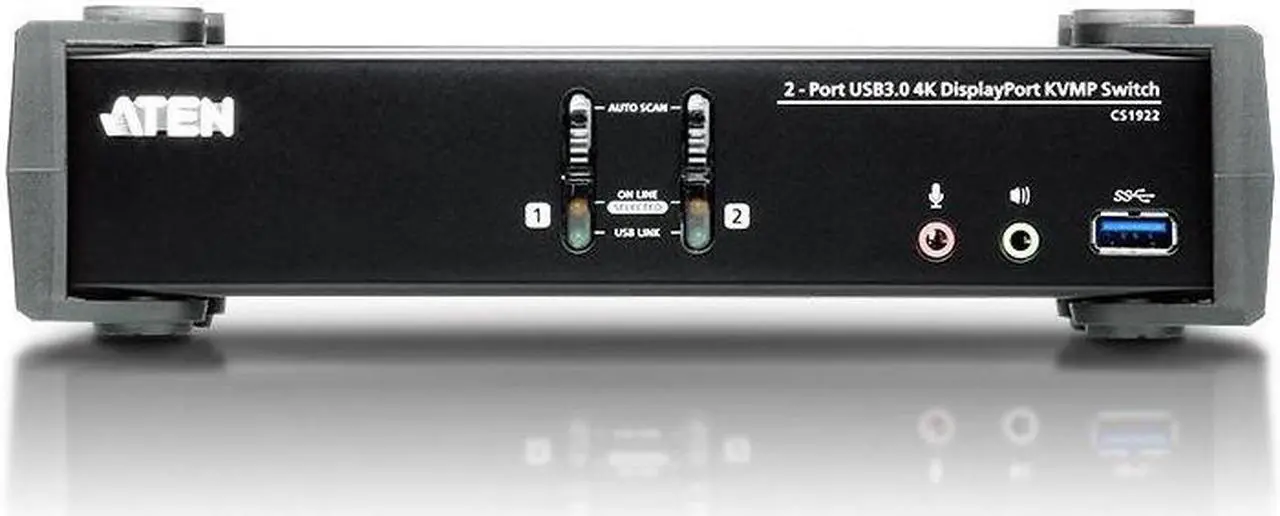

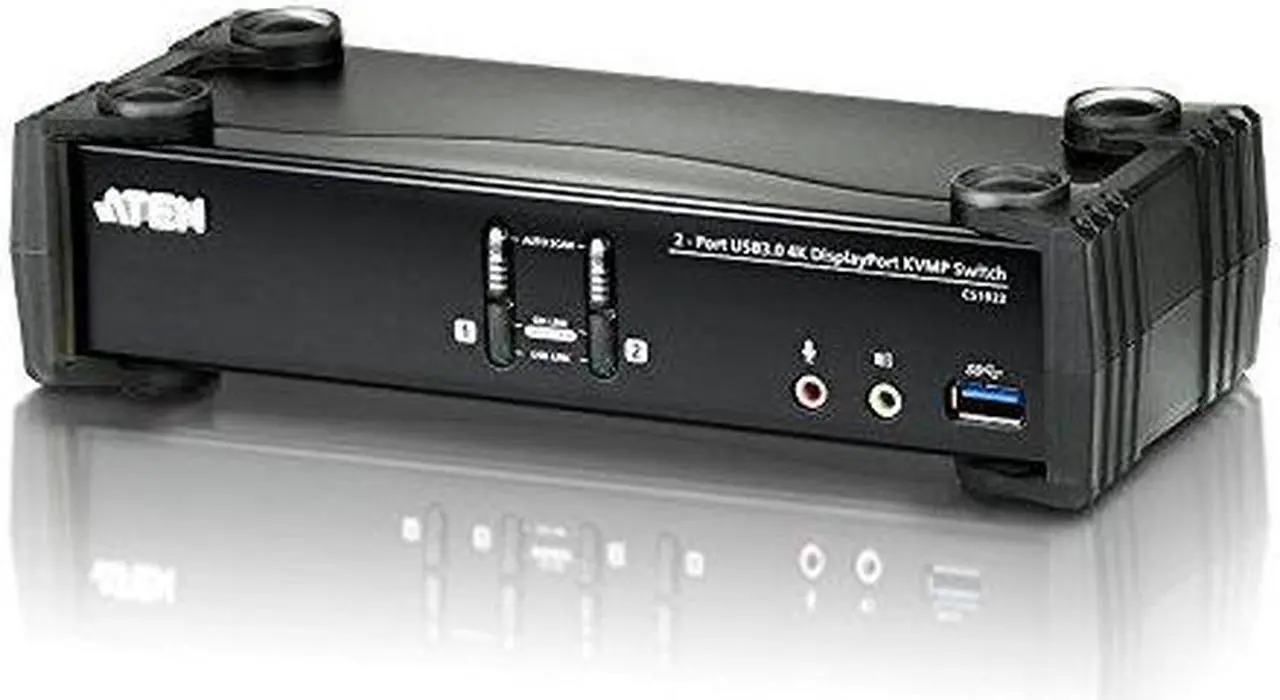

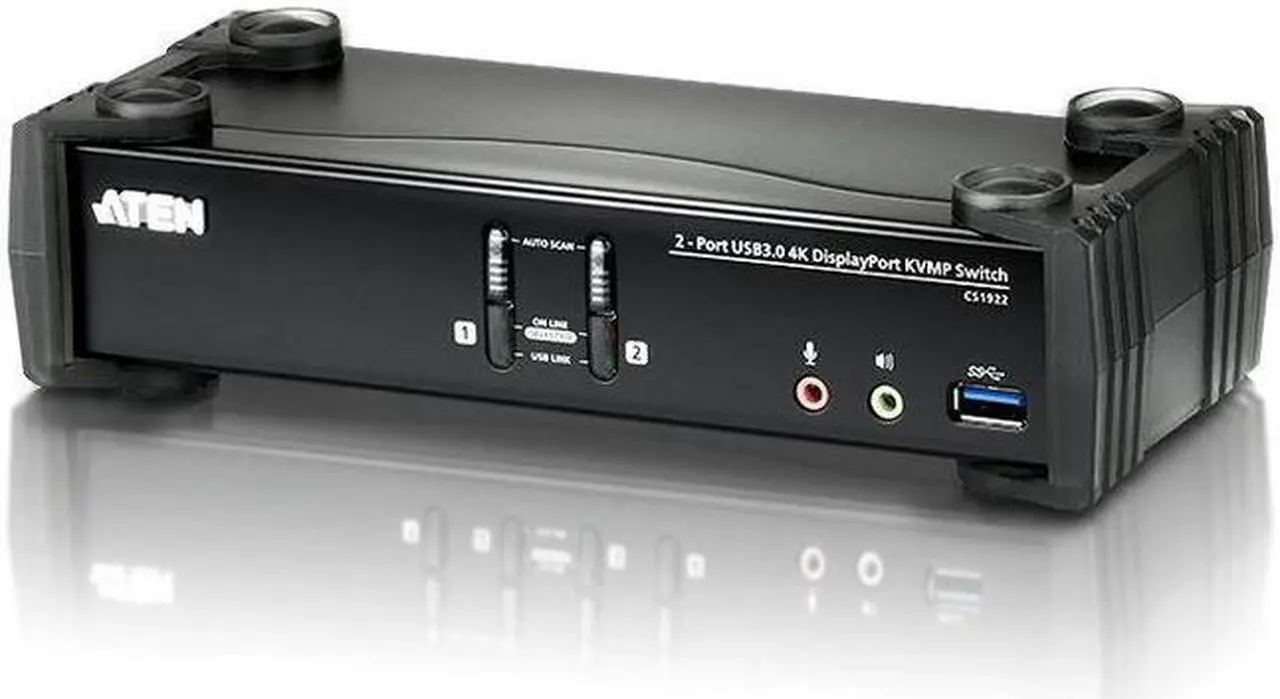

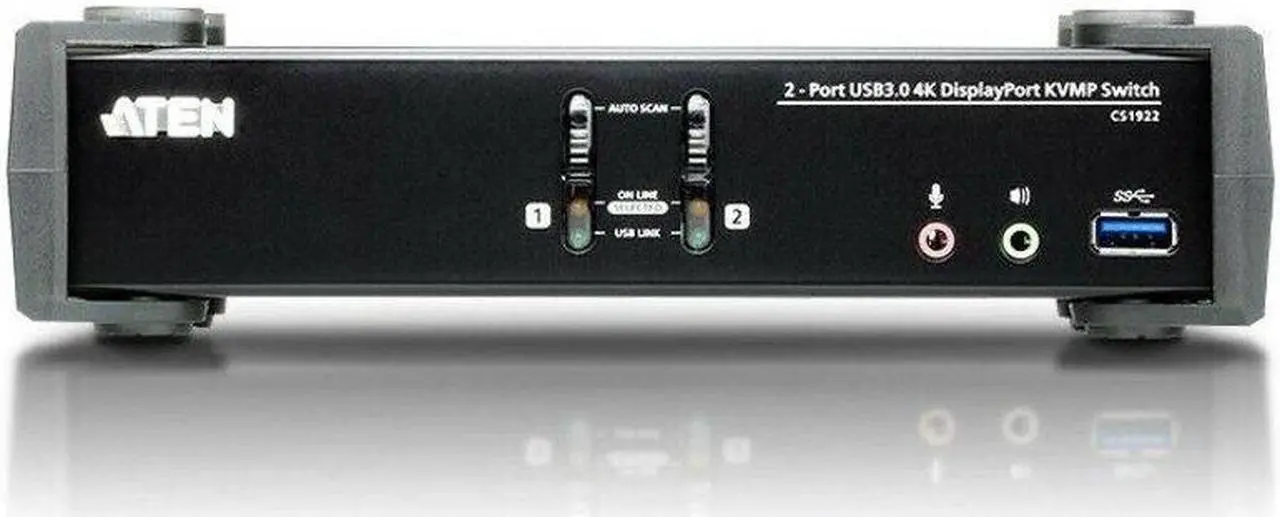

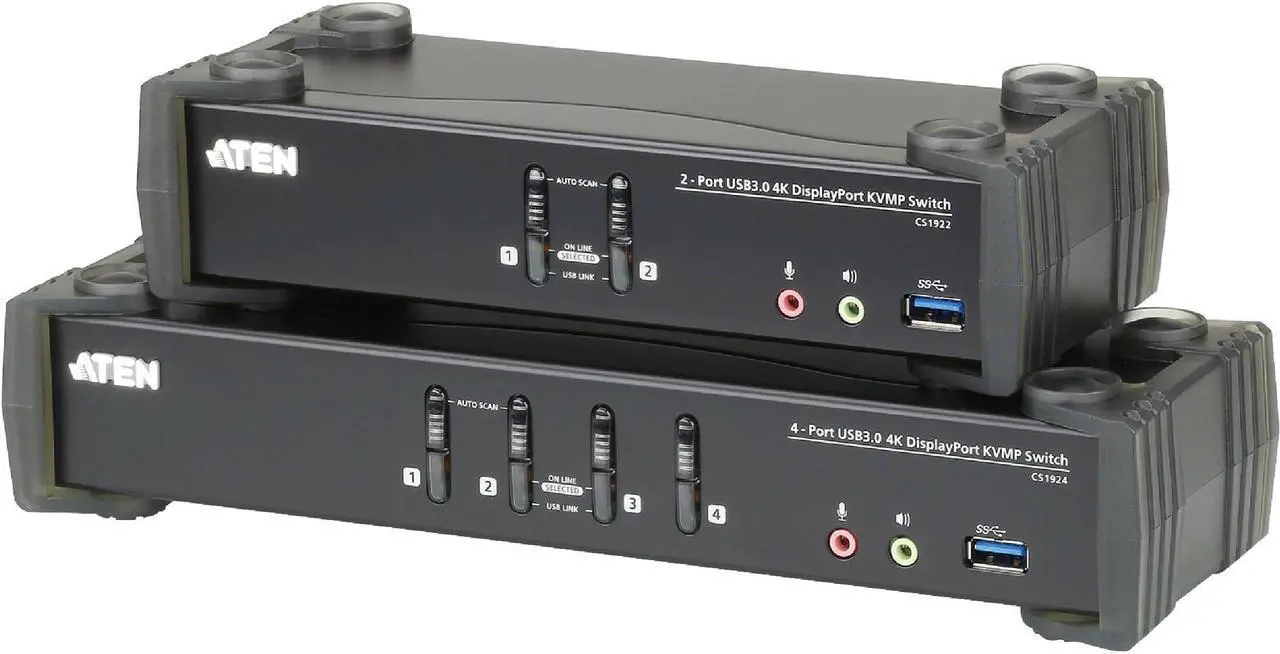

2-port DisplayPort KVMP Switch with USB 3.1 Gen1 hub and 2.1 surround sound audio One USB console controls 2 computers and 2 USB peripherals Computer selection via front panel pushbuttons, hotkeys and mouse Independent switching of KVM, USB, and Audio focus Superior video quality - 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz) 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates DisplayPort 1.2 compliant, HDCP compliant Supports HD audio through DisplayPort Full bass response for high-quality 2.1 channel surround sound systems Power On Detection - if a computer is powered off, the CS1922 automatically switches to the next powered-on computer Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector Dual-Mode DisplayPort technology (DP++) supports HDMI and DVI signals via an externally powered DisplayPort-to-HDMI/DVI DP++ adapter Hot pluggable - add or remove computers without powering down the switch Keyboard emulation/bypass feature supports most gaming keyboard Mouse emulation/bypass feature supports most mouse drivers and multifunction mice Multi-platform support - Windows, Mac and Linux Multilingual keyboard mapping supports English, Japanese, French and German keyboards Mac keyboard support and emulation Auto Scan Mode for monitoring all computers Firmware upgradeable
Dimensions & Weight
Dimensions
2.19" x 3.46" x 8.27"
Weight
1.61 lbs.
Package Contents
Package Contents
1 x 2-Port USB 3.0 4K DisplayPort KVMP Switch 2 x DisplayPort Cables 2 x USB 3.0 Cables 4 x Audio Cables 1 x Power Adapter 1 x User Instructions
