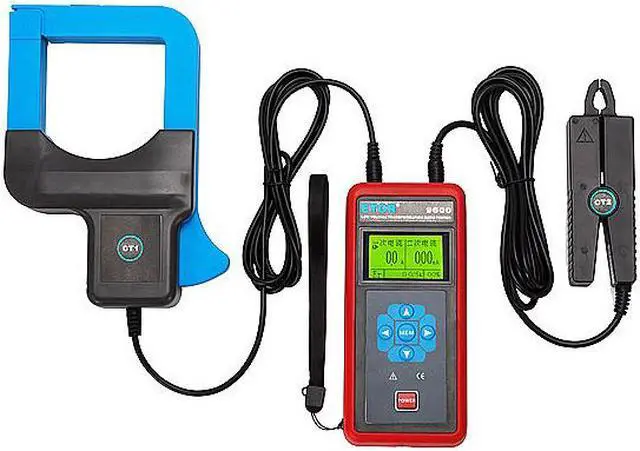

ETCR9600 LV Transducer Transformation Ratio Tester Data Storage 3000 Groups

ETCR9600 LV Transducer Transformation Ratio Tester Data Storage 3000 Groups
Notice:
  The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
Reference Condition
Influence Quantity Base Condition Working Condition
Environment Terperature 23?±5? -15?~50?
Environment Humidity 40%~60% <80%
Sine Wave Distortion =1% =3%
Signal Frequency 50HZ±5HZ 45HZ~65HZ
Angel Error Test Primary Current Clamp 60A±1A 0.0A±800A
Secondary Current Clamp 1A±0.2A 10mA~5A
External Electric & magnetic Field Should avoid
The tested wire position The tested wire is at the center of the clamp
Technical Parameter
Function Description
 Fuction  Current, transformation ratio, ratio error, angle error test, phase and polarity adjustment of the low voltage primary and secondary circuit of the current transducer
 Primary Current Clamp Test Accuracy   Range:0.0A~800A;Resolution:0.1A; Accuracy:±0.5%FS( 23?±3?,below 70% RH,the detected conductor is in the center position of the clamp);
 Secondary Current Clamp Test Accuracy  Range:0.00mA~5A;Resolution:0.01mA;Accuracy:±0.5%FS
 Transformation Ratio Measurement Range  1~500
 Transformation Ratio Resolution  0.1
 Angle Error Test Accuracy  Range:0~360°;Accuracy:±3°
 Automatic Shut Down  15 minutes after boot up, the meter shuts down automatically without any operation
 Battery Specification  Alkaline batteries (1.5V AAA × 4)
 Battery Voltage  When battery voltage is lower than 4.8V, low battery voltage symbol  will display and remind to replace battery.
 Overflow Display  Exceed measure range overflow function: “OLA” symbol display
 Sampling Rate  3 times/second
 Data Storage  3000 groups
 Primary Current  Clamp Size  Jaw Size:f80mm×80mm; Out Shape Size: 76mm×255mm×31mm
 Secondary Current Clamp Size  Jaw Size: f8mm; Out Shape Size: 137mm×40mm×19.5mm
 Host Dimension  75mm×170mm×30mm
 Current Clamp Cable Length  2M
 Instrument Weight  1000g
 Insulation Strength  AC3700V/rms between the core and shell

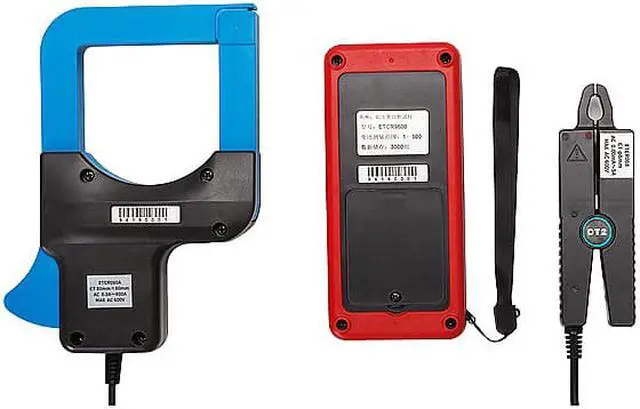

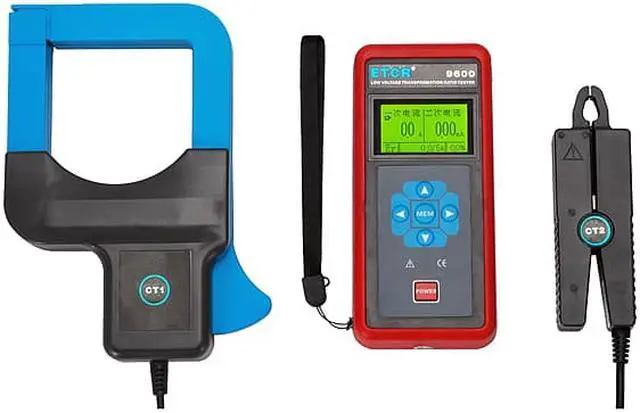

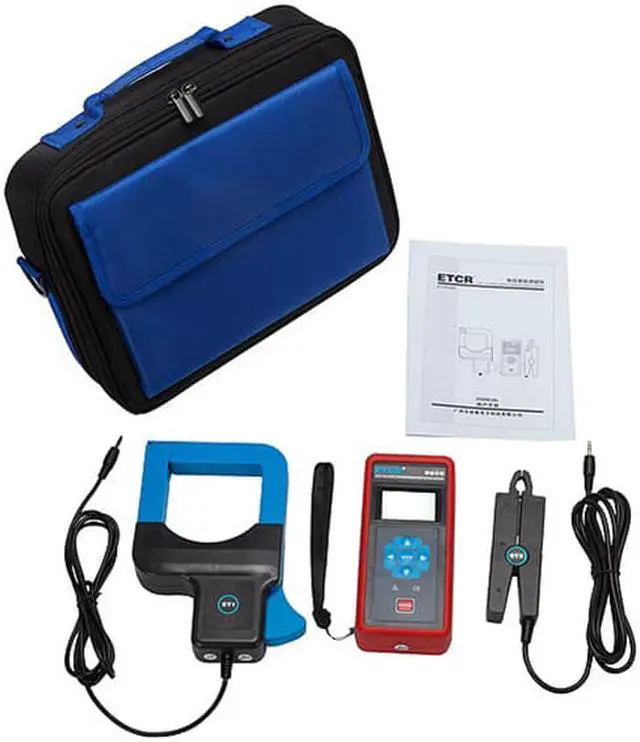

 Host  1 PCS
 Primary Current Clamp  1 PCS
 Secondary Current Clamp  1 PCS
 Tool bag  1 PCS
 Manual  1 PCS
 Certificate  1 PCS
 Warranty Card  1 PCS
