Security | Network Security
IEEE 802.1x Guest VLAN RADIUS-based VLAN assignment via .1x MAC-based .1x RADIUS accounting Access Control Lists (ACLs): L2 / L3 / L4 ingress IP-based ACLs (IPv4 and IPv6) MAC-based ACLs TCP/UDP-based ACLs MAC lockdown MAC lockdown by the number of MACs Control MAC # Dynamic learned entries: 16,384 Control MAC # Static entries: 256 IEEE 802.1x RADIUS port access authentication Port-based security by locked MAC addresses Broadcast, multicast, unknown unicast storm control Protected ports DoS attacks prevention |
---|

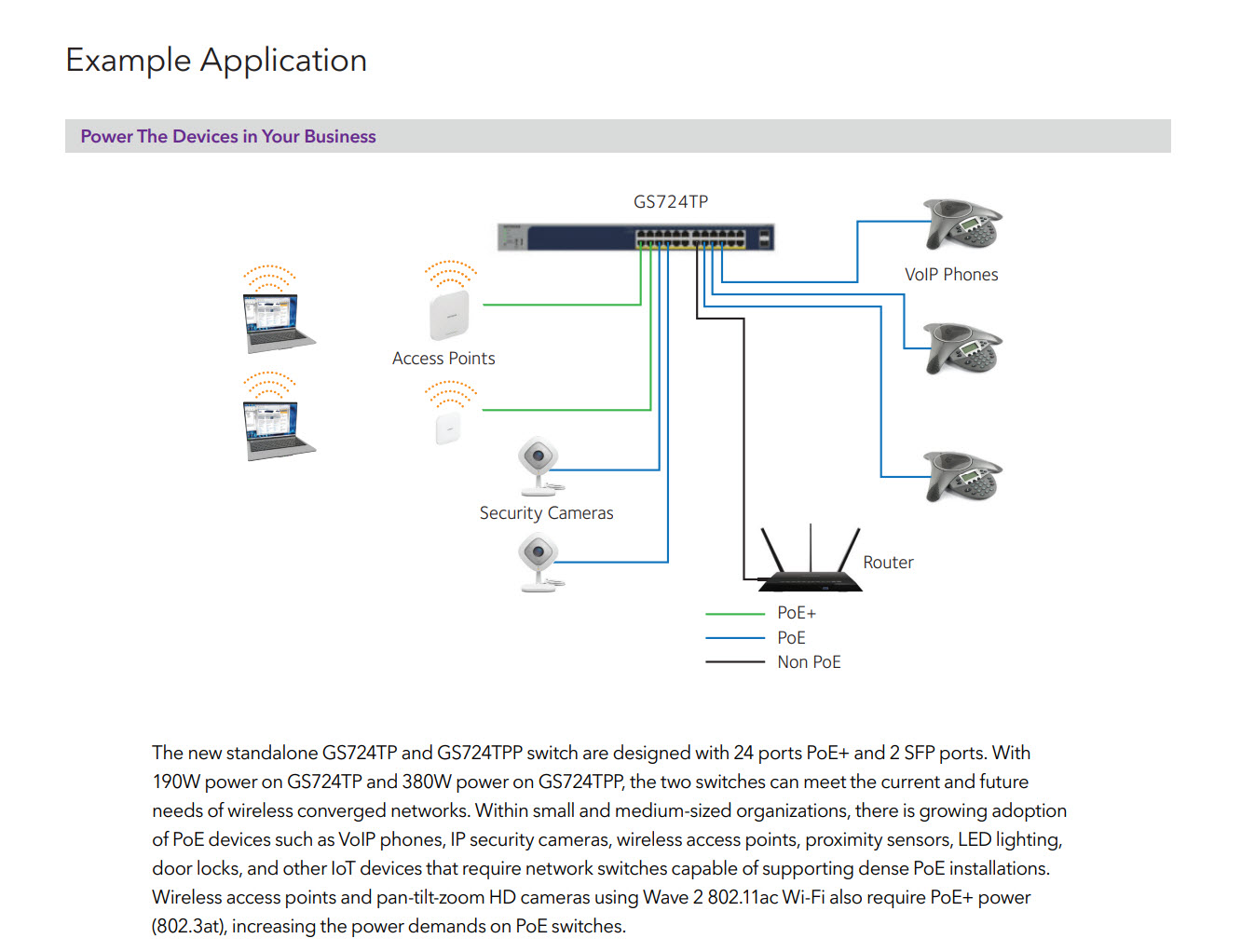

PoE | Yes |
---|
QoS | Port-based rate limiting: Yes egress Port-based QoS Support for IPv6 fields DiffServ QoS: Yes ingress IEEE 802.1p COS Destination MAC and IP IPv4 and IPv6 DSCP TCP/UDP-based Weighted Round Robin (WRR) Strict priority queue technology Auto-VoIP VLAN / Auto-Voice VLAN: Yes, manual or automatic assigment of VoIP phone traffic based on OUI bytes (default database and user-based OUIs) in the phone source MAC address to Voice VLAN associated with high priority QoS parameters |
---|
Layer | 4 |
---|
Layer 2 Features | L2 Services - VLANs IEEE 802.1Q VLAN tagging Management VLAN: Configurable
L2 Services - Availability Broadcast, multicast, unknown unicast storm control IEEE 802.3ad - LAGs (LACP) IEEE 802.3x (full duplex and flow control) IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol
L2 Services - Multicast Filtering IGMP snooping (v1, v2, and v3) IGMP snooping querier Block unknown multicast Multicast groups 512 |
---|
