49 inch 10 Points Infrared Touch Screen Overlay, Multipoint IR touch Frame , USB Free Driver, Easy Fix and Install, for Digital Signage Whiteboard Kiosks Interactive Application

  • 1- 49 inch 10 points interactive multi points touch screen overlay frame, not including glass;
  • 2- Anti-light interference,no drift even in the sunlight. Design for Kiosks, Digital Signage, Whiteboard, Exhibition and so on. Warranty is 3 years;
  • 3- Design for standard 49 inch monitor, you can check drawing on the left. S is the diagonal length of display active area;
  • 4- This item just be only touch frame for sale, it be with Installation Manual in package and guide you how to fix it. Installation is very simple and very easy;
  • 5- This Item is Free driver for Windows,Android and Linux. Support Mac iOS with HID driver, if you use this item on Mac iOS, please contact us and get the driver. About Android TV box, please inquiry TV box supplier if the box be with touch function before you order this item.
+
+
Overview
Specs
Reviews

BUSINESS FOCUS

We are the professional manufacturer and supplier of touch screen product whose with over ten years experience, including Infrared touch overlay, P-cap touch panel, touch monitor,touch AIO PC, touch kiosks. Industry sector cover Kiosks, Digital Signage, Interactive display and Whiteboard and so on. We can provide ODM/OEM service.

DETAIL SPEC

Product name: 49 inch interactive IR infrared touch scree frame overlay panel

Detection Method: Infrared rays

Detail size data

Display area: L1=1074.3mm, W1=608.2mm

Outside area: L3=1112.3mm,W3=646.2mm

Frame thickness: 9.4mm

Ratio: 16:9

Touch Points: 10 points

Object Touch Size: = Ø5mm

Touch Activation Force: Non Minimum activation force

Touch Durability: Over 60 millions for single touch

Touch Resolution: 32768*32768

Position Accuracy: 2mm

Fault Tolerance: Workable even 75% sensors are damaged

Frames per Second: Up to 450 fps

Touch Response Time: 8ms

Draw Response Time: 8ms

Altitude: 3,000m

Light Transmission: 100% without glass

Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Android

Need to install the HID driver in Mac OS(Does not support Smart TV Android system, Raspberry Pi)

(Does not support Smart TV Android system, Raspberry Pi)

Second-development Support: free SDK, support C/C++, C#, Java etc.

ElECTRICAL

Operating Voltage: DC 4.5V ~ DC 5.5V

Power Supply: Single USB Connection

Power Consumption: 1.0W (200mA at DC 5V)

ENVIRONMENT

?Operating Temperature: -20°C~70°C

Storage Temperature: -30°C~80°C

Operating Humidity: 10%~90%RH(Non-condensing)

Storage Humidity: 0~95%RH

Certification: FCC,CE,ROHS

Warranty: 3 year

deyowo logo
49 inch IR touch frame
Product description

1-This item is Deyowo 49 inch 10 points interactive infrared touch screen frame overlay, design and use for interactive board, touch LCD monitor, touch display TV. Touch Kiosks, Touch Digital Signage, Whiteboard, Exhibition and etc.

2-The out frame of Infrared Touch using alluminum material, product is strong and durabel, not including glass.

3-The infrared touch screen is anti-sunshine, there are no light interference, no drift even if it be uesed under the sunshine directly.

4-This item just only matching 49 inch display or monitor, we showed the detail dimension drawing on webpage, you can check if your display or monitor can match this item.

5-This item is only touch frame for sale which be without glass, the installation is very simple and very easy, we will provide Installation Manual.

6-The infrared touch screen is Free driver for Windows, Android and Linux. Support Mac iOS with HID driver, you can sent E-mail to us on Amazon and get Mac driver. Don't support Android TV box

drawing for 49 inch IR touch frame
Product drawing

1-This item just only matching 49 inch display or monitor, we showed the detail dimension drawing on webpage, you can check if your display or monitor can match this item.

2-This item is only touch frame for sale which be without glass, the installation is very simple and very easy, we will provide Installation Manual.

Product advantage
10 points touch
10 points touch

Support 10 points interactive touch, design and use for interactive board, touch LCD monitor, touch display TV. Touch Kiosks, Touch Digital Signage, Whiteboard, Exhibition and etc.

Anti light interference
Anti light interference

Anti light interference function, it can run well even if it is under sunshine.

OS support
OS support

1-Driver free for Windows7, Windows8, Windows10, Native Linux and Android OS.

2-Need to install the HID driver on Mac OS

3-Does not support Smart TV Android system, Raspberry Pi

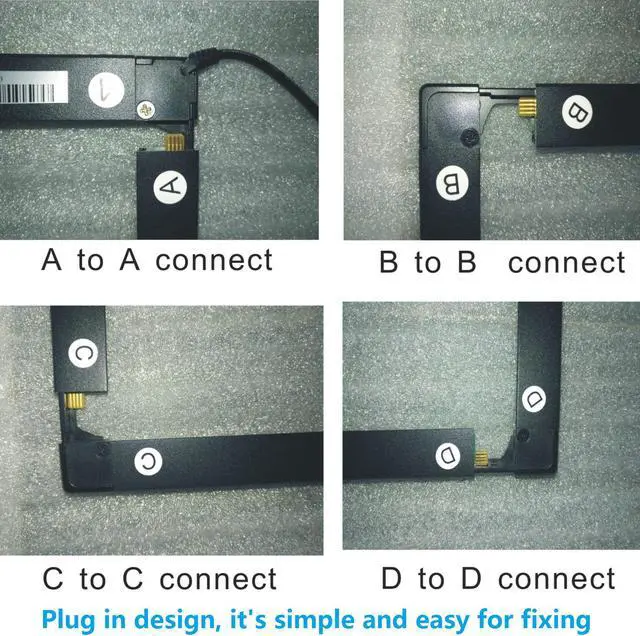

Interface port connecting
Interface port connecting

Slot design for four corner interface ports connecting, A to A, B to B, C to C and D to D. Easy and simple

Product specification
Product name interactive IR infrared touch scree frame overlay
Detection Method Infrared rays
Touch Activation Force Non Minimum activation force
Object Touch Size min Ø5mm
Touch Durability Over 60 millions for single touch
Touch Resolution 32768*32768
Position Accuracy 2mm
Fault Tolerance Workable even 75% sensors are damaged
Frames per Second Up to 450 fps
Touch Response Time 8ms
Draw Response Time 8ms
Altitude 3000m
Light Transmission 100% without glass
