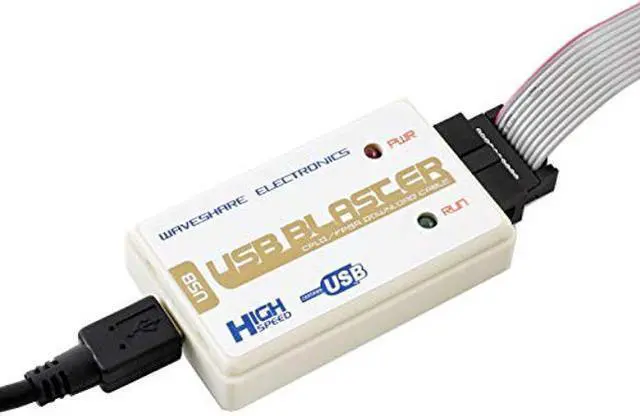

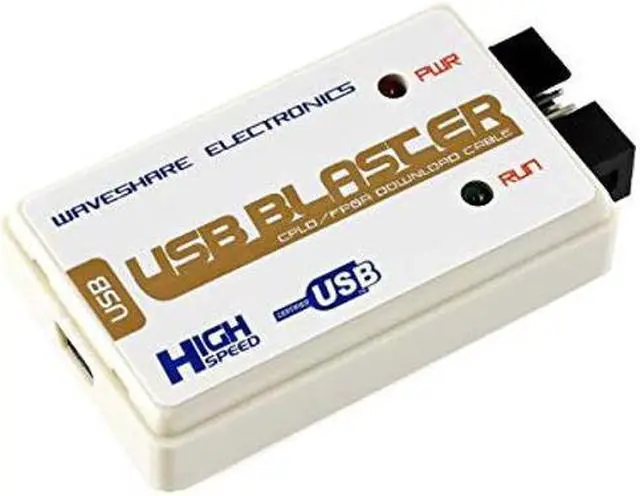

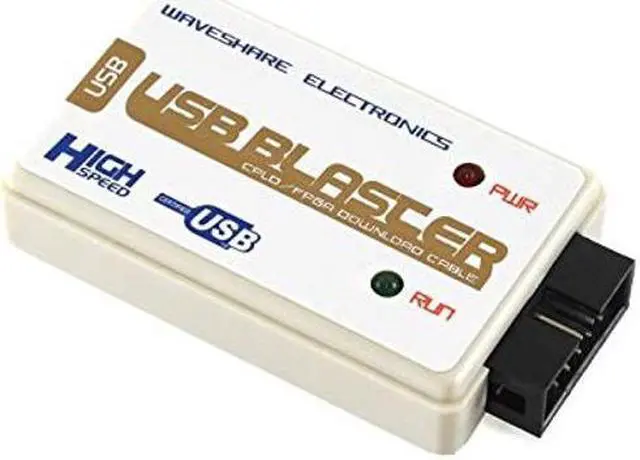

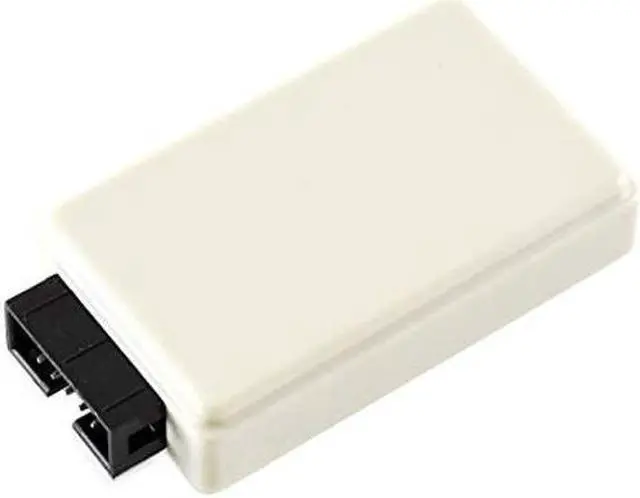

waveshare USB Blaster V2 Download Cable Programmers Debuggers Support ALTERA FPGA, CPLD,USB 2.0 to PC,JTAG, AS, PS to The Target Device
- The USB Blaster Download Cable interfaces a USB port on a host computer to an Altera FPGA mounted on a printed circuit board.
- The cable sends configuration data from the PC to a standard 10-pin header connected to the FPGA.
- You can use the USB Blaster cable to iteratively download configuration data to a system during prototyping or to program data into the system during production.
- It surpports most of the ALTERA FPGA/CPLD devices, Active Serial Configuration devices, Enhanced Configuration devices, and supports AS, PS, JTAG three download modes.
+
+
Overview
Specs
Reviews
Key Features
Performance
Compatible with ALTERA FPGA/CPLD devices, Active Serial Configuration devices, and Enhanced Configuration Devices.
Supports AS, PS, JTAG three download modes.
High-speed, stable, and internal FT245R+CPLD designed.
Supports 1.2 -5V programming voltage.
Supports SignalTap II embedded logic analyzer.
Supports Nios II of embedded processor communication and debugging.
Quartus II integrated development environment.
NIOS II IDE integrated development environment.
NIOS II EDS integrated development environment.
Supported Devices
CPLD: MAX3000, MAX7000A/B/S, MAX9000 and MAX II etc.
FPGA: Stratix, Stratix II, Cyclone, Cyclone II, CycloneIII, ACEX 1K, APEX 20K and FLEX 10K etc.
Active Serial Configuration Devices including: EPCS1, EPCS4, EPCS16 etc.
Enhanced Configuration Devices including: EPC1, EPC4 etc.
Other Features
High download speed: FT245+CPLD+244, close to the USB Blaster.
Download speed 1-3 times faster than other schemes, such as 68013 or C8051F.
Connects to PC
Computer connection via USB 2.0 interface.
Connects to target board
Target board connection via JTAG, AS, PS interfaces. The figure 1, 2, and 3 below shows the header pinouts of different interfaces. LED Status
Red LED: Power indicator
Green LED: Signal indicator, the LED is on while downloading/programming
Development Resources
Wiki: www. waveshare. com/wiki/USB_Blaster_V2?
Package Content

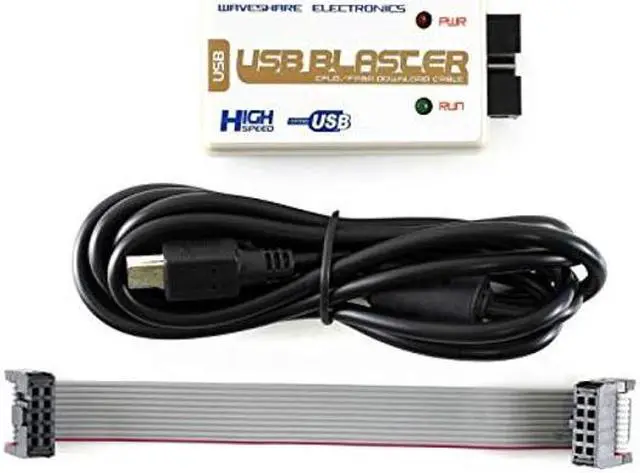

USB Blaster V2 x 1
USB Cable x 1
Performance
Compatible with ALTERA FPGA/CPLD devices, Active Serial Configuration devices, and Enhanced Configuration Devices.
Supports AS, PS, JTAG three download modes.
High-speed, stable, and internal FT245R+CPLD designed.
Supports 1.2 -5V programming voltage.
Supports SignalTap II embedded logic analyzer.
Supports Nios II of embedded processor communication and debugging.
Quartus II integrated development environment.
NIOS II IDE integrated development environment.
NIOS II EDS integrated development environment.
Supported Devices
CPLD: MAX3000, MAX7000A/B/S, MAX9000 and MAX II etc.
FPGA: Stratix, Stratix II, Cyclone, Cyclone II, CycloneIII, ACEX 1K, APEX 20K and FLEX 10K etc.
Active Serial Configuration Devices including: EPCS1, EPCS4, EPCS16 etc.
Enhanced Configuration Devices including: EPC1, EPC4 etc.
Other Features
High download speed: FT245+CPLD+244, close to the USB Blaster.
Download speed 1-3 times faster than other schemes, such as 68013 or C8051F.
Connects to PC
Computer connection via USB 2.0 interface.
Connects to target board
Target board connection via JTAG, AS, PS interfaces. The figure 1, 2, and 3 below shows the header pinouts of different interfaces. LED Status
Red LED: Power indicator
Green LED: Signal indicator, the LED is on while downloading/programming
Development Resources
Wiki: www. waveshare. com/wiki/USB_Blaster_V2?
Package Content
USB Blaster V2 x 1
USB Cable x 1
