SUPERMICRO MBD-X11SSA-F-O ATX Server Motherboard LGA 1151 Intel C236
- Intel Xeon processor E3-1200 v6 / v5, Intel 7th / 6th Gen. Core i3 series, Intel Celeron and Intel Pentium
- Intel C236 chipset
- 6 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10
- 2 x Intel Ethernet Controller I210-AT
+
+
Overview
Specs
Reviews (3)
MAIN OVERVIEW FEATURES:
- Chipset Manufacturer: Intel
- Total Processor Supported: 1
- Processor Socket: Socket H4 LGA-1151
- Processor Supported: Core i3,Pentium,Celeron,Xeon
- Number of Memory Slots: 4
- Memory Form Factor: DIMM,UDIMM
- Maximum Memory: 64 GB
- Memory Speed Supported: 2.13 GHz,1.87 GHz,1.60 GHz
- Memory Technology: DDR4 SDRAM
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels: 0,1,5,10
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: ASPEED
- Graphics Controller Model: AST2400
- Gigabit Ethernet: Yes
- Number of Total Expansion Slots: 7
- Total Number of PCI Express Slots: 3
- Number of PCI Express x8 Slots: 2
- Number of PCI Express x16 Slots: 1
- Total Number of USB Ports: 4
- Number of USB 3.0 Ports: 2
- VGA: Yes
- Number of SATA Interfaces: 6
- Total Number of Onboard USB Ports: 7
- Number of Onboard USB 3.0 Ports: 3
- Form Factor: ATX
- Width: 12"
- Depth: 9.6"
- Compatibility: Supermicro Chassis
- SC823TQ-653LPB
- SC833T-653B
- SC732i-865B
- SC732I-500B
- SC842TQ-665B
- SC842i-500B
- SC743TQ-1200B-SQ

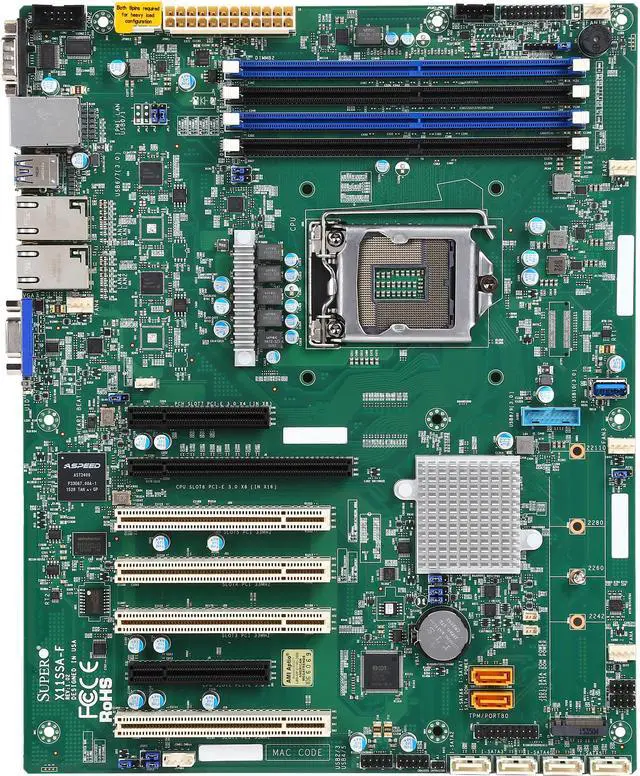

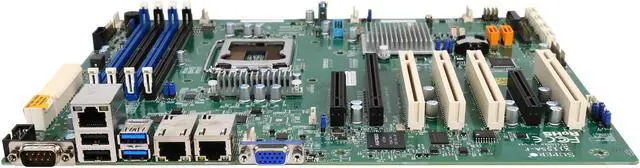

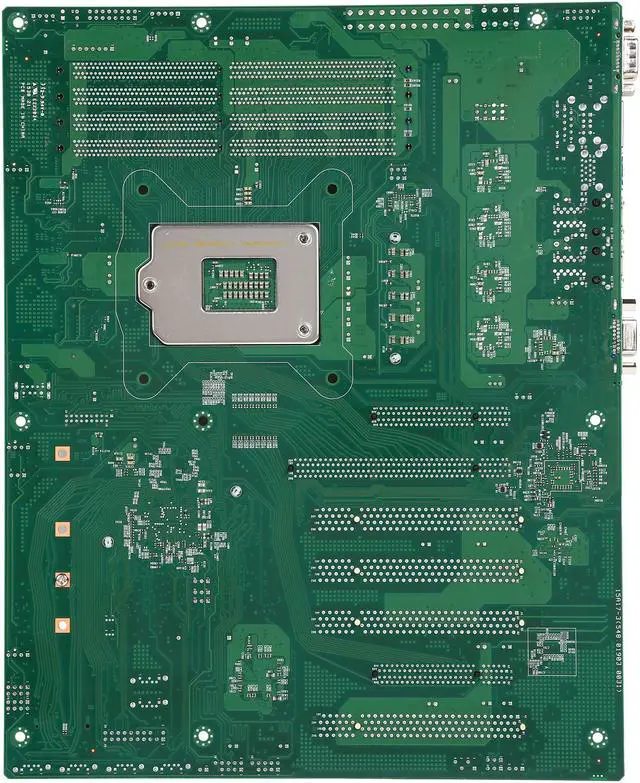

SUPERMICRO MBD-X11SSA-F-O ATX Server Motherboard
Features
- Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
- Intel® C236 chipset
- Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots
- Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) 4 5V PCI 32-bit slots
- Dual GbE LAN with Intel® i210-AT
- 6x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
- I/O: 1x VGA, 2x COM, TPM 1.2 header
- 2x SuperDOM with built-in power
- 5x USB 3.0 (2 rear + 2 via header + 1 Type A), 6x USB 2.0 (2 rear + 4 via headers)
- M.2 NGFF connector
Specifications
| Product SKUs | |
| MBD-X11SSA-F -B | X11SSA-F (Bulk Pack) |
| Physical Stats | |
| Form Factor | ATX |
| Dimensions | 12" x 9.6", (30.5cm x 24.4cm) |
| Processor/Cache | |
| CPU |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type | 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs |
| DIMM Sizes | 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection |
|
| On-Board Devices | |
| Chipset | Intel® C236 chipset |
| SATA |
|
| IPMI |
|
| Network Controllers |
|
| Graphics | ASPEED AST2400 BMC |
| Input / Output | |
| SATA | 6x SATA3 (6Gbps) ports |
| LAN |
|
| USB |
|
| Video | 1x VGA port |
| Serial Port / Header | 2x COM ports (1 rear, 1 header) |
| SuperDOM | 2x SuperDOM (Disk on Module) ports with built-in power |
| TPM | 1x TPM 1.2 20-pin Header |
| System BIOS | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features |
|

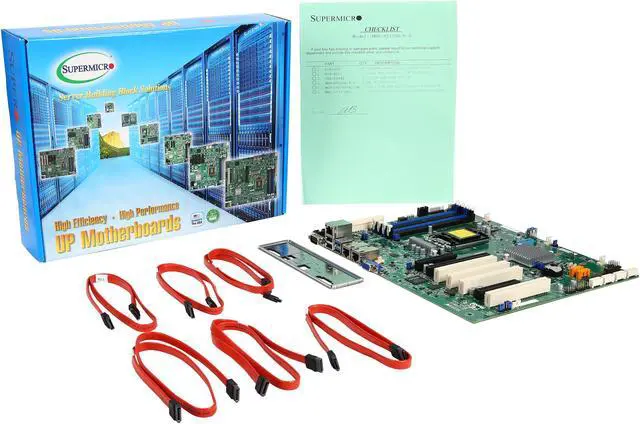

Whats in the Box
