MAIN OVERVIEW FEATURES: Connectivity Technology: WiredNumber of Input Devices Supported: 1Number of Output Devices Supported: 2Maximum Operating Distance: 200 ftGraphics Modes: Full HDMaximum Video Resolution: 1920 x 1080Network (RJ-45): YesDVI In: YesNumber of Network (RJ-45) Ports: 2Number of DVI Inputs: 1Media Type Supported: Twisted PairTwisted Pair Cable Standard: Category 6Color: BlackTransmitter Height: 1"Transmitter Width: 2.50"Transmitter Depth: 3.60"Package Contents: B140-002 DVI Over Cat5 Extender/Splitter, 2-Port Local Transmitter UnitMounting HardwareExternal Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)Owner's ManualEnvironmentally Friendly: YesEnvironmental Certification: RoHSTAA Compliant: YesLimited Warranty: 1 Year
Learn more about the Tripp Lite B140-002
Model
Brand
Tripp Lite
Model
B140-002
Details
Extender & Repeater Type
Non Wall Plate Extender
Performance
Distance
up to 200 ft.
Connection
DVI
Connector B: DVI-I (FEMALE)
Other Connector
Connector A: (X2) RJ45 (FEMALE)
Specification
Specification
Cable Type: DVI Display Style: Splitter Color: Black
Feature
Feature
Transmits a single DVI-D Single-Link signal to 2 monitors up to 200 ft. from the source.
When using a B140-1A0 or B140-1A0-WP active remote unit, a 1024 x 768 (60Hz) signal can be extended up to 200 ft., or a 1920 x 1080 (60Hz) signal up to 150 ft..
When using a B140-1P0 or B140-1P0-WP passive remote unit, a 1024 x 768 (60Hz) signal can be extended up to 100 ft., or a 1920 x 1080 (60Hz) signal up to 50 ft..
24Awg, solid wire Cat5e/6 cable (Tripp Lite N202-Series) is required to reach maximum distance and resolution.
HDCP and DDC compatible.
Mounting hardware is included that allows the B140-002 to be rackmounted, wallmounted or pole mounted.
Compatible with all operating systems.
Plug and play; No drivers required.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Dimensions & Weight
Dimensions
3.6" x 2.5" x 1"
Weight
1.05

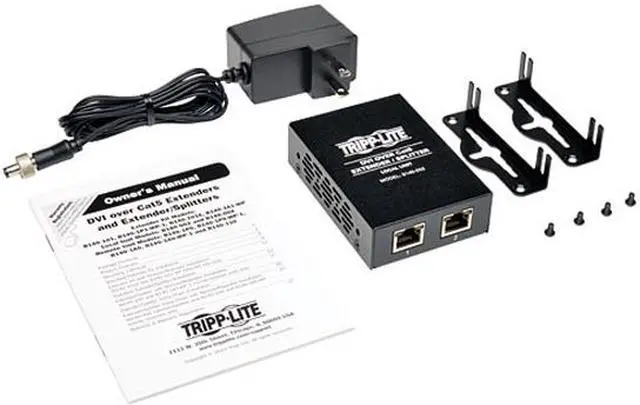

Package Contents
Package Content
B140-002 DVI Over Cat5 Extender/Splitter, 2-Port Mounting hardware External power supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A) Owner's Manual
