Tripp Lite - IBAR12-20T - Tripp Lite IBAR12-20T - Receptacles: 12 x NEMA 5-20R - 3840J
- 12-outlet surge protector with indicator lights
- Surge rating of 3840 joules
- 120V AC input and output compatible with most homes and offices
- 15-ft (4.5m) cord with a NEMA L5-20P twist-lock plug suitable for larger rooms
Overview
Specs
Reviews (1)

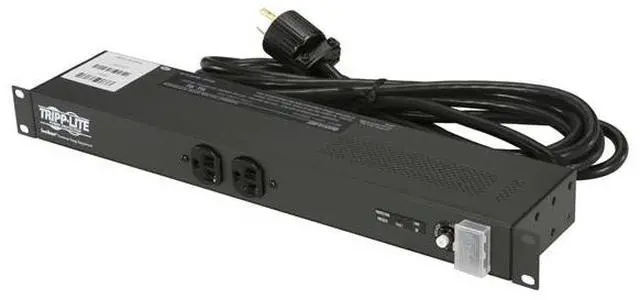

Tripp Lite's IBAR12-20T offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with L5-20P twist-lock input plug and 20-amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15-amp/10 rear mounted 20- amp), 15 ft. power cord and power switch.
Diagnostic LEDs indicate AC present, line fault and protection status.
Plug/Connector Type:
YesReceptacles: 12 x NEMA 5-20RInput
Voltage: 120
V ACOutput Voltage: 120
V ACCurrent: 20
A Line CurrentSurge Energy Rating: 3840
JPower Cord/Cable: 15
ftHeight: 1.8W
idth: 17.5"D
epth: 4"Package

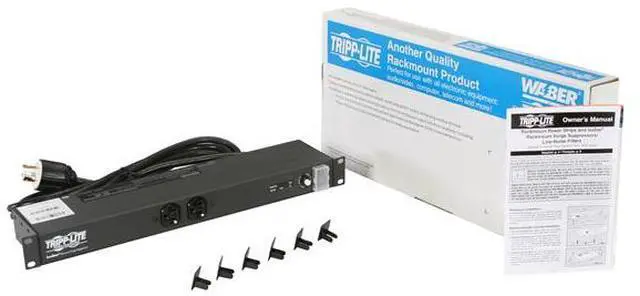

Contents: IBAR12-20TIBAR12-20T Surge SuppressorWarranty informationInstruction manualLimited
Warranty: LifetimePackage ContentsIBAR12-20TIBAR12-20T Surge SuppressorWarranty informationInstruction manual"
Diagnostic LEDs indicate AC present, line fault and protection status.
Plug/Connector Type:
YesReceptacles: 12 x NEMA 5-20RInput
Voltage: 120
V ACOutput Voltage: 120
V ACCurrent: 20
A Line CurrentSurge Energy Rating: 3840
JPower Cord/Cable: 15
ftHeight: 1.8W
idth: 17.5"D
epth: 4"Package
Contents: IBAR12-20TIBAR12-20T Surge SuppressorWarranty informationInstruction manualLimited
Warranty: LifetimePackage ContentsIBAR12-20TIBAR12-20T Surge SuppressorWarranty informationInstruction manual"
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies*
- Return for refund within: 30 days
- Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.
- This item is covered by Newegg.com's International Order Return Policy.
- Read full return policy for details.
- *Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 773-869-1234
- Support Website
- View other products from Tripp Lite
LOADING...
The TRIPP LITE IBAR12-20T is a 12-outlet, 20-amp rackmount surge suppressor with 3,840 joules of surge protection, suited to protecting networking, computer, audio/video, and other sensitive equipment in compatible 120V setups.
Recommended For
- Small-server and home-lab operators who need to power and surge-protect several network devices in a 19-inch rack, with the unit occupying 1U.
- IT and network technicians installing equipment where a compatible 120V, 20A NEMA L5-20 receptacle is available and a 15-foot cord helps reach the rack.
- Audio/video, sound-reinforcement, or security installers who want multiple outlets, rack or under-counter mounting, and EMI/RFI filtering for connected equipment.
- Retail or workshop operators setting up a fixed workstation who need a metal-housed, mountable surge suppressor with diagnostic status lights.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Surge protection for computer, networking, telecommunications, audio/video, security, and sound equipment, with rack, wall, or under-counter mounting options |
| Surge And Noise Protection | 3840-joule surge suppression with 60,000-amp protection, 40–80 dB EMI/RFI filtering, and H-N, N-G, and H-G protection modes |
| Electrical Capacity | 120V AC input (110–125V), 20A capacity, and 2400W output at 50/60Hz, with a circuit breaker |
| Outlets And Power Connection | 12 outlets: 2 front NEMA 5-15R and 10 rear NEMA 5-20R; 15-ft cord with a NEMA L5-20P plug |
| Mounting And Construction | All-metal enclosure with detachable flanges for 1U mounting in a standard 19-inch rack, wall mounting, or under-counter installation |
| Controls And Indicators | Diagnostic LEDs indicate wiring and suppressor status; front switch controls power to all outlets |
| Certifications | UL 1449 (UR status), UL 1283, and cUL |
| Dimensions And Weight | 1.75 × 17.5 × 4 in; 6.3 lb |
| Model Identifiers | TRIPP LITE Isobar, model IBAR12-20T |
