Does this motherboard work without a GPU/Does this motherboard have on-board graphics?

The Gigabyte H610i has two DisplayPorts and a single HDMI port. However, the CPU itself MUST have built-in graphics capability in order for these ports to function. Otherwise, you will need to purchase a dedicated graphics card. It all depends what you're going to use this build for. I paired this motherboard with an Intel core i3 - 14100, which has built-in graphics. My build was initially meant as a low-power OPNSense router build, but I'm going to repurpose it as either a NAS or an HTPC. Hope this helps! Good luck.

NZ$621^.00

GST-Inclusive Price

Limit 1 per customer.

Ships from Canada.

Most customers receive within 4-17 days.

Add to wish list

Sold by BTE Outlet

3.5 (1,430 seller ratings)

Shipped by BTE Outlet

Meet Your Seller

BTE Outlet

See Seller Store

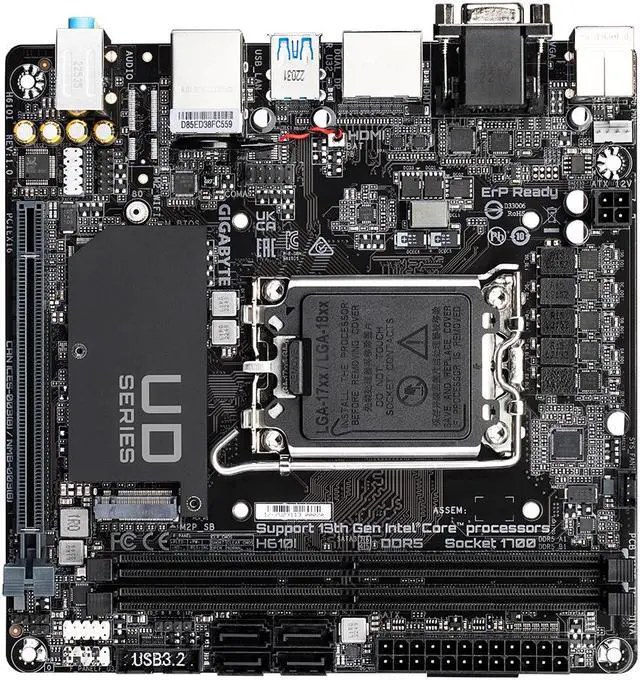

Main image of GIGABYTE H610I H610 Intel LGA 1700 Mini-ITX Motherboard with DDR5, Single M.2, PCIe 4.0, USB 3.2 Gen1, Intel GbE LAN Chip

Alt view image 2 of 5 - GIGABYTE H610I H610 Intel LGA 1700 Mini-ITX Motherboard with DDR5, Single M.2, PCIe 4.0, USB 3.2 Gen1, Intel GbE LAN Chip

Alt view image 3 of 5 - GIGABYTE H610I H610 Intel LGA 1700 Mini-ITX Motherboard with DDR5, Single M.2, PCIe 4.0, USB 3.2 Gen1, Intel GbE LAN Chip

Alt view image 4 of 5 - GIGABYTE H610I H610 Intel LGA 1700 Mini-ITX Motherboard with DDR5, Single M.2, PCIe 4.0, USB 3.2 Gen1, Intel GbE LAN Chip

Alt view image 5 of 5 - GIGABYTE H610I H610 Intel LGA 1700 Mini-ITX Motherboard with DDR5, Single M.2, PCIe 4.0, USB 3.2 Gen1, Intel GbE LAN Chip

Shop All GIGABYTE Products | Visit BTE Outlet Store

GIGABYTE H610I H610 Intel LGA 1700 Mini-ITX Motherboard with DDR5, Single M.2, PCIe 4.0, USB 3.2 Gen1, Intel GbE LAN Chip

(2) Write a Review

Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
Commanding Power Design: 4+1+1 Hybrid Digital VRM Design
Connectivity: PCIe 4.0, Single NVMe PCIe 3.0 x4 M.2, USB 3.2 Gen1
Fast Networking: Intel GbE LAN Chip
Dynamic Audio: High Quality Audio Capacitors and Audio Noise Guard

Specs

Reviews (2)

Learn more about the GIGABYTE H610I

Model
Brand	GIGABYTE
Model	H610I

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold

Chipsets
Chipset	Intel H610

Memory
Number of Memory Slots	2x288pin (DDR5)
Memory Standard	DDR5 5600
Maximum Memory Supported	64GB
Channel Supported	Dual Channel
Memory Feature	2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.)

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)

Onboard Audio
Audio Chipset	Realtek Audio CODEC High Definition Audio
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	1Gbps

Rear Panel Ports

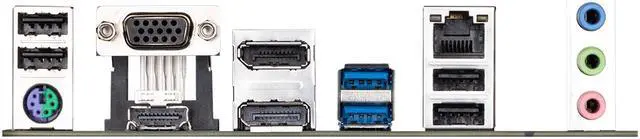

Back I/O Ports	1 x D-Sub / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 2 x DisplayPort / 2 x USB 3.2 Gen 1 Type-A / 3 x Audio Jacks / 4 x USB 2.0/1.1

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header
Other Connectors	1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	Mini ITX
Power Pin	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector

Features
Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - @BIOS - EasyTune - Ambient LED - Smart Backup - System Information Viewer Support for Q-Flash Support for Xpress Install
