Features

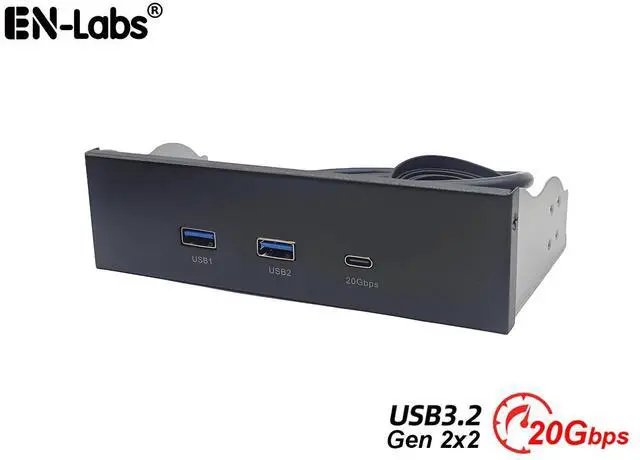

This bay allows you to convert an unused 5.25" CD-ROM drive space into 1x 20Gbps USB 3.2 Gen 2x2 Type-C and 2x USB 3.0 Port

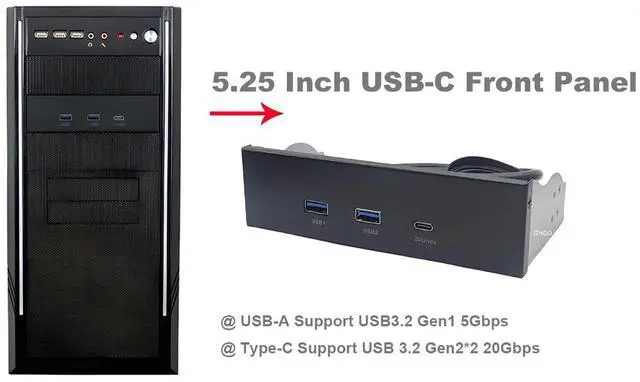

Fit with PC 5.25" Computer Case Front Bay properly by provided screws.
The Type-C port of USB 3.2 Gen 2x2 Supports Data Transmission Speed up to 20Gbps Max.
20-pin USB3.2 Key-A Type-E headers on motherboard is required
2 USB 3.0 ports compatible with Super-Speed USB 3.0 supports data transfer speeds up to 5Gbps (maximum).
Motherboard USB 3.0 19Pin header is required for connection
Backward compatible with USB 2.0 / 1.1.
Sturdy metal construction endures wear and tear, ensuring long-term use
Hot-swapping
Plug and play, no extra driver is needed
Easy to install, no external power is needed.

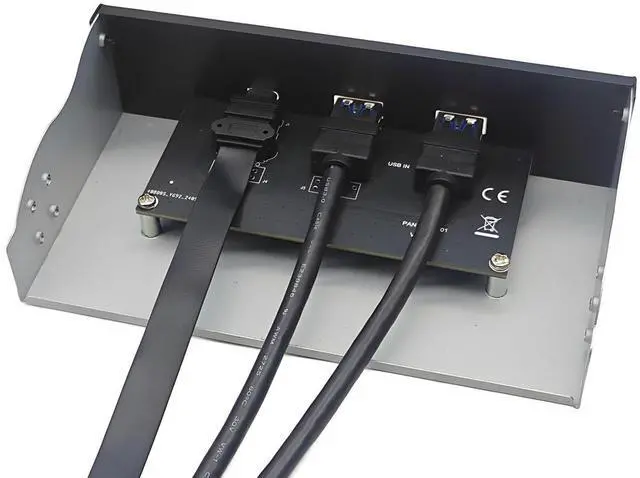

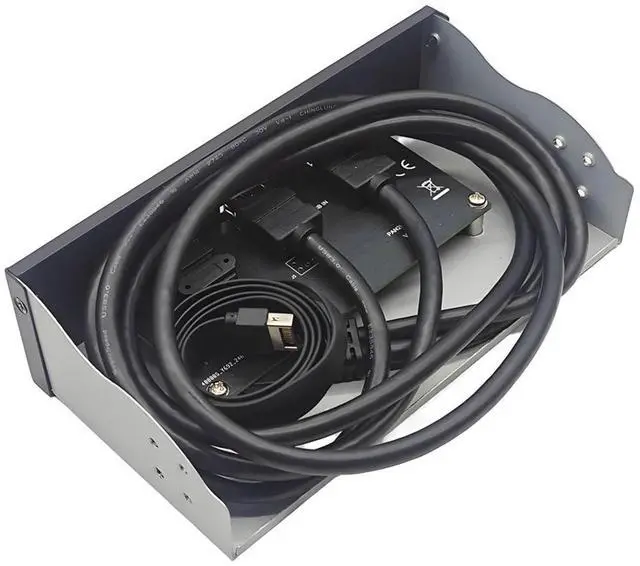

2 Feet USB Type-C Cable length for motherboard connection(USB-C cable is flat cable)
2.62 Feet USB 20Pin Cable length for 2 Port USB-A ports to motherboard connection
Note
Not all USB 20pin motherboard header on motherboard is driven as default. If the front panel install, but can not be recognized correct. Please try to drive motherboard USB 20pin header first.
USB3.2 Type-E Header on Motherboard is Required
USB3.0 19Pin Header on Motherboard is Required

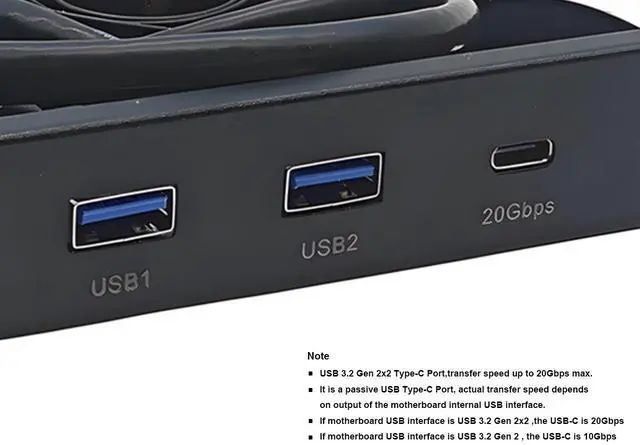

Passive USB ports, actual transfer speed depends on output of your motherboard internal USB interface
