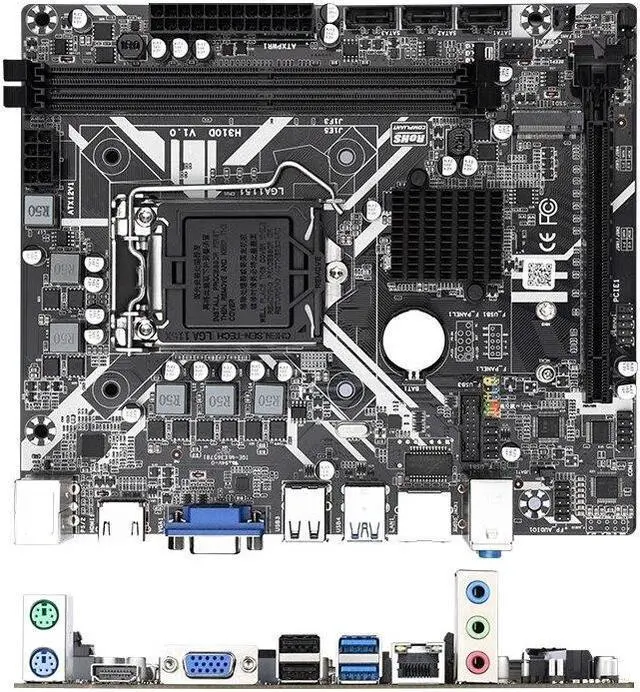

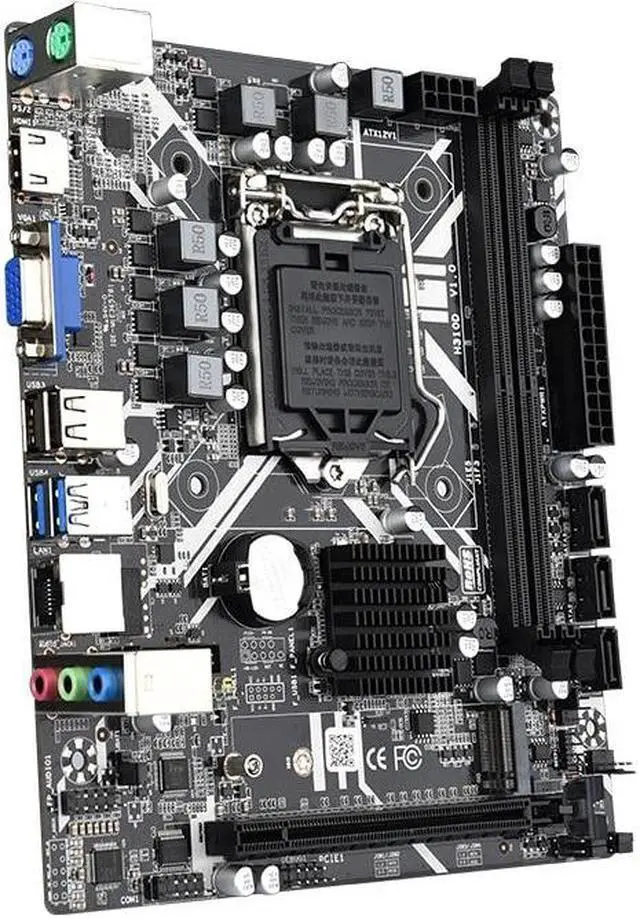

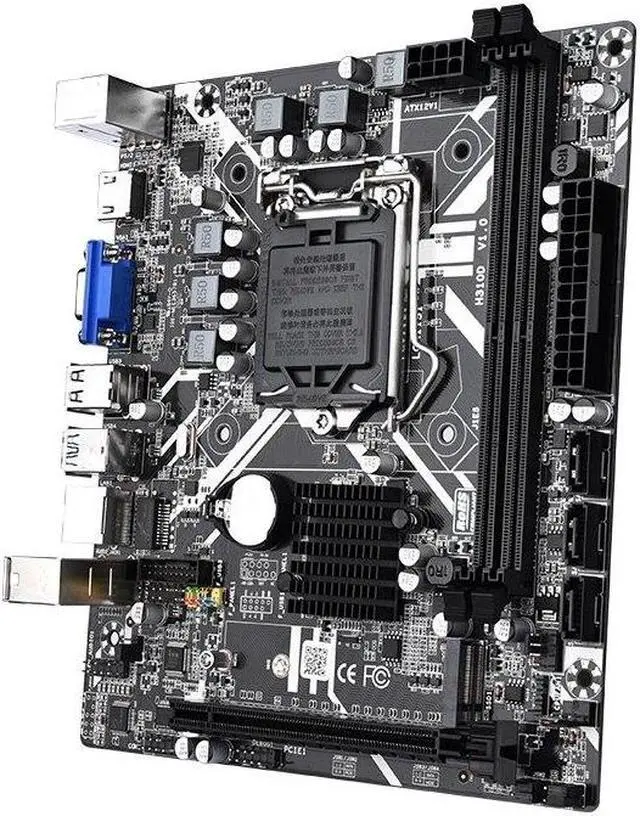

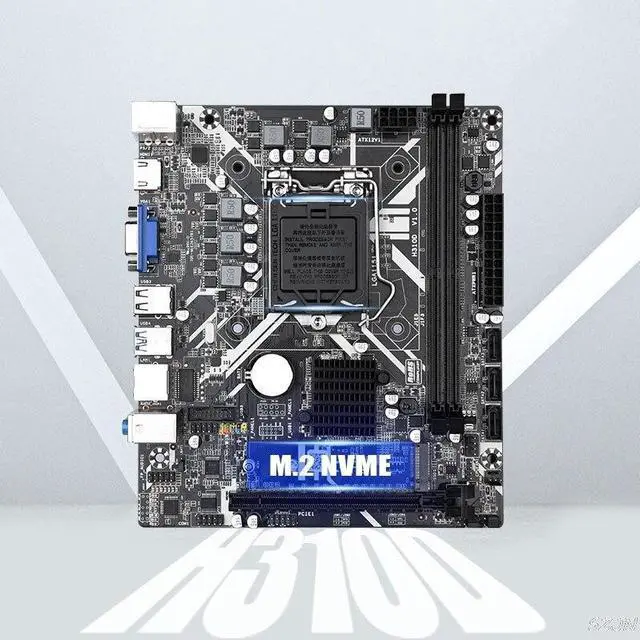

H310 Motherboard LGA 1151 DDR4 RAM Support Intel i3/i5/i7 Processor M.2 16GB RAM SATA3.0 USB3.1 Slot Desktop Mainboard

H310 motherboard LGA 1151 DDR4 RAM support Intel i3/i5/i7 processor M. 2 16GB RAM SATA 3.0 USB 3.1 slot desktop mainboard
Buying instructions:
1: The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
2: Please allow 1-3mm differs due to manual measurement.
3: Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4: This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform. (At least 500w brand power supply)
5: The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom
General information
Part#
H310D
Chip
Intel H310
Feature
Support LGA 1151 support 6/7/8/9 generations
2* DDR4 RAM Slot, Support Dual Channel Architecture up to 16GB
1* S/PDIF Header
Onboard High Speed NVMe M. 2 Interface
CPU
Support LGA 1151 support 6/7/8/9 generations
Form Factor
M-ATX, 196mm x 170mm
Memory
2* DDR4 Slot
Maximum RAM Capacity
16GB
Graphic
1* PCI-E 1X
1* PCI-E 16X
Storage
3* SATA 3.0
LAN
Realtek RTL8111H Chipset, Self-Adjustable Gigabit Ethernet
Audio
Realtek Audio Codec ALC662, 5.1 Sound Channel Supported.
USB Ports
4* USB 3.0, 4* USB 2.0
PSU Solution
1* 8 Pin + 1* 24 Pin Power Supply
Other
Onboard High Speed NVMe M. 2 Interface
