X99 8M F X99 Motherboard Support Intel xeon E5 CPU DDR4 RECC Memory M.2 NVME USB3.0 Server

Specifications

:

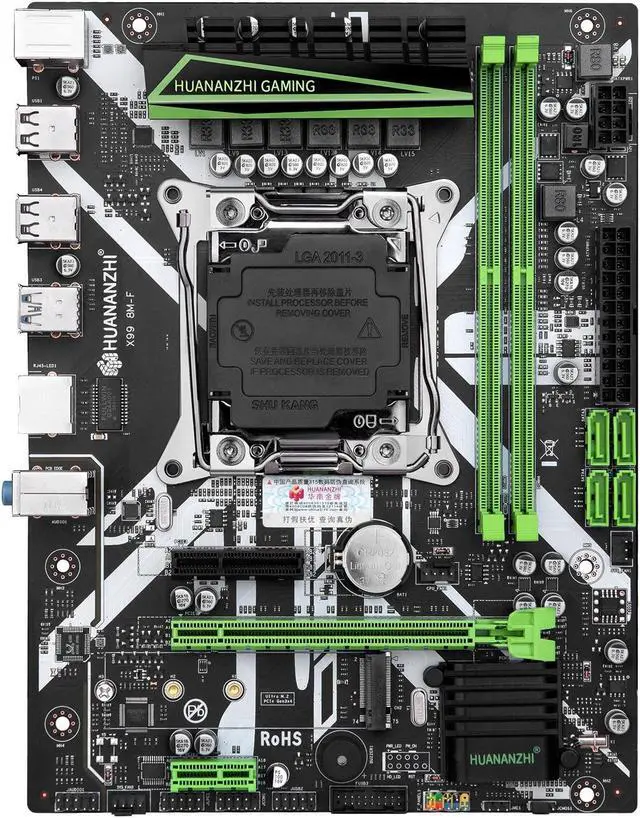

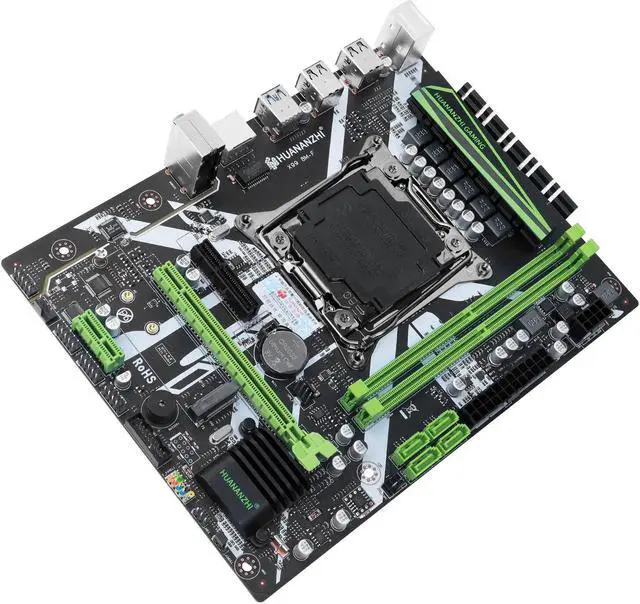

ModelHUANANZHI X99-8M-F Motherboard
CPU SocketSupport Intele 2011-3 Processors
Main chipset: H81/B85 shipped randomly
Memory Socket2*DDR4 Memory Socke
Memory Standard Support Dual channels DDR4 2400/2133/1866 MHz
SATA4*SATA 3.0 Interface

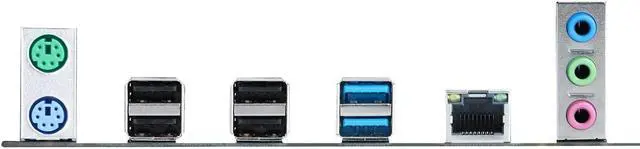

Expansion SlotsIO: 1*PS/2 Mouse / keyboard interface, 2*USB 3.0, 4 USB 2.0, 1*Gigabit Ethernet Card, 3* 3.5MMA udio interface;
Expansion pin: 2*9pin USB 2.0; 1*19pin USB 3.0; 1 Front audio output pin
Extended interface 1*PCI Express 3.0X 16, 1*PCI ExpressX4, 1*PCI ExpressX1, 1*M. 2 NVME Interface
Soud Track 5.1 Sound Track.
Network lnterfaceGigabit Ethernet Card
Power interface24pin+8pin
Fan interface3
PCB ayer 8 layer PCB, 6 Phases power supply
Dimension237*180MM M-ATX
Note:
1: The platform needs powerful power. Please make sure your power supply is sufficient to support it (at least 500w power supply).
2: Please allow 1-3mm differs due to manual measurement.
3: Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4: The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
5: We show photos of motherboard, pictures are for reference only, subject to our available products.
