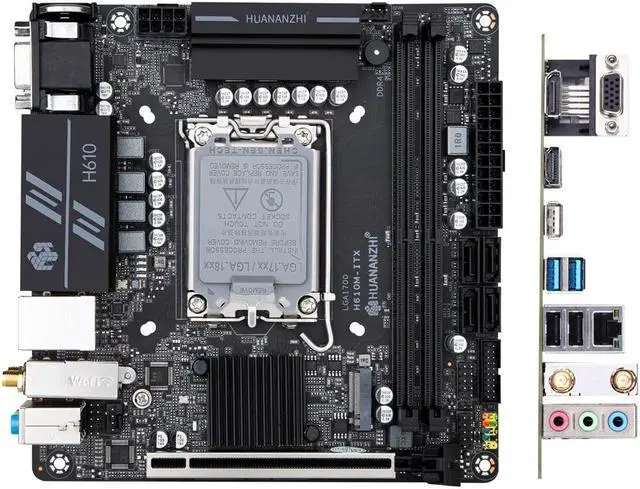

H610M Motherboard LGA 1700 ITX DDR4 Support 12 13 Gen Intel Core CPU NVME CNVI SATA 3.0
- H610M Motherboard LGA 1700 ITX DDR4 Support 12 13 Gen Intel Core CPU NVME CNVI SATA 3.0
+
+
Overview
Specs
Reviews
Chipset: Intel H610 chipset
CPU pin: support Intel LGA1700 platform processor
Memory slot: 2 DDR4 memory slots
Memory standard: support dual-channel DDR4 3200/2666/2400/2133MHz memory (support XMP depends on CPU), maximum support 64GB
Storage interface: 4 SATA 3.0 6Gbps hard disk interfaces
Expansion slot: 1 PCI Express 4.0 / 5.0 x16 slot
Expansion interface: 1 M. 2 2280 NVME PCIE X4 3.0, 1 WIFI straight socket supporting CNVI (with WIFI shell by default, without WIFI network card)
On-board sound card: Ruiyu Hi-Fi audio ALC897
On-board network card: Ruiyu Gigabit network card RTL8111K
Power interface: 24PIN+8PIN
Fan pin: 1 CPU_ FAN pin, 1 SYS_ FAN pin
Number of power supply phases: 8 phase power supply
PCB layers: 6 layers
Main board specification: 170 * 170MM ITX board type

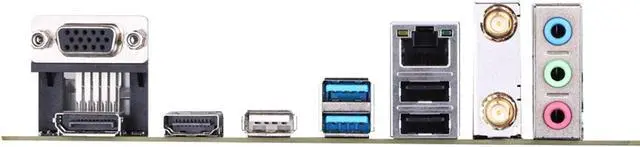

Rear panel interface: 2 USB 3.2 interfaces, 3 USB 2.0 interfaces, 1 RJ45 network interface, 1 3-hole audio interface, 1 VGA, 1 HDMI 2.0, 1 DP 1.4 (support processor core display three-screen output)
Front panel interface: 1 set of USB 2.0 pins, 1 set of USB 3.2 pins, 1 set of front audio pins, 1 set of COM pins, 1 set of Debug indicators, 1 set of power on/restart pins, 1 set of mainboard buzzer
Support system: Windows10 Windows11
BIOS: AMI UEFI BIOS/UI graphical interface
Package list: 1 motherboard
CPU pin: support Intel LGA1700 platform processor
Memory slot: 2 DDR4 memory slots
Memory standard: support dual-channel DDR4 3200/2666/2400/2133MHz memory (support XMP depends on CPU), maximum support 64GB
Storage interface: 4 SATA 3.0 6Gbps hard disk interfaces
Expansion slot: 1 PCI Express 4.0 / 5.0 x16 slot
Expansion interface: 1 M. 2 2280 NVME PCIE X4 3.0, 1 WIFI straight socket supporting CNVI (with WIFI shell by default, without WIFI network card)
On-board sound card: Ruiyu Hi-Fi audio ALC897
On-board network card: Ruiyu Gigabit network card RTL8111K
Power interface: 24PIN+8PIN
Fan pin: 1 CPU_ FAN pin, 1 SYS_ FAN pin
Number of power supply phases: 8 phase power supply
PCB layers: 6 layers
Main board specification: 170 * 170MM ITX board type
Rear panel interface: 2 USB 3.2 interfaces, 3 USB 2.0 interfaces, 1 RJ45 network interface, 1 3-hole audio interface, 1 VGA, 1 HDMI 2.0, 1 DP 1.4 (support processor core display three-screen output)
Front panel interface: 1 set of USB 2.0 pins, 1 set of USB 3.2 pins, 1 set of front audio pins, 1 set of COM pins, 1 set of Debug indicators, 1 set of power on/restart pins, 1 set of mainboard buzzer
Support system: Windows10 Windows11
BIOS: AMI UEFI BIOS/UI graphical interface
Package list: 1 motherboard
