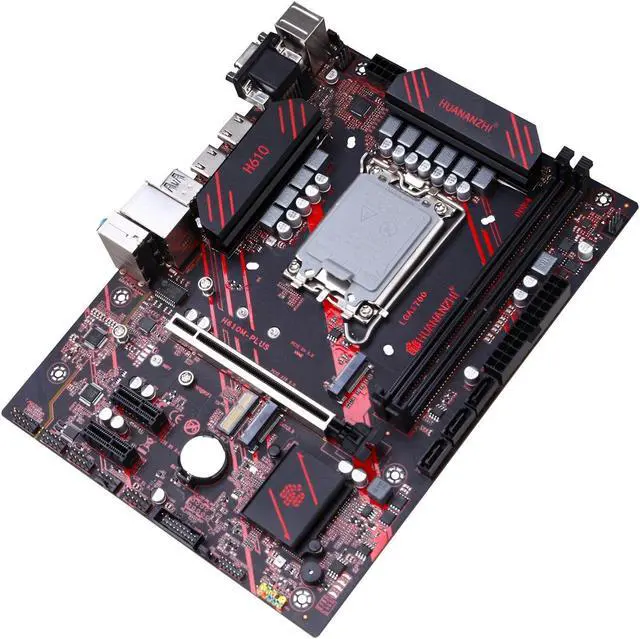

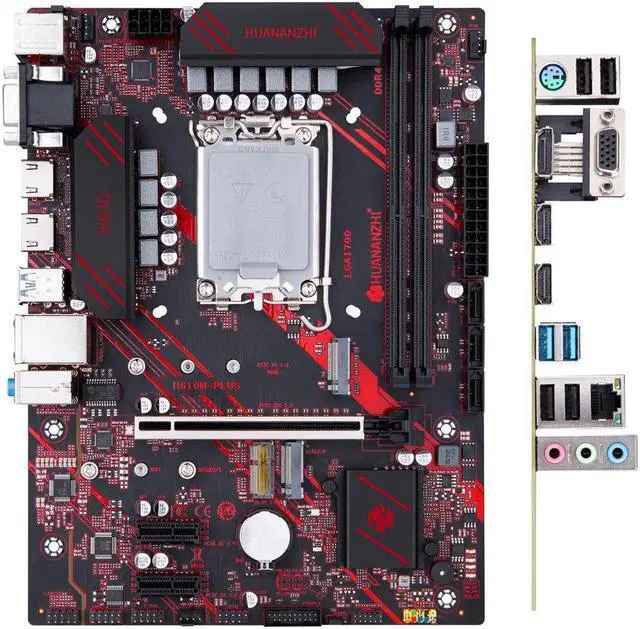

LGA1700 H610M PLUS Motherboard M-ATX DDR4 Support Intel LGA 1700 CPU 12100F 12400F 12490F 12600F 12700F 13600F
- LGA1700 H610M PLUS Motherboard M-ATX DDR4 Support Intel LGA 1700 CPU 12100F 12400F 12490F 12600F 12700F 13600F
+
+
Overview
Specs
Reviews
Chipset: Intel H610
CPU pin: support Intel LGA1700 platform processor
Memory slot: 2 DDR4 memory slots
Memory standard: support dual-channel DDR4 3200/2666/2400/2133MHz memory (support XMP/depending on CPU), maximum 64GB
Storage interface: 3 SATA 3.0 6Gbps hard disk interfaces
Expansion slot: 1 PCI Express x16 4.0 / 5.0 slot, 2 PCI Express x1 3.0 slots
Expansion interface: one M. 2 2280 NVME PCIE X4 3.0, one M. 2 2280 NGFF SATA 3.0, one M. 2 WIFI (supporting NGFF/CNVI)
On-board sound card: Ruiyu Hi-Fi audio ALC897
On-board network card: Ruiyu Gigabit network card RTL8111K
Power interface: 24PIN+8PIN
Fan pin: 1 CPU_ FAN pin, 2 SYS_ FAN pin
Number of power supply phases: 10 phase power supply
PCB layers: 6 layers
Main board specification: 240 * 180MM M-ATX board type
Rear panel interface: 1 PS/2 keyboard and mouse universal interface, 2 USB 3.2G en1 interfaces, 4 USB 2.0 interfaces, 1 RJ network interface, 1 3-hole audio interface, 1 VGA, 2 HDMI 2.0, 1 DP 1.4 (support processor to select three screens at any time)
Front panel interface: 1 set of USB 2.0 pins, 1 set of USB 3.2 pins, 1 set of front audio pins, 1 set of COM pins, 1 set of Debug pins, 1 set of TPM 2.0 pins, 1 set of main board buzzer, 1 set of power on/restart pins, 1 set of error detection indicators
Support system: Windows10 Windows11
CPU pin: support Intel LGA1700 platform processor
Memory slot: 2 DDR4 memory slots
Memory standard: support dual-channel DDR4 3200/2666/2400/2133MHz memory (support XMP/depending on CPU), maximum 64GB
Storage interface: 3 SATA 3.0 6Gbps hard disk interfaces
Expansion slot: 1 PCI Express x16 4.0 / 5.0 slot, 2 PCI Express x1 3.0 slots
Expansion interface: one M. 2 2280 NVME PCIE X4 3.0, one M. 2 2280 NGFF SATA 3.0, one M. 2 WIFI (supporting NGFF/CNVI)
On-board sound card: Ruiyu Hi-Fi audio ALC897
On-board network card: Ruiyu Gigabit network card RTL8111K
Power interface: 24PIN+8PIN
Fan pin: 1 CPU_ FAN pin, 2 SYS_ FAN pin
Number of power supply phases: 10 phase power supply
PCB layers: 6 layers
Main board specification: 240 * 180MM M-ATX board type
Rear panel interface: 1 PS/2 keyboard and mouse universal interface, 2 USB 3.2G en1 interfaces, 4 USB 2.0 interfaces, 1 RJ network interface, 1 3-hole audio interface, 1 VGA, 2 HDMI 2.0, 1 DP 1.4 (support processor to select three screens at any time)
Front panel interface: 1 set of USB 2.0 pins, 1 set of USB 3.2 pins, 1 set of front audio pins, 1 set of COM pins, 1 set of Debug pins, 1 set of TPM 2.0 pins, 1 set of main board buzzer, 1 set of power on/restart pins, 1 set of error detection indicators
Support system: Windows10 Windows11
