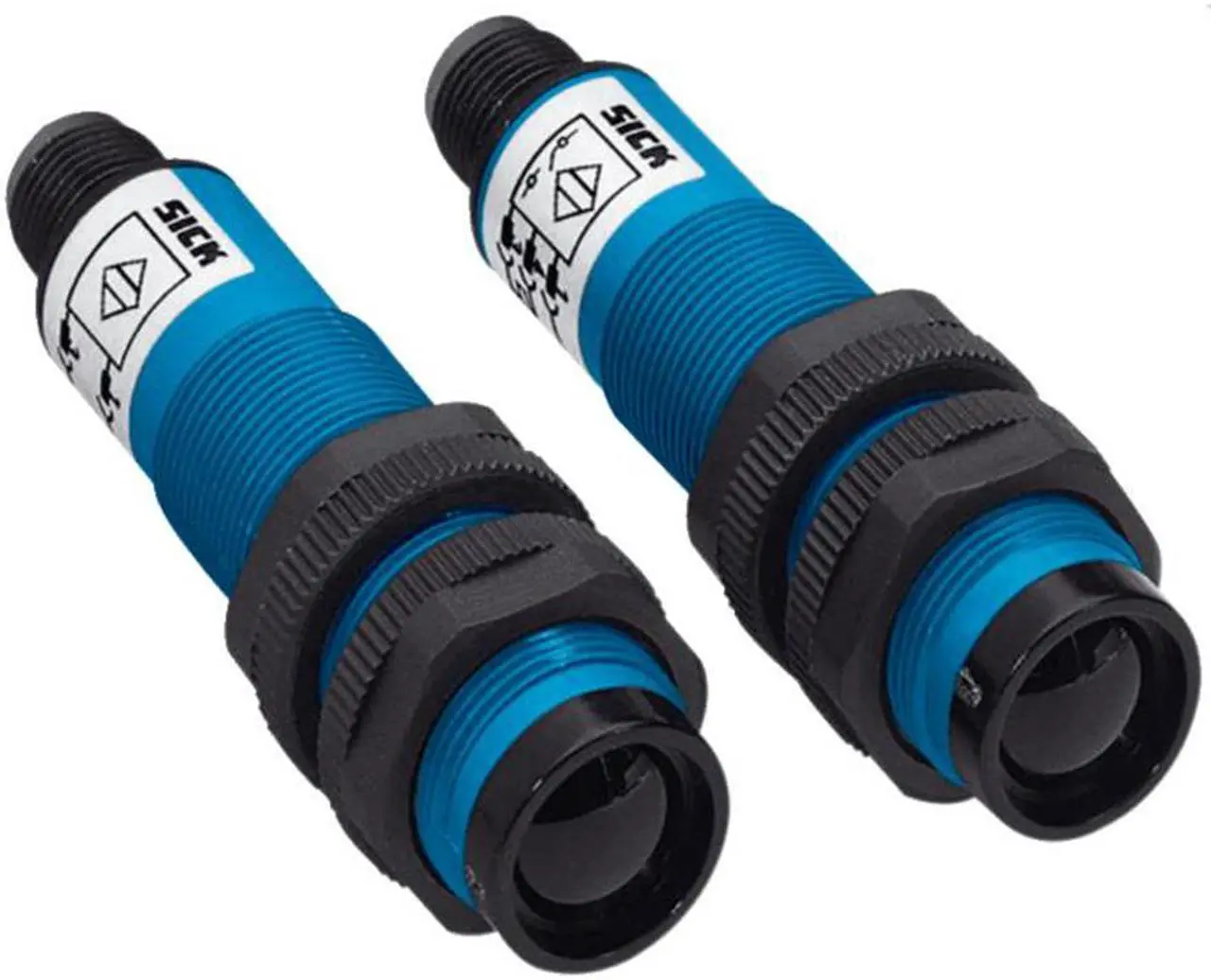

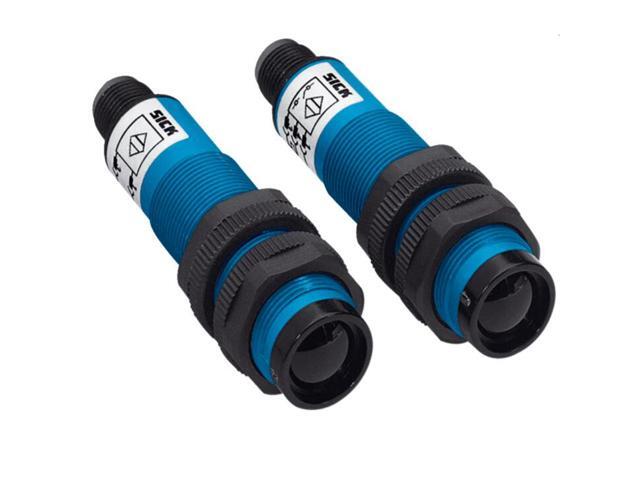

SICK VS/VE18-3P3640 Through-beam photoelectric sensor ,PNP,New

FEATURES
Sensor/ detection principle Through-beam photoelectric sensor
Housing design (light emission) Cylindrical
Housing length 78 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0 m ... 20 m
Sensing range 0 m ... 14 m
Type of light Infrared light
Light source LED 1)
Light spot size (distance) Ø 700 mm (14 m)
Angle of dispersion Approx. 2.8°
Adjustment None

MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 30 mA 3)
Switching output PNP
Switching mode Dark switching
Output current Imax. 100 mA
Response time = 2 ms 4)
Switching frequency 250 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
B 7)
C 8)
D 9)
Protection class III
Weight 200 g
Housing material Plastic, PBT/PC
Enclosure rating IP67
Test input sender off TE to 0 V
Ambient operating temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
