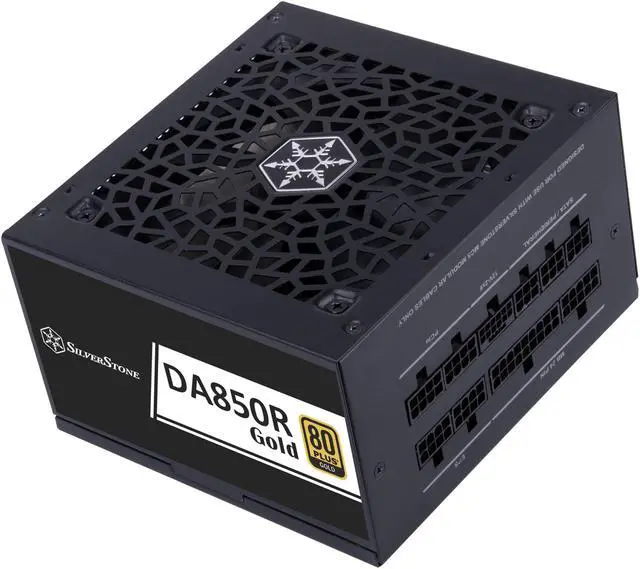

Brand | SilverStone |
---|---|
Model | DA850R-GMA |
Color | Black |
---|---|
Type | ATX 3.0 Compatible |
Maximum Power | 850 W |

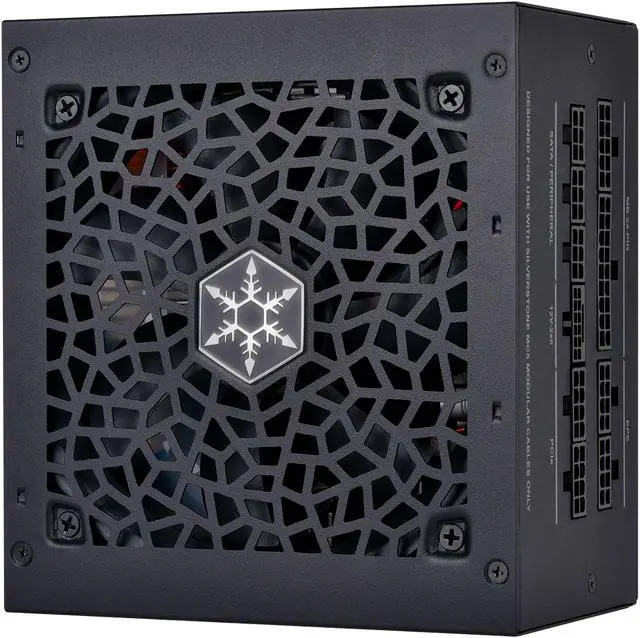

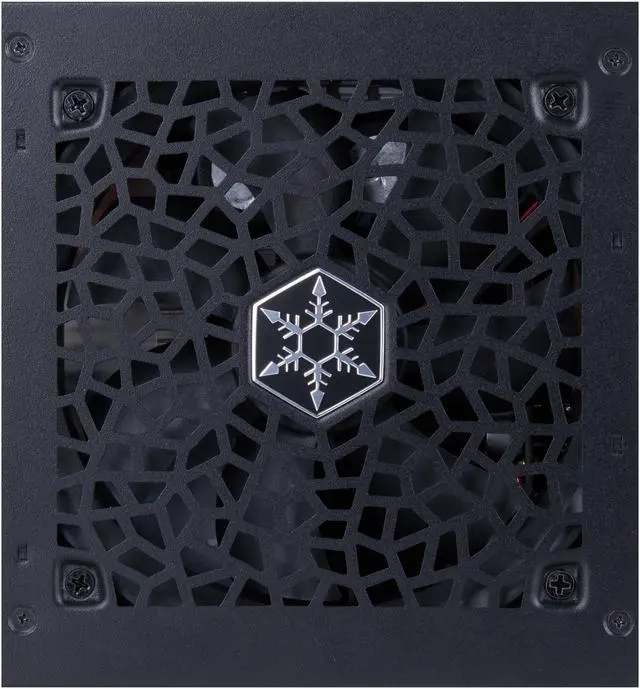

Fans | 1 x 120 mm |
PFC | Active PFC (PF>0.9 at full load) |
Main Connector | 20+4Pin |
+12V Rails | Single |
Max PSU Length | 140 mm |
Modular | Full Modular |
Energy-Efficient | 80 PLUS GOLD Certified |
Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection Under Voltage Protection |
Input Voltage | 99 - 264 V |
Input Frequency Range | 47 - 63 Hz |

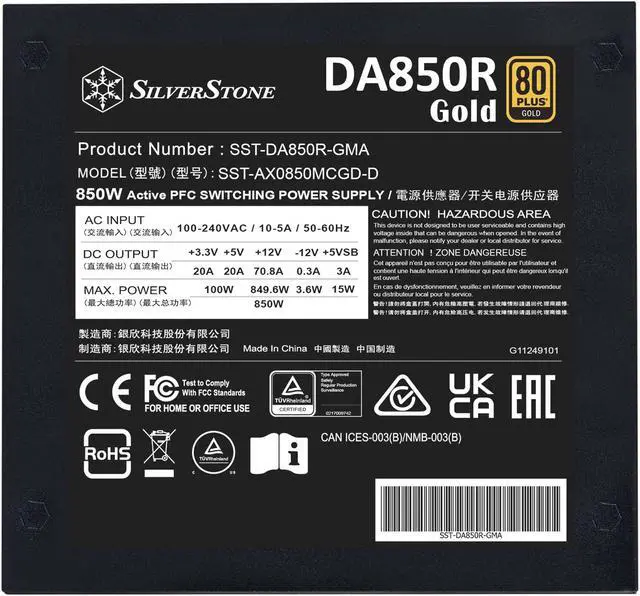

Output | 20A@+3.3V, 20A@+5V, 70.8A@+12V, 3A@+5VSB, 0.3A@-12V |
MTBF | 100,000 hours |

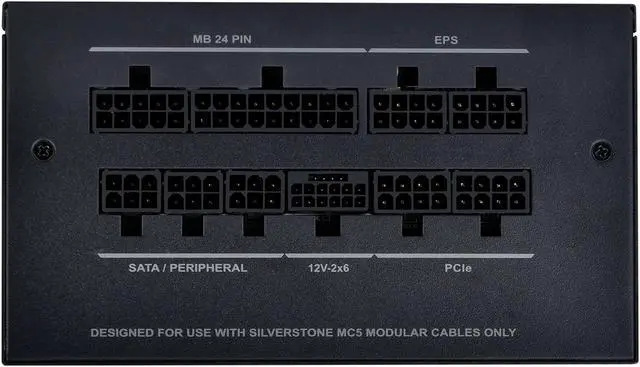

Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 4 x 8 / 6-Pin PCIe connectors 1 x 12V-2x6 connector 8 x SATA connectors 4 x 4-Pin Peripheral connector |
Cable Spec | 1 x 24pin Motherboard cable 2 x 4+4pin CPU cable 1 x 12V-2x6 cable 2 x 6+2pin PCIe cable (2 connectors per cable) 1 x 4pin Peripheral cable (4 connectors per cable) 2 x SATA cable (4 connectors per cable) |
Dimensions | 150 x 86 x 140 mm |
---|---|
Weight | 4..7 lbs. |
Date First Available | December 04, 2024 |
---|
