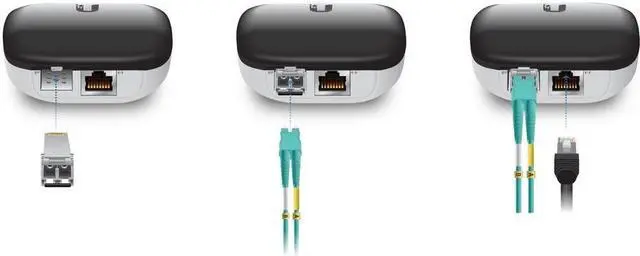

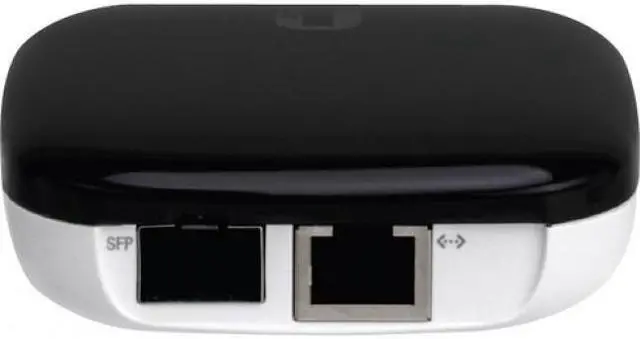

Feature | Module Compatibility The versatile UF-AE connects any SFP or SFP+ module at the maximum speed of 1 Gbps. All UFiber SFP or SFP+ modules are supported.
PoE Convenience The UF-AE is powered by 24VDC passive PoE or 802.3af active PoE.
Supported Speeds 1 Gbps fiber uplink speeds and 10/100/1000 Ethernet speeds are supported.

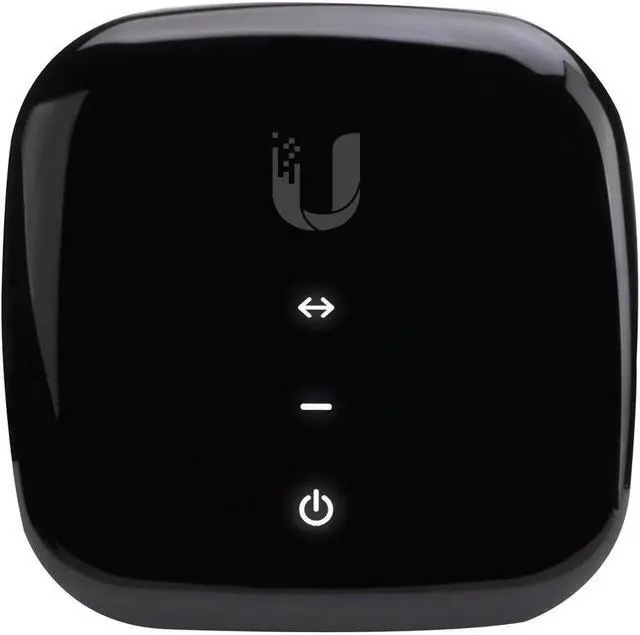

Status LEDs Intuitive LEDs indicate link and speed status.
Indoor Installation Use the included bracket to easily mount the UF-AE on a wall.
Power Method: 802.3af PoE: (Pins 1, 2+; 3, 6-) 24V Passive PoE: (Pins 4, 5+; 7, 8-)
Power Supply: 802.3af PoE or 24V Passive PoE Device* (* Power supply not included)
Max. Power Consumption: 1.5W
Supported Voltage Range: 16 to 57V
ESD/EMP Protection: +/- 12kV Contact/Air
Certifications: CE, FCC, IC |
---|
