Paramerter:

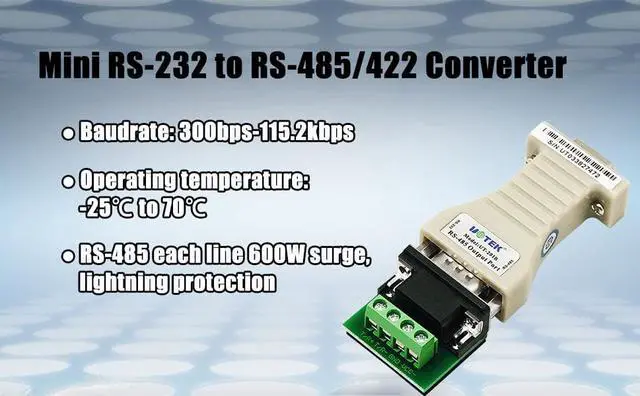

Standards: RS-232, RS-485 TIA/EIA RS-232 DB9 female connector, RS-485 DB9 male connector, with terminal block Operating mode: asynchronous half-duplex, differential transmission Transmission media: twisted-pair or shielded cable Baudrate: 300bps- 115.2 kbps Dimension: 63mm×33mm×17mm Operating temperature: -25 to 70 Relative humidity: 5% to 95% Transmission distance: 1, 200m (RS-485); 5m (RS-232) Protection: RS-485 each line 600W surge, lightning protection
For communication between PC with different standard serial port and external equipments or intelligent instruments, standard serial conversion is necessary. This converter is compatible with RS-232C, RS-485 standards. It converts RS-232 signals into balanced differential RS-485 signals. The transmission distance of RS-232 communication can be extended to 1.2 km. It adopts unique RS-232 charge pump technology to drive the system, and gains power without initializing RS-232 serial port. This converter is with built-in zero delay auto receiving and transmitting conversion and unique I/O circuit auto control data flow direction without any handshake signal (RTS, DTR); this guarantees that there is no need to modify the programming under RS-232 full duplex or half duplex mode, it will run smoothly under current software and hardware. The transmission rate is 300- 115.2 kbps. It can be used between hosts, host and SCM, which building a point to point, point to multipoint long-distance communication networking. It is widely applied in industrial automation control system, all-in-one card, access control system, parking system, ATM system, bus charging system, canteen ticketing system, attendance system, and toll station system, etc.
For communication between PC with different standard serial port and external equipments or intelligent instruments, standard serial conversion is necessary.
This converter is compatible with RS-232C, RS-485 standards. It converts RS-232 signals into balanced differential RS-485 signals. The transmission distance of RS-232 communication can be extended to 1.2km. It adopts unique RS-232 charge pump technology to drive the system, and gains power without initializing RS-232 serial port.
This converter is with built-in zero delay auto receiving and transmitting conversion and unique I/O circuit auto control data flow direction without any handshake signal (RTS, DTR); this guarantees that there is no need to modify the programming under RS-232 full duplex or half duplex mode, it will run smoothly under current software and hardware.
The transmission rate is 300-115.2kbps. It can be used between hosts, host and SCM, which building a point to point, point to multipoint long-distance communication networking. It is widely applied in industrial automation control system, all-in-one card, access control system, parking system, ATM system, bus charging system, canteen ticketing system, attendance system, and toll station system, etc.
Standards: RS-232, RS-485 TIA/EIA

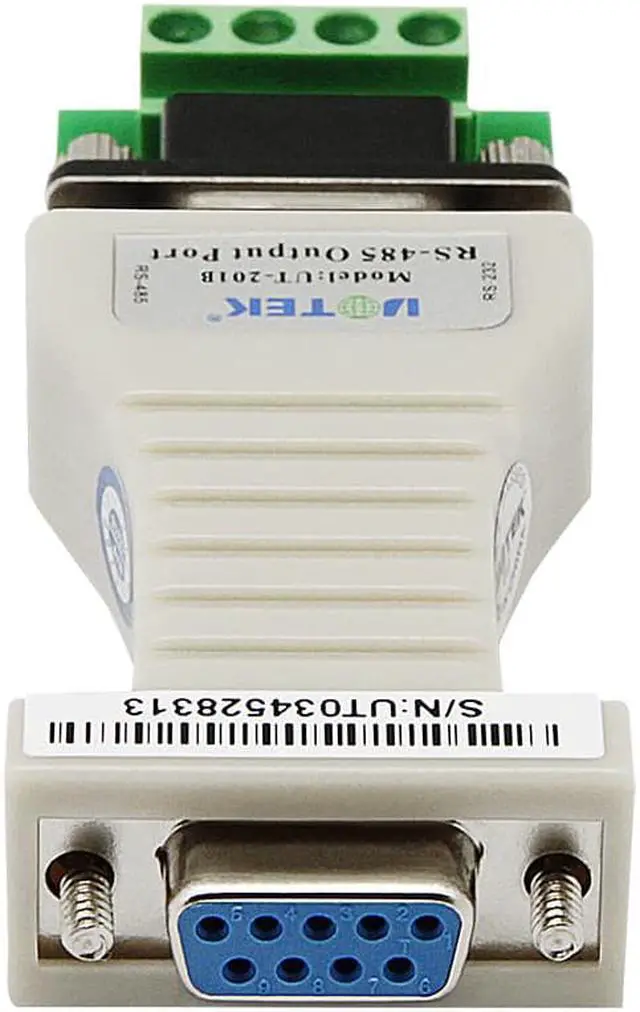

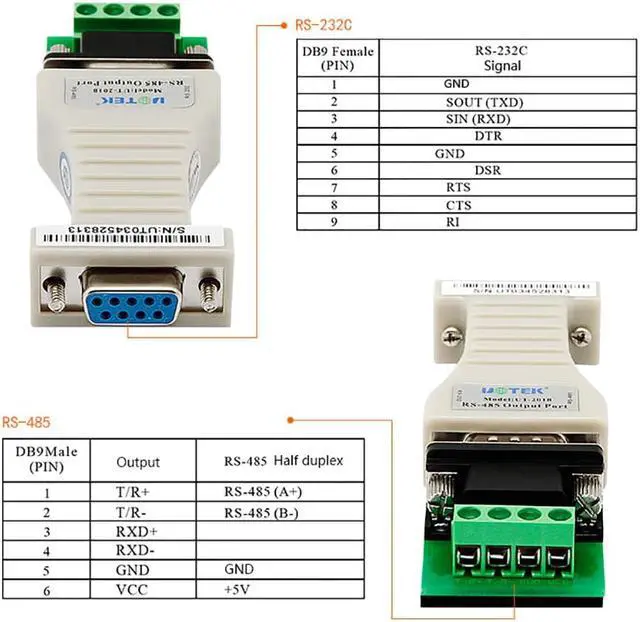

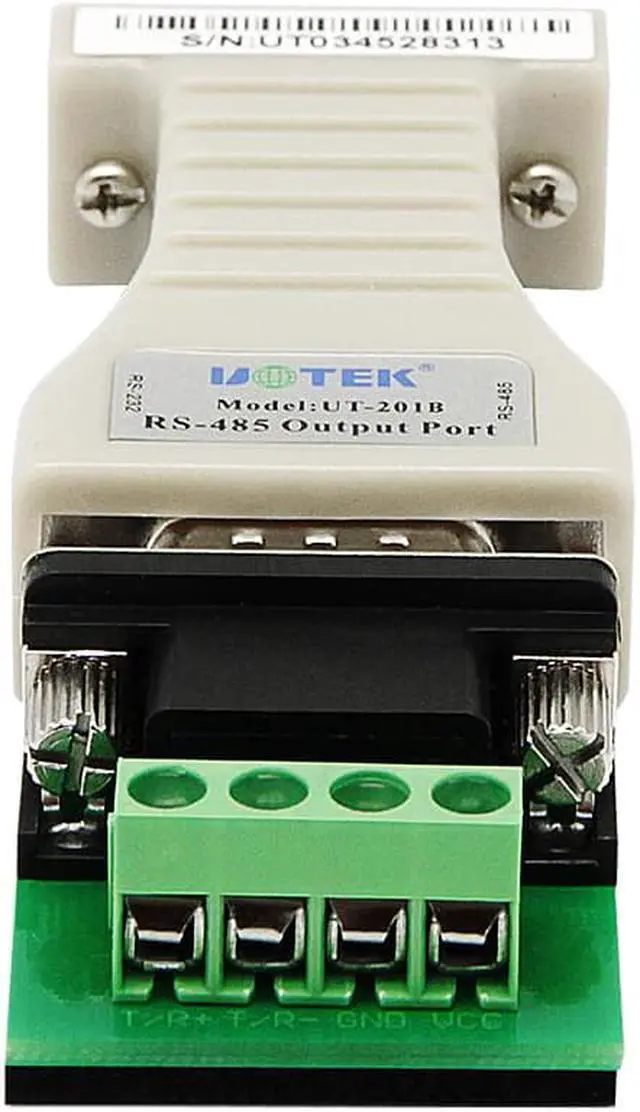

RS-232 DB9 female connector, RS-485 DB9 male connector, with terminal block
