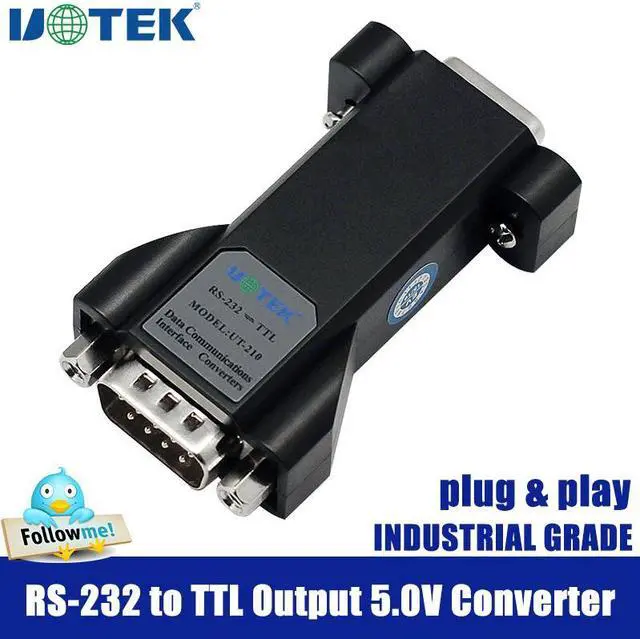

UOTEK Industrial Grade RS232 to TTL Converter Output 5V COM DB9 Connector RS-232 Adapter Supports All Operating System UT-210
- Standards: RS-232 TIA/EIA, TTL & electrical level data interface
- Power: port-powered over RS-232/485/422, no need external connected & serial port initialization, real TXD/RXD/GND communication
- Baudrate: 300bps-115.2Kbps
- Works with all communication software, plug & play
+
+
Overview
Specs
Reviews
Parameter:
Mini size, DB9 connector
Standards: RS-232 TIA/EIA, TTL & electrical level data interface
Power: port-powered over RS-232/485/422, no need external connected & serial port initialization, real TXD/RXD/GND communication
Baudrate: 300bps- 115.2K bps
Works with all communication software, plug & play

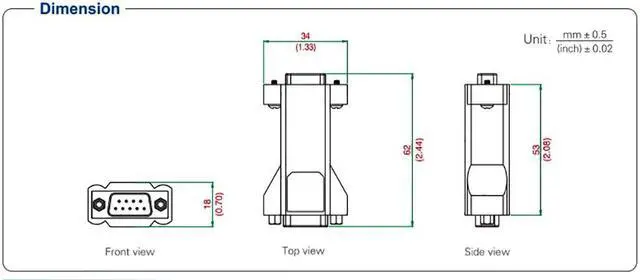

Dimension: 62mm×34mm×18mm
Operating temperature: -40 to 85
Relative humidity: 5% to 95%
Supports all operating system
Model with handshaking signal can be customized
To carry out the digital communication between external devices or intelligent instruments with different standard serial interfaces, standardize the serial conversion is necessary. Rs 232 to TTL converter(UT-210) converts data (TXD, RXD) of RS-232C to TTL/COM; the TTL electrical level is 0-5V, without external power supply. It adopts unique "RS-232 charge pump" technology to drive the system and gains power without initializing the RS-232 serial port.
As rs232 to TTL adapter, this converter has an automatic transmission and reception conversion within no delay, and a unique I/O circuit auto control data flow direction. With these, we don't need any handshake signal (RTS, DTR). And rs 232c converter can run smoothly and is compatible with current software and hardware under TTL mode, without modifying the programming under RS-232 full-duplex mode. The baud rate is 300- 115.2K bps.
Mini size, DB9 connector
Standards: RS-232 TIA/EIA, TTL & electrical level data interface
Power: port-powered over RS-232/485/422, no need external connected & serial port initialization, real TXD/RXD/GND communication
Baudrate: 300bps- 115.2K bps
Works with all communication software, plug & play
Dimension: 62mm×34mm×18mm
Operating temperature: -40 to 85
Relative humidity: 5% to 95%
Supports all operating system
Model with handshaking signal can be customized
To carry out the digital communication between external devices or intelligent instruments with different standard serial interfaces, standardize the serial conversion is necessary. Rs 232 to TTL converter(UT-210) converts data (TXD, RXD) of RS-232C to TTL/COM; the TTL electrical level is 0-5V, without external power supply. It adopts unique "RS-232 charge pump" technology to drive the system and gains power without initializing the RS-232 serial port.
As rs232 to TTL adapter, this converter has an automatic transmission and reception conversion within no delay, and a unique I/O circuit auto control data flow direction. With these, we don't need any handshake signal (RTS, DTR). And rs 232c converter can run smoothly and is compatible with current software and hardware under TTL mode, without modifying the programming under RS-232 full-duplex mode. The baud rate is 300- 115.2K bps.
