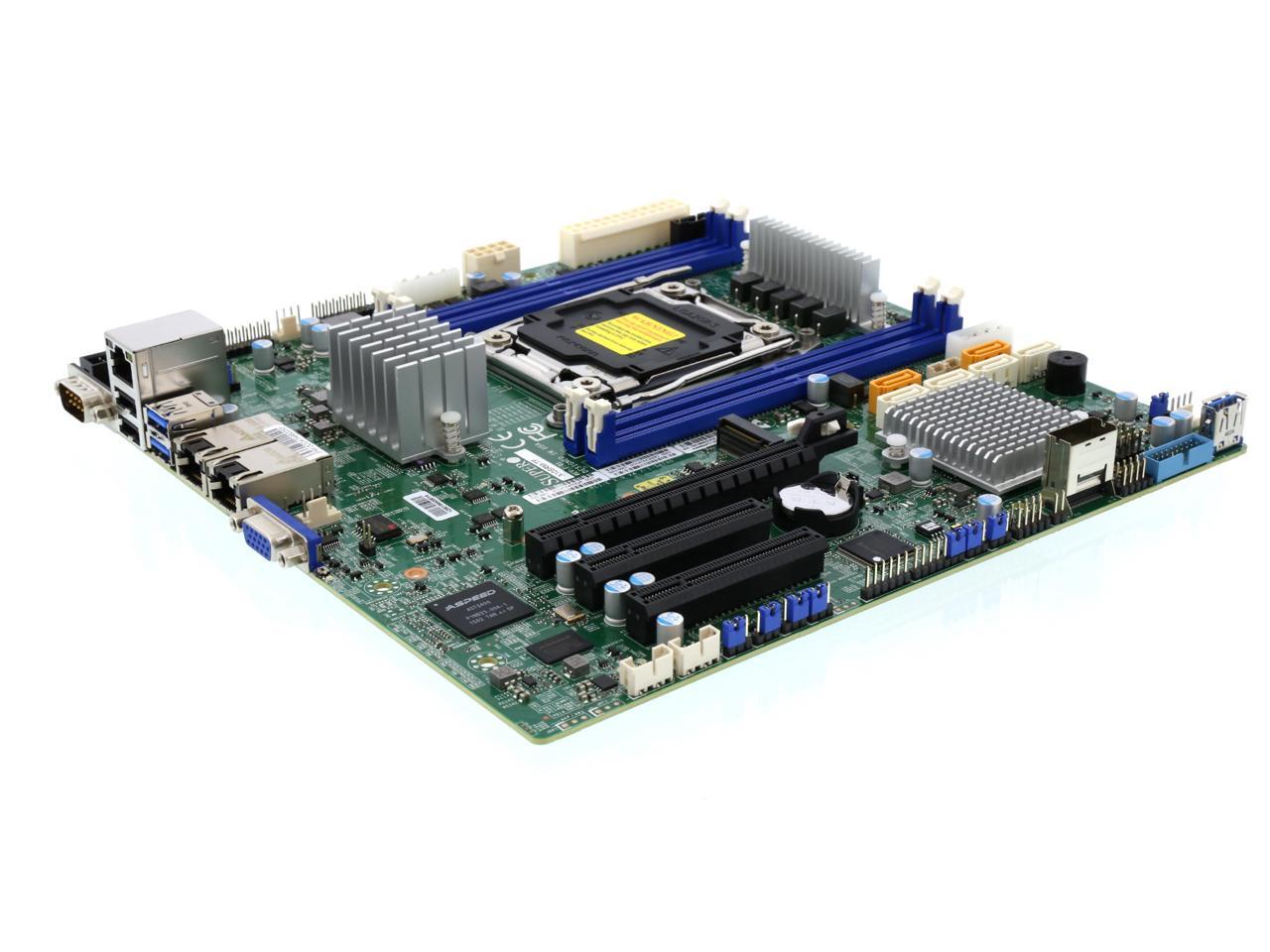

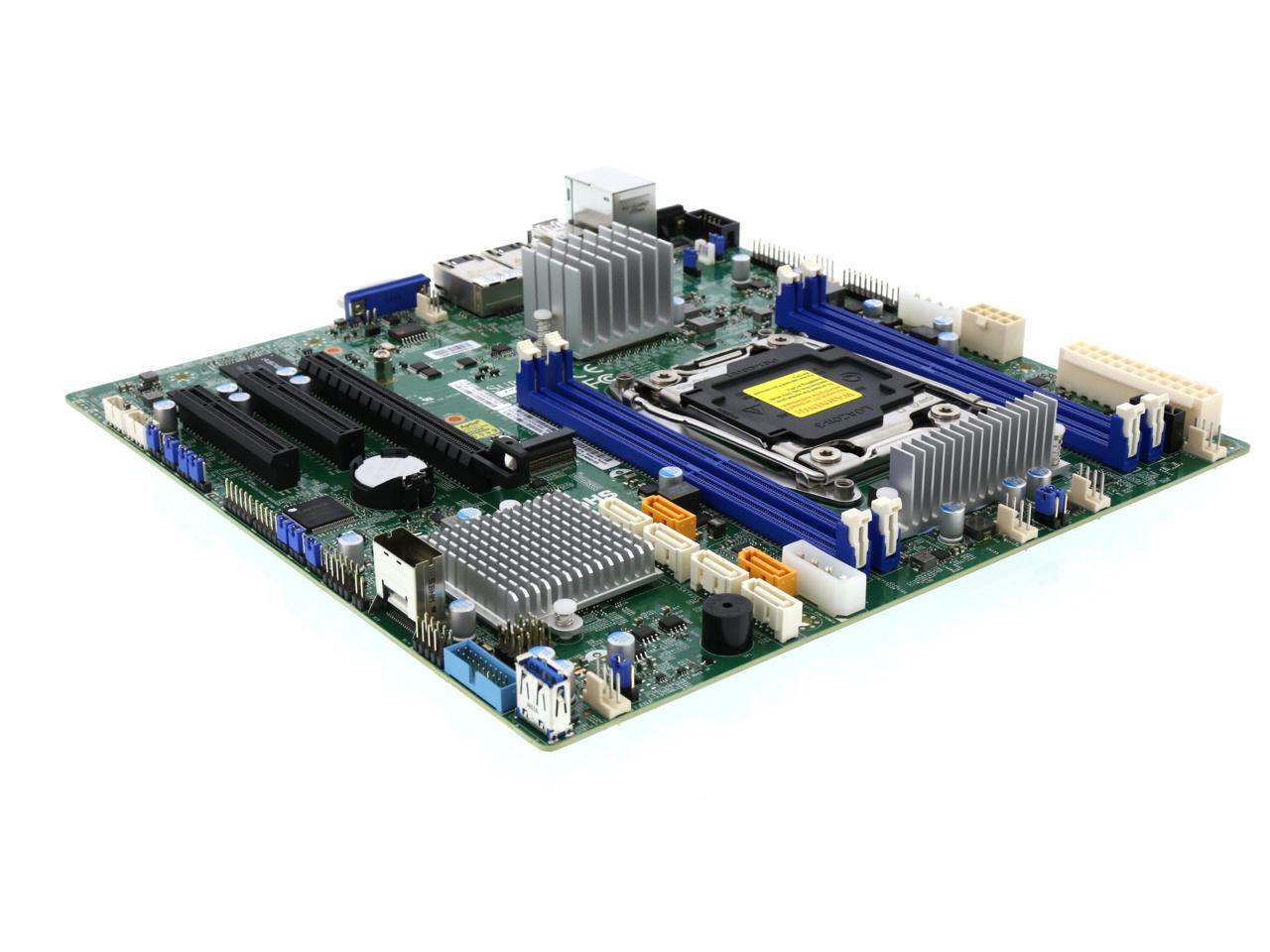

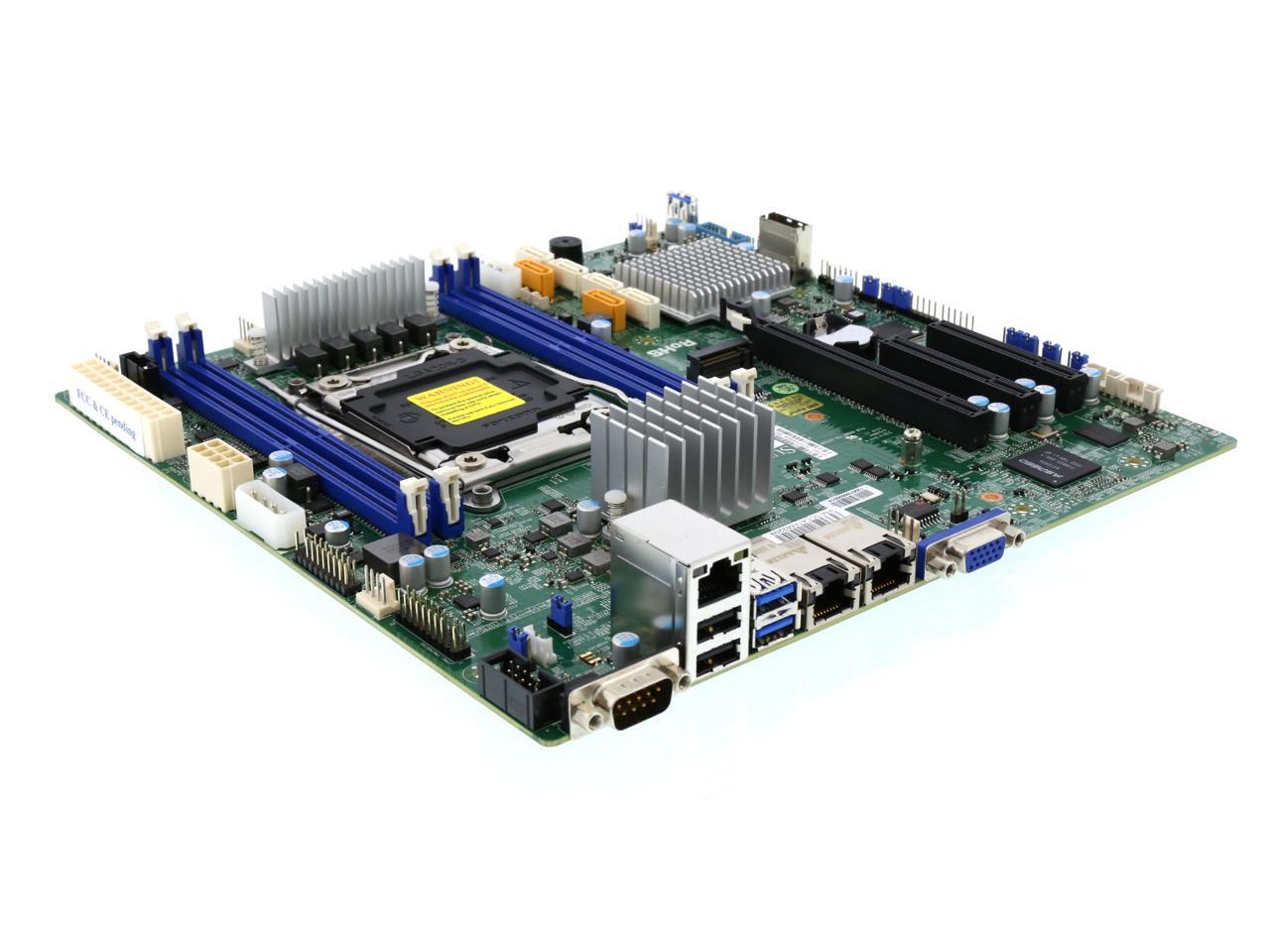

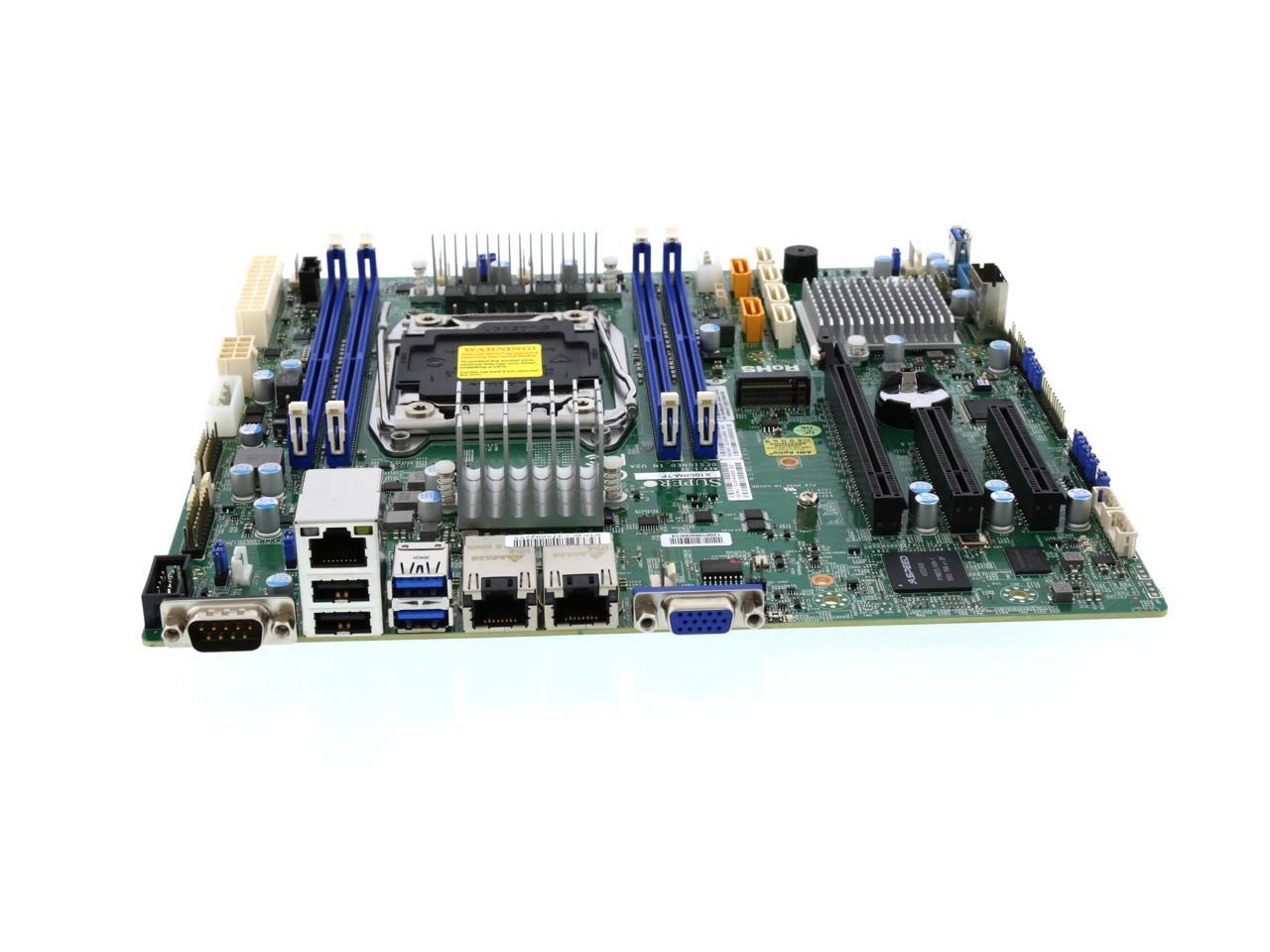

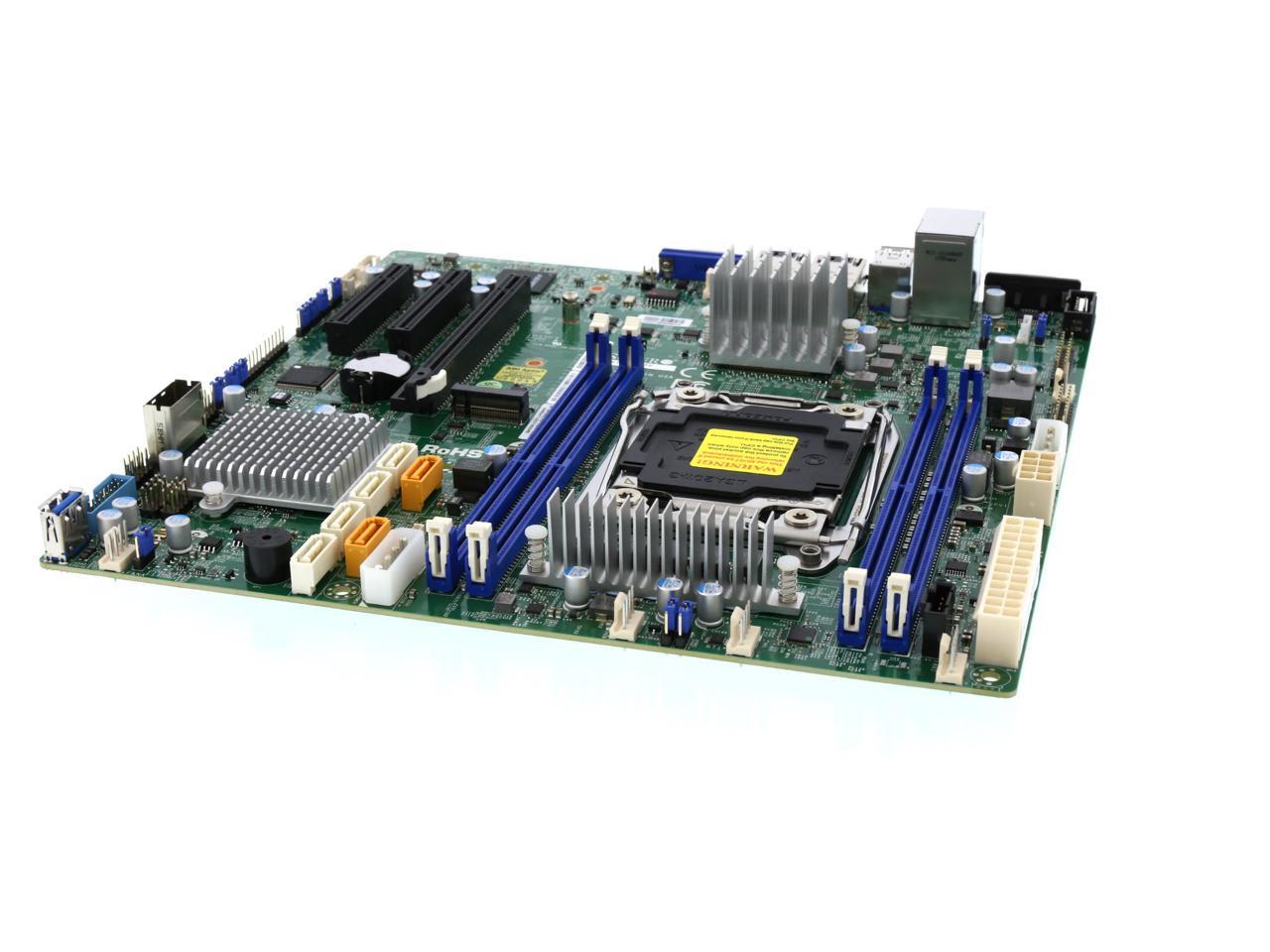

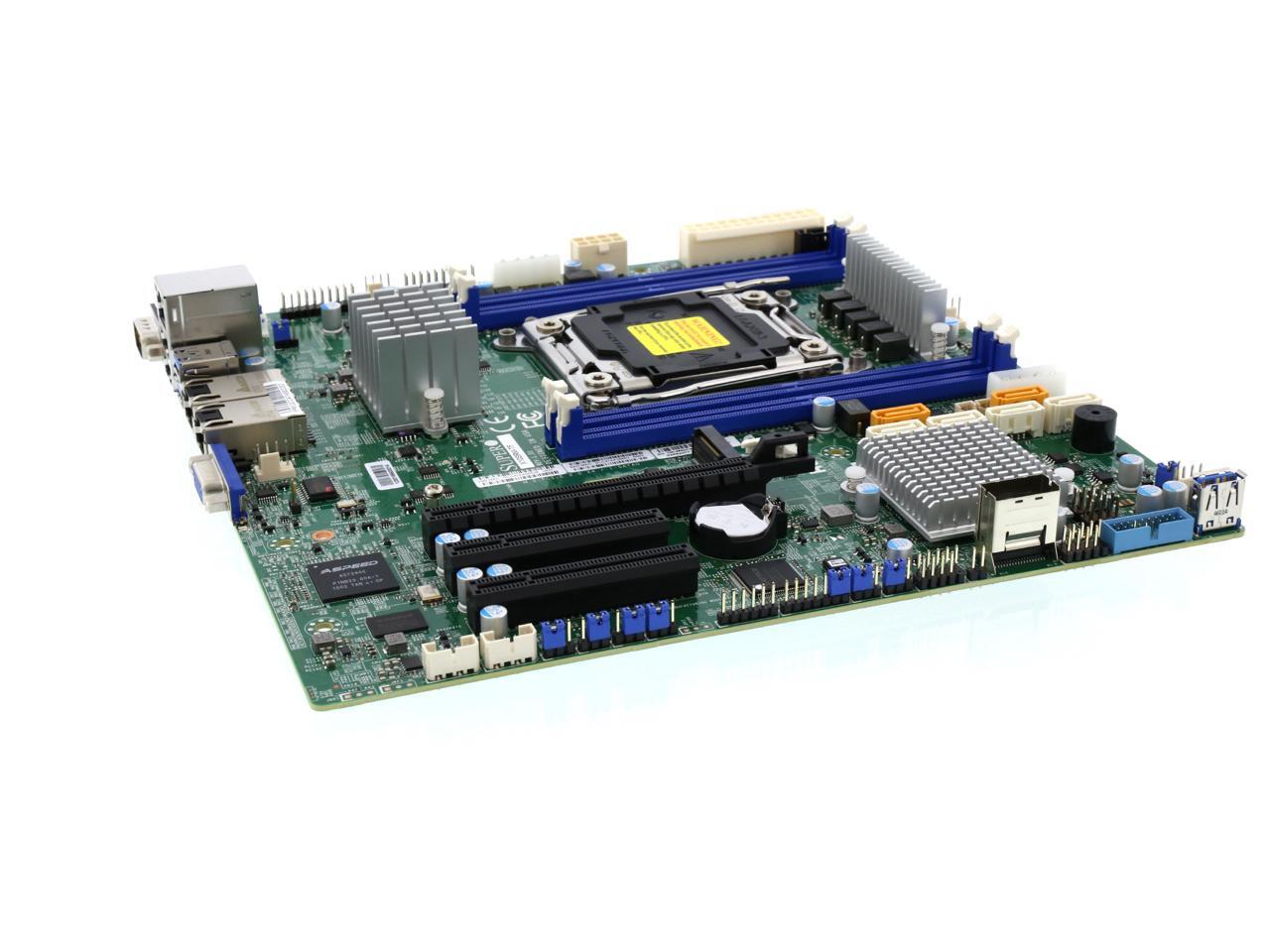

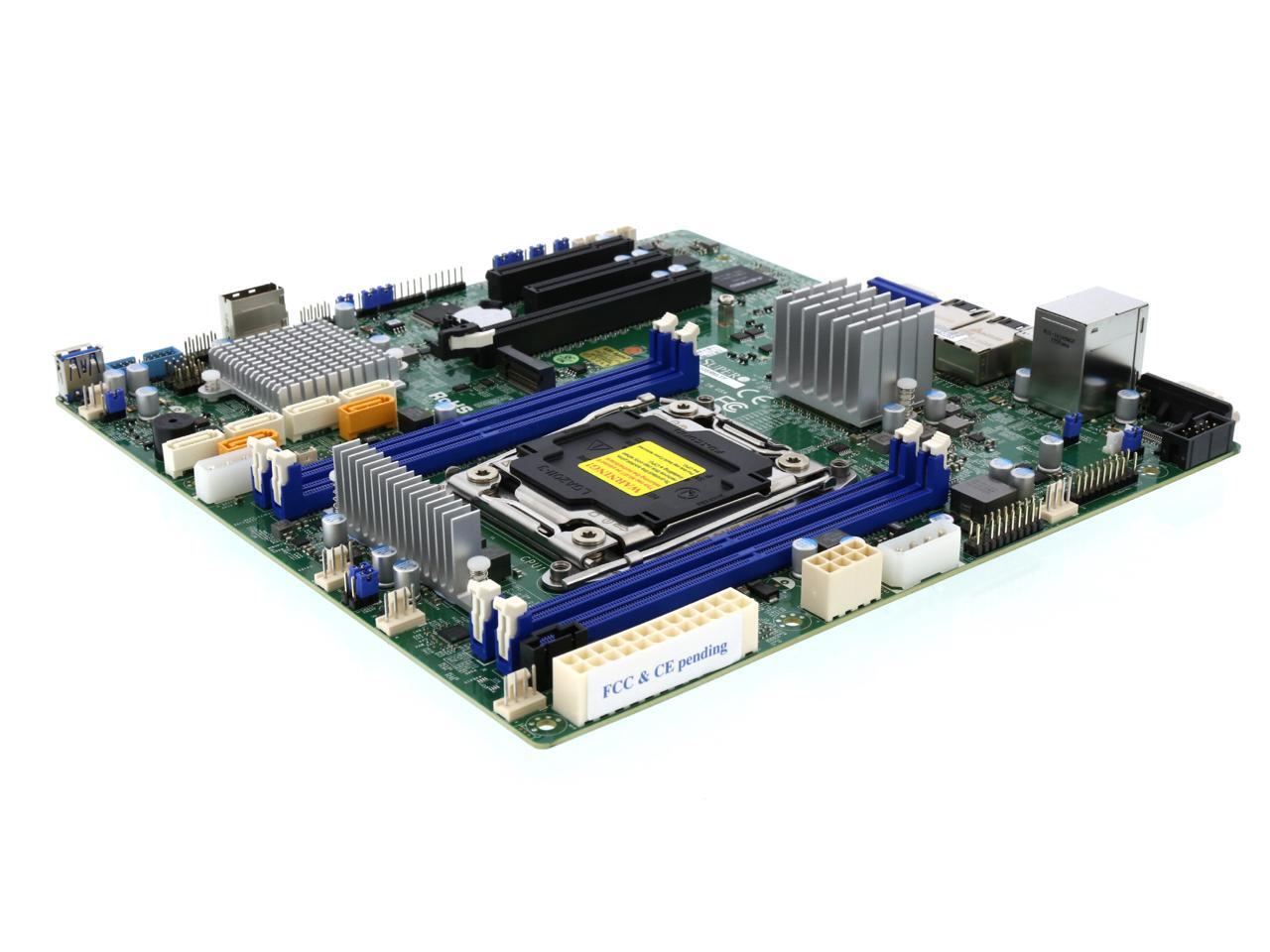

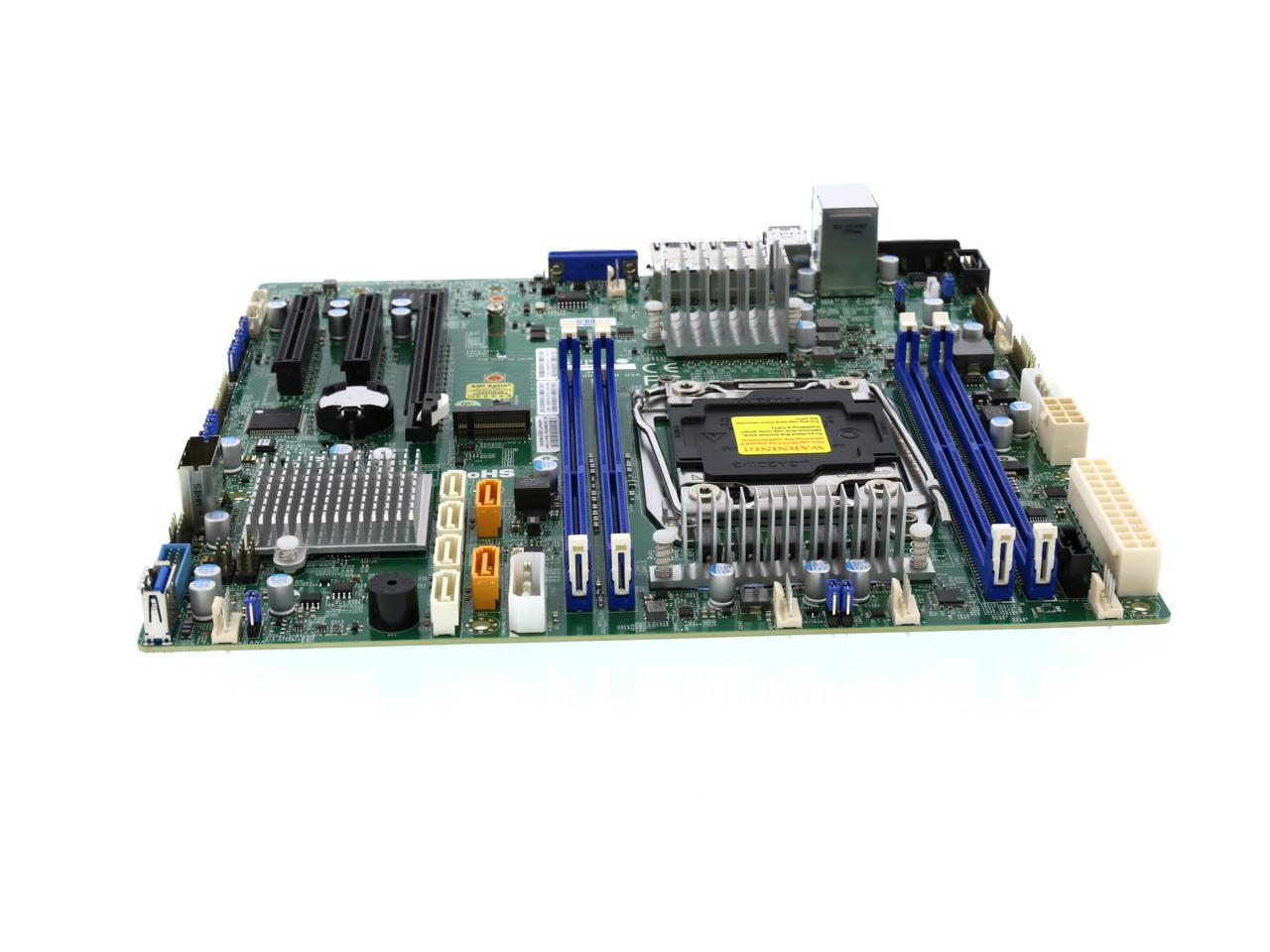

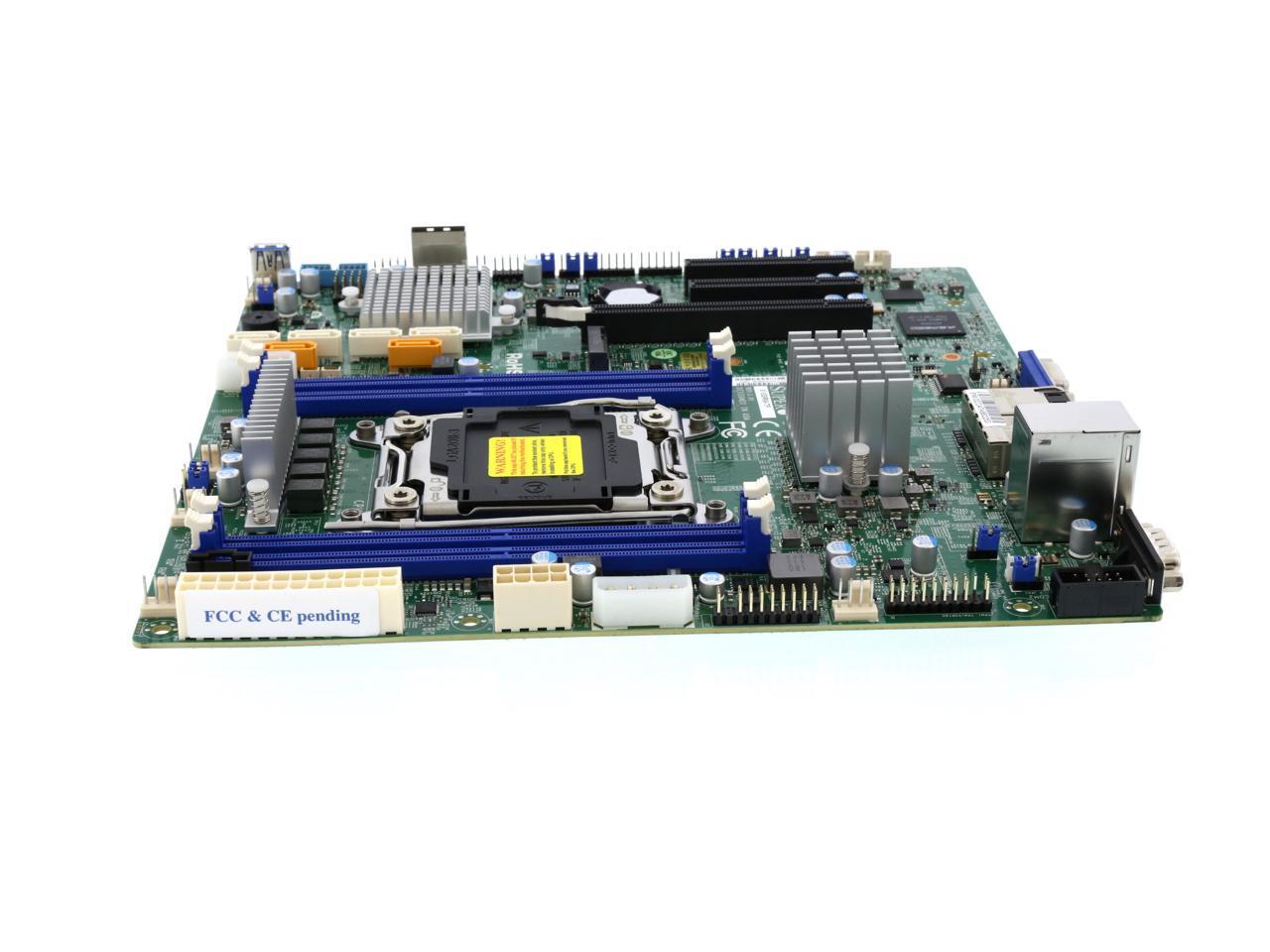

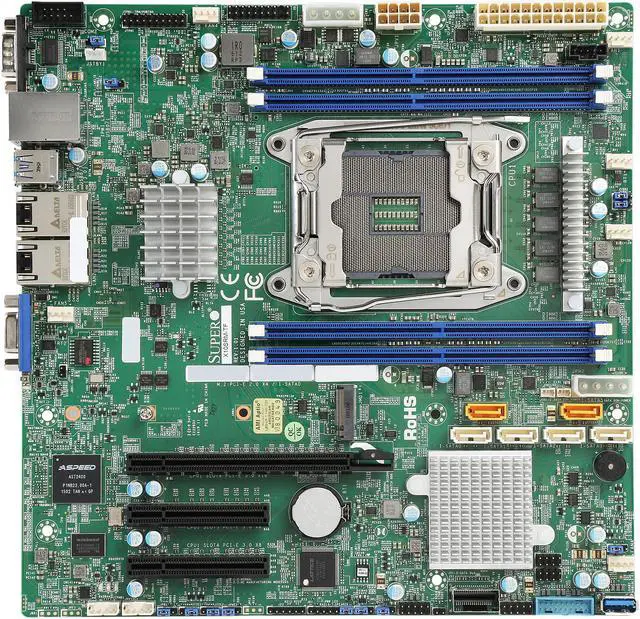

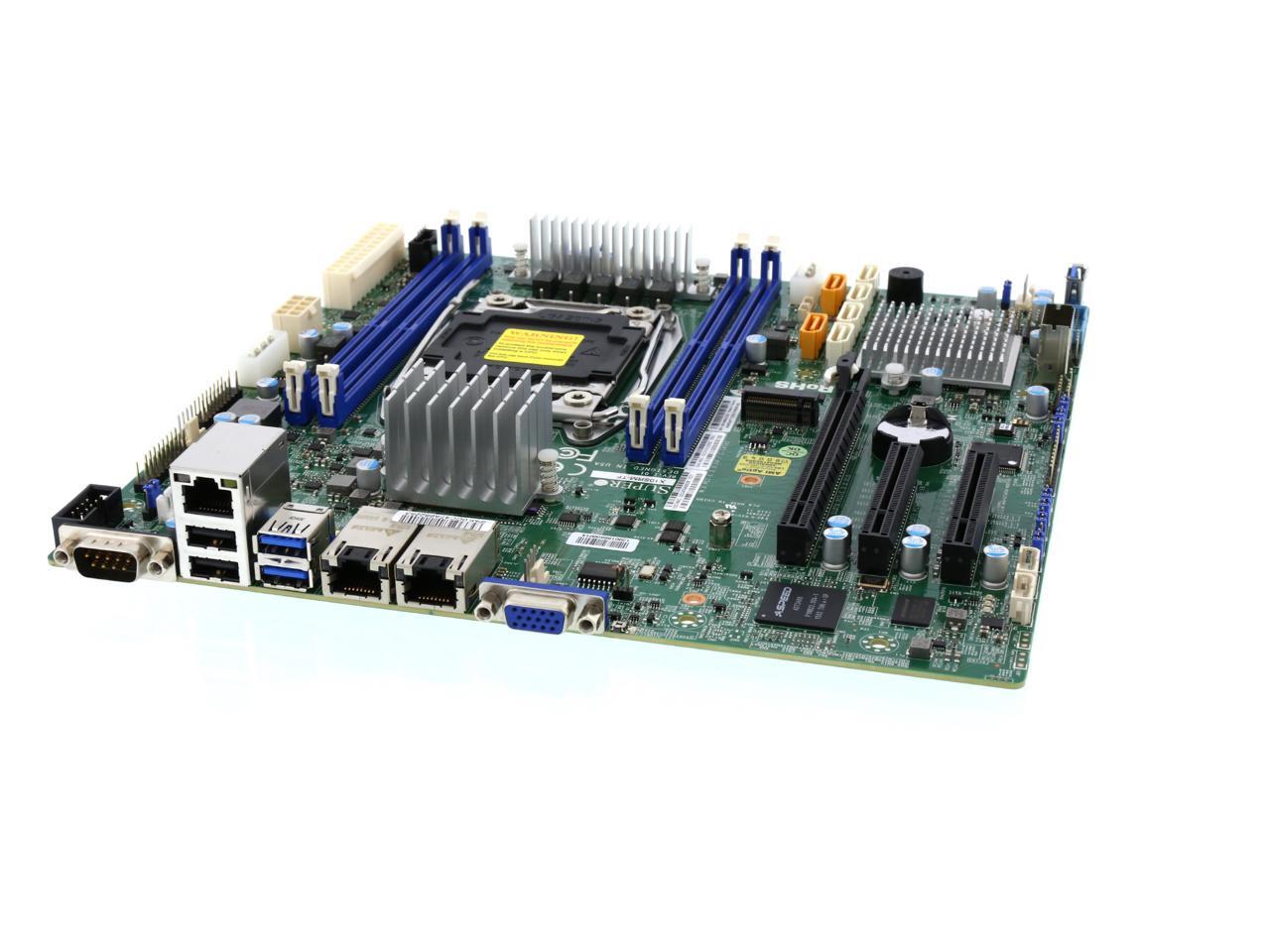

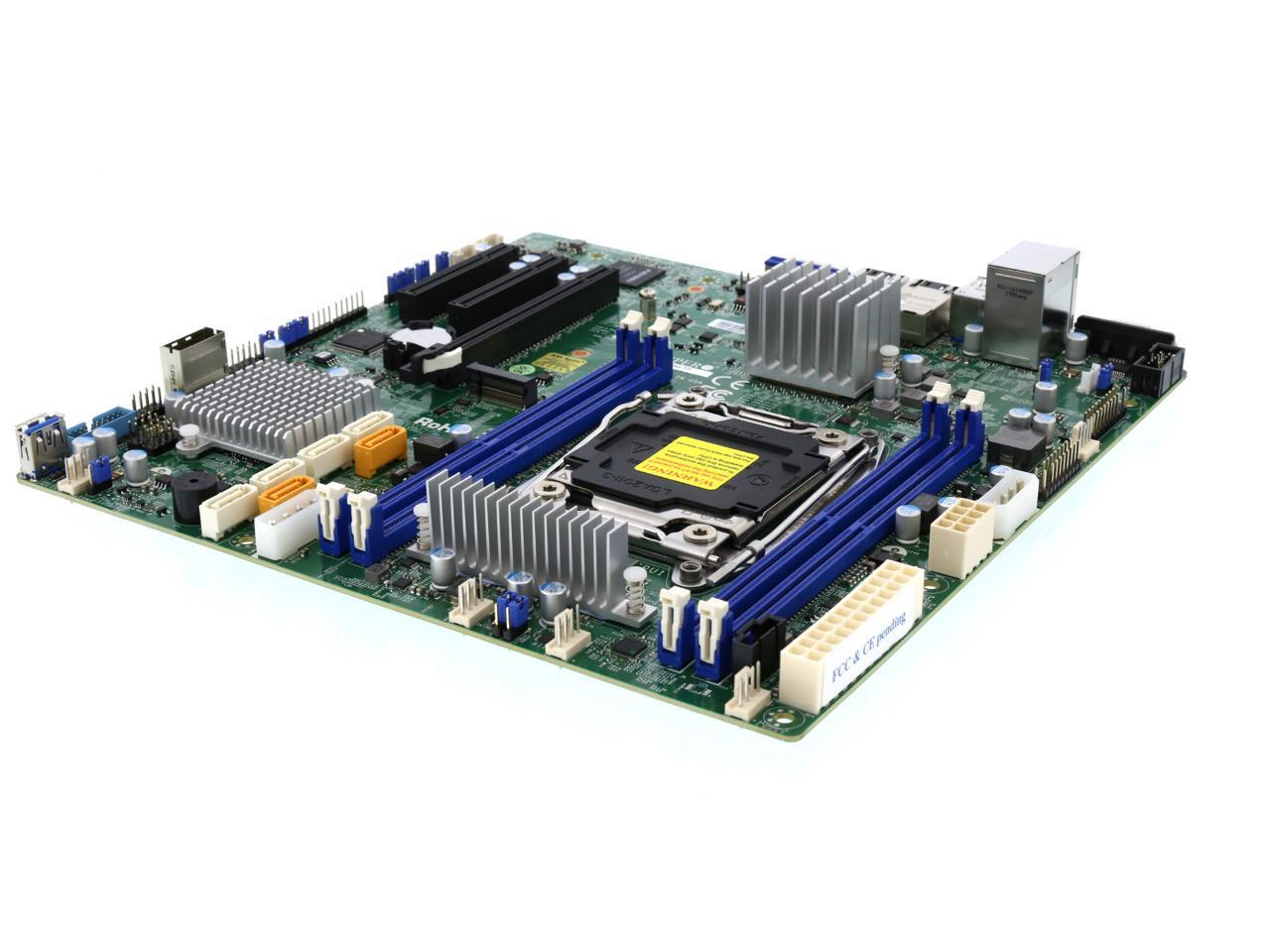

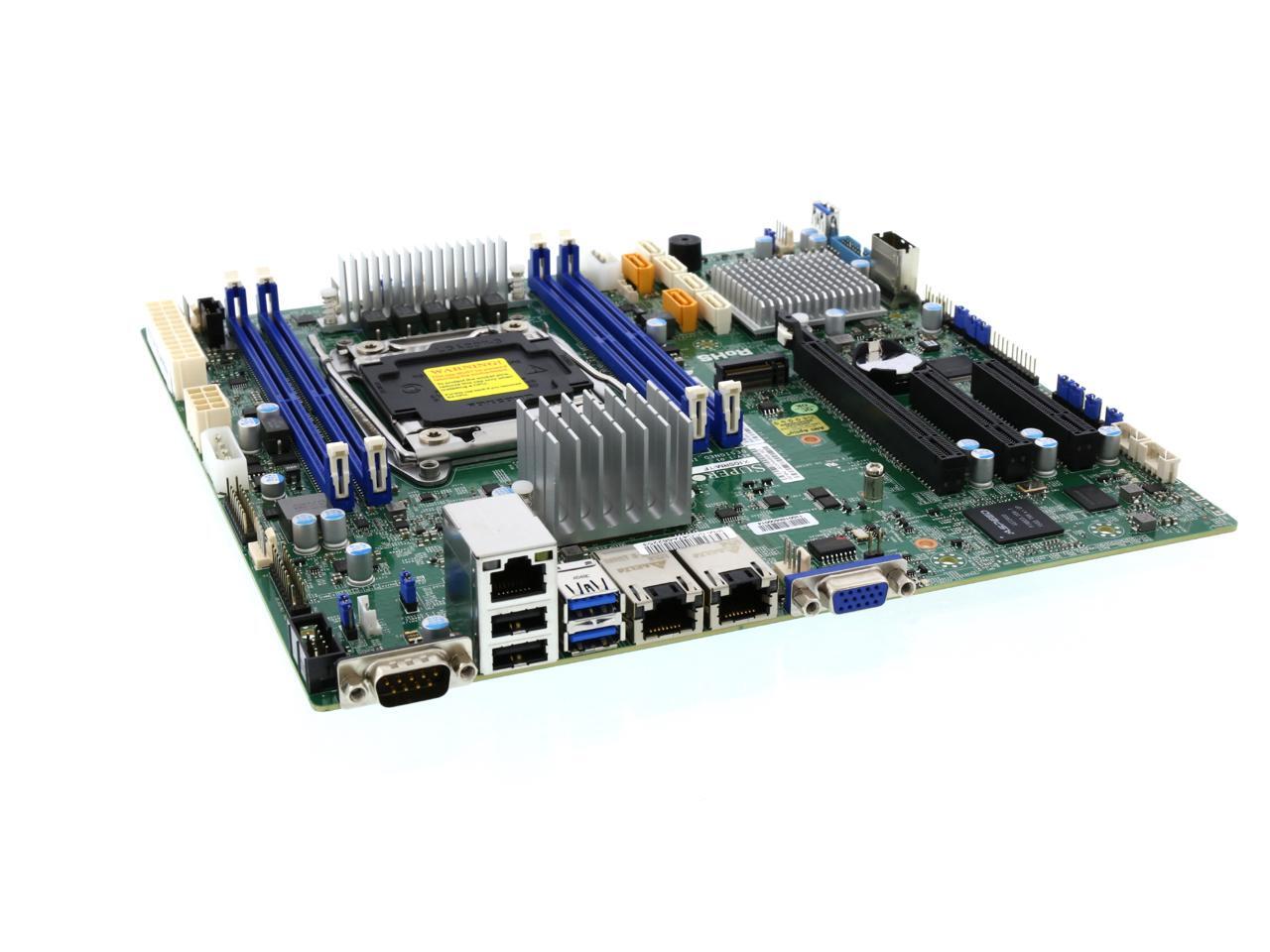

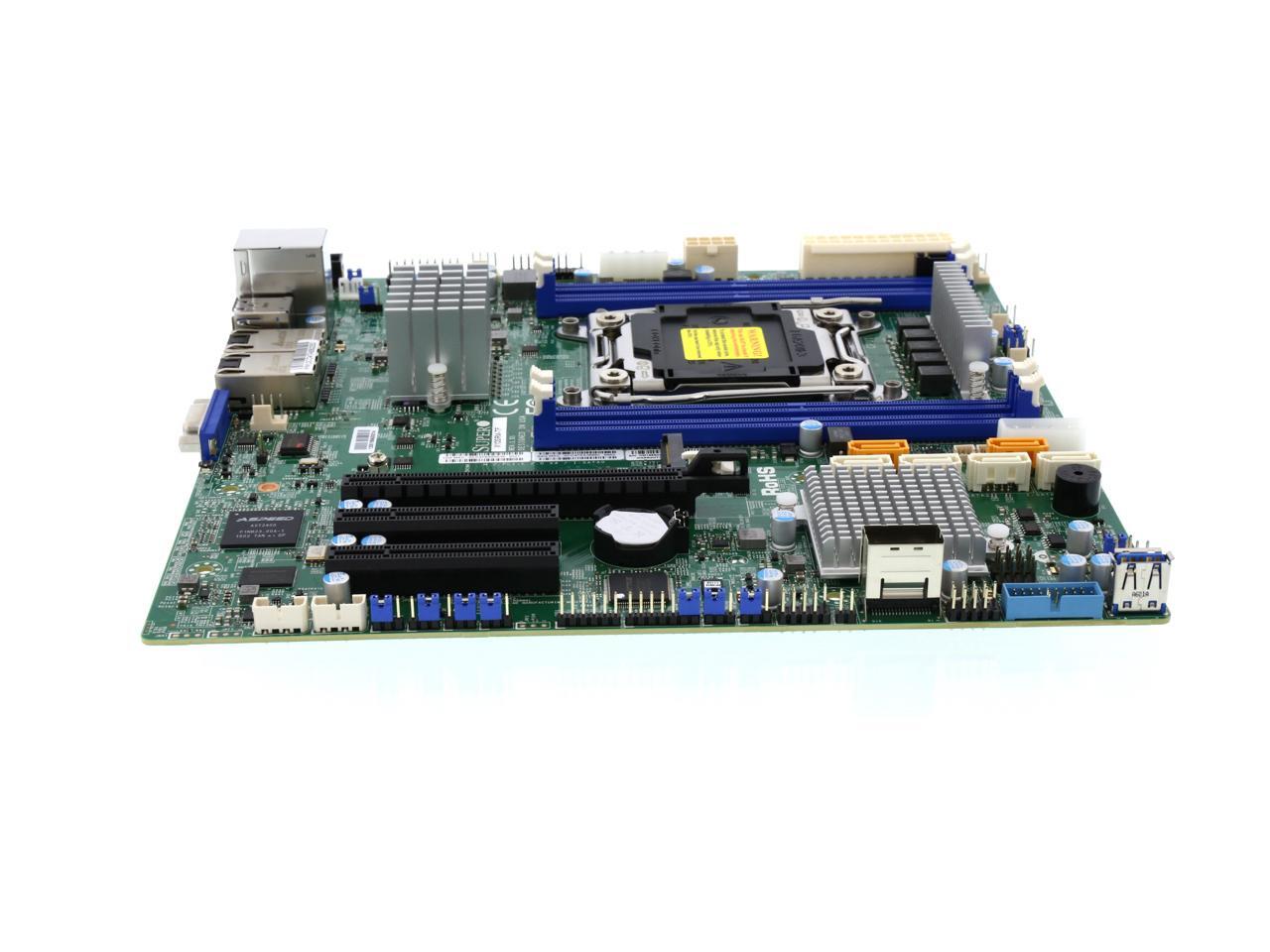

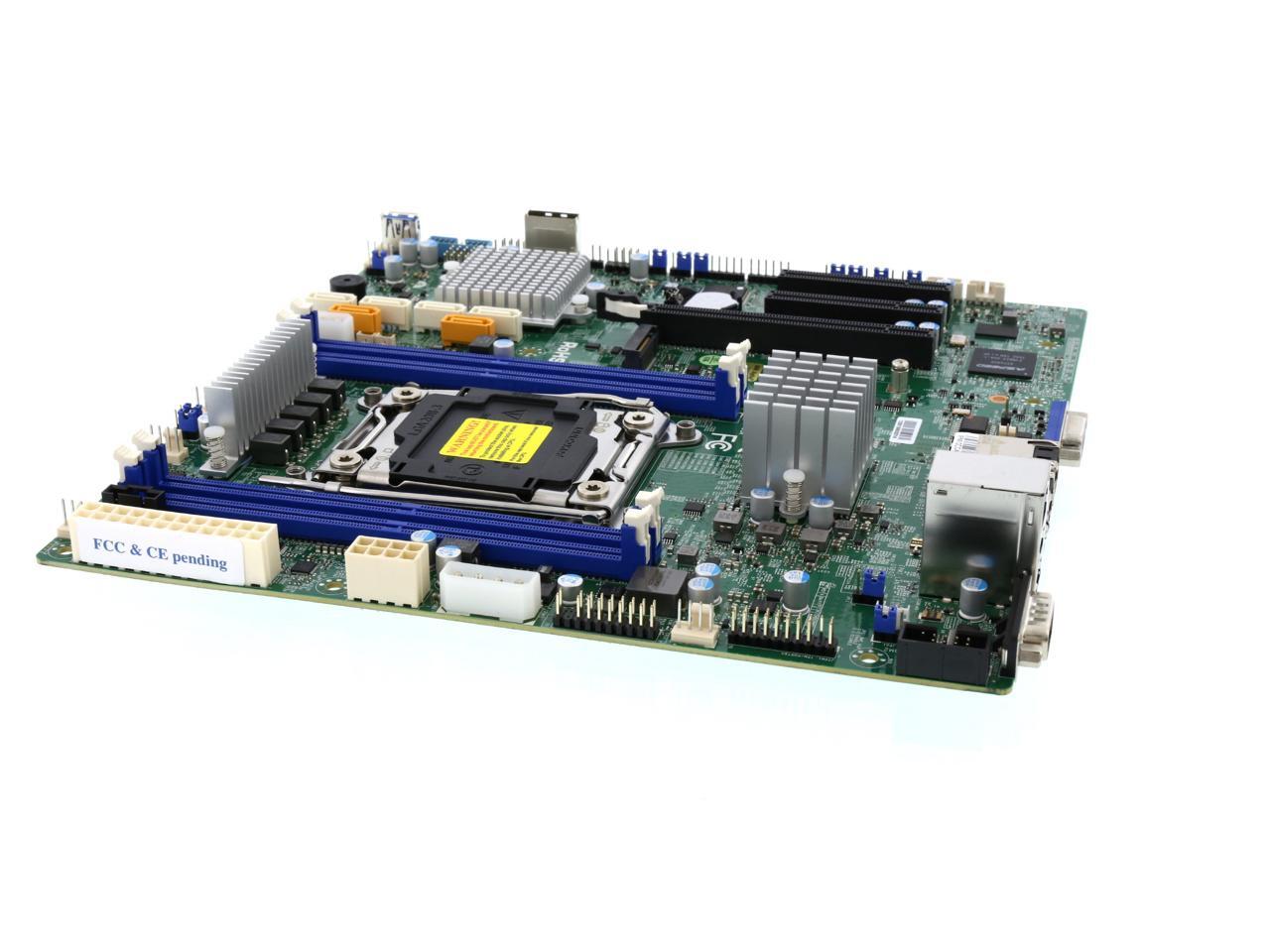

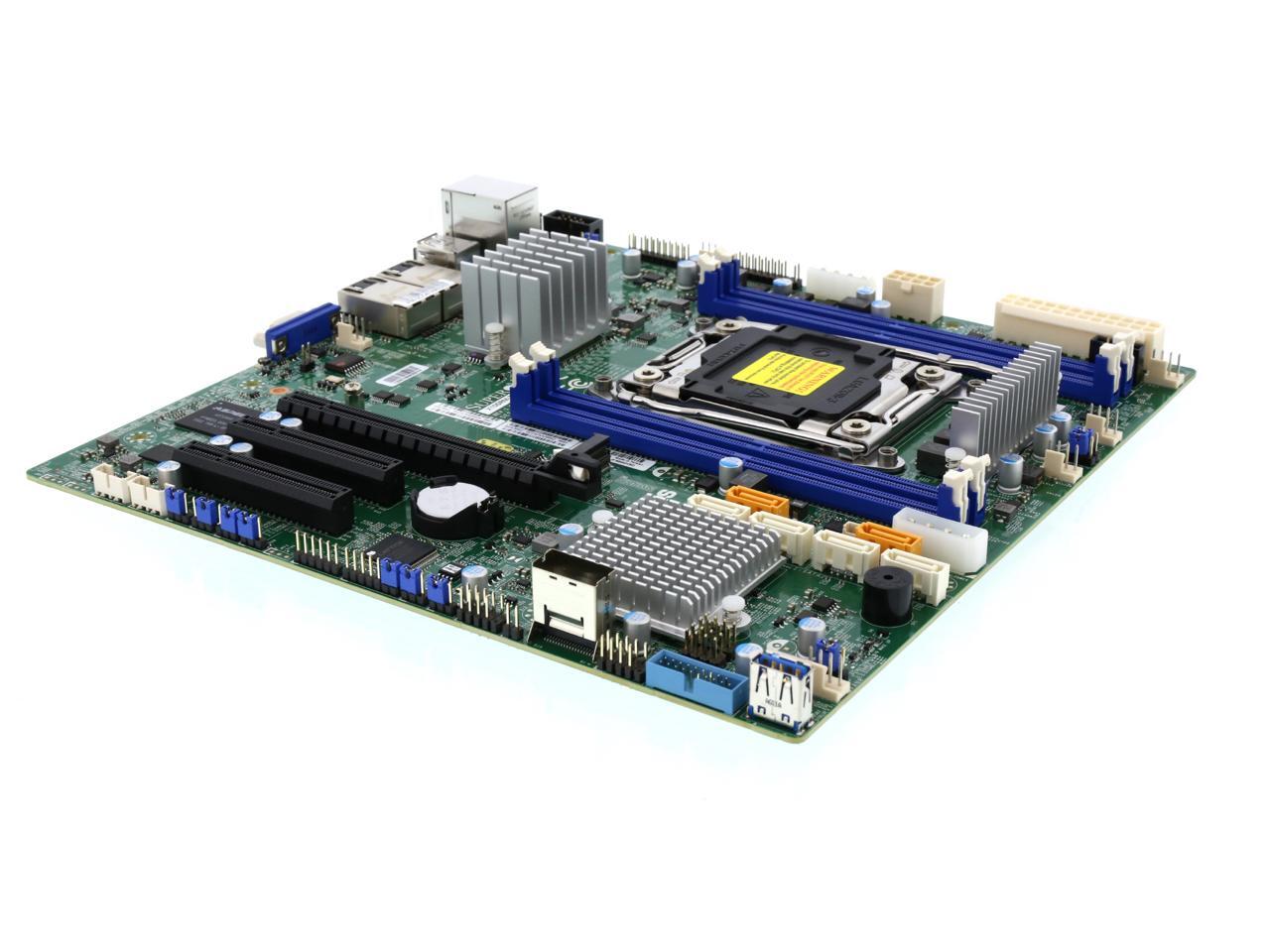

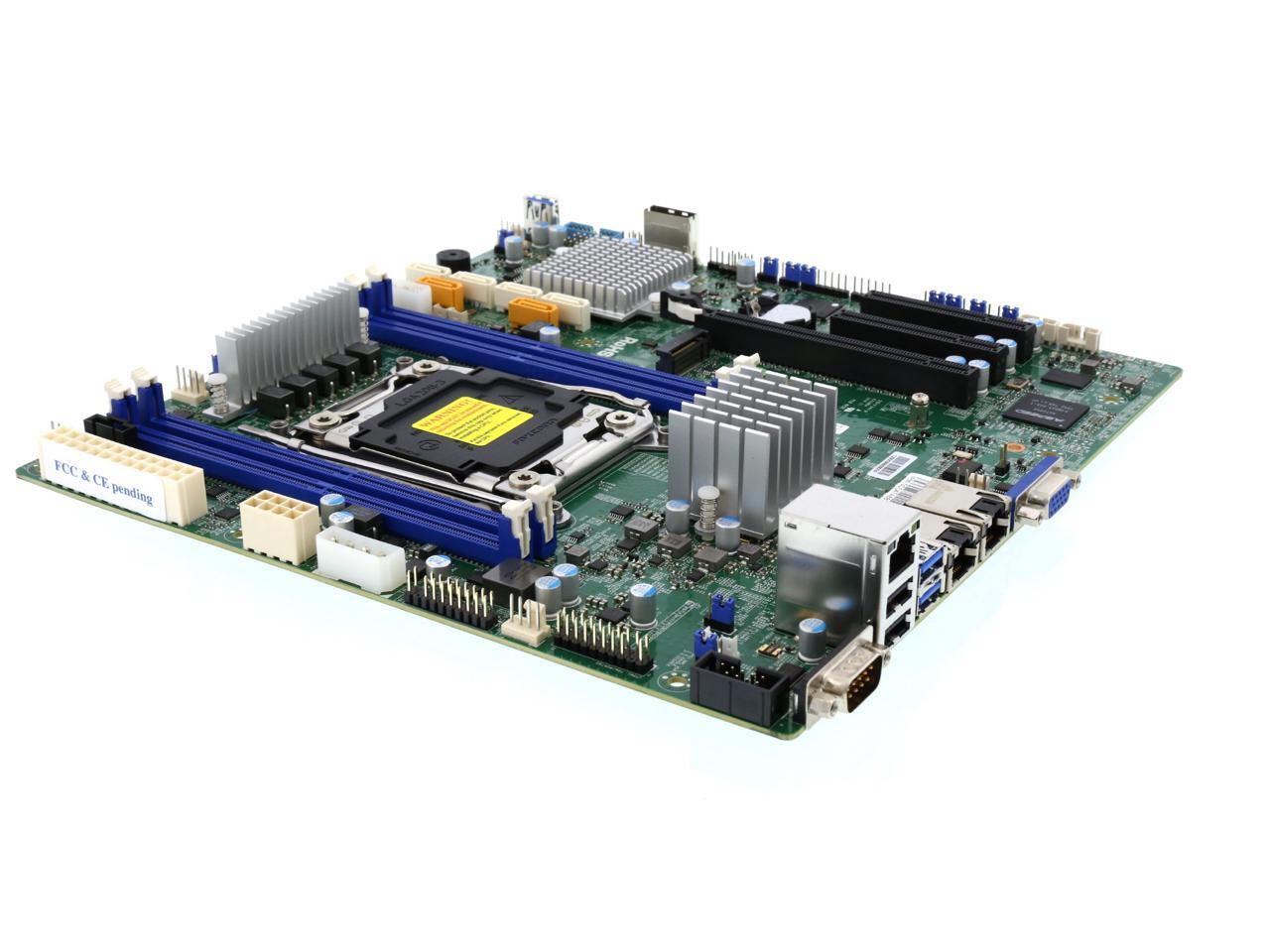

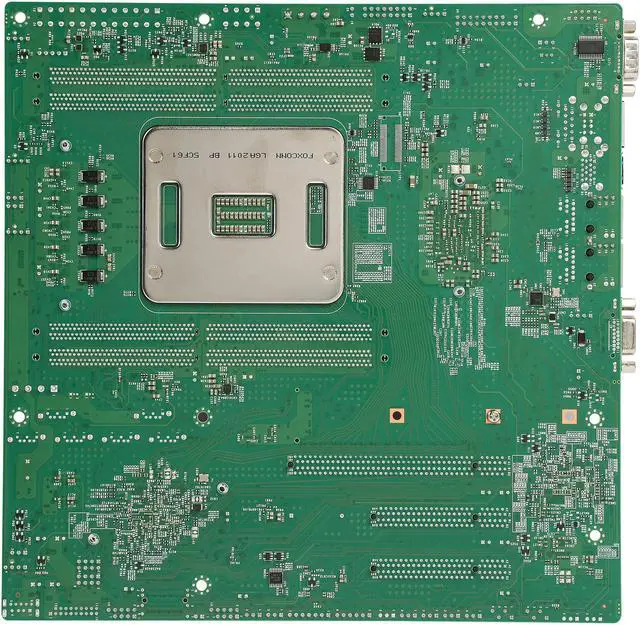

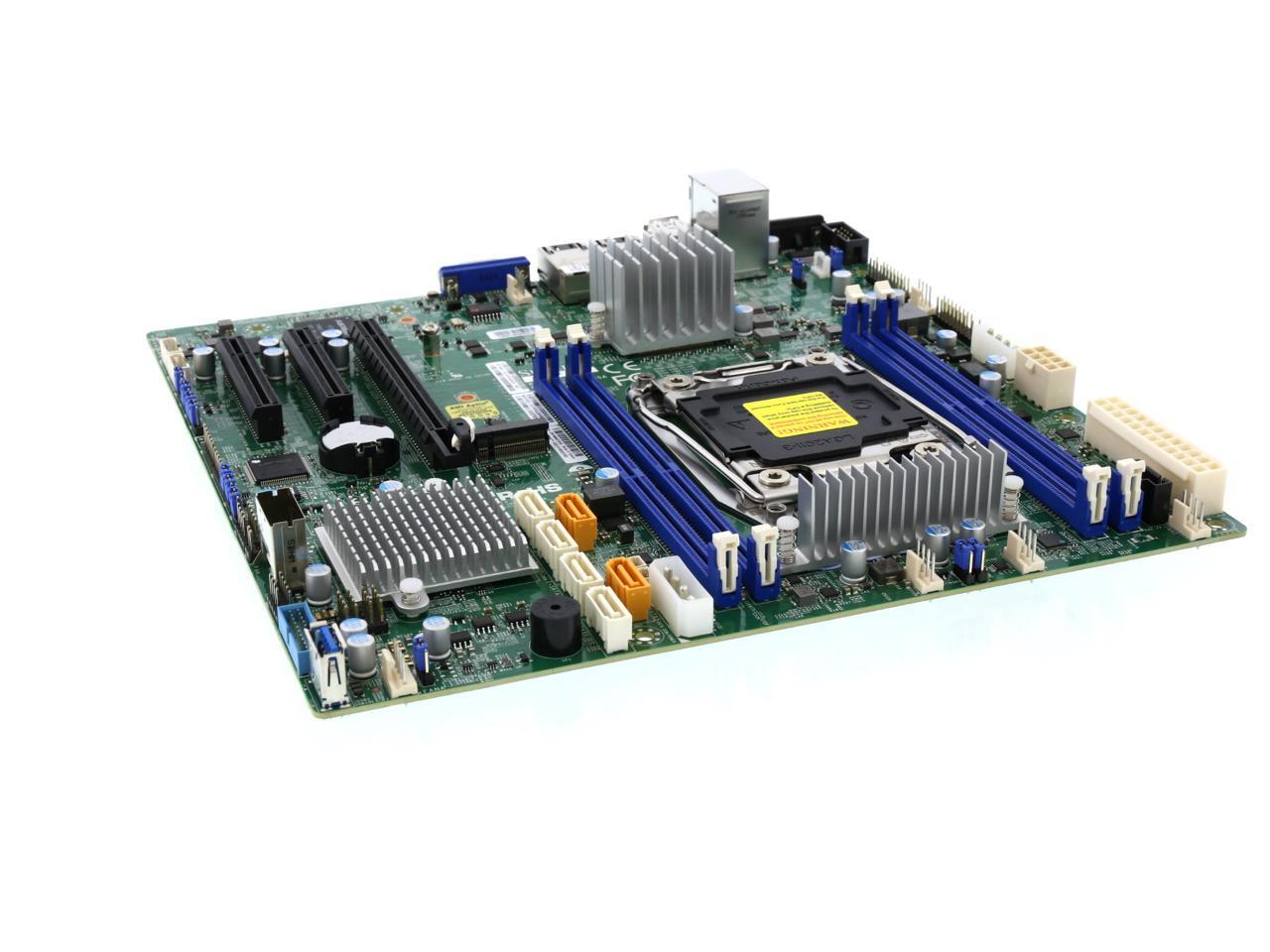

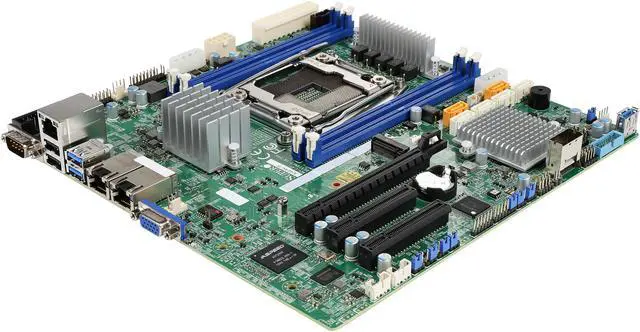

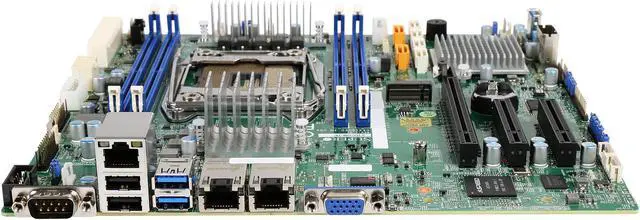

SUPERMICRO X10SRM-TF Micro ATX Server Motherboard R3 (LGA 2011) Intel C612
- R3 (LGA 2011)
- Intel C612
+
+
Specs
Reviews
Learn more about the Supermicro X10SRM-TF
| Brand | SUPERMICRO |
|---|---|
| Model | X10SRM-TF |
| CPU Socket Type | R3 (LGA 2011) |
|---|---|
| CPU Type | Intel Xeon processor E5-2600 v4 / v3, E5-1600 v4 / v3 family (up to 145W TDP) |
| North Bridge | Intel C612 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | 2400 / 2133 / 1866 / 1600 MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs |
| Maximum Memory Supported | Up to 512GB ECC 3DS LRDIMM Up to 256GB ECC LRDIMM Up to 128GB ECC RDIMM |
| ECC Supported | Yes |
| PCI Express 3.0 x16 | 1 |
|---|---|
| Other Slots | 2 x PCI-E 3.0 x8 slots |
| SATA | 10 x SATA3 (6Gbps) ports |
|---|---|
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Aspeed AST2400 BMC |
|---|
| LAN Chipset | Intel X550 |
|---|---|
| LAN Speed | 10Gbps |
| Second LAN Chipset | Intel X550 |
| Second LAN Speed | 10Gbps |
| COM | 1 |
|---|---|
| Video Ports | 1 x VGA port |
| RJ45 | 2 x RJ45 10GBase-T Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 | 2 x USB 3.0 |
| Features | Single socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4 / v3 and E5-1600 v4 / v3 family Intel C612 chipset Up to 512GB ECC 3DS LRDIMM, up to DDR4 - 2400 MHz; 4 x DIMM slots 1 x PCI-E 3.0 x16, 2 x PCI-E 3.0 x8 Intel X550 Dual 10GBase-T LAN ports 10 x SATA3 (6Gbps) via C612 1 x VGA, 2 x COM, 1 x TPM 5 x USB 3.0 ports, 6 x USB 2.0 ports 2 x SuperDOM with built-in power |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Date First Available | April 03, 2025 |
|---|
