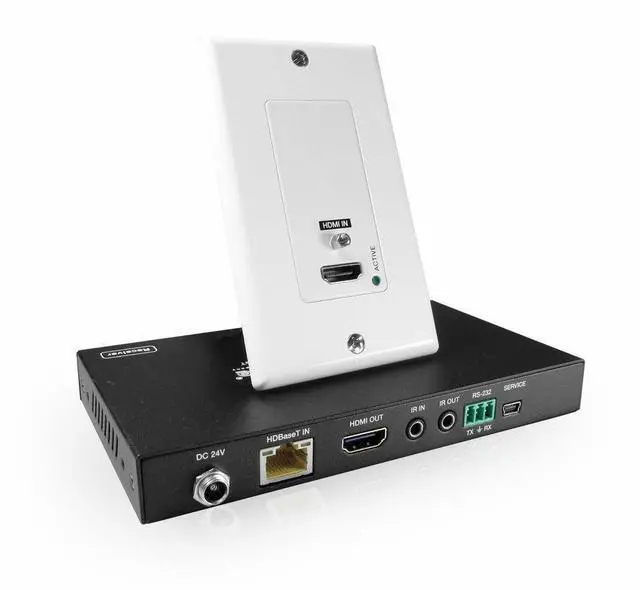

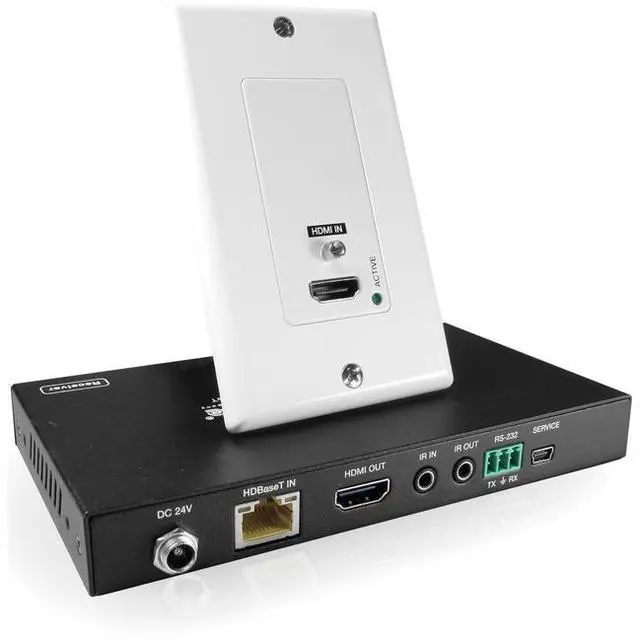

Comprehensive CHE-HDBTWP100K Pro AV/IT HDBaseT 4K60 18G Single Gang HDMI Wall Plate Extender Kit up to 230 ft.
- HDMI 2.0 and HDCP 2.2 compliant
- Supports resolutions up to 4K2K@60Hz(4:4:4), 4K2K@30Hz, 1080p@120Hz
- Up to 7.1 channels HD audio
- HDBaseT over a single CAT 6/6a/7 cable up to 230ft/70m distance
- One HDMI input, 1 Gang US Decora Wall Plate
- Two-way IR and RS-232
- POC (Power Over Cable) function is supported by 24V1A power supply, the transmitter does not need power supply from the DC jack
- Power consumption is less than 10W
- Vinyl white decora plate
+
+
Specs
Reviews
Learn more about the Comprehensive Cable and Connectivity CHE-HDBTWP100K
| Brand | Comprehensive |
|---|---|
| Model | CHE-HDBTWP100K |
| Type | HDMI Extender |
|---|---|
| Max Extend Distance | 230 feet |
| Color | Black |
| Specifications | Audio Formats Supported: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD CEC: Yes Color Bit Depth: 10-bit, 12-bit Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2 Data Speed (bandwidth): 18 Gbps Distances Supported: 230 feet HDCP Version: 2.2 version HDR Resolution and Refresh Rate: 4K2K@50/60Hz(YUV4:4:4), 4K2K@30hz, 1080P@120hz, and 1080P 3D@60hz Signal Technology Versions: HDMI 2.0 |
| Connector A | 1 x HDMI Type A [19-pin female] 1 x IR INPUT [Phoenix jack] 1 x RS-232 [Phoenix jack] |
|---|---|
| Connector B | 1 x HDBaseT In (RJ-45) 1 x IR 1 x RS232 1 x Service (Mini-USB) |
| Features | HDMI 2.0 and HDCP 2.2 compliant Supports resolutions up to 4K2K@60Hz(4:4:4), 4K2K@30Hz, 1080p@120Hz Up to 7.1 channels HD audio HDBaseT over a single CAT 6/6a/7 cable up to 230ft/70m distance One HDMI input, 1 Gang US Decora Wall Plate Two-way IR and RS-232 POC (Power Over Cable) function is supported by 24V1A power supply, the transmitter does not need power supply from the DC jack Power consumption is less than 10W Vinyl white decora plate |
|---|
| Dimensions | 6.8" x 8.7" x 1.5" |
|---|---|
| Weight | 1.0 lbs. |
| Package Quantity | 18G HDMI Wall Plate Transmitter x 1 Single-Gang faceplate x 1 Faceplate screws x 2 HDMI 18Gbps Receiver x 1 IR Blast Cable x 1 IR Extender Cable x 1 Phoenix connector(3 pins) x 2 Phoenix connector(2 pins) x 2 24V/1A Power Adaptor x 1 User Manual x 1 |
|---|
| First Listed on Newegg | August 20, 2025 |
|---|
