HUNSN Side Mount Din Rail Fanless Mini PC, Desktop Computer, J1900, BX12, HTPC, Windows 11 / Linux Ubuntu, WiFi, BT, 4 x COM, HDMI, 2 x LAN, SIM Slot, GPIO, 4G RAM, 0 Storage, Barebone No System
- Compact, fully functional, stylish chassis, powered by celeron j1900 processor. TDP is around 10w, if 8 hours one day, only 1-2 kWh electricity WEEKLY, power saving and space saving, side mount din rail supported
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
- Fanless passive cooling design, silent solution thats ultra energy-efficient, applicable to a wide range of industrial applications, 7 x 24 hours of stable work, strong computing power, and can better meet industrial needs

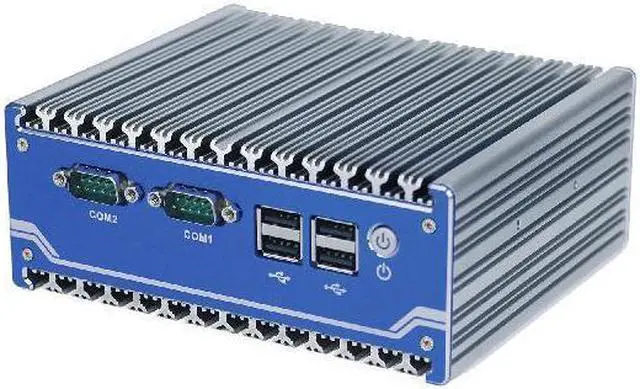

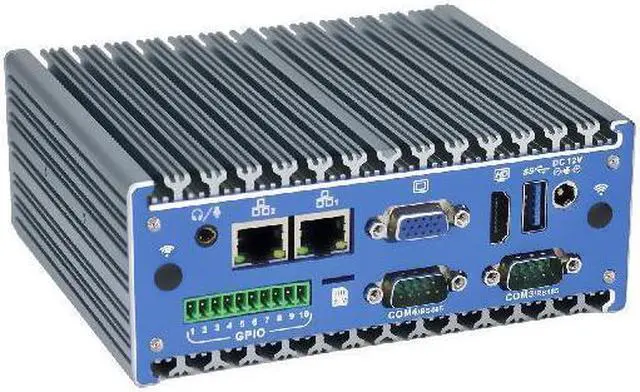

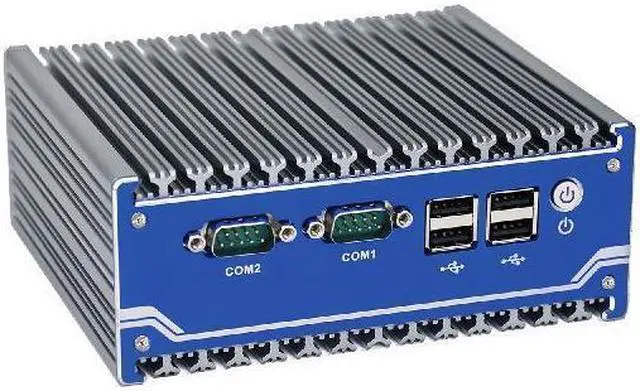

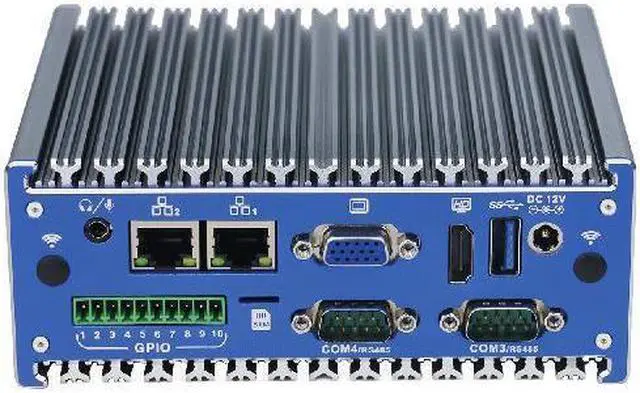

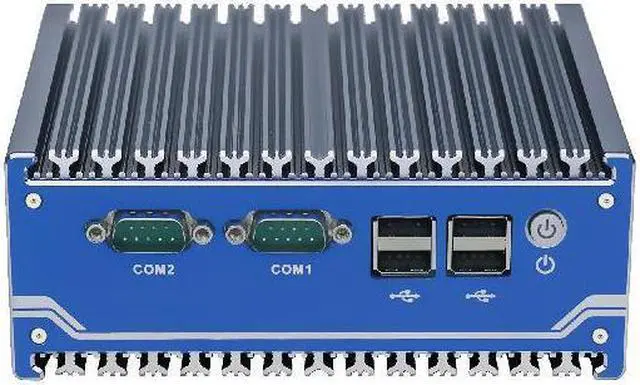

- HUNSN BX12 designed with power on/off, 4 x usb2.0, 4 x com and 2 x com for rs232/485 optional, dc_in, usb3.0, hdmi, vga, 2 x lan, sim slot, 10pin phoenix terminal for 4 x input 4 x output gpio
- Size at 148 x 125 x 58mm, 1.0kgs, 12v5a power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance, very powerful fanless mini pc
+
+
Overview
Specs
Reviews
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN BX12
Material: Aluminum
CPU: Intel® Celeron® Processor J1900 2M Cache, up to 2.42 GHz
Memory: Onboard DDR3L 1600 4GB RAM
Storage: 1 x mSATA SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card: 2 x Intel I210/I211 1000M LAN
WiFi: 802.11ac 2.4 and 5Ghz
Bluetooth: 4.0/4.2
Expansion: 1 x Mini PCIE slot for WiFi/3G/4G module
I/0 Port: Power ON/OFF, 4 x USB2.0, 4 x COM and 2 x COM for RS232/485 Optional, DC_IN, USB3.0,
HDMI, VGA, 2 x LAN, SIM Slot, 10PIN Phoenix Terminal for 4 x Input 4 x Output GPIO
Power: DC100-240V AC/50-60hz, 12V5A
Work Temperature: 0°C ~ 40°C Commercial HDD, -20°C ~ +60°C Industrial SSD, surface air flow
Work Humidity: 0%~95% non-condensing
Size: 148 x 125 x 58mm
Weight: 1.0kgs
TDP: 10W
Cooling System: Fanless
Packing List: HUNSN BX12 mini pc with side mount din rail, power supply, power cord, WiFi antennas, warranty card
Function: Supports hardware auto power on, Timing boot, WOL, PXE boot, Watchdog 0~255 level
Installation: Supports Desktop, Din Rail, VESA wall-mounted and other fixing methods, default as side mount din rail method
System Support: Windows 11, Linux Ubuntu
Model Number: HUNSN BX12
Material: Aluminum
CPU: Intel® Celeron® Processor J1900 2M Cache, up to 2.42 GHz
Memory: Onboard DDR3L 1600 4GB RAM
Storage: 1 x mSATA SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card: 2 x Intel I210/I211 1000M LAN
WiFi: 802.11ac 2.4 and 5Ghz
Bluetooth: 4.0/4.2
Expansion: 1 x Mini PCIE slot for WiFi/3G/4G module
I/0 Port: Power ON/OFF, 4 x USB2.0, 4 x COM and 2 x COM for RS232/485 Optional, DC_IN, USB3.0,
HDMI, VGA, 2 x LAN, SIM Slot, 10PIN Phoenix Terminal for 4 x Input 4 x Output GPIO
Power: DC100-240V AC/50-60hz, 12V5A
Work Temperature: 0°C ~ 40°C Commercial HDD, -20°C ~ +60°C Industrial SSD, surface air flow
Work Humidity: 0%~95% non-condensing
Size: 148 x 125 x 58mm
Weight: 1.0kgs
TDP: 10W
Cooling System: Fanless
Packing List: HUNSN BX12 mini pc with side mount din rail, power supply, power cord, WiFi antennas, warranty card
Function: Supports hardware auto power on, Timing boot, WOL, PXE boot, Watchdog 0~255 level
Installation: Supports Desktop, Din Rail, VESA wall-mounted and other fixing methods, default as side mount din rail method
System Support: Windows 11, Linux Ubuntu
