LANDTEK ES-2100A Elevator Speedometer (Simple Type) New
- LANDTEK ES-2100A Elevator Speedometer (Simple Type) New
+
+
Overview
Specs
Reviews

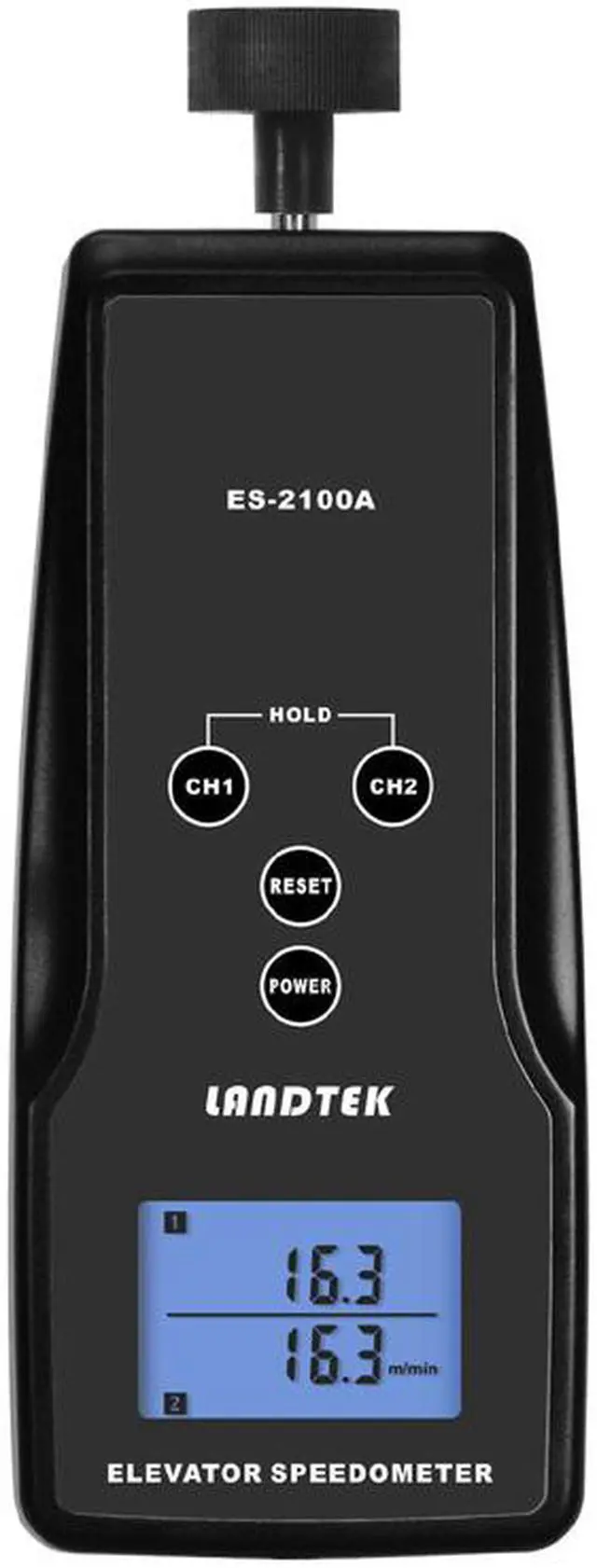

ES-2100A Elevator Speedometer
Spec: This Elevator Speedometer is a compact and lightweight handheld speedometer, designed for adjustment, maintenance, and inspection of an elevator.
Detection Section
Number of pulses 400pulses/rotation, slit reflection method
Light source Infrared LED
Light-receiving element Photo diode
Allowable 5kg in radial direction, 5kg in thrust direction
Bearing life 2x107r/min·h(maximum load within specification)
Display Section
Display unit 5-digit backlight LCD (upper and lower display)
Update time 100ms
Resolution 0.1 (m/min: Number of averagings 10 or more)
General Specifications
Power supply 2x1.5v AA/UM-3 battery
Operating temperature 0~45°C
Storage temperature -10~60°C
Operating humidity 35~85%RH
Storage humidity 35~85%RH
Dimensions 211x80x36mm
Weight (Including batteries) 270g
Standard Accessories Main Unit
Circumferential Ring
Screwdriver
External Hold Signal Cable x 2
Instruction Manual
Carrying Case
Optional Accessories Trigger Unit
Measurement Section
Measurement method Contact method
Measurement range 0.1~2,000.0m/min
Measurement accuracy ±1 count
Measurement time 10ms
Measurement unit m/min
Auto power-off function Turns OFF the power in 180 seconds after last operation.
Measurement value hold function CH1 Value, CH2 Value
Batteries are not included in the product!
Spec: This Elevator Speedometer is a compact and lightweight handheld speedometer, designed for adjustment, maintenance, and inspection of an elevator.
Detection Section
Number of pulses 400pulses/rotation, slit reflection method
Light source Infrared LED
Light-receiving element Photo diode
Allowable 5kg in radial direction, 5kg in thrust direction
Bearing life 2x107r/min·h(maximum load within specification)
Display Section
Display unit 5-digit backlight LCD (upper and lower display)
Update time 100ms
Resolution 0.1 (m/min: Number of averagings 10 or more)
General Specifications
Power supply 2x1.5v AA/UM-3 battery
Operating temperature 0~45°C
Storage temperature -10~60°C
Operating humidity 35~85%RH
Storage humidity 35~85%RH
Dimensions 211x80x36mm
Weight (Including batteries) 270g
Standard Accessories Main Unit
Circumferential Ring
Screwdriver
External Hold Signal Cable x 2
Instruction Manual
Carrying Case
Optional Accessories Trigger Unit
Measurement Section
Measurement method Contact method
Measurement range 0.1~2,000.0m/min
Measurement accuracy ±1 count
Measurement time 10ms
Measurement unit m/min
Auto power-off function Turns OFF the power in 180 seconds after last operation.
Measurement value hold function CH1 Value, CH2 Value
Batteries are not included in the product!
