LANDTEK HT-6510T-10 Textile Hardness Tester Scale Diameter:51mm New
- LANDTEK HT-6510T-10 Textile Hardness Tester Scale Diameter:51mm New
+
+
Overview
Specs
Reviews

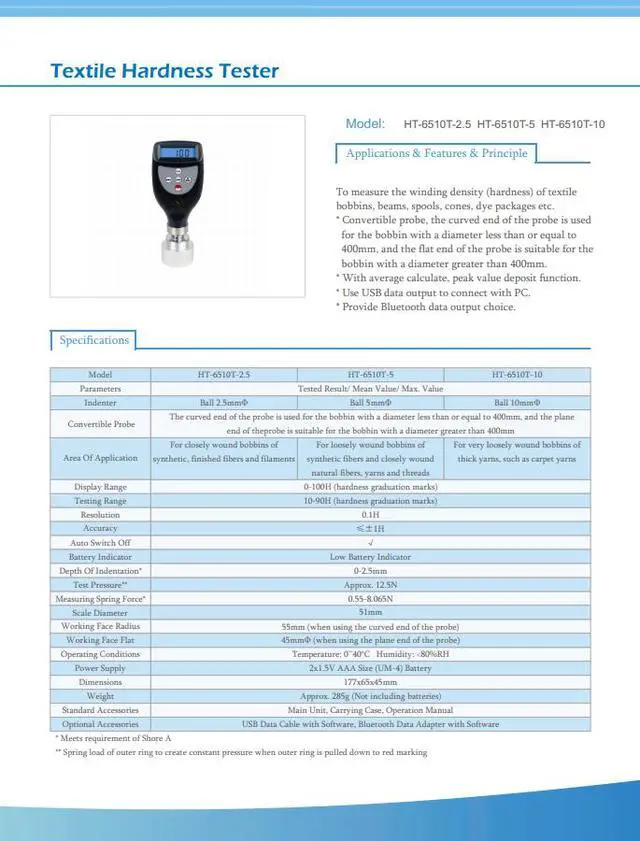

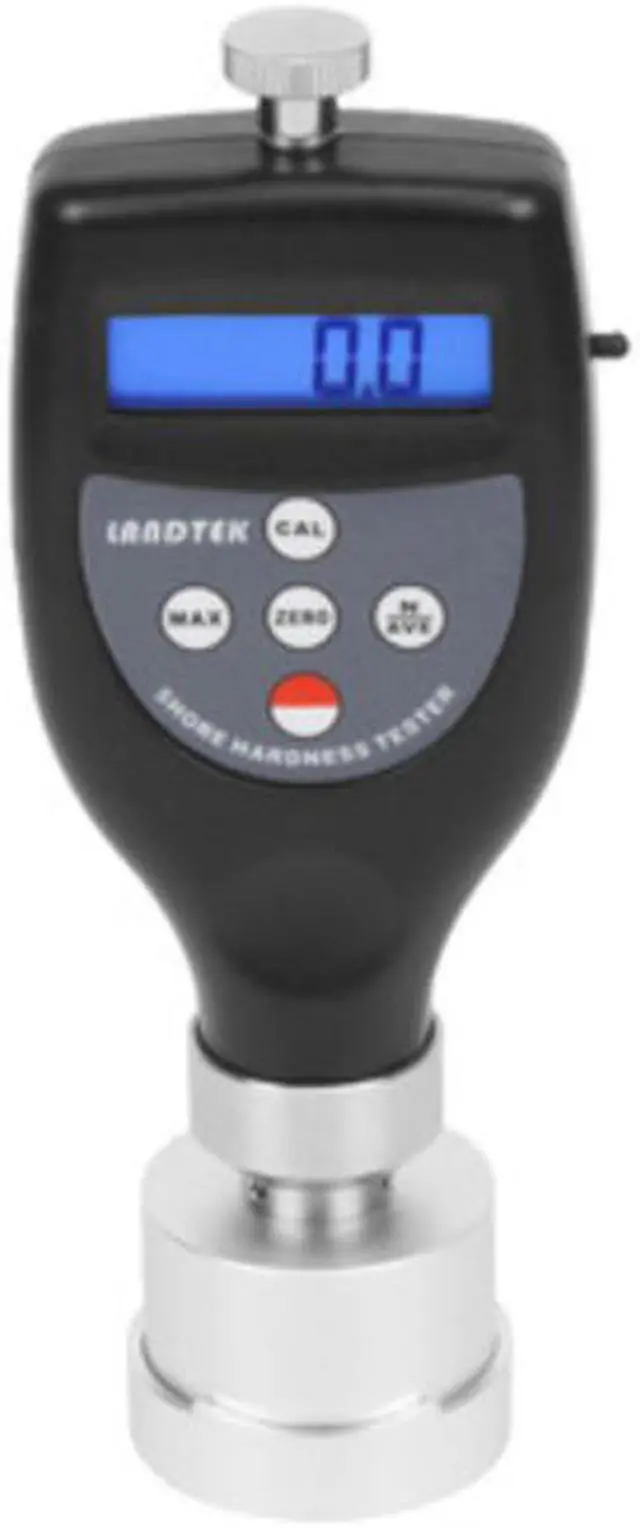

Textile Hardness Tester HT-6510T-10
Spec:To measure the winding density (hardness) of textile bobbins, beams, spools, cones, dye packages etc.
Features
* Convertible probe, the curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the flat end of the probe is suitable for the bobbin with a diameter greater than 400mm.
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.
Principle
The principle used to measure textile hardness is based on measuring the resistance force of the penetration of a ball against the spool under a known spring load. The measuring principle is the same as for the Shore A hardness test.
Model HT-6510T-2.5 HT-6510T-5 HT-6510T-10
Parameters Tested Result/Mean Value/Max.Value
Indenter Ball 2.5mmF Ball 5mmF Ball 10mmF
Convertible Probe The curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the plane end of the probe is suitable for the bobbin with a diameter greater than 400mm
Area Of Application For closely wound bobbins of synthetic, finished fibers and filaments For loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads For very loosely wound bobbins of thick yarns, such as carpet yarns
Display Range 0-100H (hardness graduation marks)
Testing Range 10-90H (hardness graduation marks)
Resolution 0.1H
Accuracy =±1H
Battery Indicator Low Battery Indicator
Auto Switch Off v
Depth Of Indentation* 0-2.5mm 0-2.5mm 0-2.5mm
Test Pressure** Approx. 12.5N Approx. 12.5N Approx. 12.5N
Measuring Spring Force* 0.55-8.065N 0.55-8.065N 0.55-8.065N
Scale Diameter 51mm 51mm 51mm
Working Face Radius 55mm (when using the curved end of the probe)
Working Face Flat 45mmF (when using the plane end of the probe)
Operating Temperature:0~40oC Humidity:<80%RH
Power Supply 2x1.5V AAA(UM-4)Battery(Battery does not include)
Dimensions 177x65x45mm
Weight Approx. 285g (Not including batteries)
Standard Accessories Main Unit
Carrying Case
Operation Manual
Optional Accessories USB Data Cable with Software
Bluetooth Data Adapter with Software
Spec:To measure the winding density (hardness) of textile bobbins, beams, spools, cones, dye packages etc.
Features
* Convertible probe, the curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the flat end of the probe is suitable for the bobbin with a diameter greater than 400mm.
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.
Principle
The principle used to measure textile hardness is based on measuring the resistance force of the penetration of a ball against the spool under a known spring load. The measuring principle is the same as for the Shore A hardness test.
Model HT-6510T-2.5 HT-6510T-5 HT-6510T-10
Parameters Tested Result/Mean Value/Max.Value
Indenter Ball 2.5mmF Ball 5mmF Ball 10mmF
Convertible Probe The curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the plane end of the probe is suitable for the bobbin with a diameter greater than 400mm
Area Of Application For closely wound bobbins of synthetic, finished fibers and filaments For loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads For very loosely wound bobbins of thick yarns, such as carpet yarns
Display Range 0-100H (hardness graduation marks)
Testing Range 10-90H (hardness graduation marks)
Resolution 0.1H
Accuracy =±1H
Battery Indicator Low Battery Indicator
Auto Switch Off v
Depth Of Indentation* 0-2.5mm 0-2.5mm 0-2.5mm
Test Pressure** Approx. 12.5N Approx. 12.5N Approx. 12.5N
Measuring Spring Force* 0.55-8.065N 0.55-8.065N 0.55-8.065N
Scale Diameter 51mm 51mm 51mm
Working Face Radius 55mm (when using the curved end of the probe)
Working Face Flat 45mmF (when using the plane end of the probe)
Operating Temperature:0~40oC Humidity:<80%RH
Power Supply 2x1.5V AAA(UM-4)Battery(Battery does not include)
Dimensions 177x65x45mm
Weight Approx. 285g (Not including batteries)
Standard Accessories Main Unit
Carrying Case
Operation Manual
Optional Accessories USB Data Cable with Software
Bluetooth Data Adapter with Software
