LANDTEK SL-5868F Noise Spectrum Analyzer Spectrum Analyzer New
- LANDTEK SL-5868F Noise Spectrum Analyzer Spectrum Analyzer New
+
+
Overview
Specs
Reviews

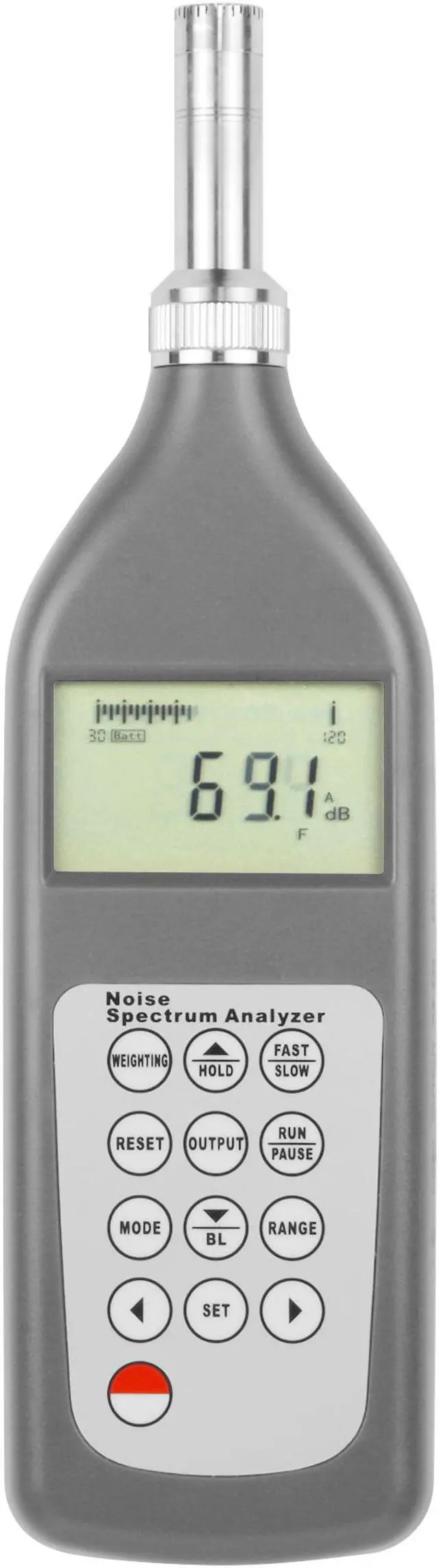

Noise Spectrum Analyzer SL-5868F
Spec:The Noise Spectrum Analyzer is a universal sound level meter, an integrated sound level meter. It can also measure Accumulated percentile sound level, also a spectrum analyzer that can measure 1/1 octave filter and 1/3 octave filter.
* its performance is in accordance with GB/T 3785-2010 standard level 2 And IEC 61672:2013 Class 2 sound level meter requirements, but also meet the requirements of IEC 1260:2014 Class 2 and GB/T 3241-2014 for Class 2 1/1 octave filter and 1 1/3 octave filter. It also meets the JJG 188-2017 standard.
* With built-in 1/1 octave and 1/3 octave filters. Either manual or automatic frequency sweep measurement is available. 12 groups of data can be saved automatically in automatic sweep measurement.
* With the function of integration and statistics, 800 groups of single measurement and 6 days of regular measurement can be achieved. The stored data can be read and printed. The collected data can be checked when the regular measurement ispaused.
* The three time weighting F, S, and I can be selected.
* The digital detection technology is used to replacesome traditional sound level meters, the stability andreliability are greatly improved.
* Large screen display is adopted, with clear and intuitive display. With dynamic scale display.
* Optional Bluetooth printer for data printing.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.
Specifications
Microphone F12.7mm (1/2') test condenser microphone
Frequency range 10Hz~20,000Hz
Frequency weighting A, C, and Lin(Linear)
Range 25dB~130dB (A)
Range control Manual, three gears, linear range > 60dB
Testing Range 30dB~90dB (dynamic scale display 10~100)
50dB~110dB (dynamic scale display 30~120)
70dB~130dB (dynamic scale display 50~140)
Accuracy In accordance with IEC61672 standard, class 2
Time Weighting Fast (F), Slow (S), Impulse (I)
Filter Built in 1/1 and 1/3 octave filter
Display Large screen dynamic LCD, instantaneous sound level, with analogammeter display.
The output interface AC signal output
USB data cable output
Calibration Use class 1 sound level calibrator
Power Supply 4x1.5V AAA Size (UM-4) Battery(Battery not included)
External Power 6V
Weight 185g (Not Including Batteries)
Dimensions 227x63x26 mm
Operating Condition Temperature: -10~50°C
Standard Accessories Main Unit
Windscreen
Carrying Case (B04)
Manual
Optional Accessories CD
Data Cable
Bluetooth Data Adapter
Bluetooth printer
Printer power adapter
External power supply (6V)
Spec:The Noise Spectrum Analyzer is a universal sound level meter, an integrated sound level meter. It can also measure Accumulated percentile sound level, also a spectrum analyzer that can measure 1/1 octave filter and 1/3 octave filter.
* its performance is in accordance with GB/T 3785-2010 standard level 2 And IEC 61672:2013 Class 2 sound level meter requirements, but also meet the requirements of IEC 1260:2014 Class 2 and GB/T 3241-2014 for Class 2 1/1 octave filter and 1 1/3 octave filter. It also meets the JJG 188-2017 standard.
* With built-in 1/1 octave and 1/3 octave filters. Either manual or automatic frequency sweep measurement is available. 12 groups of data can be saved automatically in automatic sweep measurement.
* With the function of integration and statistics, 800 groups of single measurement and 6 days of regular measurement can be achieved. The stored data can be read and printed. The collected data can be checked when the regular measurement ispaused.
* The three time weighting F, S, and I can be selected.
* The digital detection technology is used to replacesome traditional sound level meters, the stability andreliability are greatly improved.
* Large screen display is adopted, with clear and intuitive display. With dynamic scale display.
* Optional Bluetooth printer for data printing.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.
Specifications
Microphone F12.7mm (1/2') test condenser microphone
Frequency range 10Hz~20,000Hz
Frequency weighting A, C, and Lin(Linear)
Range 25dB~130dB (A)
Range control Manual, three gears, linear range > 60dB
Testing Range 30dB~90dB (dynamic scale display 10~100)
50dB~110dB (dynamic scale display 30~120)
70dB~130dB (dynamic scale display 50~140)
Accuracy In accordance with IEC61672 standard, class 2
Time Weighting Fast (F), Slow (S), Impulse (I)
Filter Built in 1/1 and 1/3 octave filter
Display Large screen dynamic LCD, instantaneous sound level, with analogammeter display.
The output interface AC signal output
USB data cable output
Calibration Use class 1 sound level calibrator
Power Supply 4x1.5V AAA Size (UM-4) Battery(Battery not included)
External Power 6V
Weight 185g (Not Including Batteries)
Dimensions 227x63x26 mm
Operating Condition Temperature: -10~50°C
Standard Accessories Main Unit
Windscreen
Carrying Case (B04)
Manual
Optional Accessories CD
Data Cable
Bluetooth Data Adapter
Bluetooth printer
Printer power adapter
External power supply (6V)
