Ubiquiti Networks Pro HD 24 PoE, Layer 3 PoE switch (USW-Pro-HD-24-PoE (600W))

Be the first to review this product...

Professional-grade, Layer 3 Etherlighting switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.

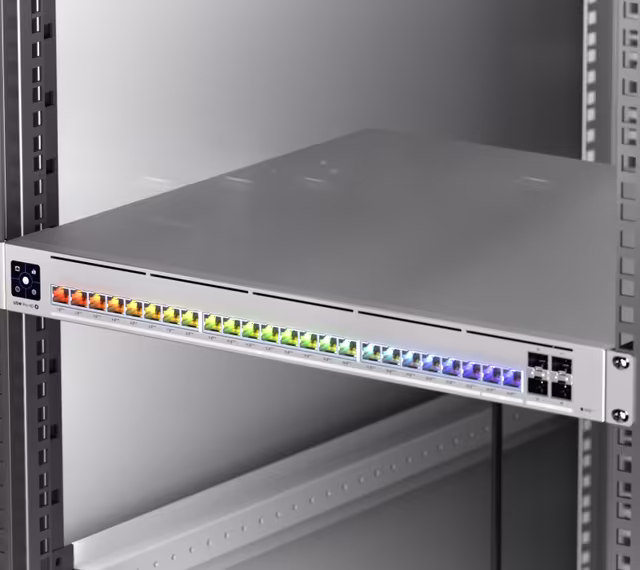

Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network*
DC power backup ready**
600W total PoE availability

Overview

Specs

Reviews

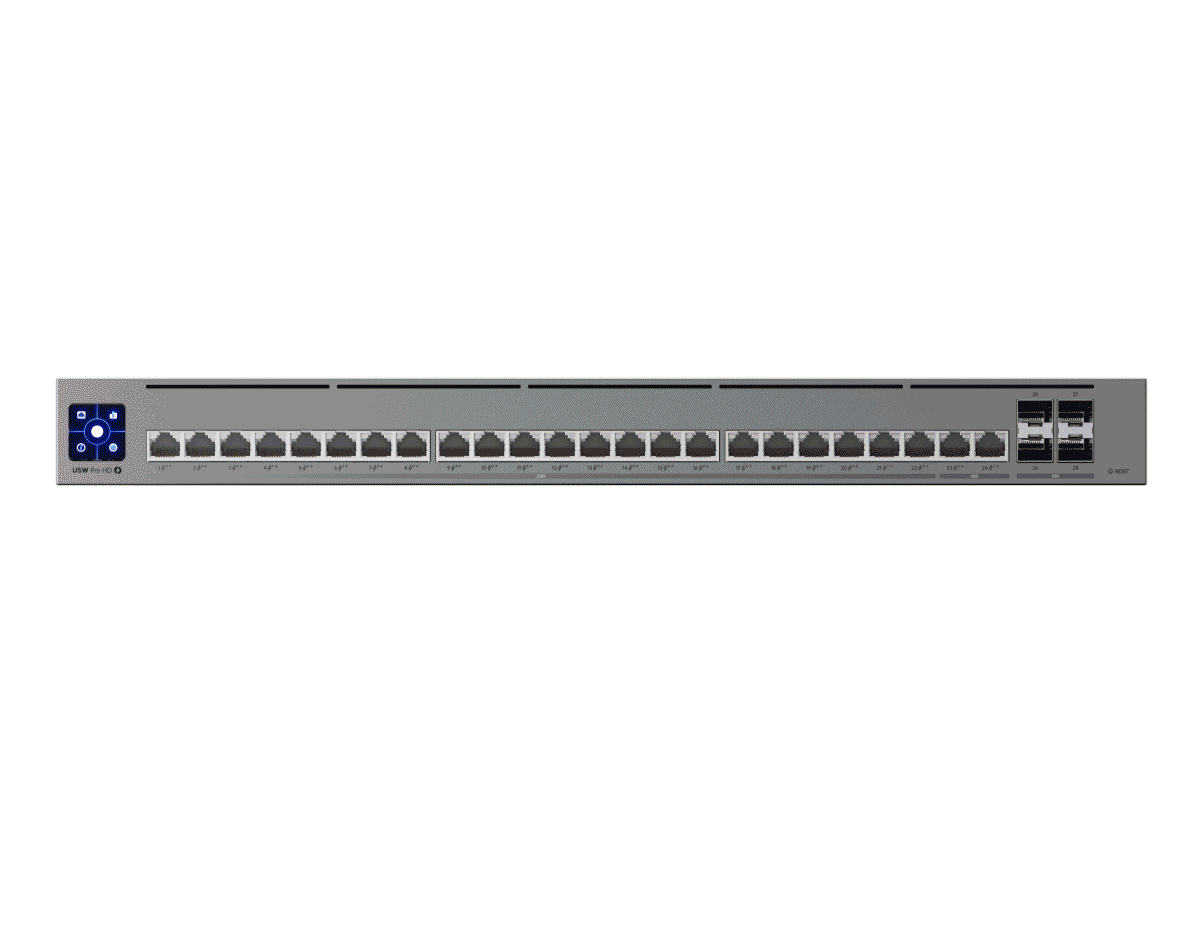

Pro HD 24 PoE

USW-Pro-HD-24-PoE (600W)

Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.

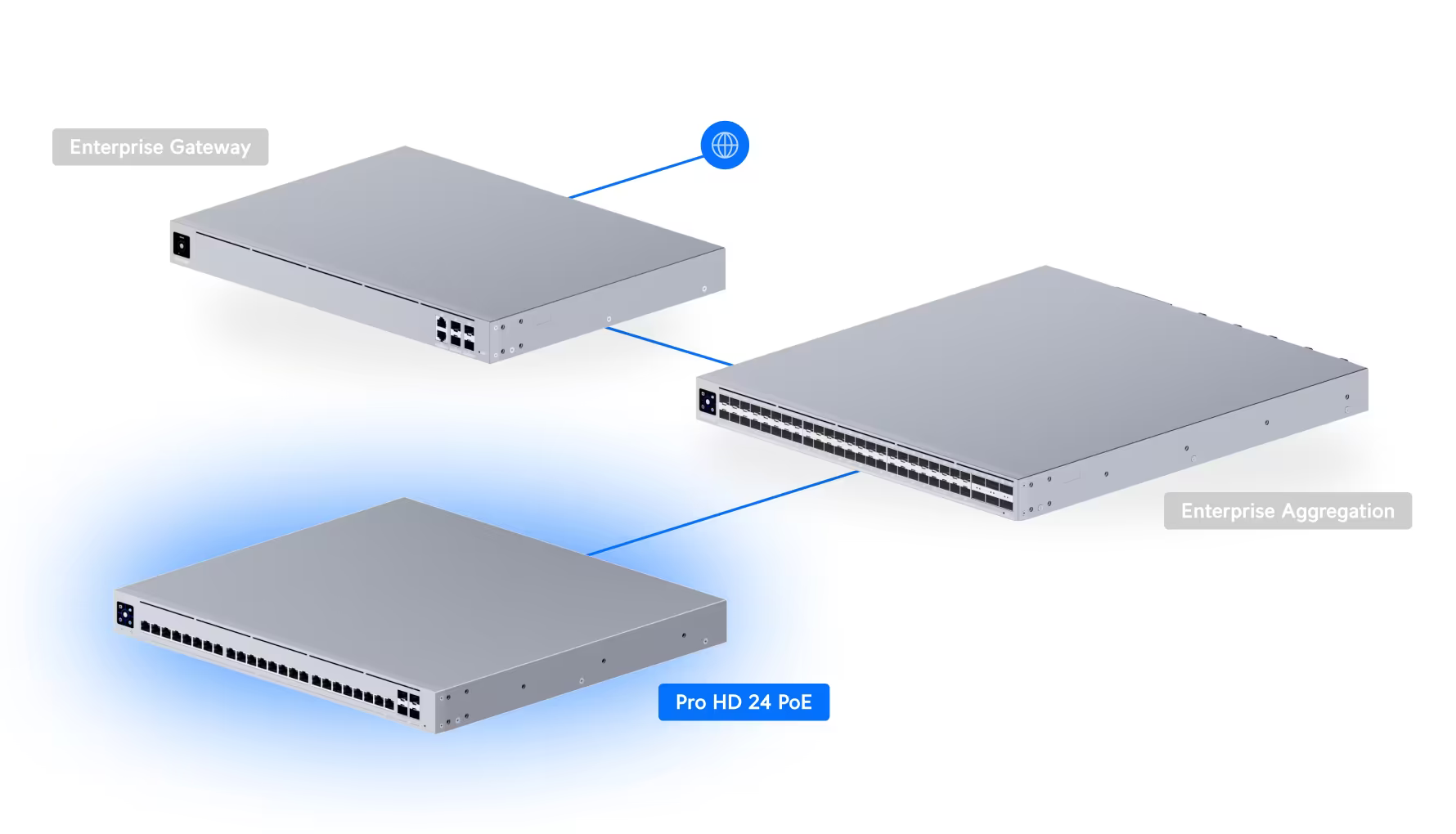

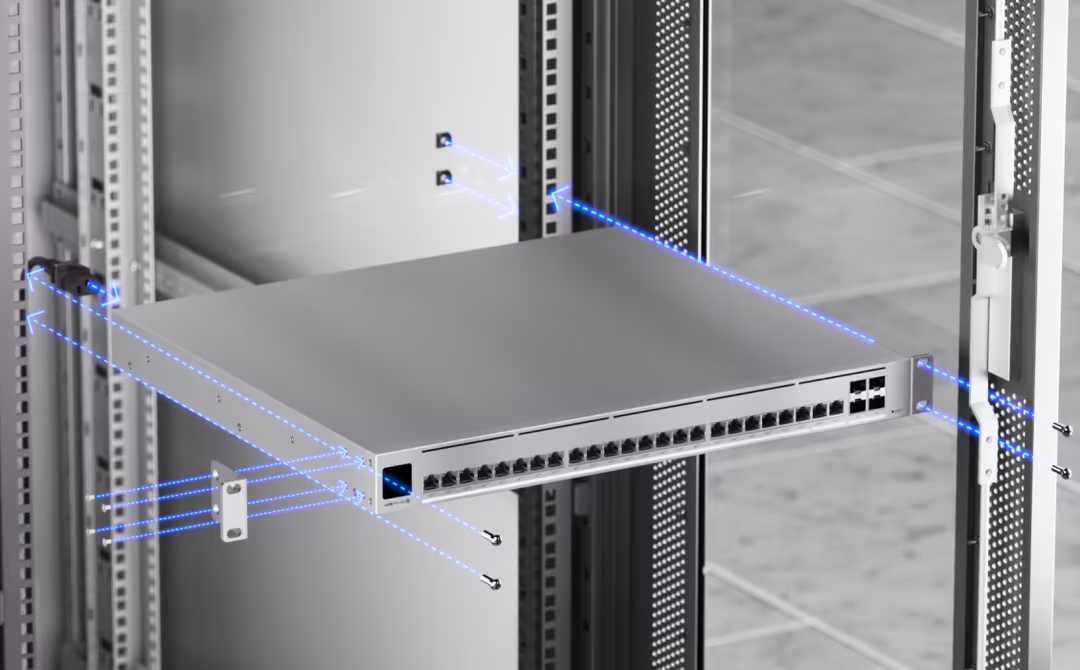

Deployment

What's in the box

Professional-grade, Layer 3 Etherlighting switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.

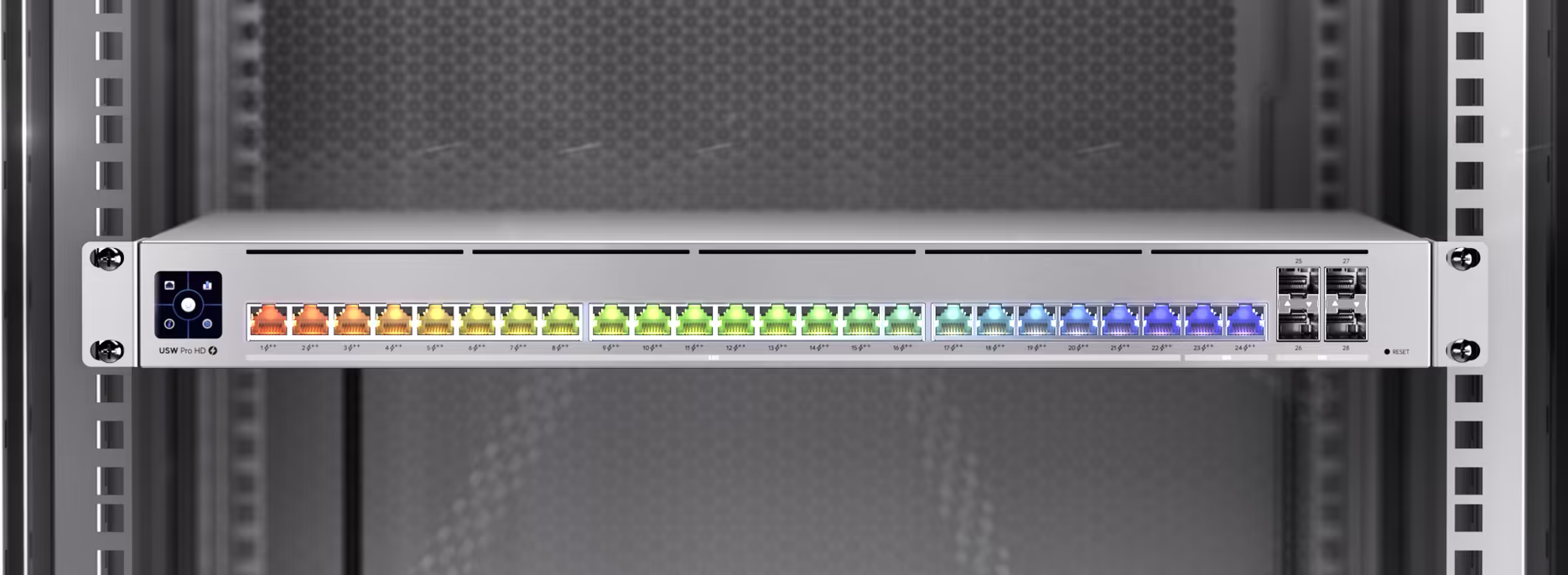

Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network*

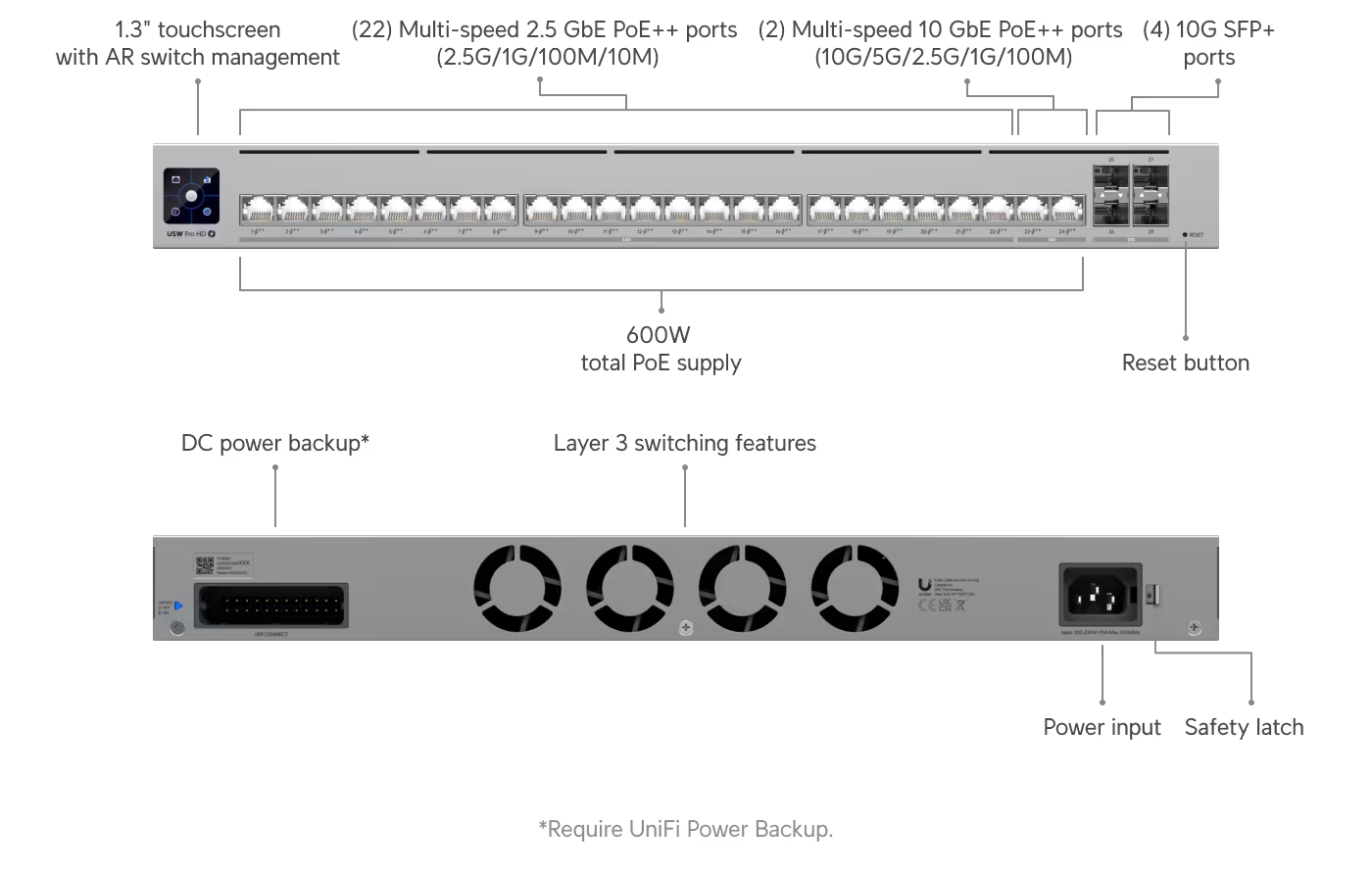

(22) 2.5 GbE, (2) 10 GbE PoE++ ports
(4) 10G SFP+ ports
DC power backup ready**
600W total PoE availability

Model
Brand	Ubiquiti Networks
Model	Pro HD 24 PoE
Part Number	USW-Pro-HD-24-PoE

Format & Standards
Format	Rackmount
Network Management Type	Managed

Ports & Interface
Primary Ports	24 x RJ45 + 4 x SFP+

Data Transmission
MAC Address Table	128
IPv4 Features	128

Details
PoE	Yes
Layer	3
Layer 2 Features	LACP Port Aggregation STP & RSTP QoS (DSCP) Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based ACLs & Device Isolation DHCP Snooping & Guarding Egress Rate Limit Flow Control Storm Control Multicast & Broadcast Rate Limiting MAC Address Blocking IP-Based ACLs & Network Isolation MAC-Based Port Restriction Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection
Layer 3 Features	DHCP Server (Local Networks) DHCP Relay Inter-VLAN Routing (Local Networks) Static Routing (Local Networks)

Power Supply
PoE Ports	24 x PoE++
PoE Power Budget	600W
Power	100~240VAC, 50/60Hz
Max Power Consumption	60W (Excluding PoE Output) 660W (Including PoE Output)

Dimensions & Weight

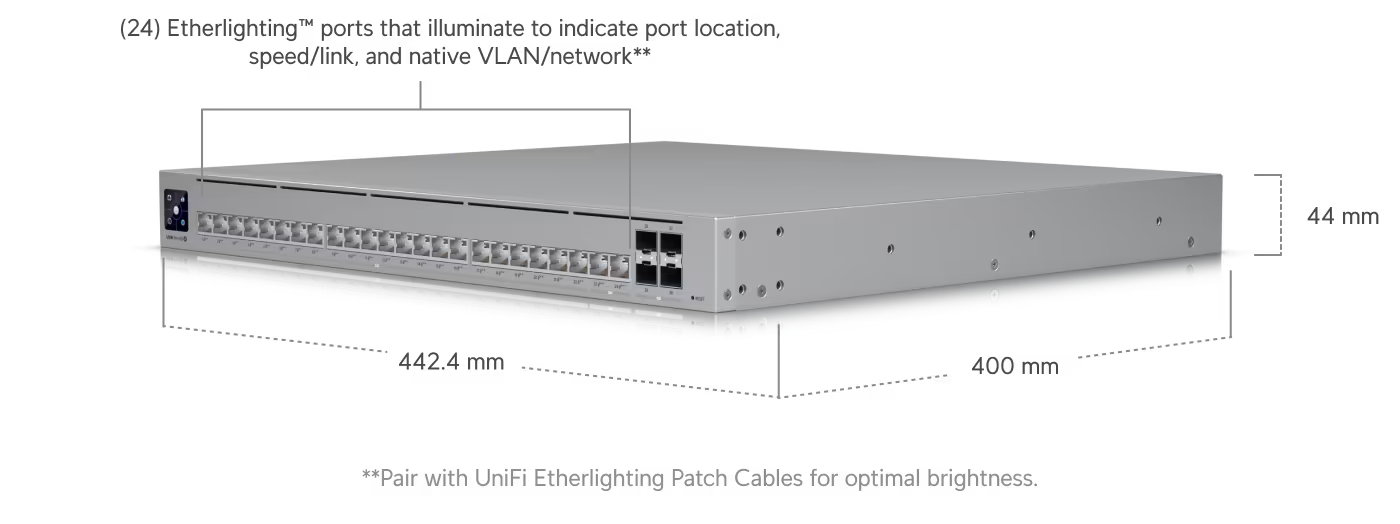

Dimensions	442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
Weight	Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb)

Additional Information
First Listed on Newegg	March 25, 2025
