Specification: Hardware
Audio: Yes
Cabling: Cat 5e UTP or better
Daisy-Chain: No
Output Signal: HDMI
Ports: 1
Rack-Mountable: Yes
Performance
Audio Specifications: 7.1 Surround Sound
Max Distance: 70 m / 230 ft
Maximum Cable Length: 0.2 ft [0.1 m]
Maximum Digital Resolutions: 4096 x 2160 (4K) @ 30 Hz
Wide Screen Supported: Yes
Connector(s)
Connector A:
- 1 x HDMI (19 pin) Female Input
- 1 x

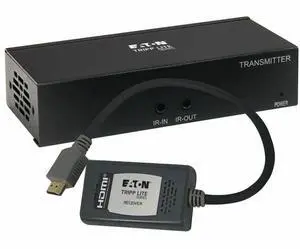

Feature: Extend HDMI video over CAT5 or CAT6 cabling up to 230 feet away, with a small USB-powered transmitter for discreet installation
Works with HDMI video sources such as Blu-ray players & computers and HDMI televisions monitors and projectors
HDBaseT Extender / HDMI over single CAT 5 or CAT 6 Ethernet Extender /
Distance: Maximum Distances - (1080i only)
CAT5E (stranded) - 40m (130 ft.)
CAT5E (solid) - 50m (165 ft.)
CAT6 (stranded or solid) - 50m (165 ft.)
Max Distance: 50m / 165 ft.
Resolution Support: Maximum Digital Resolutions: 1080p / 1920x1080
Supported Resolutions:
1080i
- Cat6 (stranded or solid) - up to 50m
- Cat5e (solid) - up to 50m
- Cat5e (stranded) - up to 40m
1080p
- Cat6 (solid or stranded) - up to 40m
- Cat5 (solid) - up to 20m
- Cat5 (stranded) - up to 16m
See product manual for further details
HDMI: Local Unit Connectors:
1 x HDMI (19-pin) Female
Remote Unit Connectors:
1 x HDMI (19-pin) Female
Network Interface: Local Unit Connectors:
2 x RJ-45 Female
Remote Unit Connectors:
2 x RJ-45 Female
Power Supply: Input: 100-240V, 50/60Hz, 1.5A
Output: 12.6V, 3A
Specification: Cable Type: VGA
Display Style: Splitter
Color: Black
Connector A: HD15 (FEMALE)
Connector B: RJ45 (FEMALE) x 4
Feature: Splits a single VGA signal into 5 (1 local, 4 remote)
Increase the number of displays to up to 25 (1 local, 24 remote) by daisychaining up to six B132-004-2 units together
A B132-100-1 or B132-100-WP-1 remote receiver unit is required for each connected monitor
Extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
EDID copy feature ensures optimal display compatibility
The range and number of monitors can be further expanded by adding B132-110 repeater units
Connect up to 4 remote unit...
Resolution Support: Maximum Digital Resolutions: 3840 x 2160 (4K) @ 60 Hz
Supported Resolutions:
3840 x 2160 (4K) 60 Hz
2560 x 1600 60 Hz
1920 x 1200 60 Hz
1920 x 1080 (1080p) 60 Hz
1280 x 720 (720p) 60 Hz
* Lower resolutions and refresh rates, not stated but below the maximum, may also be supported
Audio: 7.1 Surround Sound
HDMI: Connector A: 1 x HDMI (19-pin) Female
Connector B: 1 x HDMI (19-pin) Female
Resolution Support: Up to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a); 1080p@60 m (Cat 5e/6) / 70 m (Cat 6a)
Power Supply: VE601R
Connectors: 1 x DC Jack with locking
Consumption: 5 VDC, 4.23 W
VE601T
Connectors: 1 x DC Jack with locking
Consumption: 5 VDC, 1.85 W
Feature: The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to me...
Resolution Support: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60 Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30 Hz (4:4:4)
Video: Max. Data Rate: 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock: Up to 340 MHz
Compliance:
HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
