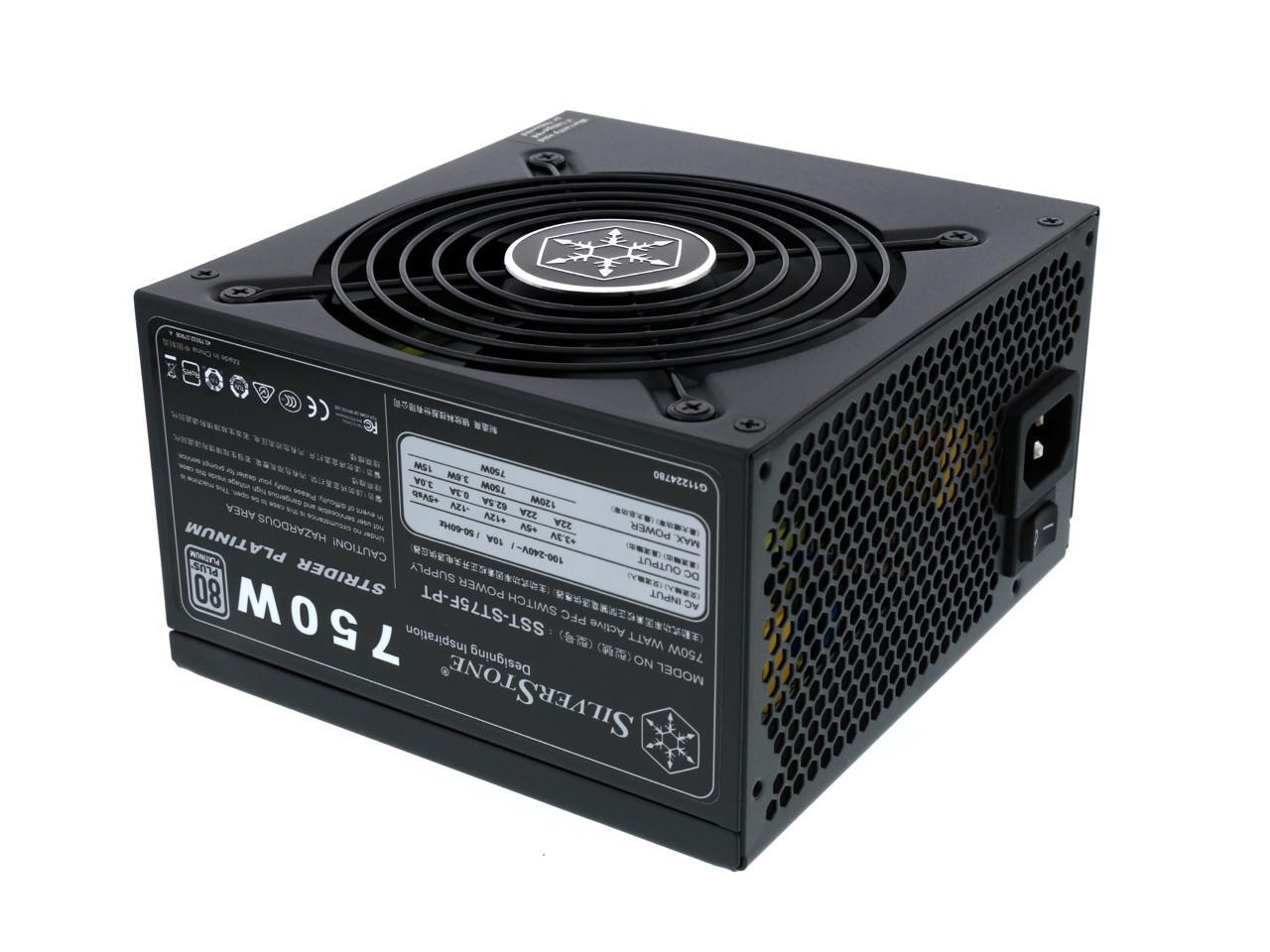

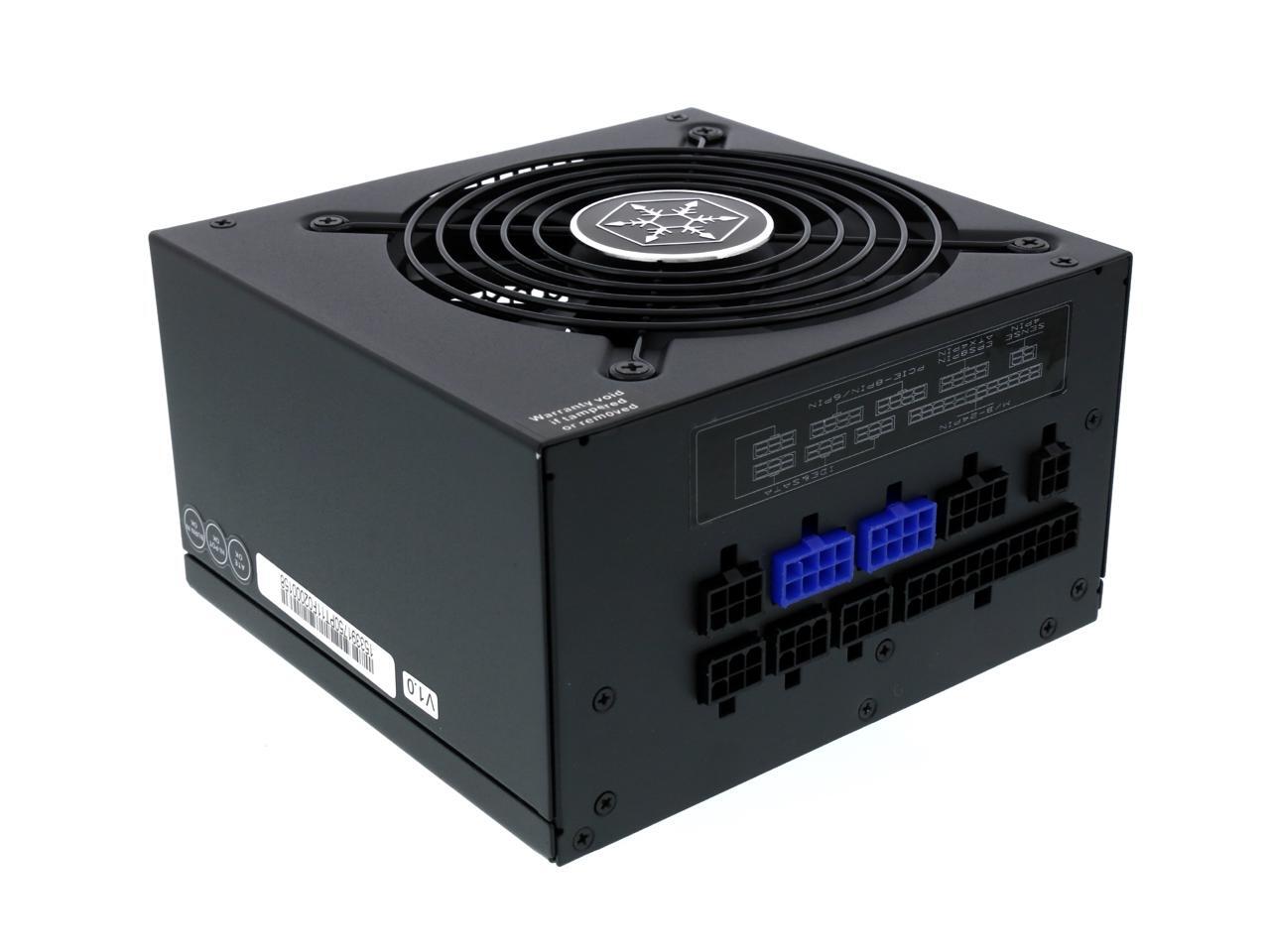

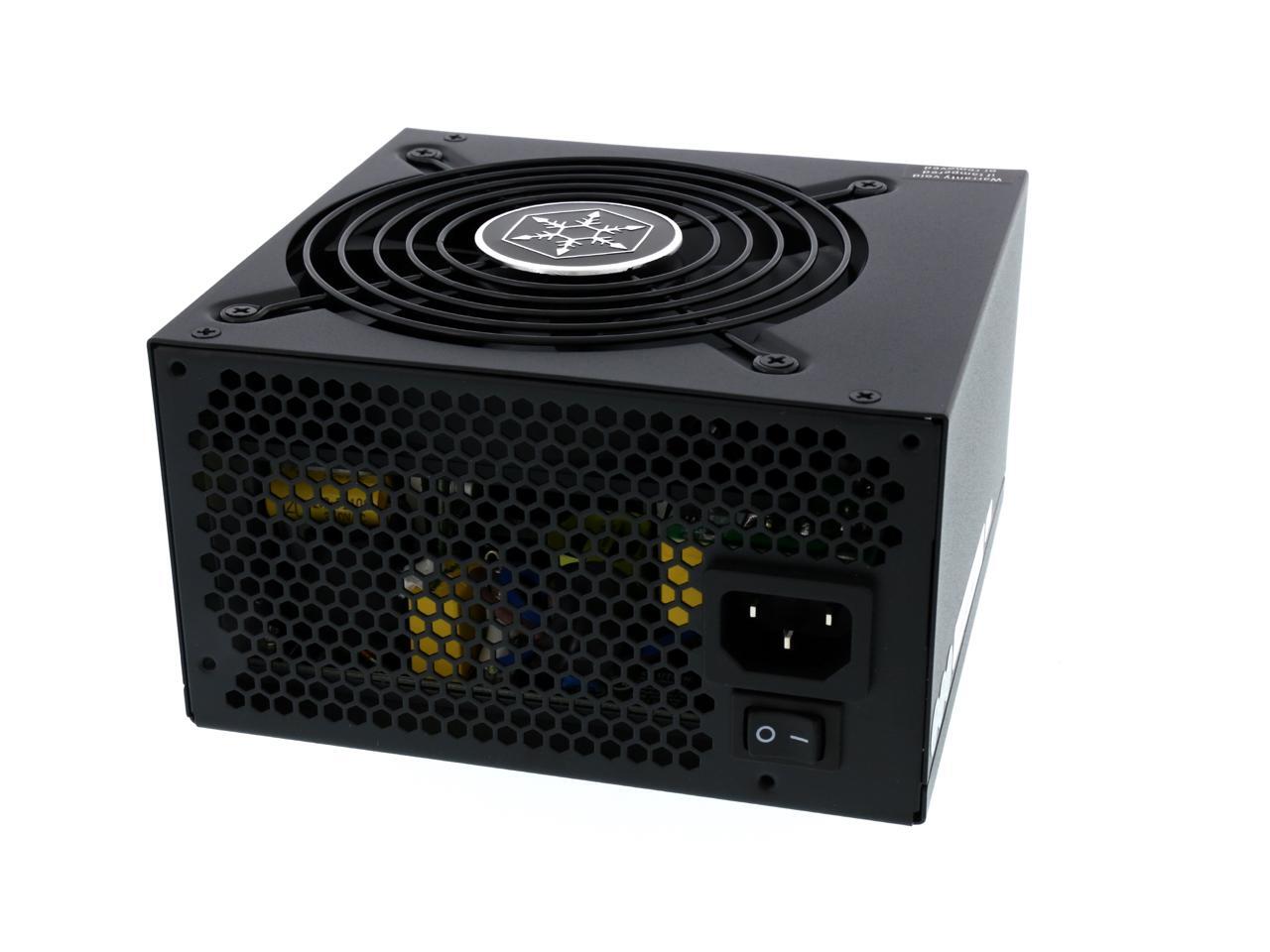

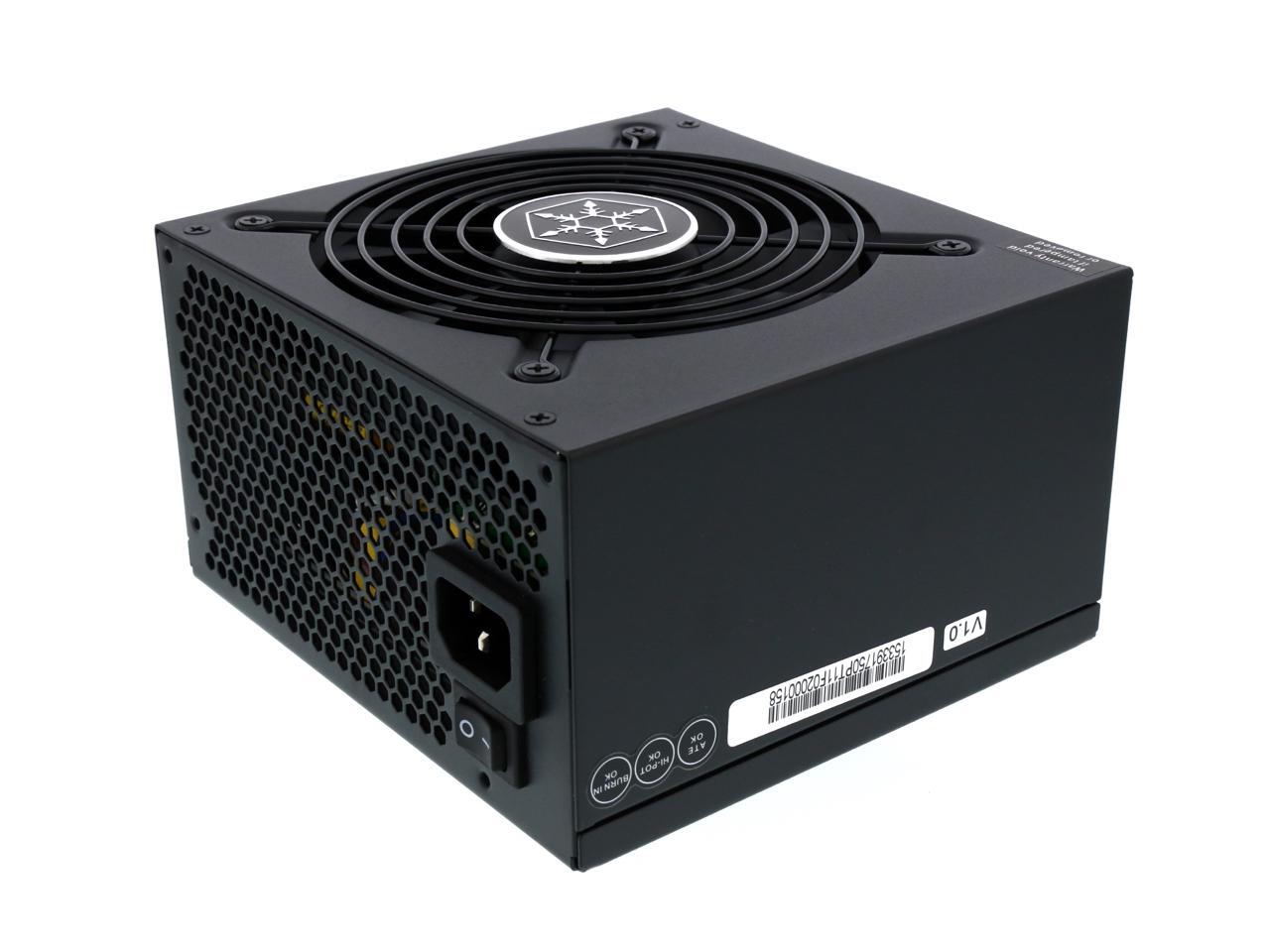

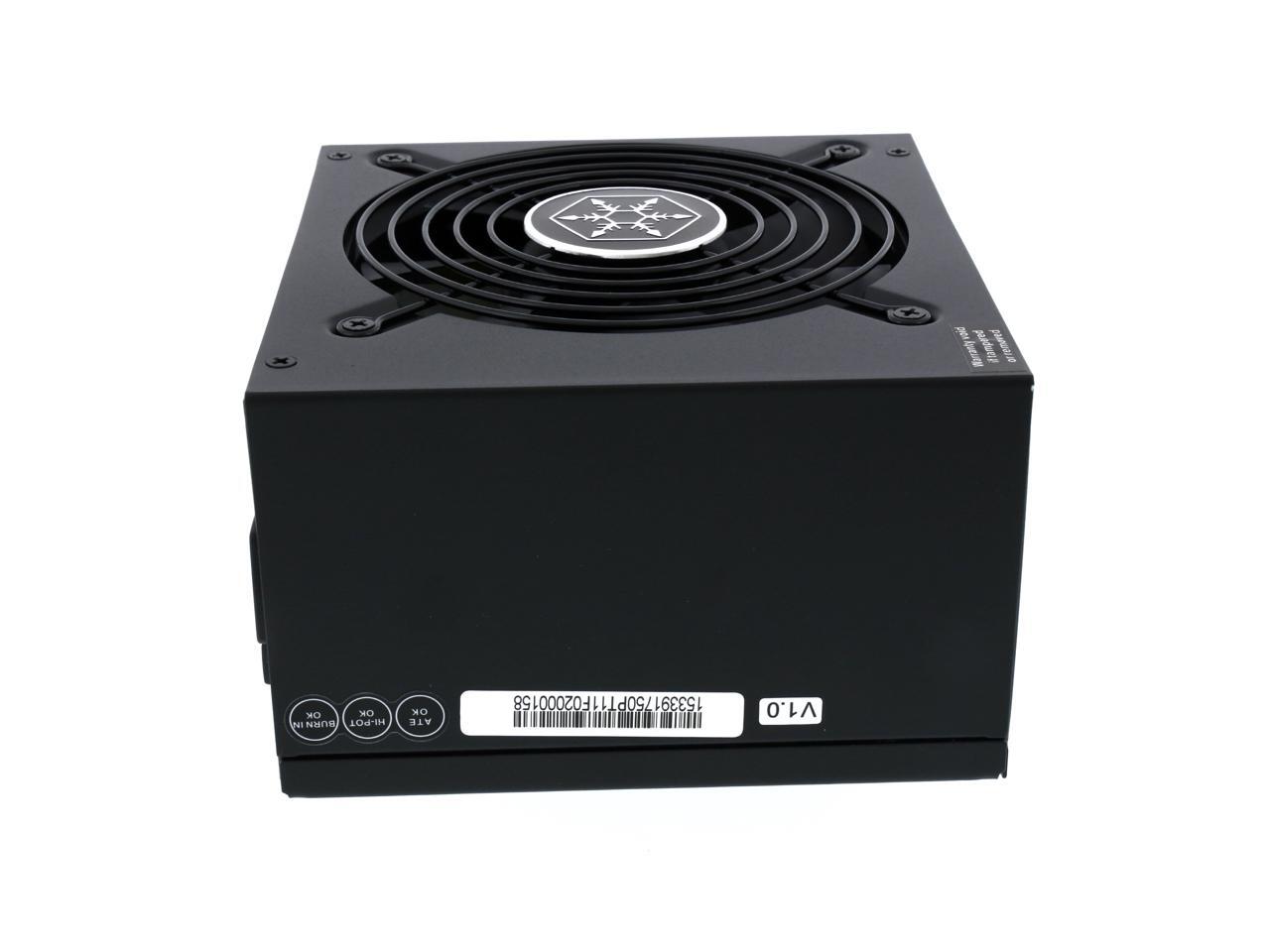

SilverStone Strider Platinum series PS-ST75F-PT 750 W ATX12V / EPS12V 80 PLUS PLATINUM Certified Full Modular Active PFC Power Supply
- ATX12V / EPS12V
- Full Modular
- 80 PLUS PLATINUM Certified
- 90 - 264 V 47 - 63 Hz
- +3.3V@22A, +5V@22A, [email protected], [email protected], [email protected]
+
+
Overview
Specs
Reviews
INTRODUCTION
Strider Platinum series ST75F-PT
- Compact design with a depth of 140mm for easy integration
- High efficiency with 80 PLUS Platinum certification

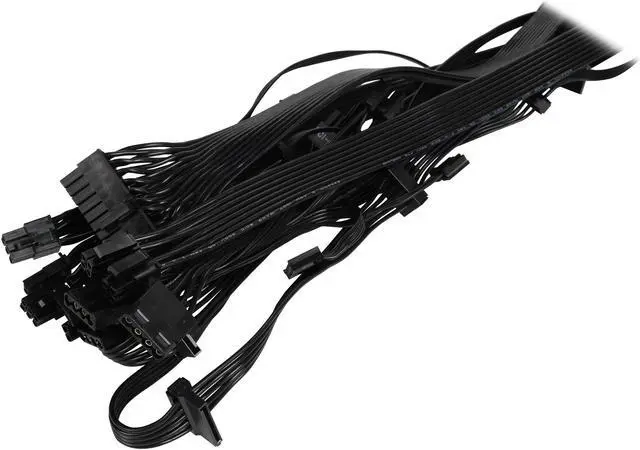

- 100% modular cables
- 24/7 continuous power output with 40? operating temperature
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- Ultra silent 120mm fan with intelligent semi-fanless operation

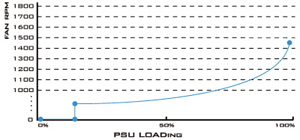

As desktop computers continue to advance toward ever more efficient and smaller designs, SilverStone is helping to drive the efficiency movement by releasing the Strider Platinum series of power supplies. Created to be the smallest fully modular ATX power supplies with 80 PLUS Platinum efficiency, they are also incredibly quiet with the ability to run in fanless mode. If the loading condition is below 20%, the fan in the power supply can remain off for silent operation during idle or low powered computing activities. Other great features inherited from previous Strider series include ±3% regulation, powerful single +12V rail, 24/7 continuous power output, and multiple PCI-E cables. For those looking to build highly efficient systems in small footprints, the Strider Platinum is definitely the best choice.

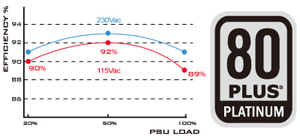

Designed for 80 PLUS Platinum level of efficiency to reduce wasted heat and save on electricity.
100% modular cable design for use with short cable kit such as SilverStone’s PP05 or for easy removal in a case with cable routed and tied down.

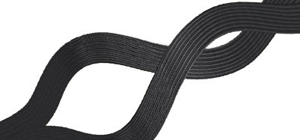

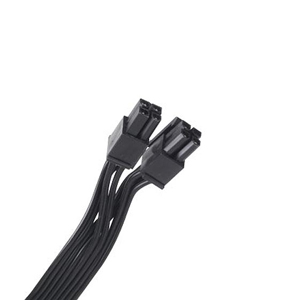

Flat cables have much greater flexibility to allow for tighter folding and management of cables.
140mm depth sets new standard for high wattage PSUs with modular cables.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

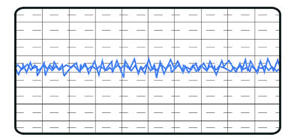

±3% regulation and low ripple & noise performance for high stability
Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.
FEATURE PHOTOS

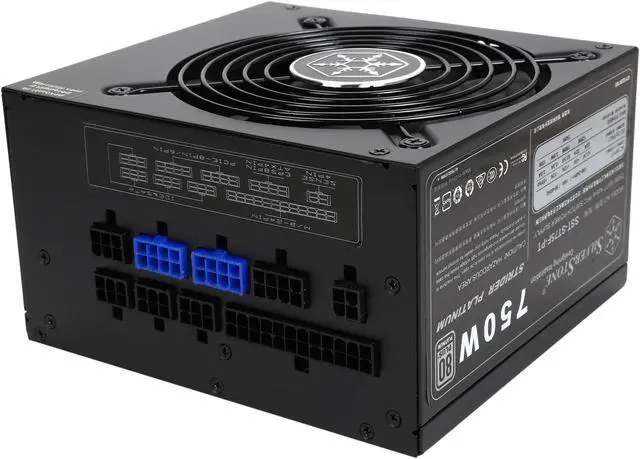

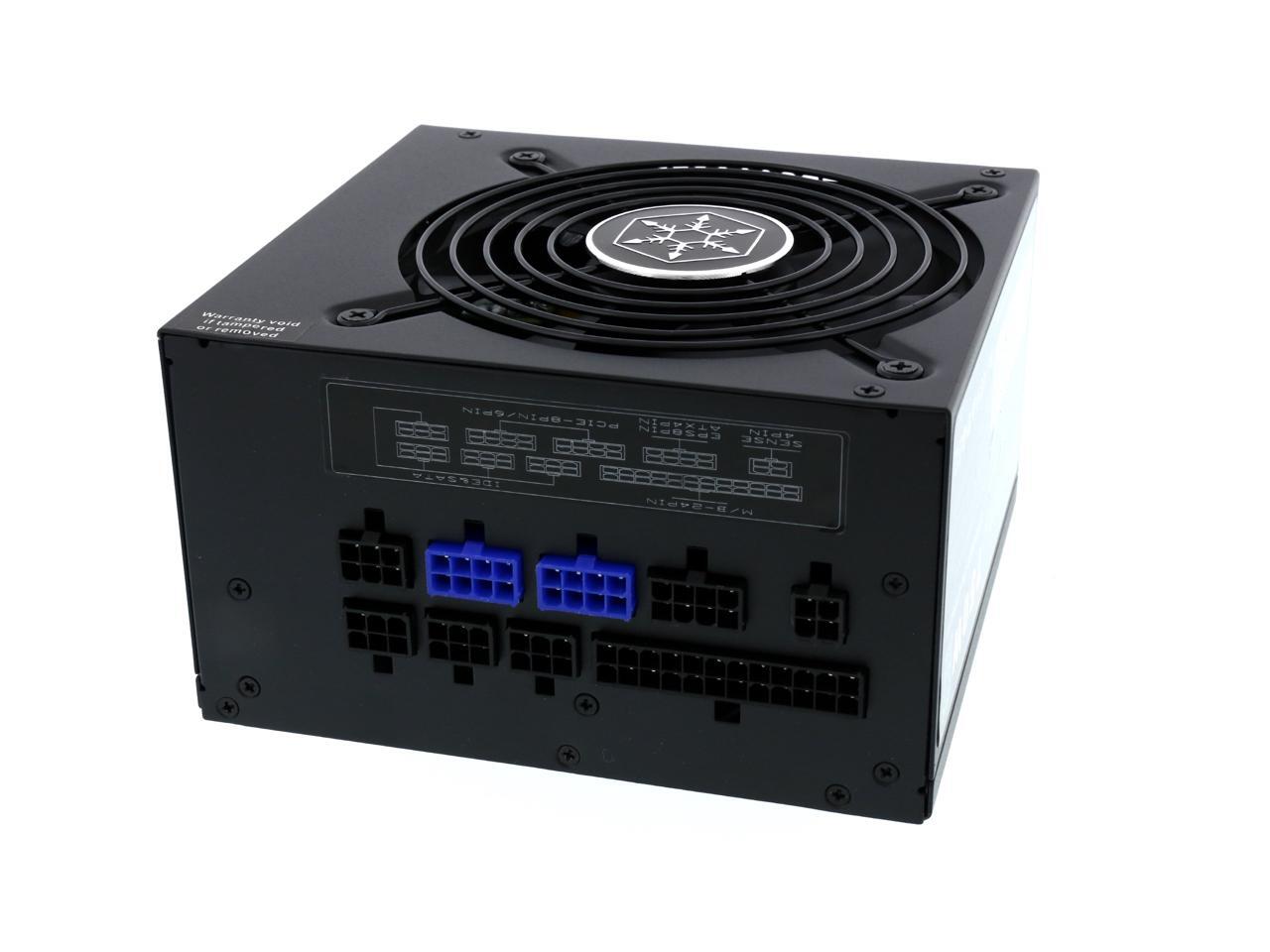

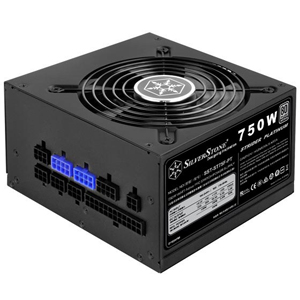

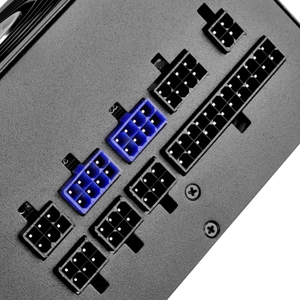

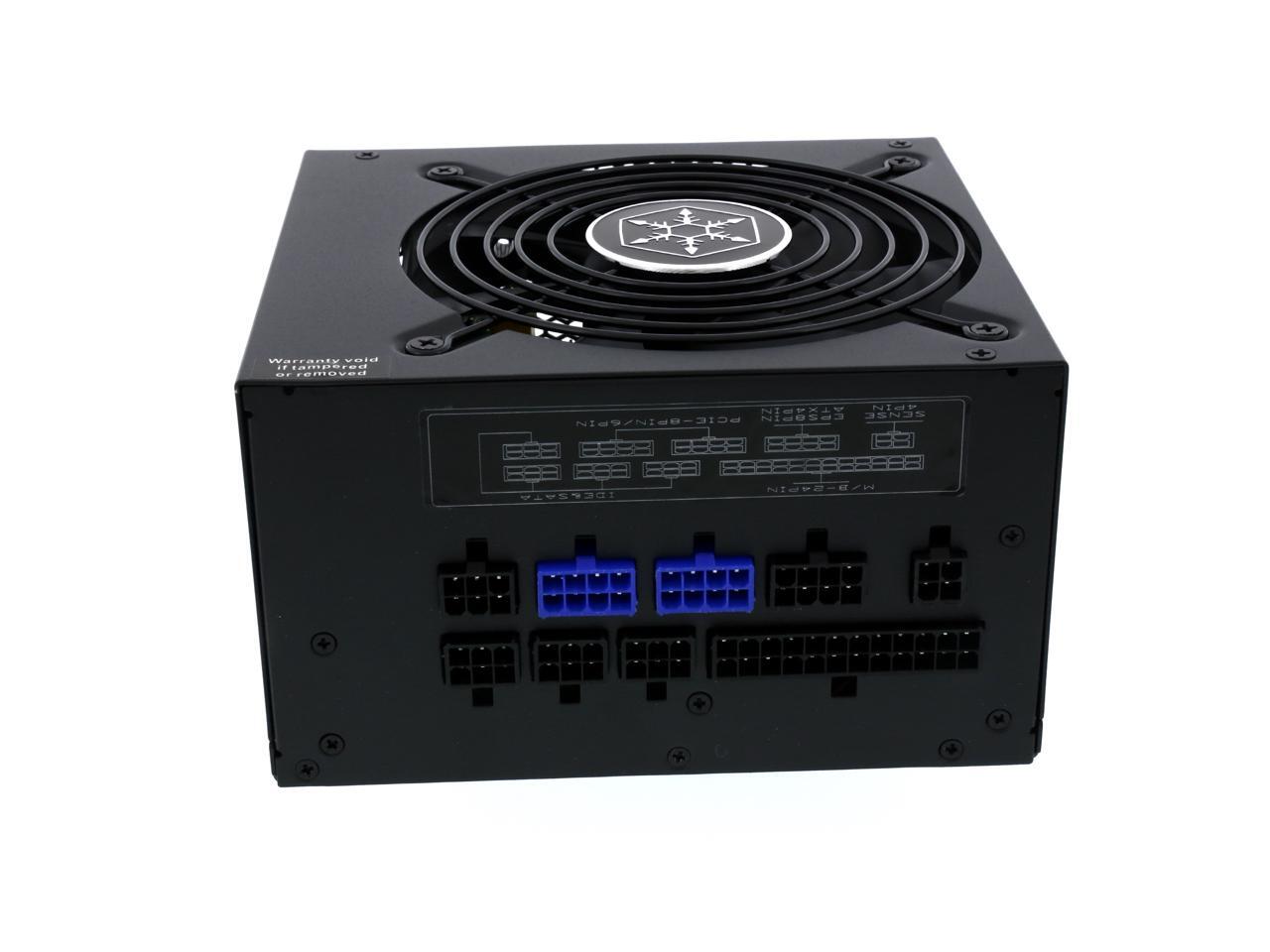

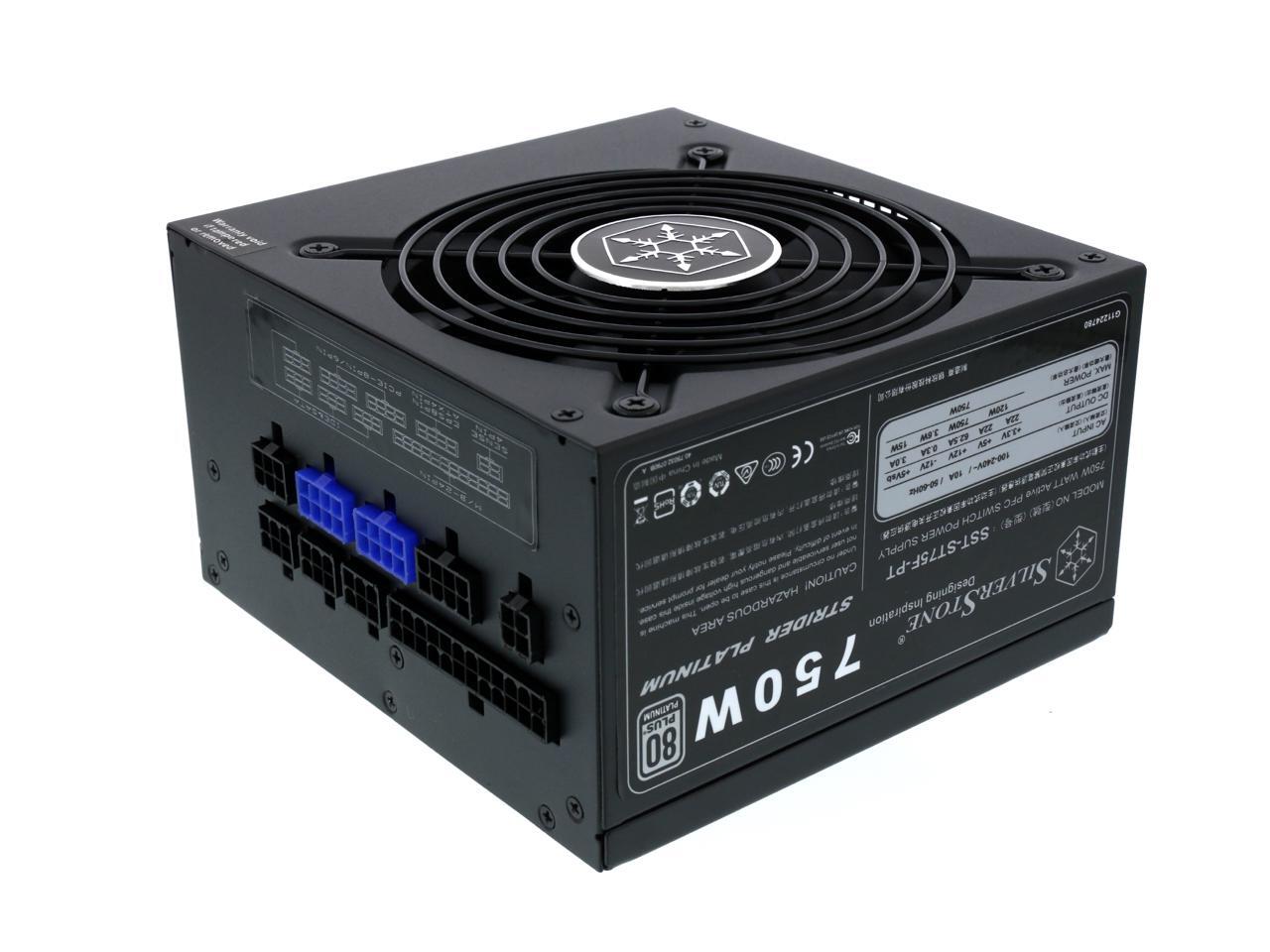

100% modular PSU

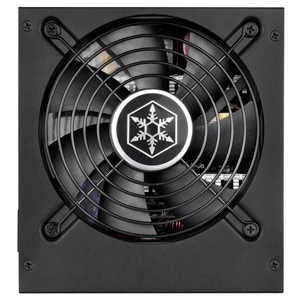

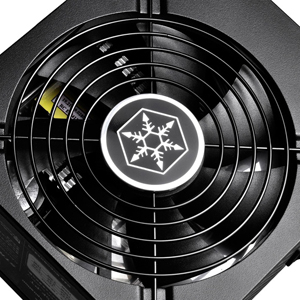

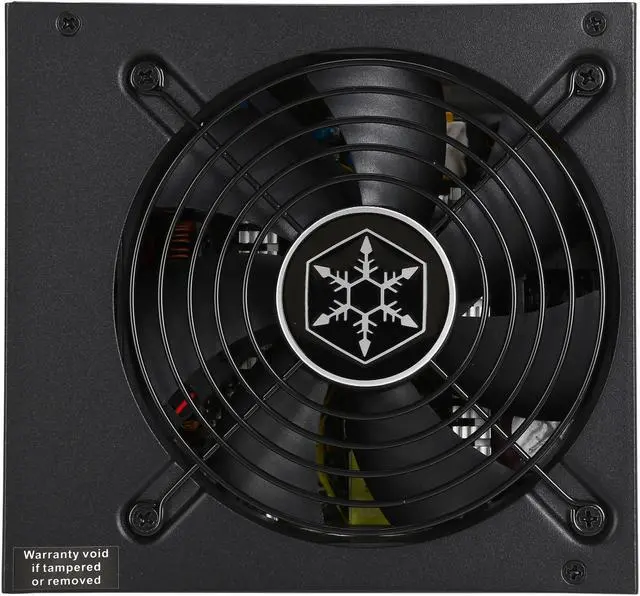

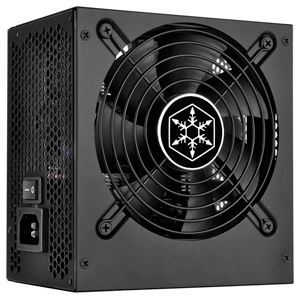

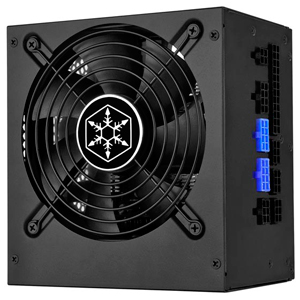

Single 120mm silent fan

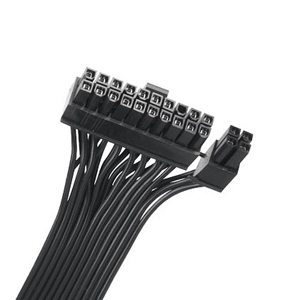

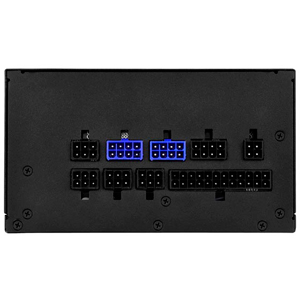

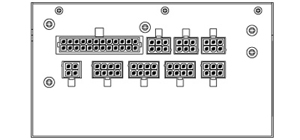

1 x 24 / 20-Pin motherboard connector
1 x 8 / 4-Pin EPS / ATX 12V connector

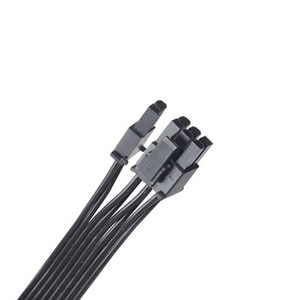

4 x 8 / 6-Pin PCIE connector

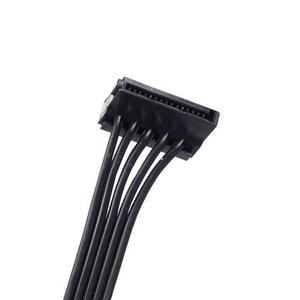

8 x SATA connector

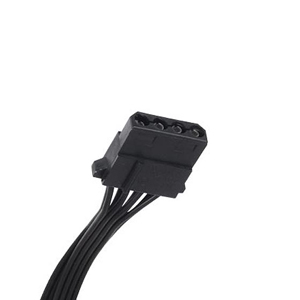

6 x 4-Pin Peripheral connector

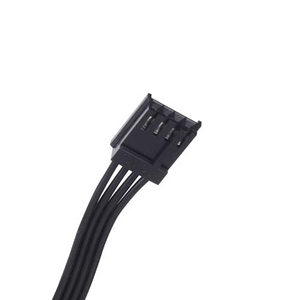

2 x 4-Pin Floppy connector
SPECIFICATIONS
| Model No. | SST-ST75F-PT | ||||||||||||||||||||||||||||||||||||||||||
| Max. DC Output | 750W | ||||||||||||||||||||||||||||||||||||||||||
| Power density | 415W per liter | ||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||
| Color | Black(Lead-Free Paint) | ||||||||||||||||||||||||||||||||||||||||||
| combined +3.3, +5V | 120W | ||||||||||||||||||||||||||||||||||||||||||
| combined +12V | 750W | ||||||||||||||||||||||||||||||||||||||||||
| Input Voltage | 90V~264V | ||||||||||||||||||||||||||||||||||||||||||
| Input Frequency Range | 47Hz~63Hz | ||||||||||||||||||||||||||||||||||||||||||
| PFC | Active PFC(PF>0.9 at full load) | ||||||||||||||||||||||||||||||||||||||||||
| Efficiency | 89%~92% at 20%~100% loading | ||||||||||||||||||||||||||||||||||||||||||
| MTBF | 100,000 hours | ||||||||||||||||||||||||||||||||||||||||||
| Operating temperature | 0°C ~ 40°C | ||||||||||||||||||||||||||||||||||||||||||
| Protection | Over current protection Over power protection Over voltage protection Under voltage protection Over temperature protection Short circuit protection |
||||||||||||||||||||||||||||||||||||||||||
| Connectors | 1 x 24 / 20-Pin motherboard connector(550mm) 1 x 8 / 4-Pin EPS / ATX 12V connector(750mm) 4 x 8 / 6-Pin PCIE connector("550mm / 150mm"x2) 8 x SATA connector("600mm / 150mm / 150mm /150mm"x2) 6 x 4-Pin Peripheral connector("600mm / 150mm / 150mm"x2) 2 x 4-Pin Floppy connector("600mm / 150mm / 150mm / 150mm"x2) |
||||||||||||||||||||||||||||||||||||||||||
| Cooling System | Single 120mm silent fan | ||||||||||||||||||||||||||||||||||||||||||
| Noise Level | 0 ~ 28 dBA | ||||||||||||||||||||||||||||||||||||||||||
| Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D) | ||||||||||||||||||||||||||||||||||||||||||
| Weight | 2.25 kg | ||||||||||||||||||||||||||||||||||||||||||
| Form factor | ATX | ||||||||||||||||||||||||||||||||||||||||||
| Certification | 80 PLUS Platinum | ||||||||||||||||||||||||||||||||||||||||||
| Other | GPU Support list Compatible with ATX12V v2.4 |
||||||||||||||||||||||||||||||||||||||||||
