bought this and was never able to get it started up, trying for 6 months , bewarned isnt going to work straight out of the box, ?

The ASUS ROG Strix B760-I Gaming WiFi motherboard has received mixed reviews. While it is praised for its compatibility with current processors, good customer support, and specific features like an internal USB splitter, multiple users have reported issues such as dead-on-arrival units, problems with LAN ports, undervolting issues, bad drivers, and quality control concerns. Some users also had trouble with XMP settings and mounting the motherboard. Potential buyers should be aware of these quality issues and be prepared for possible troubleshooting.

Will this support a 14th gen CPU?

Yes. I just installed an Intel 14700K processor in this ITX motherboard. But, you MUST update the BIOS to the current version.

QAR1,385^.88

VAT-Inclusive Price

Limit 99999 per customer.

Ships from Hong Kong.

Most customers receive within 10-17 days.

Add to wish list

Sold by Corn Electronics

Top Rated

4.2 (14,607 seller ratings)

Shipped by Corn Electronics

Meet Your Seller

Corn Electronics

See Seller Store

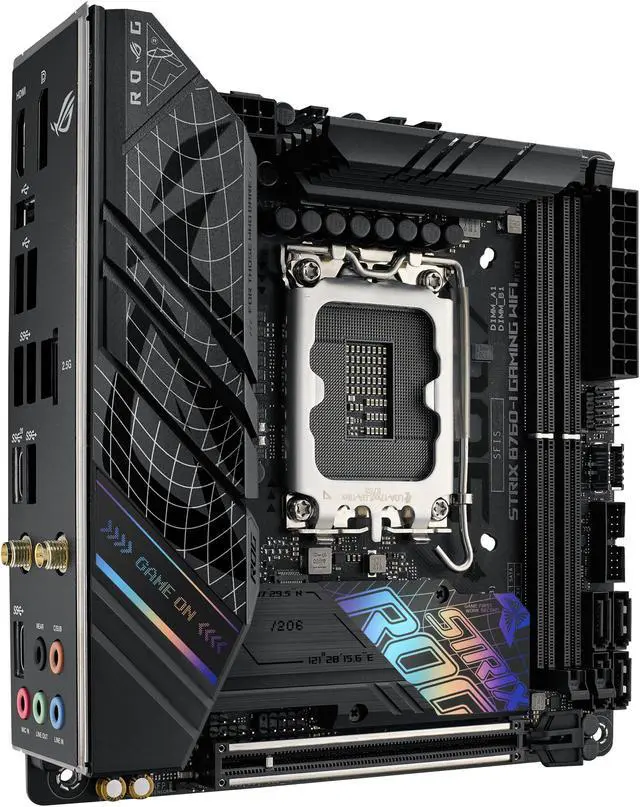

Main image of ASUS ROG Strix B760-I Gaming WiFi Intel B760(13th and 12th Gen) LGA 1700 mini-ITX motherboard, 8 + 1 power stages, DDR5 up to 7600 MT/s, PCIe 5.0, two M.2 slots, WiFi 6E, USB 3.2 Gen 2x2 Type-C, and Aura Sync RGB

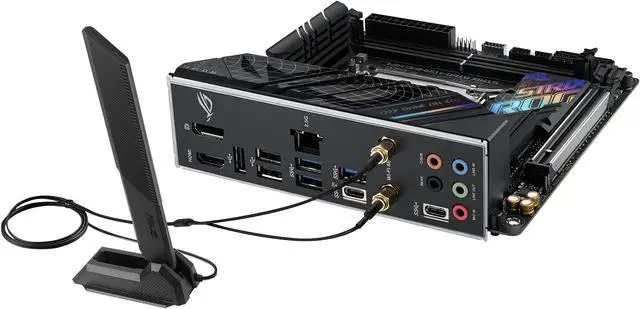

Alt view image 2 of 9 - ASUS ROG Strix B760-I Gaming WiFi Intel B760(13th and 12th Gen) LGA 1700 mini-ITX motherboard, 8 + 1 power stages, DDR5 up to 7600 MT/s, PCIe 5.0, two M.2 slots, WiFi 6E, USB 3.2 Gen 2x2 Type-C, and Aura Sync RGB

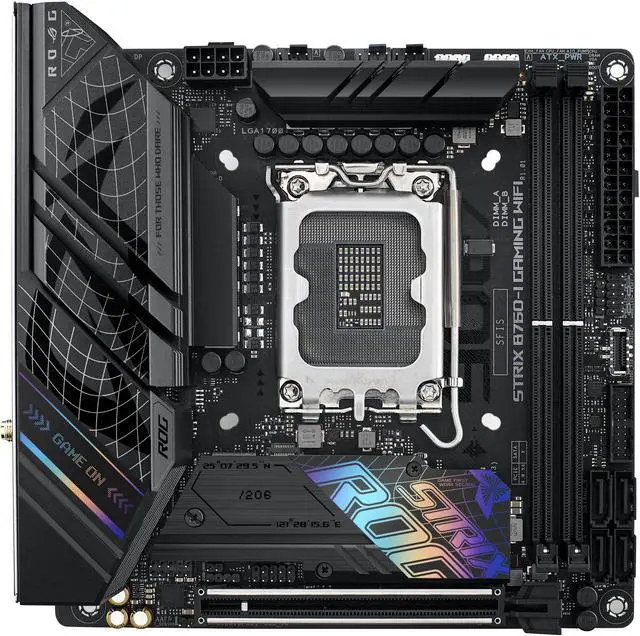

Alt view image 3 of 9 - ASUS ROG Strix B760-I Gaming WiFi Intel B760(13th and 12th Gen) LGA 1700 mini-ITX motherboard, 8 + 1 power stages, DDR5 up to 7600 MT/s, PCIe 5.0, two M.2 slots, WiFi 6E, USB 3.2 Gen 2x2 Type-C, and Aura Sync RGB

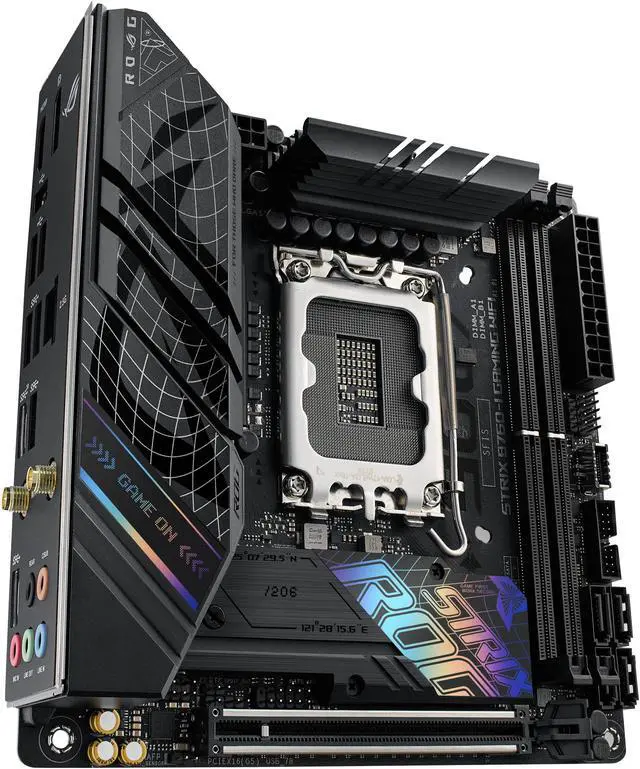

Alt view image 4 of 9 - ASUS ROG Strix B760-I Gaming WiFi Intel B760(13th and 12th Gen) LGA 1700 mini-ITX motherboard, 8 + 1 power stages, DDR5 up to 7600 MT/s, PCIe 5.0, two M.2 slots, WiFi 6E, USB 3.2 Gen 2x2 Type-C, and Aura Sync RGB

Alt view image 5 of 9 - ASUS ROG Strix B760-I Gaming WiFi Intel B760(13th and 12th Gen) LGA 1700 mini-ITX motherboard, 8 + 1 power stages, DDR5 up to 7600 MT/s, PCIe 5.0, two M.2 slots, WiFi 6E, USB 3.2 Gen 2x2 Type-C, and Aura Sync RGB

Alt view image 6 of 9 - ASUS ROG Strix B760-I Gaming WiFi Intel B760(13th and 12th Gen) LGA 1700 mini-ITX motherboard, 8 + 1 power stages, DDR5 up to 7600 MT/s, PCIe 5.0, two M.2 slots, WiFi 6E, USB 3.2 Gen 2x2 Type-C, and Aura Sync RGB

Alt view image 7 of 9 - ASUS ROG Strix B760-I Gaming WiFi Intel B760(13th and 12th Gen) LGA 1700 mini-ITX motherboard, 8 + 1 power stages, DDR5 up to 7600 MT/s, PCIe 5.0, two M.2 slots, WiFi 6E, USB 3.2 Gen 2x2 Type-C, and Aura Sync RGB

Alt view image 8 of 9 - ASUS ROG Strix B760-I Gaming WiFi Intel B760(13th and 12th Gen) LGA 1700 mini-ITX motherboard, 8 + 1 power stages, DDR5 up to 7600 MT/s, PCIe 5.0, two M.2 slots, WiFi 6E, USB 3.2 Gen 2x2 Type-C, and Aura Sync RGB

Alt view image 9 of 9 - ASUS ROG Strix B760-I Gaming WiFi Intel B760(13th and 12th Gen) LGA 1700 mini-ITX motherboard, 8 + 1 power stages, DDR5 up to 7600 MT/s, PCIe 5.0, two M.2 slots, WiFi 6E, USB 3.2 Gen 2x2 Type-C, and Aura Sync RGB

Customer images

Shop All ASUS Products | Visit Corn Electronics Store

ASUS ROG Strix B760-I Gaming WiFi Intel B760(13th and 12th Gen) LGA 1700 mini-ITX motherboard, 8 + 1 power stages, DDR5 up to 7600 MT/s, PCIe 5.0, two M.2 slots, WiFi 6E, USB 3.2 Gen 2x2 Type-C, and Aura Sync RGB

(71)(6) Write a Review

Option: ROG STRIX B760-I GAMING WIFI

ROG STRIX B760-I GAMING WIFI
PRIME B760-PLUS D4

Intel LGA 1700 socket: Ready for 13th Gen Intel® Core, and 12th Gen Intel Core, Pentium Gold, and Celeron Processors.
Robust Power Solution: 8 + 1 power stages rated for 80A, ProCool power connector, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors.
Optimized VRM Thermals: Thick heatsinks bridged to the VRM with high-conductivity thermal pads, and the larger one integrated with the I/O cover for added surface area.
Ample M.2 Support: Two PCIe 4.0 M.2 slots, one with a beefy heatsink, and the other strategically placed on the rear to save space.
Next-Gen Networking: On-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5G Ethernet with ASUS LANGuard.
Industry-leading Gaming Audio: S1220A codec with Savitech SV3H712 amplifier, along with DTS Sound Unbound™ and Sonic Studio III
Renowned Software: Bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86.
Intelligent Control.

Overview

Specs

Reviews (71)

Model
Brand	ASUS
Model	ROG STRIX B760-I GAMING WIFI
Part Number	90MB1D90-M0AAY0

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold

Chipsets
Chipset	Intel B760

Memory
Number of Memory Slots	2x288pin (DDR5)
Memory Standard	DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Onboard Audio
Audio Chipset	ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors * Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless LAN	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band*
Bluetooth	Bluetooth v5.3

Rear Panel Ports
Back I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 1 ports (3 x USB Type-A ) 1 x USB 3.2 Gen 1 port (1 x USB Type-C) 3 x USB 2.0 ports (3 x Type-A) 1 x HDMI port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet 5 x Audio jacks

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 headers support additional 2 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chasis Fan header 1 x 4-pin AIO Pump header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 1 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector

Features
Features	Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate ASUS EZ DIY -CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 header

Packaging

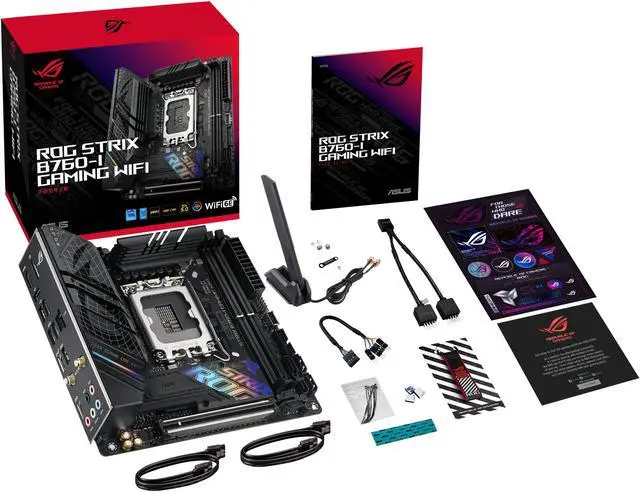

Package Contents	Cables 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel cable Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Rubber Package 2 x Screw packages for M.2 SSD 1 x M.2 bracket 1 x ROG key chain 1 x ROG STRIX stickers 1 x ROG STRIX thank you card Documentation 1 x User manual

Additional Information
First Listed on Newegg	September 18, 2024

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Return for refund within: 30 days
This item is covered by Corn Electronics Return Policy
*Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.
