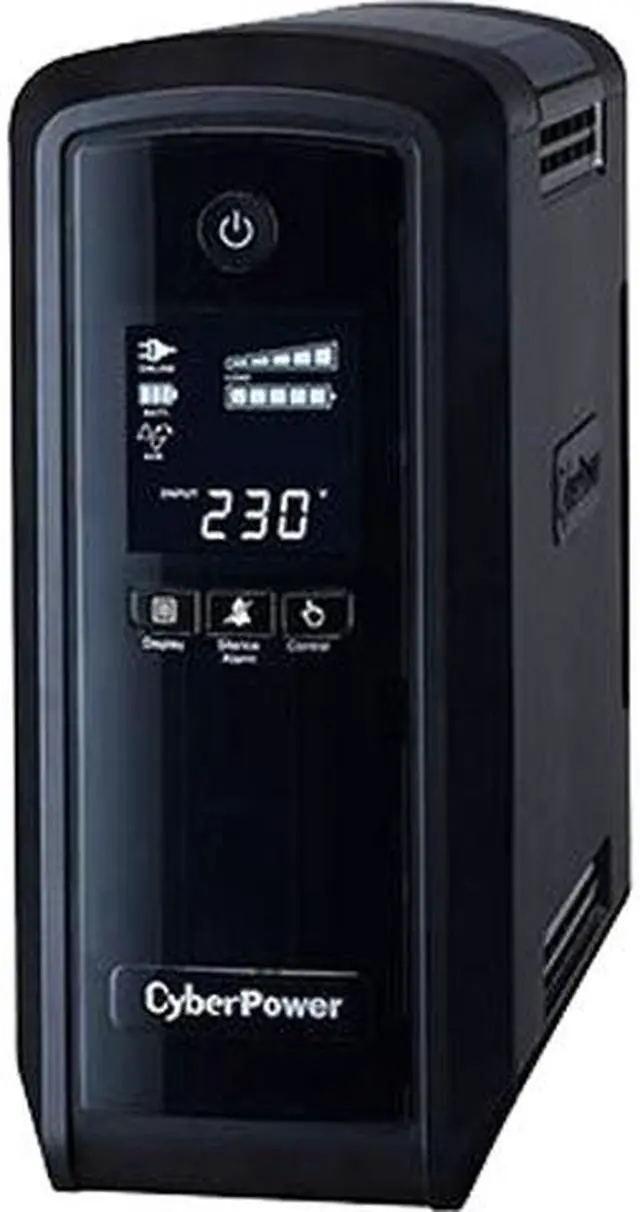

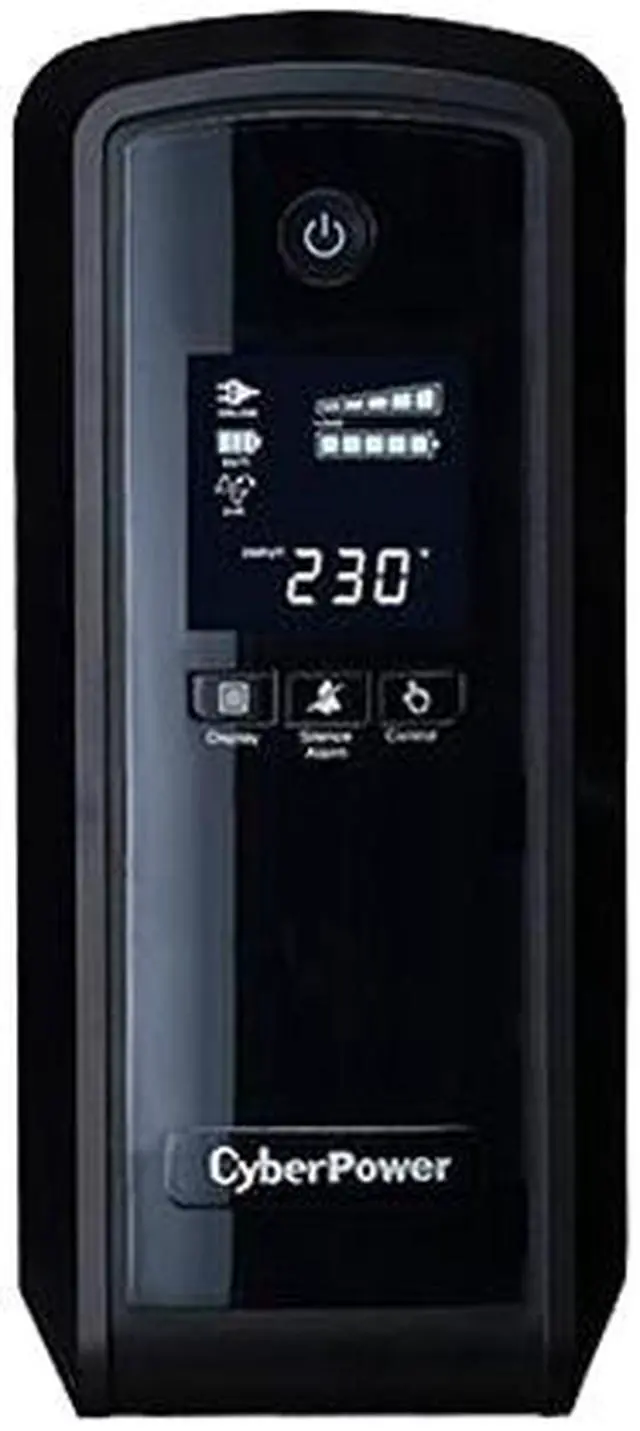

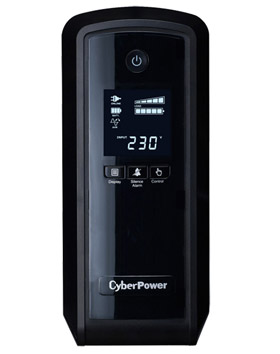

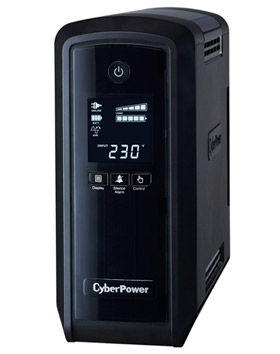

The CyberPower PFC Sinewave Series offers users from home to SMEs clean and stable battery backup while the featured RJ11/RJ45 port ensures phone, fax, and modem lines are protected from surges. With Automatic Voltage Regulation (AVR) stabilizes the AC signal and maintains a safe voltage, this allows the UPS to maintain safe power levels for the connected equipment without resorting to battery power. The multifunction LCD readout provides immediate access to precise information of critical power/battery condition.
The included PowerPanel® Personal Edition management software showcases the featured rich abilities such as input/output power voltage readings, self-diagnostics, and approximate battery backup time. With the Energy-Saving Technology, the Adaptive Sinewave™ Series can save up to 75% of electricity therefore save your electricity expenses.
Model | CP900EPFCLCD |
Capacity (VA/Watts) | 900VA / 540W |
Energy – Saving Technology | Yes |
Input | |
Voltage Range | 165Vac - 265Vac |
Frequency Range | 47Hz ~ 63 Hz (Auto Sensing) |
Input Plug Type | IEC 320 C14 |
Output | |
UPS Outlets | 6 (Schuko, UK) |
On Battery Output Voltage | Pure Sinewave at 230Vac +/- 10% |
On Battery Output Frequency | 50Hz / 60 Hz +/- 1% |
Transfer Time (Typical) | 4ms |
Overload Protection | On utility: Internal Current Limiting & Circuit Breaker On battery: Internal Current Limiting |
Surge Protection and Filtering | |
AVR Function | Single Boost |
Surge Protection | Yes |
Network/ Phone/ Fax/ Modem Protection | RJ11/RJ45 ( One In/ One Out ) |
Physical | |
Maximum Dimensions(H x W x D)(mm) | 230 x 100 x 275 |
Weight(kg) | 6.6 |
Battery | |
Sealed
Maintenance Free Lead Acid Battery |
12V 8.5AH x 1 |
User Replaceable | Yes |
Typical Recharge Time | 8 Hours |
Runtime at Half Load / Full Load (min) | 7/1 |
Status Indication | |
Indicators | Power On |
Audible Alarms | On Battery, Low Battery, Overload(Battery Mode), Fault |
Multi-Function LCD Readout | Yes |
Communication | |
Power Management Software | PowerPanel® Personal Edition |
Management | |
Auto-Charge | Yes |
Auto-Restart | Yes |
USB Interface | Yes |
Serial Interface | N/A |
