4K @30Hz 6x2 HDMI True Matrix SPDIF Splitter with ARC EDID Setting SPDIF Digital 5.1 Audio Extractor SPDIF 3.5mm Audio Out PIP HDMI Matrix 6 in 2 out HDMI Switch splitter

Be the first to review this product...

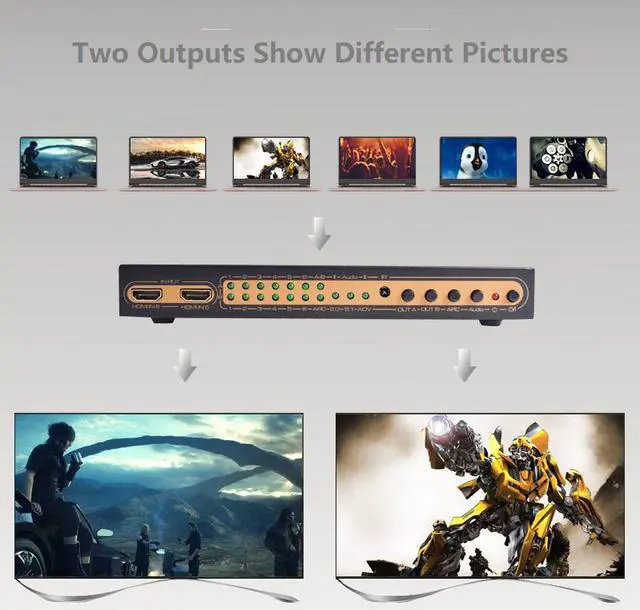

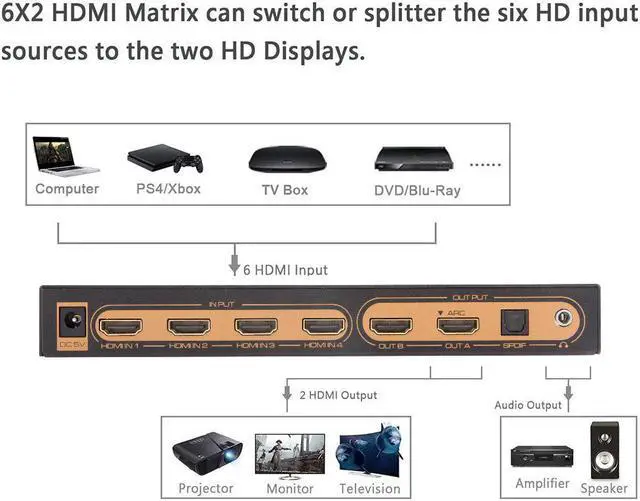

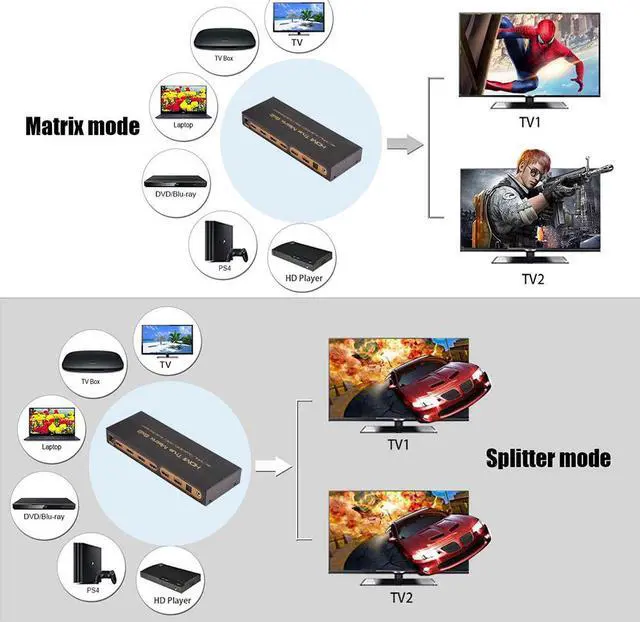

  • [HDMI Switch 6 in 2 out] This HDMI switcher designs with six inputs and two outputs, which allows splitting the videos to two HDMI displays simultaneously. You can choose the HDMI signal source by the IR remote control, easy to access
  • [4K HDMI Switch] HDMI V1.4 helps you experience favorite media through advanced crisp 4K@30hz resolution and immersive 3D content (supports 1080p as well). It also manages to extract audio by the SPDIF or 3.5mm headphone audio output port. This switcher doesn't support 4K@60hz or HDR; It is compatible with HDMI V1.3

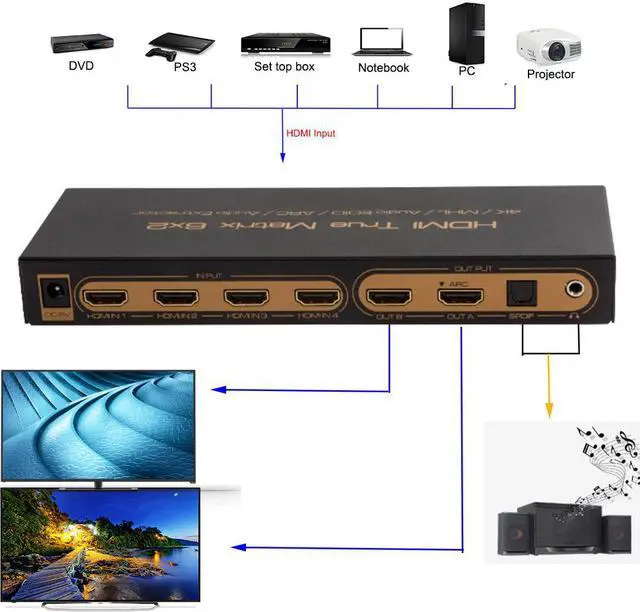

  • [ARC Function] Supports ARC (Audio Return Channel), Extractor the audio from TV to Soundbar or Amplifier. Connect your TV HDMI(ARC) Port to this switch HDMI "OUT A" port with HDMI cable, then connect an optical cable to the soundbar, Speaker, home theater, A/V receivers, etc.

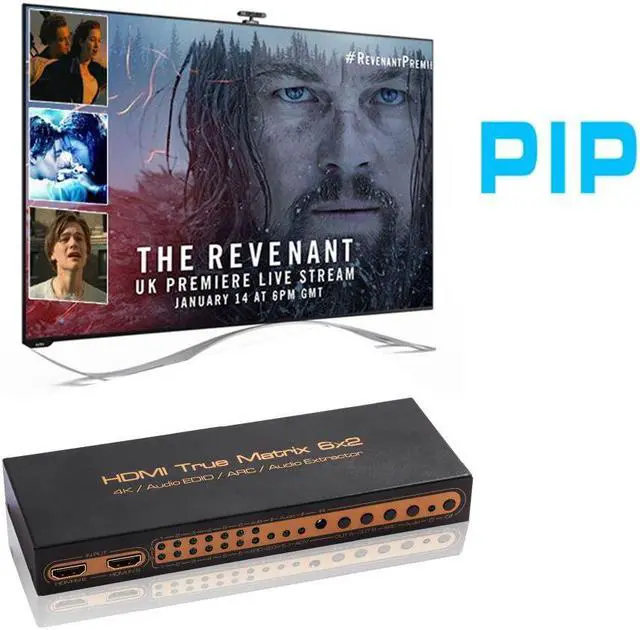

  • [Picture in Picture] It will show 5 sub-screen and 1 main-screen displays with the PIP feature, which allows you to preview the devices simultaneously and switch.
+
+
Overview
Specs
Reviews

Notes:

  1. PIP function only affects input source with a resolution not higher than 1080p.
  2. Press the PIP button and get into PIP status, it will show the new input source in the small picture on the left side of the main picture. The size and position of the small picture are fixed.
  3. Only HDMI A output supports ARC function, and the TV must also support ARC
image for this item
image for this item
image for this item

SPECIFICATIONS:

HDMI resolution : 4KX2K/3D/1080p/1080i/720p/576p/576i/480p/480i

Support HDMI audio format : DTS-HD/Dolby-trueHD/LPCM/DTS/Dolby-AC3/DSD

Digital Audio Output Supported Audio Format : LPCM2.0/Dolby AC3/ DTS

Digital Audio Output Sampling Rate : 32KHz, 44.1KHz, 48KHz,88.2KHz, 96KHz, 176.4KHz, 192KHz

Max transmission band width : 300MHz

Max baud rate : 9.0Gbps

Input/Output TMDS signal : 0.5~1.5Volts p-p

Input/Output DDC signal : 5Volts p-p (TTL)

Input cable distance : < =10m(1080P)/5M(4K) AWG26 HDMI standard cable

Output cable distance :  < =15m(1080P)/5M(4K) AWG26 HDMI standard cable

Max working current : 700mA

Power adapter format : Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A

Dimension (L x W x H) : 205x74x26 (mm)

Weight : 440g

image for this item
Package contents
  • 1 * HDMI True Matrix
  • 1 * Power Adapter 5V
  • 1 * Remote
  • 1 * User Manual
Warm Tips:
PIP function only affects input source with a resolution not higher than 1080p.
Press the PIP button and get into PIP status, it will show the new input source in the small picture on the left side of the main picture. The size and position of the small picture are fixed.
Only HDMI A output supports ARC function, and the TV must also support ARC

Specification:
HDMI resolution: 4KX2K/3D/1080p/1080i/720p/576p/576i/480p/480i

Support HDMI audio format: DTS-HD/Dolby-trueHD/LPCM/DTS/Dolby-AC3/DSD

Digital Audio Output Supported Audio Format: LPCM 2.0 /Dolby AC3/ DTS

Digital Audio Output Sampling Rate: 32KHz, 44.1KH z, 48KHz, 88.2KH z, 96KHz, 176.4KH z, 192KHz

Max transmission band width: 300MHz

Max baud rate: 9.0G bps

Input/Output TMDS signal: 0.5 ~ 1.5V olts p-p

Input/Output DDC signal: 5Volts p-p (TTL)

Input cable distance: 10m (1080P) /5M (4K) AWG26 HDMI standard cable

Output cable distance: 15m (1080P) /5M (4K) AWG26 HDMI standard cable

Max working current: 700mA

Power adapter format:
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A

Dimension (L x W x H): 205x74x26 (mm)

Weight: 440g

Package included:
1 * HDMI True Matrix
1 * Power Adapter 5V
1 * Remote
1 * User Manual
