JONSBO V8 Compact Mini Aluminum ITX Case, Support 240 Liquid Cooler/330mm Graphics Card/2x3.5”HDD&1X2.5”SSD/ITX/DTX /SFX-L Power Supply, Pull-out Structure, 1x 20cm Fan/USB3.0, Type-C/ HD Auido, Gray
- V8 Exquisite and Mini- ITX Aluminum Case -
- Case Material : 2.0+2.5mm Aluminium Alloy & 1mm Steel Plate
- Mini chassis Size : W249.50 x D390 x H260mm/W9.82x15.35x10.24 in
- Driver Bay :2x3.5”HDD&1X2.5”SSD
- 2x PCI Expansion Slot

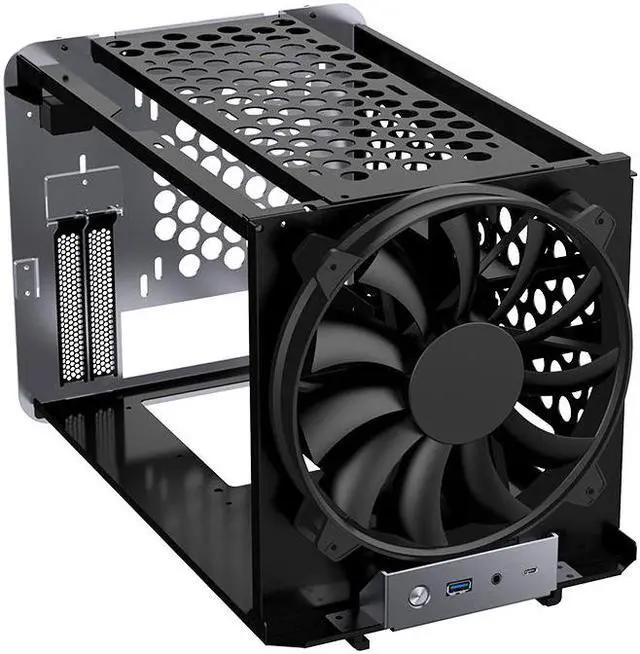

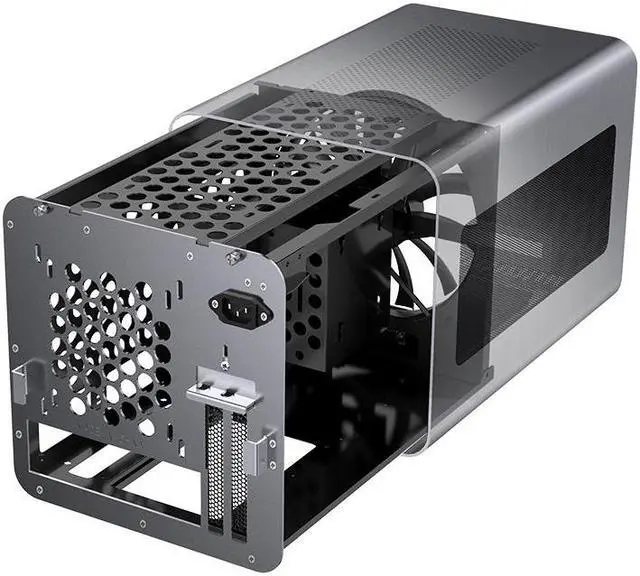

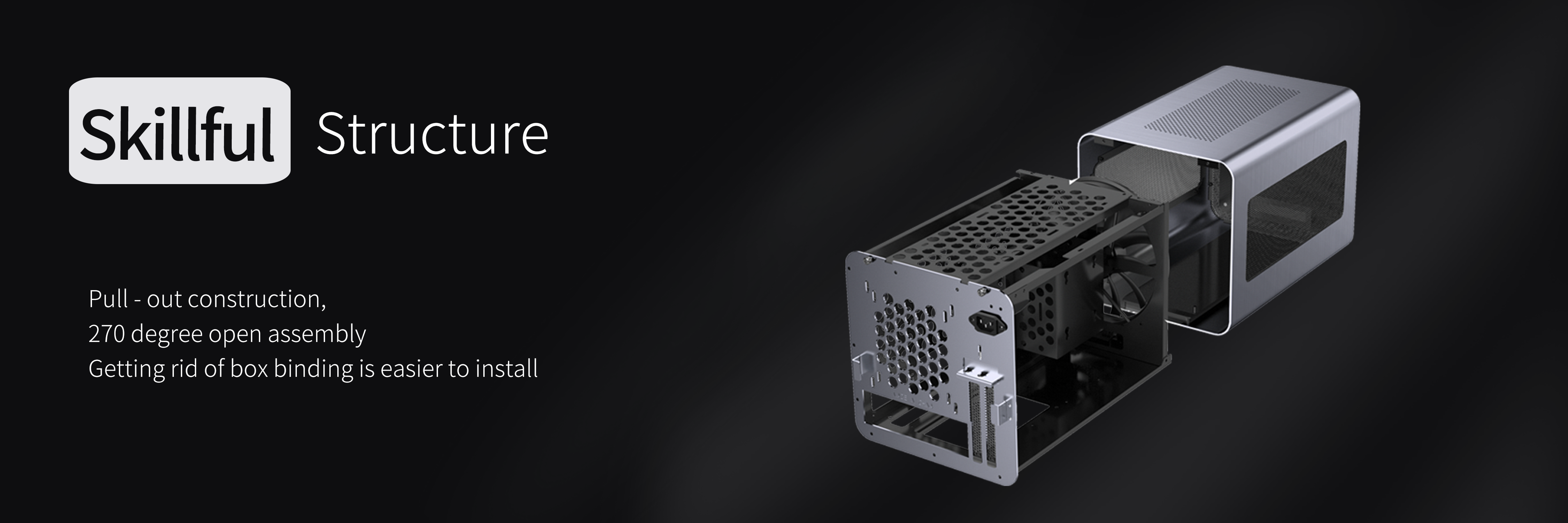

- Skillful Structure : Pull-out Structure, 270 degree open assembly.
- Good dustproof with good heat dissipation : Three-sided window type with three-sided metal filter
- Built-in front 1x20cm big low noise fan, Front Jack-1xUSB3.0, 1xType-C, 1xHD Audio (2in1: 3.5mm mic+headphone OMTP jack)
- Net Weight : 5.8Kgs/12.78lb
- Hardware Support-
- Mainboard : ITX/DTX
- Cooling Solution : Top 240 Liquid Cooling & 2x120mm Fan

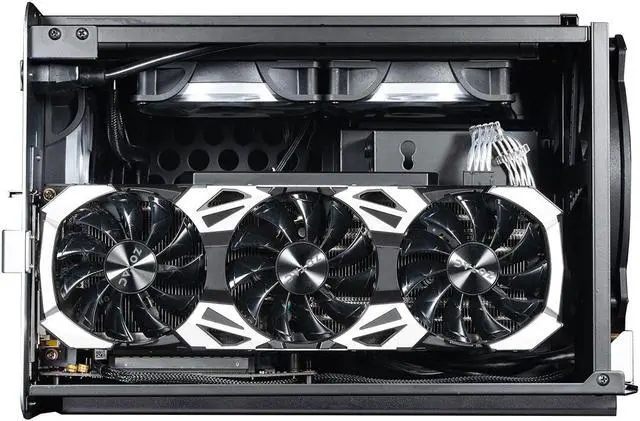

- GPU : <330mm
- CPU Cooler : < H:195mm
- Power Supply : SFX/SFX-L ( L125mm Max.)
- Fan Installation Position :
- Front 1*200MM (Built-in )
- Top 2*120MM ( It is recommended that users configure themselves )
- Rear Window 1*120/140mm ( It is recommended that users configure themselves )
- Small volume,Small as a sparrow is, it has all the organs,Gallop freely in the mini space
+
+
Overview
Specs
Reviews (4)

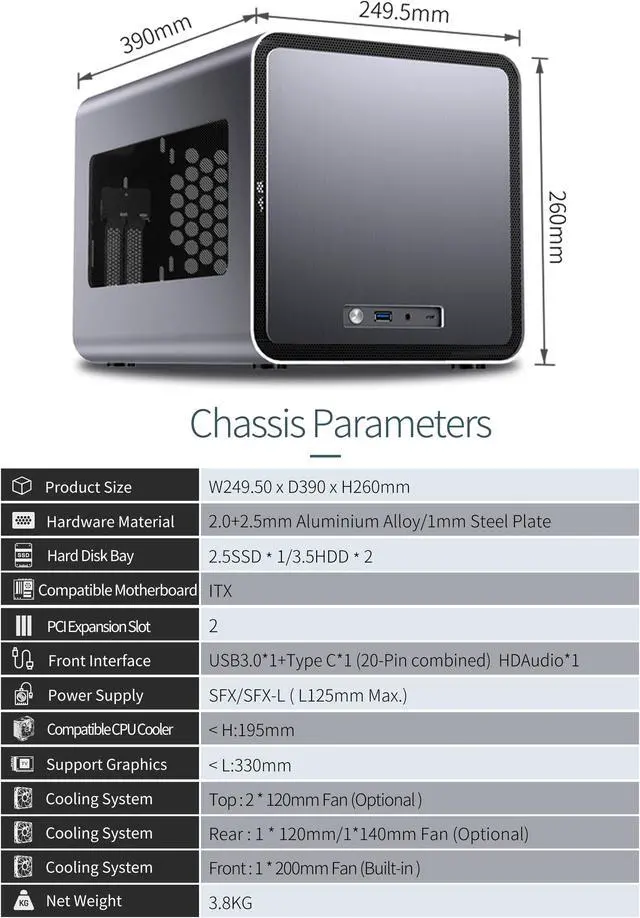

Chassis type: ITX, DTX
Product size: 249.5MM (W) * 390MM (D) * 260MM (H)
colour:
Motherboard support: ITX / M-ATX
Graphics card/CPU: Graphics
card support length: length limit 330MM cpu limit height 195MM
Chassis material: Hardware
material: 2.0 + 2.5 mm aluminum-magnesium alloy body; 1.0 mm thickness steel plate
Fan position:
Top: 2*120MM
(optional); front: 1*200mm (standard); rear: 1*120/1*140mm (optional)
Water cooling support: 120 splits can be installed on the rear window 12CM fan position
Power support: SFX/SFX-L (Maximum length 125mm)
Hard disk bit: 2.5" *1, 3.5" *2
Expansion slot: 2
Backline support: None
Front USB: USB 3.0 *1, AUDIO*1, Type-C*1
Gross weight/net weight: Net weight: 5.8 kg
RGB components:
Product size: 249.5MM (W) * 390MM (D) * 260MM (H)
colour:
Motherboard support: ITX / M-ATX
Graphics card/CPU: Graphics
card support length: length limit 330MM cpu limit height 195MM
Chassis material: Hardware
material: 2.0 + 2.5 mm aluminum-magnesium alloy body; 1.0 mm thickness steel plate
Fan position:
Top: 2*120MM
(optional); front: 1*200mm (standard); rear: 1*120/1*140mm (optional)
Water cooling support: 120 splits can be installed on the rear window 12CM fan position
Power support: SFX/SFX-L (Maximum length 125mm)
Hard disk bit: 2.5" *1, 3.5" *2
Expansion slot: 2
Backline support: None
Front USB: USB 3.0 *1, AUDIO*1, Type-C*1
Gross weight/net weight: Net weight: 5.8 kg
RGB components:
