Unite as One
The MAG B650M MORTAR WIFI is a gaming oriented M-ATX motherboard constructed around the latest AMD B650 chipset that unites value with premium hardware.
Supports AMD Ryzen 7000 Processors
The MAG B650M MORTAR WIFI motherboard supports AMD Ryzen 7000 processors.
Form Factor: Micro-ATX
Socket Type: AM5
Chipset: AMD B650
12+2 Phase VRM with 80A Smart Power Stage
With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG B650M MORTAR WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings:
1. Digital PWM IC
2. 12-Phase Duet-Rail CPU Power (80A)
3. 2-Phase SOC Power
4. 1-Phase MISC Power
Integrated Cooling Features
VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.
PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.
2 x Fortified PCI-e 4.0 x16 Slots
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
2 x PCI-e 4.0/3.0 x16 slots (primary with Steel Armor*
* Supports x16/x4

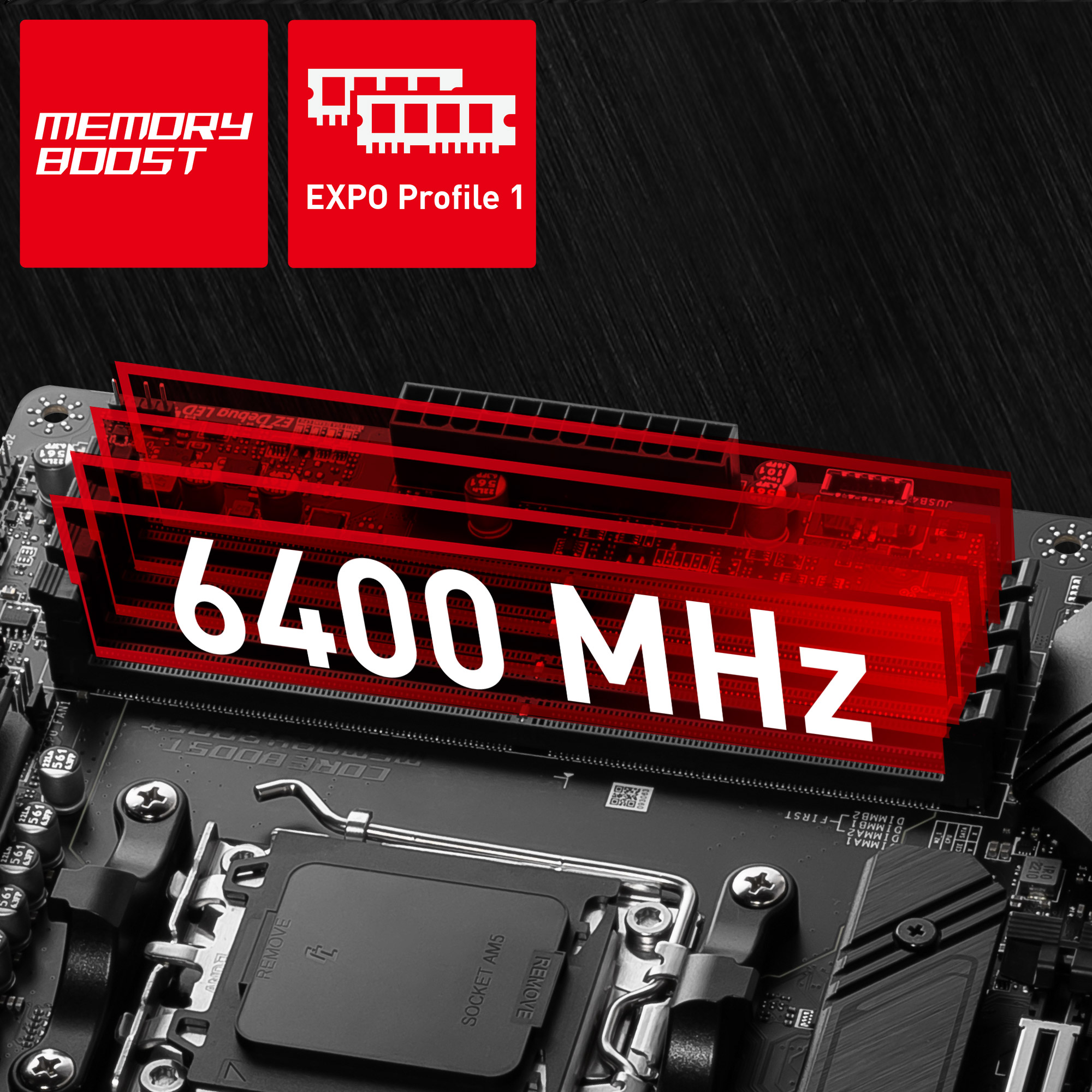

4 x DDR5 Dual Channel (6400+ MHz OC)
The MAG B650M MORTAR WIFI motherboard features MSI's latest M.2 slots (Intel Optane supported):
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.
* 1DPC 1R Max. overclocking frequency 6400 MHz, supports AMD EXPO.

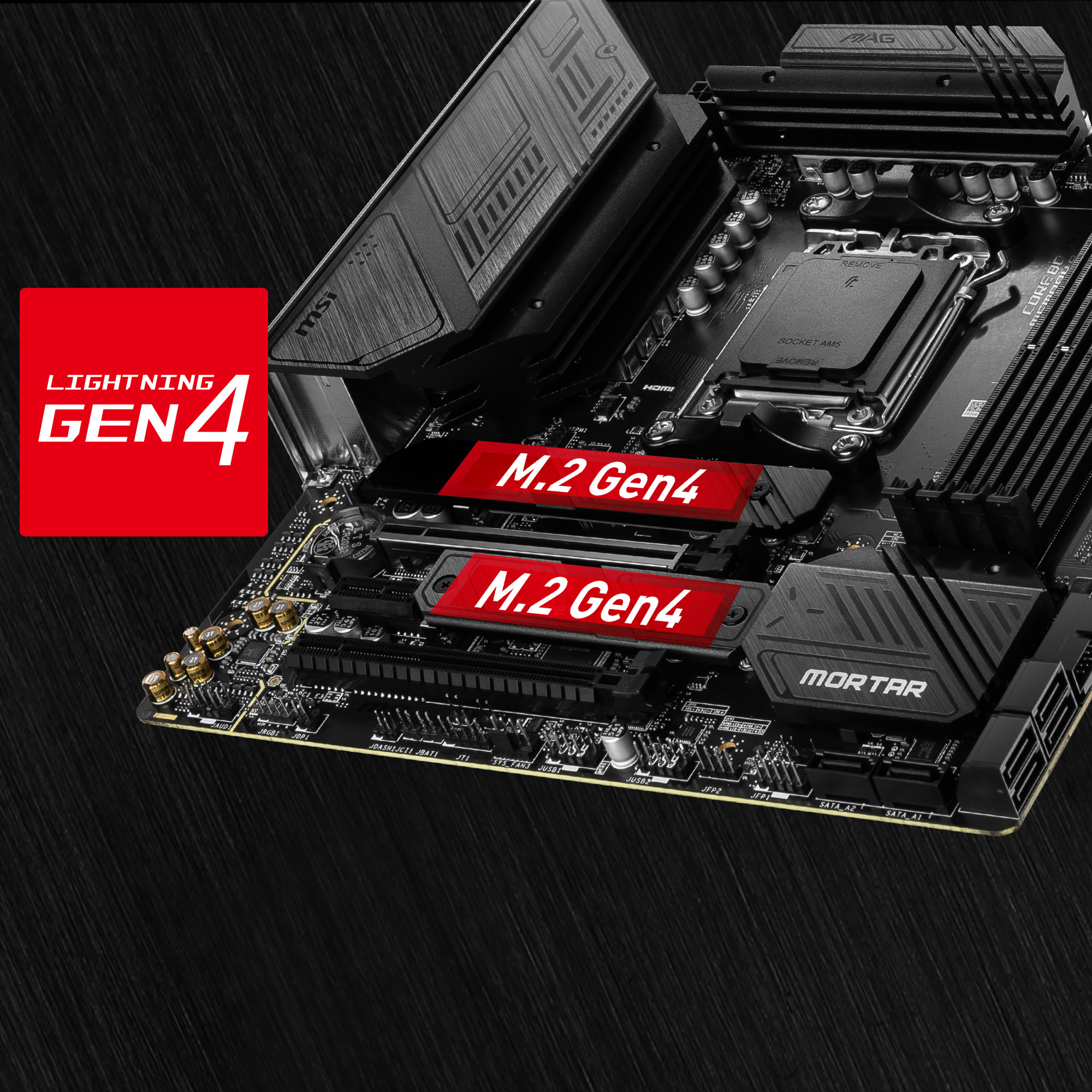

Gen4 M.2 Connectors
The MAG B650M MORTAR WIFI motherboard features MSI's latest M.2 slots:
2 x Gen4 x4 64Gb/s slots
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
Wi-Fi 6E & Bluetooth 5.2
2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.
USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.
HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 & S/PDIF output.
