What type of cables do I need to use with this VGA for optimal performance?

The graphics card has 6 x Mini-DisplayPort 1.4 ports for display connections. For optimal performance, you would need Mini-DisplayPort cables that match your display's input capabilities.

Can this VGA support six monitor outputs?

Yes, this VGA can support six monitor outputs as it has 6 x Mini-DisplayPort 1.4 ports.

Would this card work as an eGPU with a Razer Core X and Intel Macbook Pro?

Yes, This GPU is supported on the Mac Pro (so the driver is compatible as long as they support it in macOS). As far as the eGPU enclosure, check the power supply and power draw, if it's good then go for it.

S$3,498^.26

GST-Inclusive Price

S$216.48 Shipping

Limit 99999 per customer.

Ships from Canada.

Most customers receive within 4-17 days.

Add to wish list

Sold by BTE Outlet

3.5 (1,429 seller ratings)

Shipped by BTE Outlet

Meet Your Seller

BTE Outlet

See Seller Store

Main image of AMD Radeon Pro W6800 100-506157 32GB 256-bit GDDR6 PCI Express 4.0 x16 Graphics Card

Alt view image 2 of 6 - AMD Radeon Pro W6800 100-506157 32GB 256-bit GDDR6 PCI Express 4.0 x16 Graphics Card

Alt view image 3 of 6 - AMD Radeon Pro W6800 100-506157 32GB 256-bit GDDR6 PCI Express 4.0 x16 Graphics Card

Alt view image 4 of 6 - AMD Radeon Pro W6800 100-506157 32GB 256-bit GDDR6 PCI Express 4.0 x16 Graphics Card

Alt view image 5 of 6 - AMD Radeon Pro W6800 100-506157 32GB 256-bit GDDR6 PCI Express 4.0 x16 Graphics Card

Alt view image 6 of 6 - AMD Radeon Pro W6800 100-506157 32GB 256-bit GDDR6 PCI Express 4.0 x16 Graphics Card

Shop All AMD Products | Visit BTE Outlet Store

AMD Radeon Pro W6800 100-506157 32GB 256-bit GDDR6 PCI Express 4.0 x16 Graphics Card

(7) Write a Review

Radeon Pro W6800
32GB GDDR6
PCI Express 4.0 x16

Specs

Reviews (7)

Learn more about the AMD 100-506157

Model
Brand	AMD
Model	100-506157

Interface
Interface	PCI Express 4.0 x16

Chipset
Chipset Manufacturer	AMD
GPU	Radeon Pro W6800
Stream Processors	3840

Memory
Memory Size	32GB
Memory Interface	256-bit
Memory Type	GDDR6

3D API
DirectX	DirectX 12 Ultimate
OpenGL	OpenGL 4.6

Ports

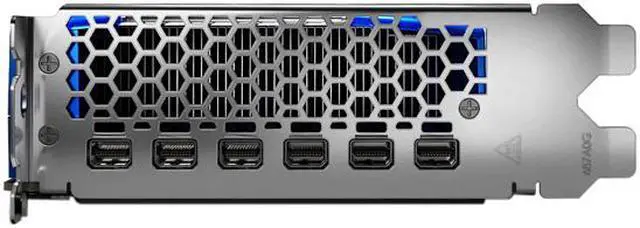

DisplayPort	6 x Mini-DisplayPort 1.4

Details
Digital Resolution	6 x @ 3840x2160px (4K) 6 x @ 5120x2880px (5K) 2 x @ 7680x4320px (8K)
Cooler	With Fan
Virtual Reality Ready	Yes
Operating Systems Supported	Windows 10 - 64-Bit Edition Linux x86_64
System Requirements	Total Board Power (TBP): 250W Peak PSU Recommendation: 650W Minimum

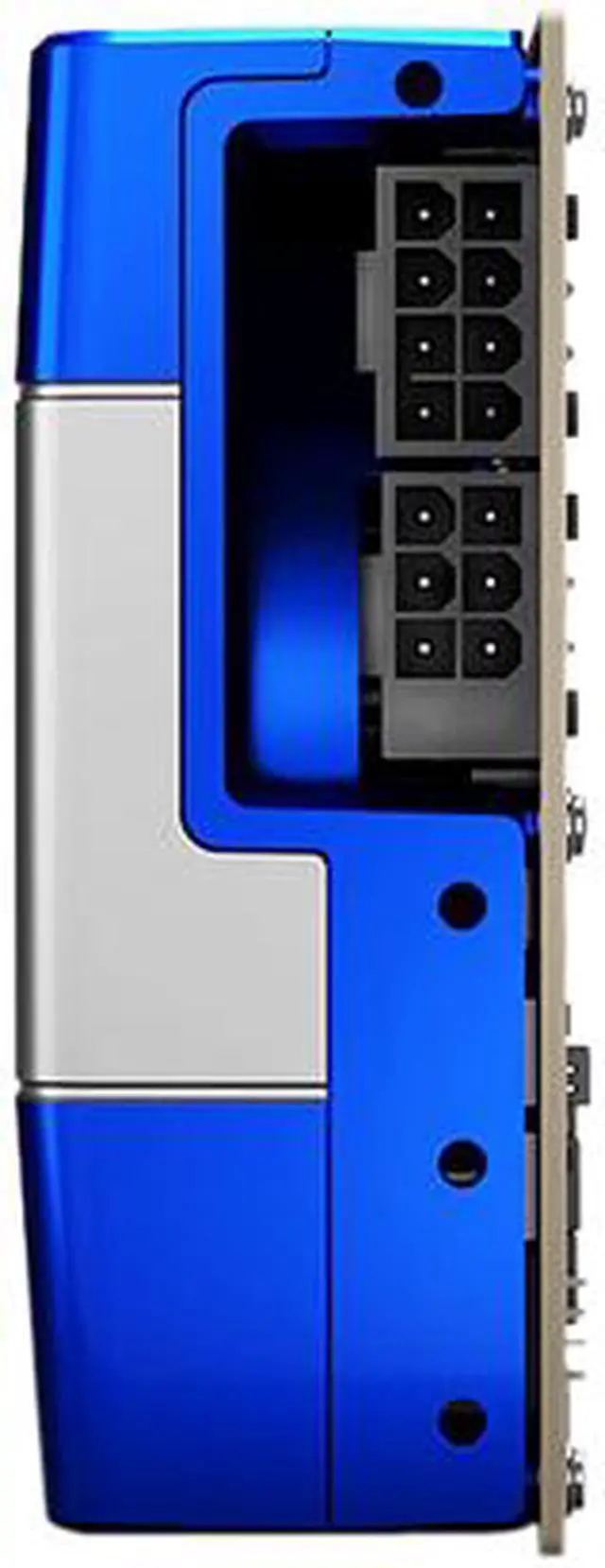

Auxiliary Power Connector	1 x PCIe 6-pin, + 1 x PCIe 8-pin

Features
Features	32GB GDDR6 Memory with ECC Support Hardware Raytracing Support Optimized for 6 x Displays. 8K and HDR Ready Accelerated Multitasking Performance PCIe 4.0 Ready for Advanced Data Transfers Certified for Many ISV Applications

Form Factor & Dimensions
Slot Width	Double Slot

Additional Information
Date First Available	October 19, 2021

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Return for refund within: 30 days
This item is covered by BTE Outlet Return Policy
*Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Item#: 9SIAD6HG8Z2087
