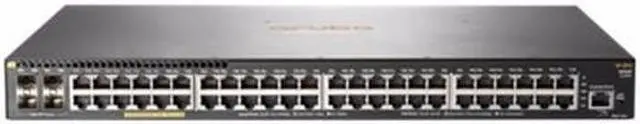

HPE Aruba 2930F 48G JL262A PoE+ 4SFP - switch - 48 ports - managed - rack-mountable

Product

Specifications

General
Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 370 W
Performance Throughput: 77.4 Mpps |
Switching capacity: 104 Gbps | Latency (1 Gbps): 3.8 µs
Capacity Jumbo frame size: 9220 |
IPv4 routing table entries: 10000 | IPv6 routing table entries: 5000
MAC Address Table Size 32K entries
Routing Protocol OSPF, RIP, RIP-1, RIP-2, IGM
Pv2, IGMP, OSP
Fv2, static IP routing, IGM
Pv3, OSP
Fv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
Encryption Algorithm MD5, SSL
Authentication Method RADIUS, PAP, CHAP, TACACS, TACACS+
Features Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), SNMP support, Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1 p, IEEE 802.3 af, IEEE 802.3 x, IEEE 802.3 ad (LACP), IEEE 802.1 w, IEEE 802.1 x, IEEE 802.1 s, IEEE 802.1 v, IEEE 802.1 ab (LLDP), IEEE 802.3 at, IEEE 802.3 az, IEEE 802.1AX
Processor 1 x ARM Cortex-A 9: 1. 016 GHz
RAM 1 GB DDR3 SDRAM
Flash Memory 4 GB
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 PoE+ | 4 x Gigabit LAN SFP | 1 x serial (console)
Expansion Slots 1 (total) / 1 (free) x expansion slot
Installed Modules Qty (Max) 0 (installed) / 4 (max)
Power
Power Device Internal power supply
Installed Qty 1
Power Provided 459 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 48.6 Watt
80 PLUS Certification 80 PLUS Silver
Miscellaneous
Included Accessories Mounting screws, 4 mounting ears, 4 bumper feet, cable tie
Compliant Standards CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C 22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825- 1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950- 1:2005 + A 1:2009 + A 2:2013, EN 60825- 1:2007, FCC CFR47 Part 15 A, EN 60950- 1:2006 +A 11:2009 +A 1:2010 +A 12:2011 +A 2:2013
Software / System Requirements
Software Included Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center
Dimensions & Weight
Width 17.4 in
Depth 12 in
Height 1.7 in
Weight 9.83 lbs
