8 Ports 12V/2A High Power Chassis Fan Hub,4 Pin PWM CPU Cooler / Case / Chasis Cooling Fan Power Cable Splitter Adapter w/Self-sticker,Power by Dual Molex,Compatible with 3pin & 4pin Fans

(12) Write a Review
  • 8 Ports 4pin PWM fan hub power splitter
  • Power by 2x Molex 4pin interface from PSU
  • High Power Fan Hub, support 8pcs 12V2A Chassis fan working at the same time
  • Compatible with 3-pin/ 4-pin
  • PWM function for 4pin PWM fans,spin at the same speed using PWM controller
  • Full speed run for 3pin fans
  • 40CM PWM cable include
+
+
Overview
Specs
Reviews (12)
EN-Labs fan hub, a central distribution point in your computer!
Especially in systems with many fans or have large radiators where multiple fans can be mounted, it is handy to have a central power point to connect the fans.

Features

It is designed for enthusiasts with need for controlling numerous system fans capable of expanding one motherboard PWM fan header to support up to eight fans.
Expand 4-pin fan interfaces, solving the problem of lack of motherboard fan interfaces.
Designed for 12V 4-Pin 3-Pin fans, support simultaneous starting at most 8 channel fans.
In the hub interfaces, the RED CPU interface is the CPU fan dedicated interface (with speed detection function).
Since the mainboard can only receive one rotation speed signal, the remaining nine conventional fan interfaces have the PWM function, but no speed signal.
For both 4-Pin and 3-Pin fans.

Please note
4Pin fan speed can be adjusted by motherboard PWM. 3Pin fan can be used as well without PWM function, it is running at fixed speed after inserting.

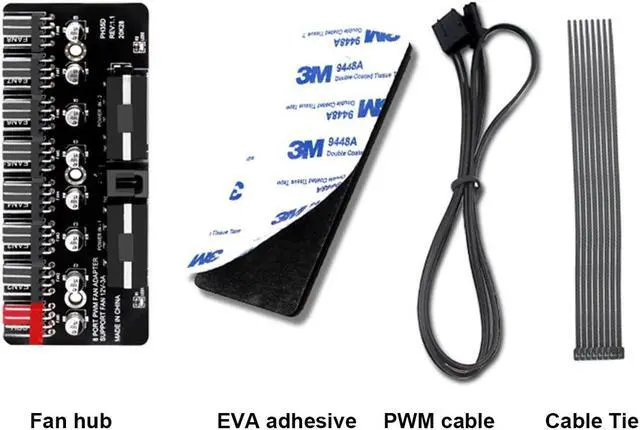

There is EVA double-sided adhesive at the back of the hub, which can be easily affixed to a flat place. Three fixing screw holes in the PCB to facilitate fixing to a part of the chassis,too.
RED color fan header is expected to be a pass through for the CPU fan. So, the hub has a power source from the computer power supply, then the speed is regulated by the speed for the "source" fan.
You can connect to the CPU fan lead on the system board or the chassis fan lead.
The 8 fans will run at the same speed, that designated by the system for that fan. If the chassis fan is configured in BIOS to run at 50%, you will have 8 fans at 50%.

Specification

Product: 8 Ports PWM 4pin Fan Hub
Power by: Molex 4pin
Fan Connectors: 8 Ports PMW TX4 4Pin Male for fans (Red header for CPU fan)
RPM & PWM Connector: Connect to Motherboard for PWM function

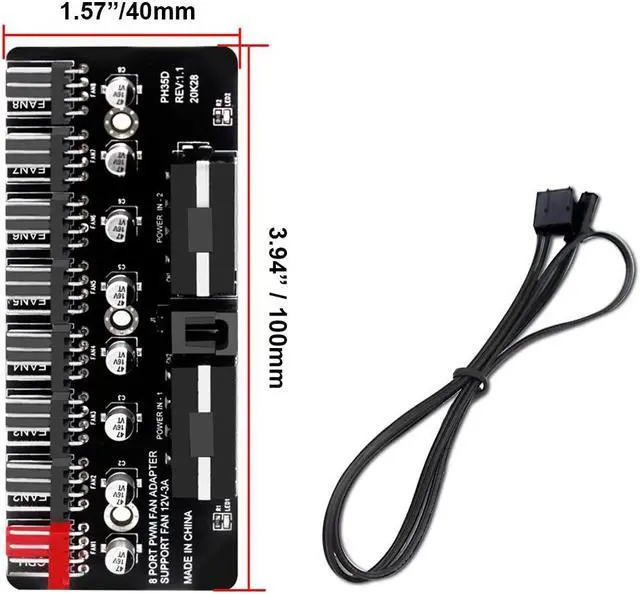

RPM & PWM Cable: 1.64 Feet in cable length
Note: Please make sure the red header always connect fan preferentially
image for this item

Features

  • It is designed for enthusiasts with need for controlling numerous system fans
  • Capable of expanding one motherboard PWM fan header to support up to eight fans.
  • Power by dual molex header from PSU, supports 8pcs 12V2A high power fans working at the same time
  • eight capacitances equipped for every fan output, protect your device safe.
  • Support PWM Function, Speed control, satisfy your control needs.
  • Compatible with 3-pin / 4-pin Fans (Due 3pins no PWM controller, 3pin fans would run in full speed. )
  • Comes with Self-Stick for easy installation and options to hide the PCB itself.
  • All fans power by 12V from PSU, reduce motherboard power load and heat.
  • Since only one RPM signal can be read by one motherboard connector, only ' Red header Fan' channel of the PWM hub carries an RPM signal; thus the motherboard will only read the RPM signal of the PWM device that is connected to this port

Note:


Port of red header is for CPU Fan, request to connect PWM fan priority always. Hub runs in full speed and does not support PWM function if just connect others and miss this red header connecting

image for this item

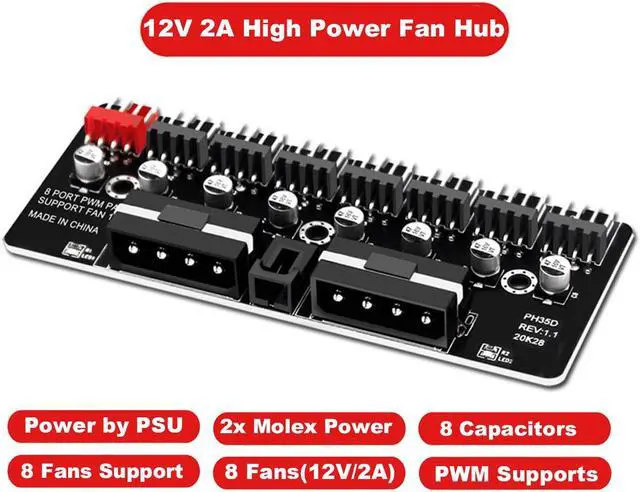

  • Fan hub is powered by 2x molex 4pin (12V only) from your PSU
  • Supports eight 12V/2A high power fans working at the same time
  •
image for this item
  • Compatible with 3pin & 4pin Fans
  • PWM controlling works for 4pin fans only
  • 3pin fans run in full speed
  • 8 capacitor equipped fan hub
  • Provide more protection for your fans connected



image for this item

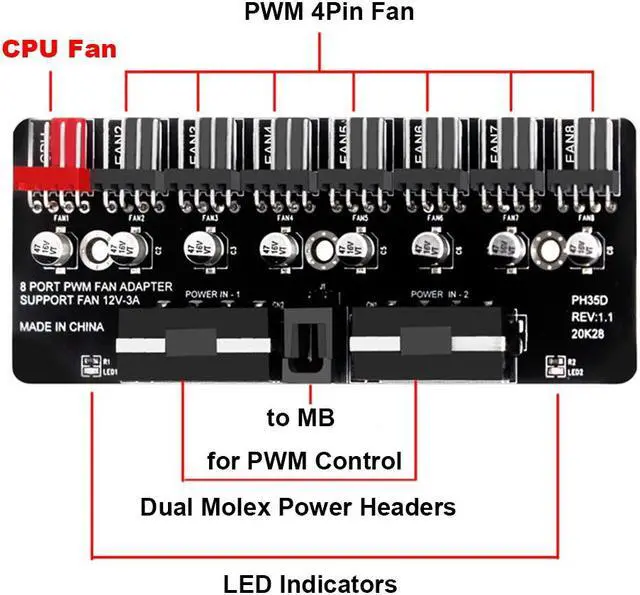

  • Port of red header is for CPU Fan, request to connect PWM fan priority always
  • Dual molex 4pin header of your PSU is requested
  • PWM control header must connect to your motherboard CPU_Fan header for PWM controlling
  • Two LED indicators
Specification
Product 8 Ports PWM 4pin Fan Hub
Input Dual Molex 4pin (12V only)
Output 8PCS 12V/2A High Power Fan Headers
Fan Connectors 8 Ports PMW TX4 4Pin Male for fans (Red header for CPU fan)
RPM & PWM Connector Connect to Motherboard for PWM function
RPM & PWM Cable 1.64Feet
