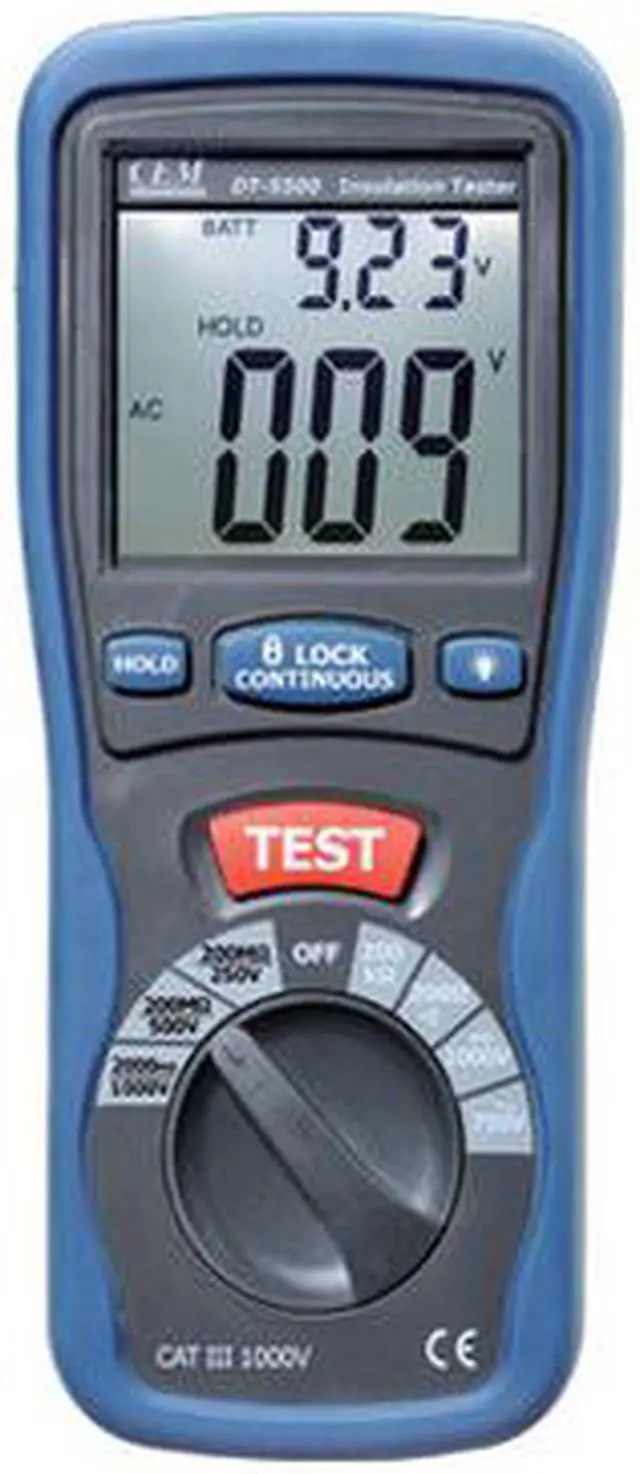

CEM DT-5500 Insulation Testers Large Dual Display with Backlight
- CEM DT-5500 Insulation Testers Large Dual Display with Backlight
+
+
Overview
Specs
Reviews
CEM DT-5500 Insulation Testers Large Dual Display with Backlight
Notice:
The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
Insulation Testers
1mA test current for MegOhm range at rated voltage
200mA short current for continuity range
Features DT-5500 DT-5520 DT-5530
Meets IEC10101, CATIII 1000V * * *
Large dual display with backlight * * *
Test hold function for easy operation * * *
Easy to carry testing package * * *
Over range Indication * * *
Low Battery Indication * * *
Measurement range(?) 200M/2000M 20M/200M/2000M 20M /200M/2000M
Size(HxWxD): 200mm x 92mm x 50mm
Weight: 582g
Specifications
Function Range Max Resolution Basic accuracy
Voltage AC 750V 1V ±1.2%rdg ±10dgts
Voltage DC 1000V 1V ±0.8%rdg ±3dgts
Resistance 200?, 2000? 0.1?, 1? ±1%rdg ±2dgts
Insulation Resistance 200M?, 2000M? 20M?(5520 only) 100k?~1M? 10k? ±3.5%rdg ±5dgts ±3.5%rdg ±5dgts
Test Voltage 250V-200M?/500V-200M?/1000V-2000M?, (500V-20M? only 5520)
Continuity Test Active Sound Level: =40?, Test current =200mA
Operating Temp 0ºC~40ºC (<80%R.H.)
Storage Temp -10ºC~60ºC (<70%R.H.)
Power Source 1.5V “AA” size Battery x 6
Notice:
The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
Insulation Testers
1mA test current for MegOhm range at rated voltage
200mA short current for continuity range
Features DT-5500 DT-5520 DT-5530
Meets IEC10101, CATIII 1000V * * *
Large dual display with backlight * * *
Test hold function for easy operation * * *
Easy to carry testing package * * *
Over range Indication * * *
Low Battery Indication * * *
Measurement range(?) 200M/2000M 20M/200M/2000M 20M /200M/2000M
Size(HxWxD): 200mm x 92mm x 50mm
Weight: 582g
Specifications
Function Range Max Resolution Basic accuracy
Voltage AC 750V 1V ±1.2%rdg ±10dgts
Voltage DC 1000V 1V ±0.8%rdg ±3dgts
Resistance 200?, 2000? 0.1?, 1? ±1%rdg ±2dgts
Insulation Resistance 200M?, 2000M? 20M?(5520 only) 100k?~1M? 10k? ±3.5%rdg ±5dgts ±3.5%rdg ±5dgts
Test Voltage 250V-200M?/500V-200M?/1000V-2000M?, (500V-20M? only 5520)
Continuity Test Active Sound Level: =40?, Test current =200mA
Operating Temp 0ºC~40ºC (<80%R.H.)
Storage Temp -10ºC~60ºC (<70%R.H.)
Power Source 1.5V “AA” size Battery x 6
