Brand | GIGABYTE |
---|---|

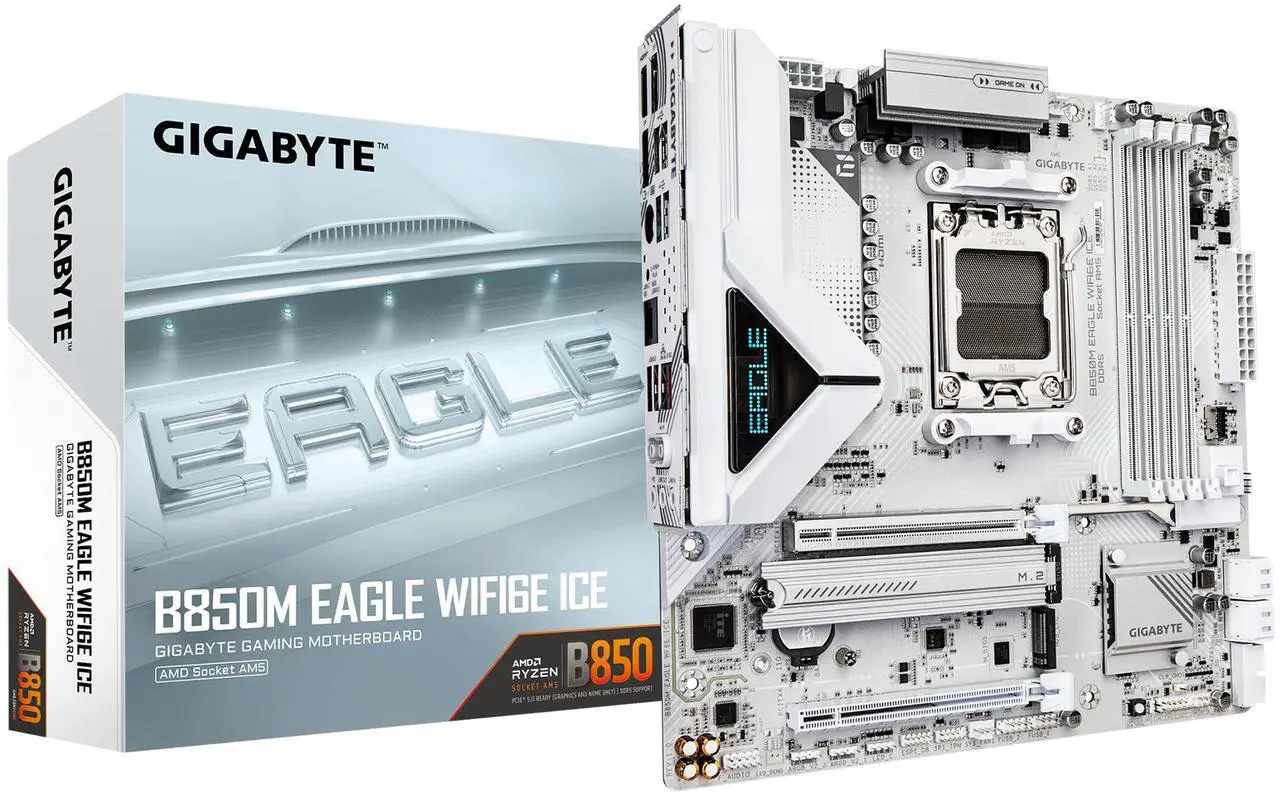

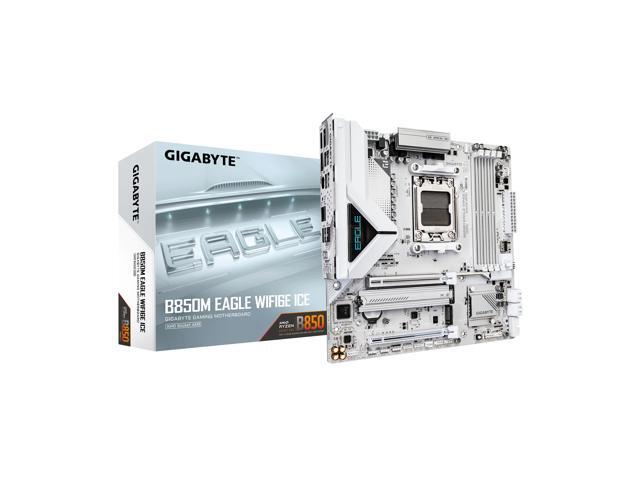

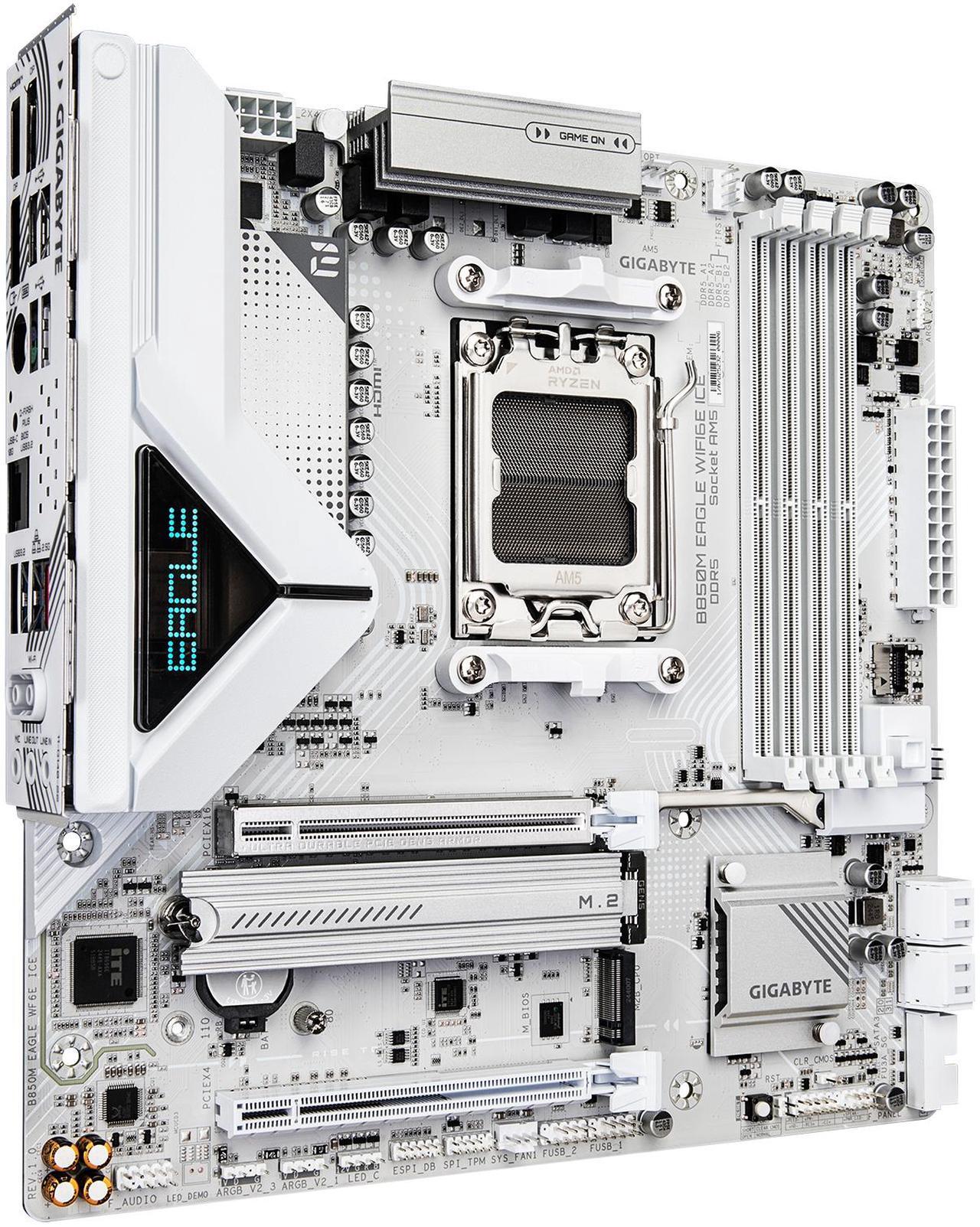

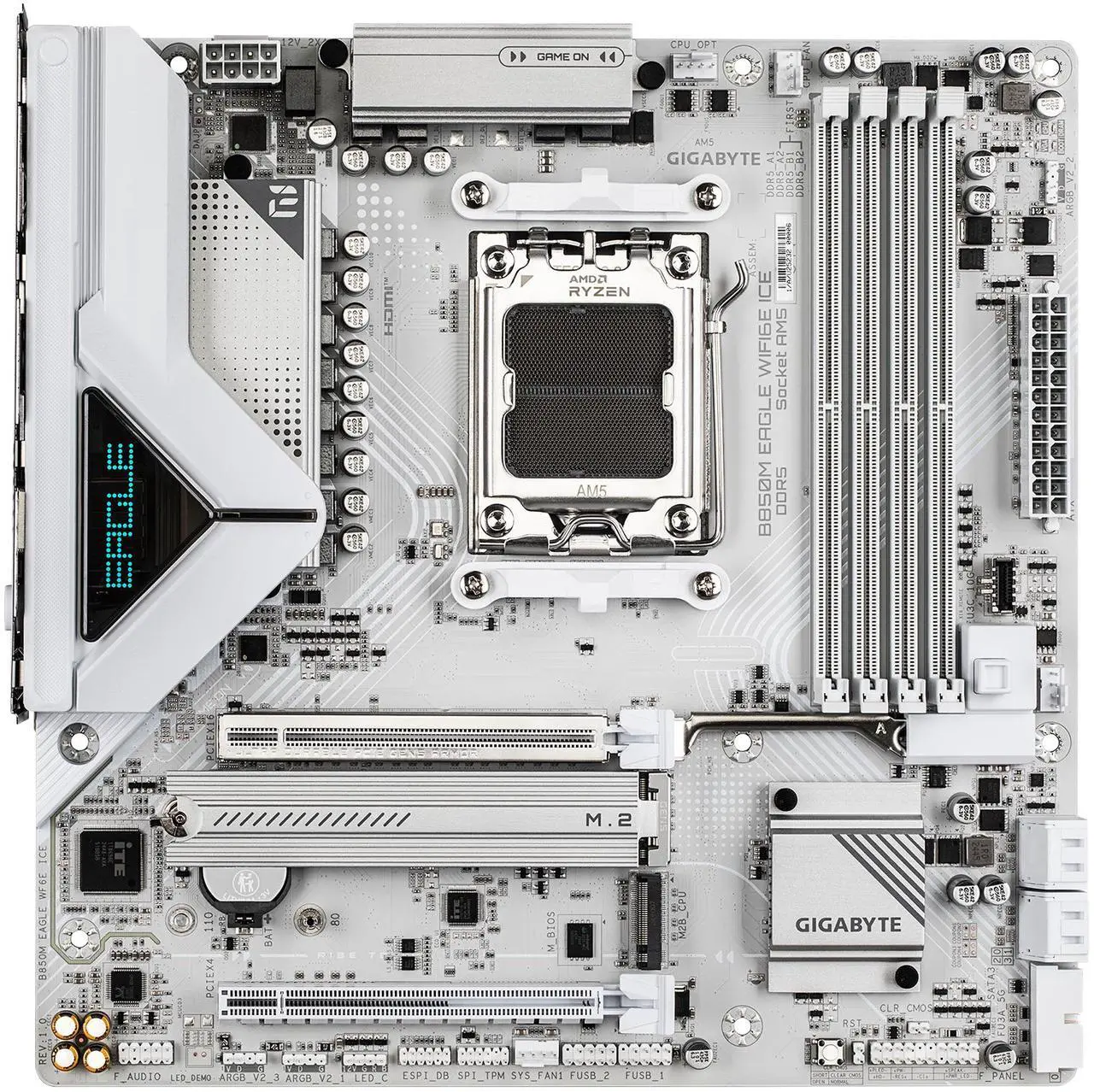

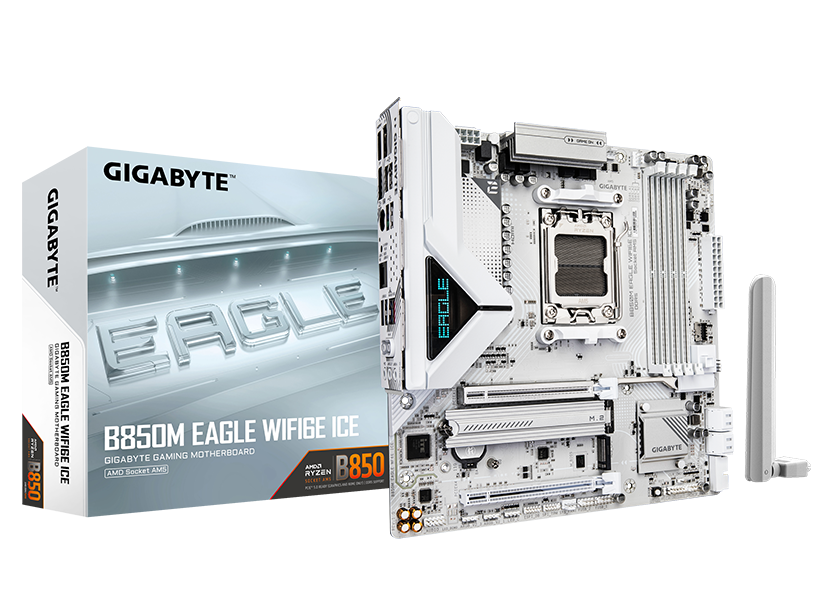

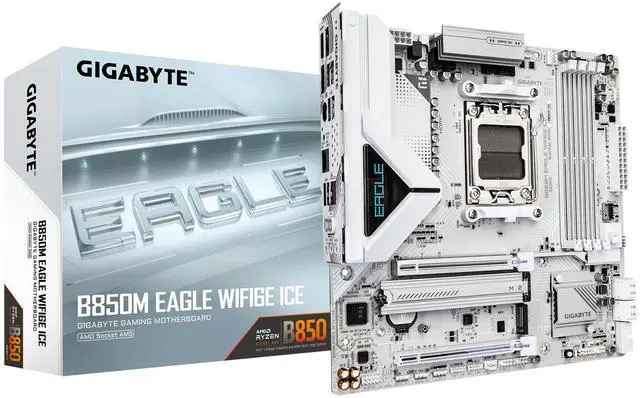

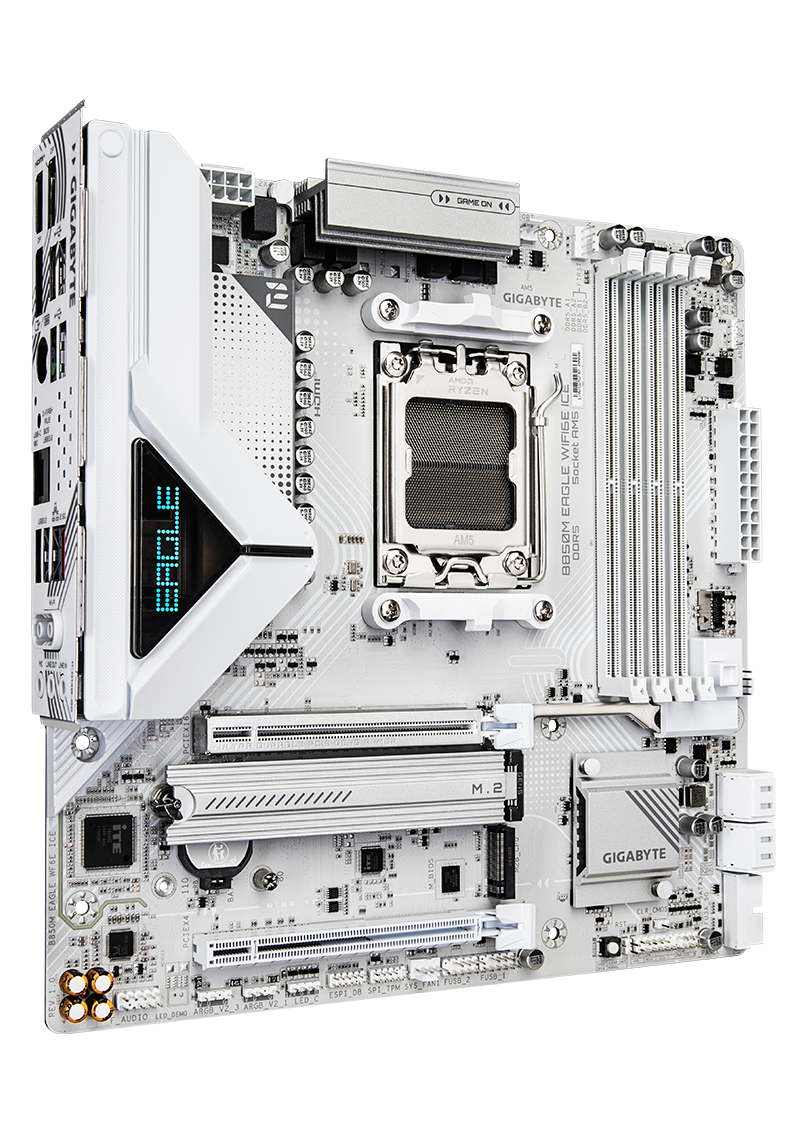

Model | B850M EAGLE WF6E ICE |
CPU Socket Type | AM5 |
---|---|
CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
Chipset | AMD B850 |
---|
Number of Memory Slots | 4x288pin (DDR5) |
---|---|
Memory Standard | DDR5 4400 / DDR5 4800 / DDR5 5200 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 |
Maximum Memory Supported | 256GB |
Channel Supported | Dual Channel |
ECC Supported | Non-ECC |
Buffer Supported | Un-buffered |
Memory Feature | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
PCI Express 5.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
---|---|
PCI Express x4 | 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
Serial ATA (SATA) | 4 x SATA 6Gb/s |
---|---|

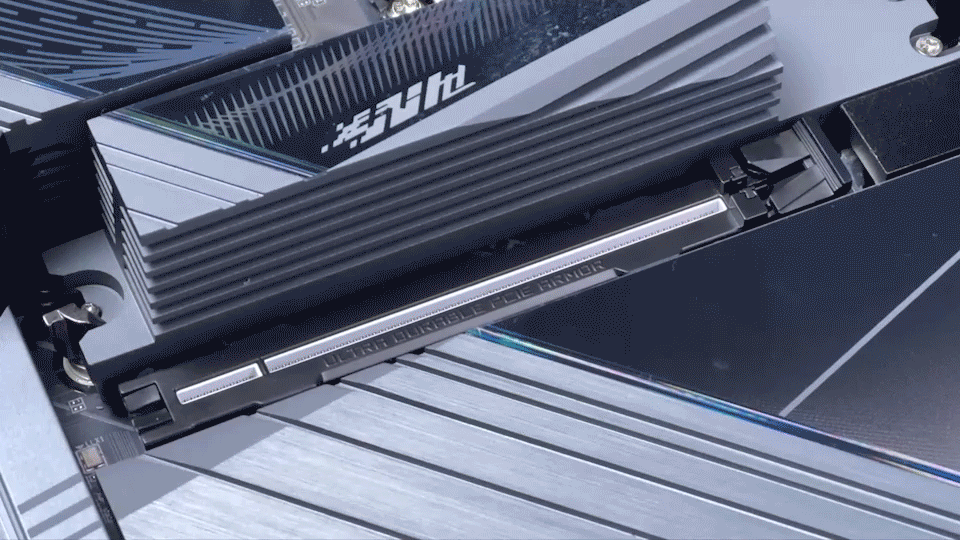

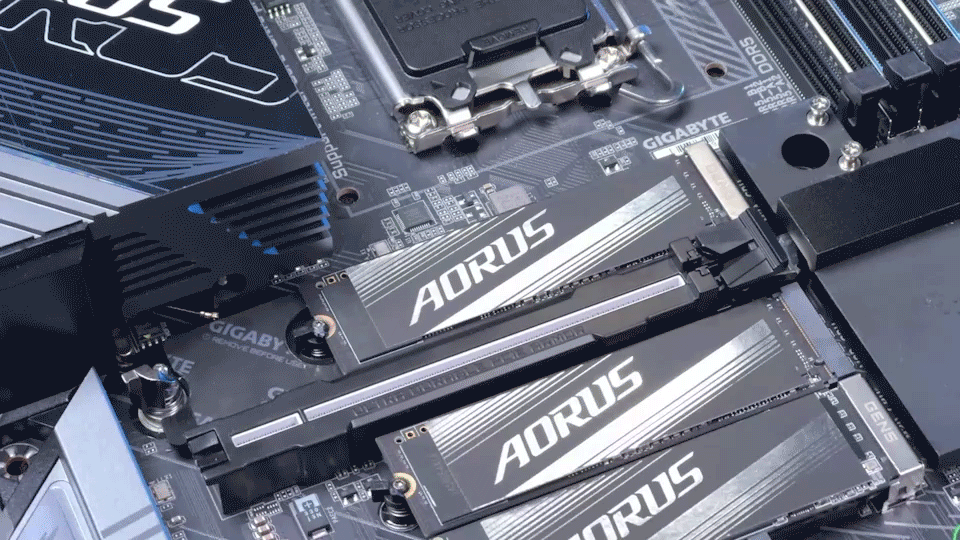

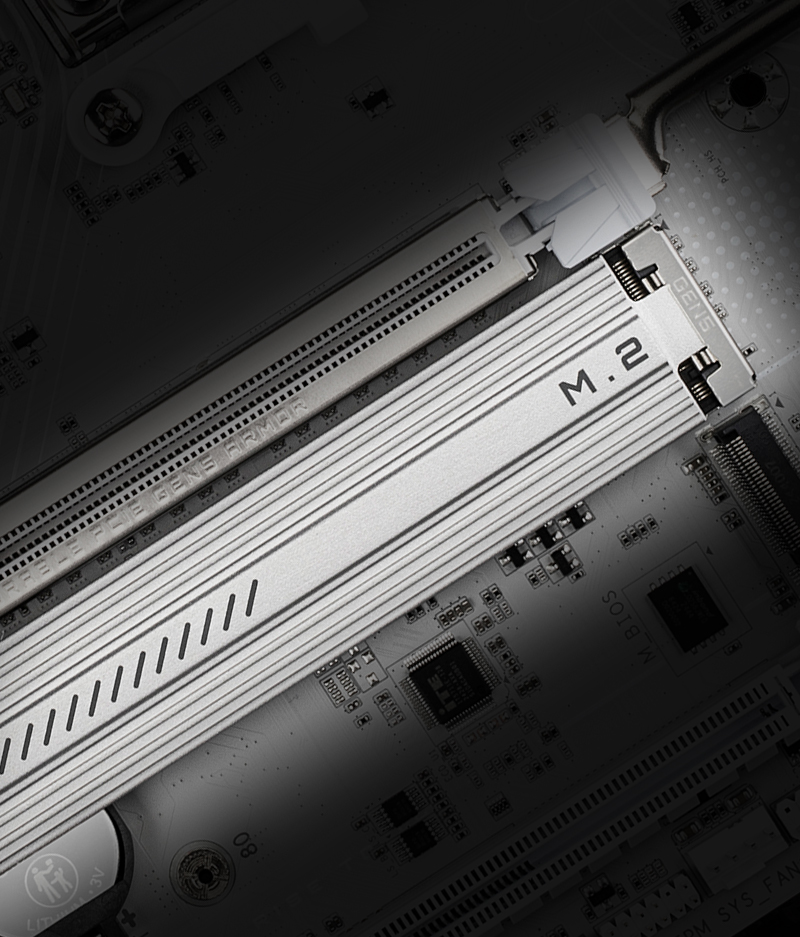

M.2 | 1 x M.2 (Support PCIe 4.0 x4) / 1 x M.2 (Support PCIe 5.0 x4) |
SATA RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
Audio Channels | 7.1 Channels |
---|
Max LAN Speed | 2.5Gbps |
---|---|
Wireless LAN | Wi-Fi 802.11 ax |
Bluetooth | BLUETOOTH 5.3 |

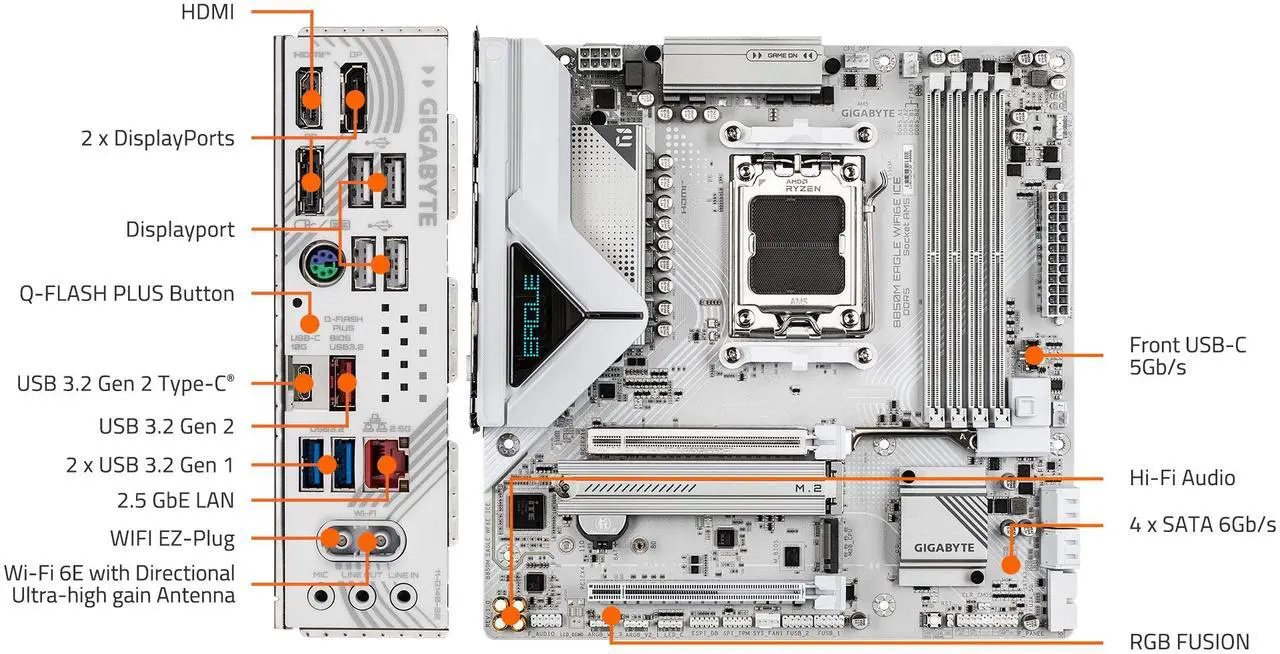

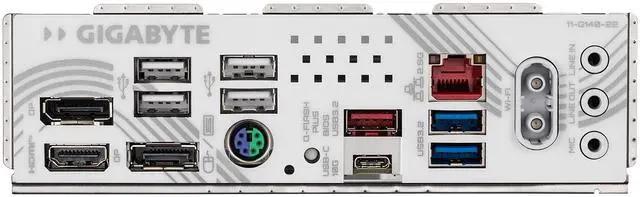

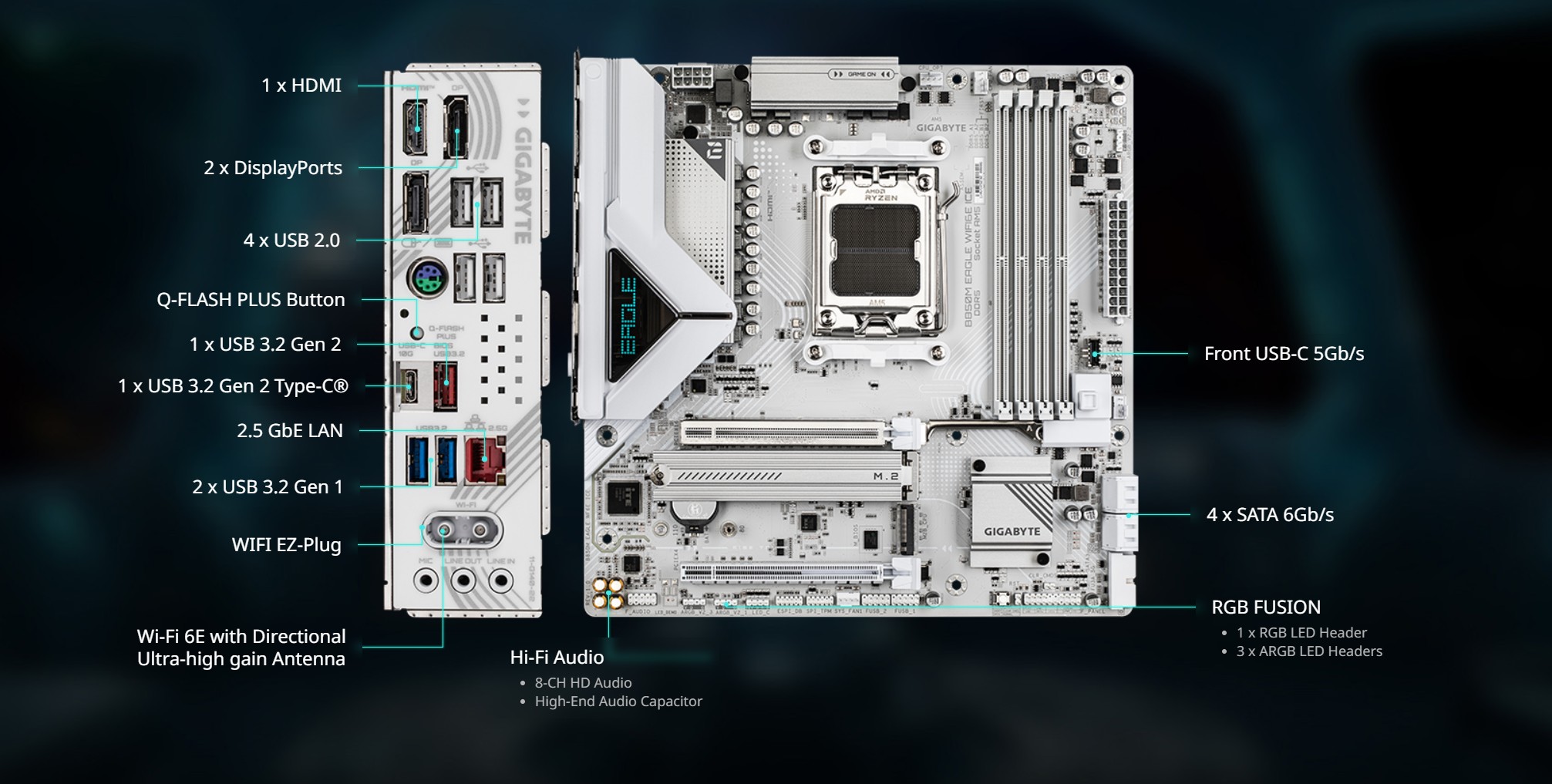

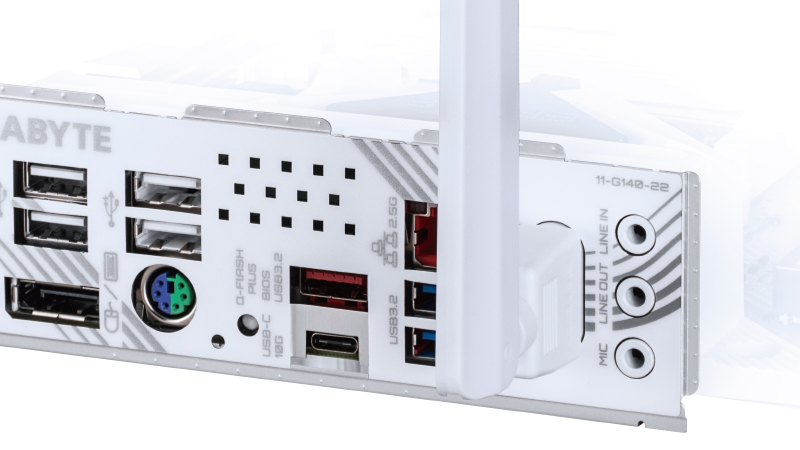

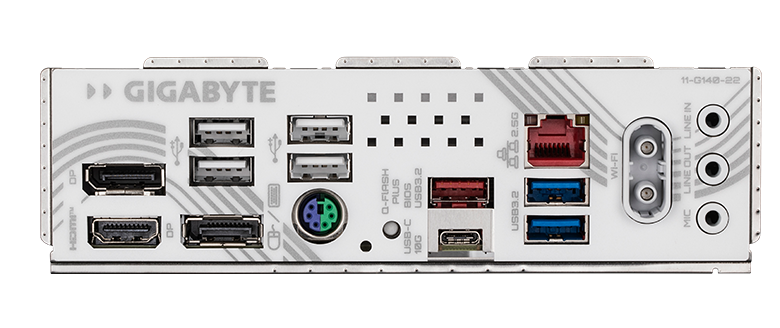

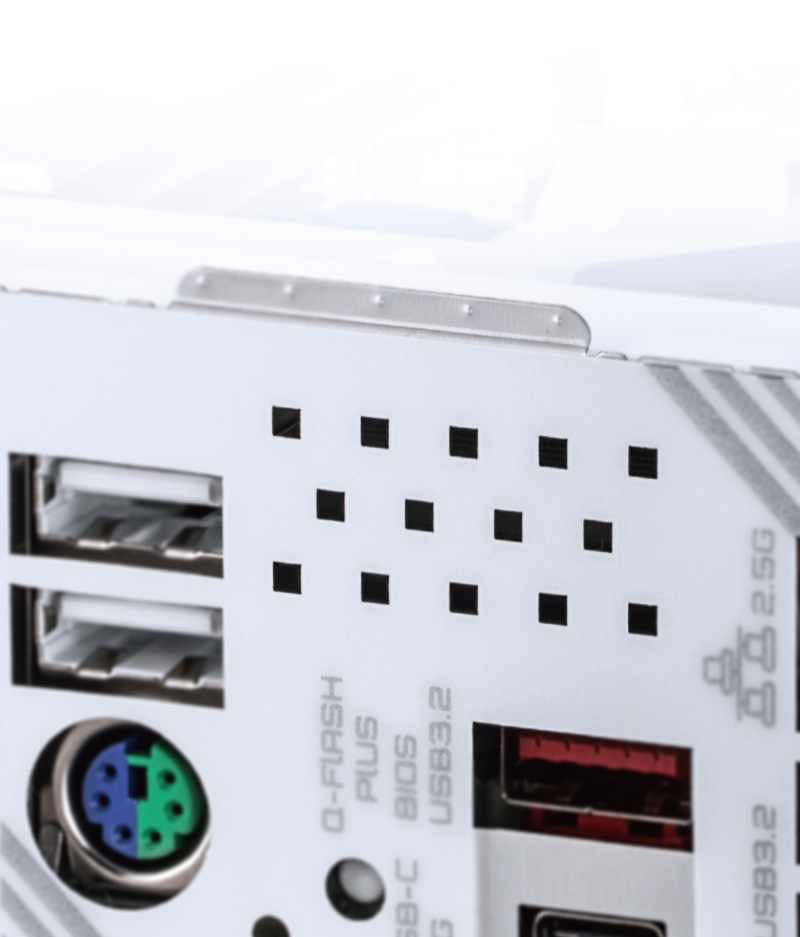

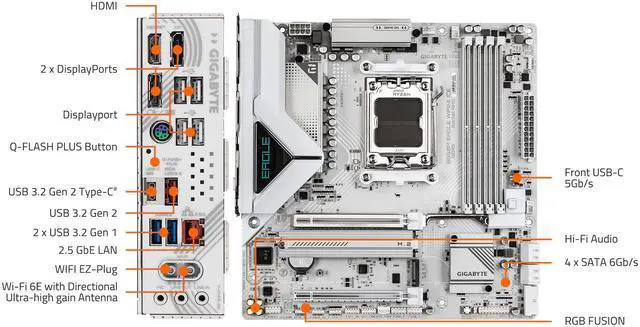

Back I/O Ports | 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 3 x audio jacks |
---|
Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
---|---|

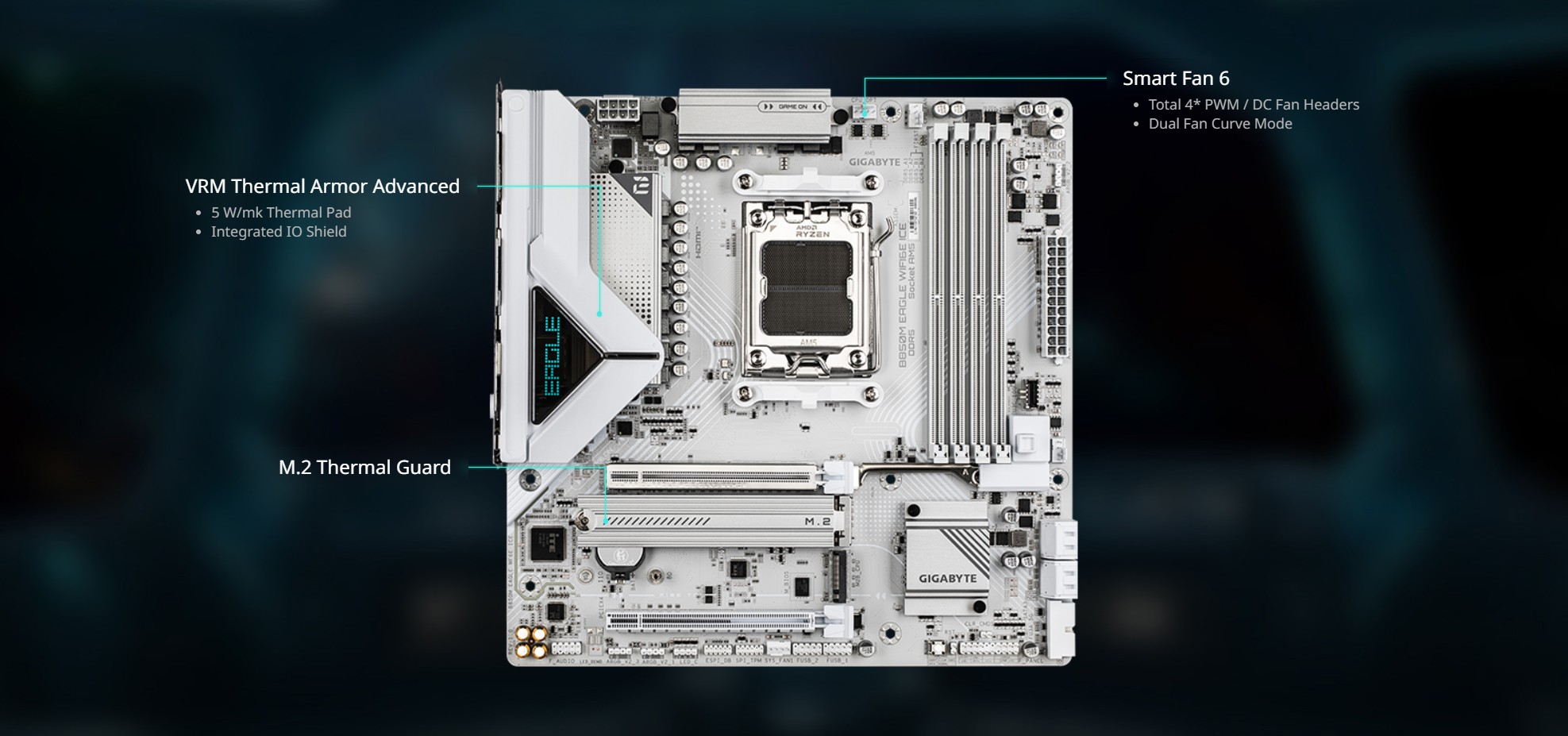

Other Connectors | 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
Form Factor | Micro ATX |
---|---|
Dimensions (W x L) | 9.6" x 9.6" |

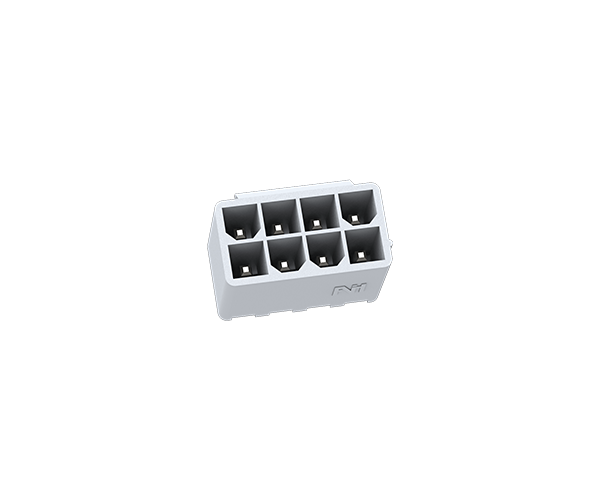

Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |

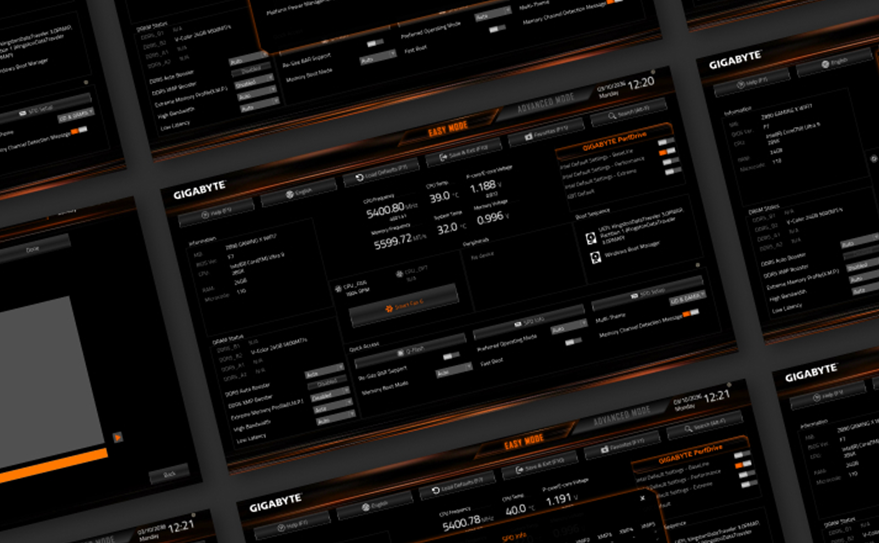

BIOS Feature | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
---|---|
Windows 11 | Supported |
Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
---|
Date First Available | June 23, 2025 |
---|
