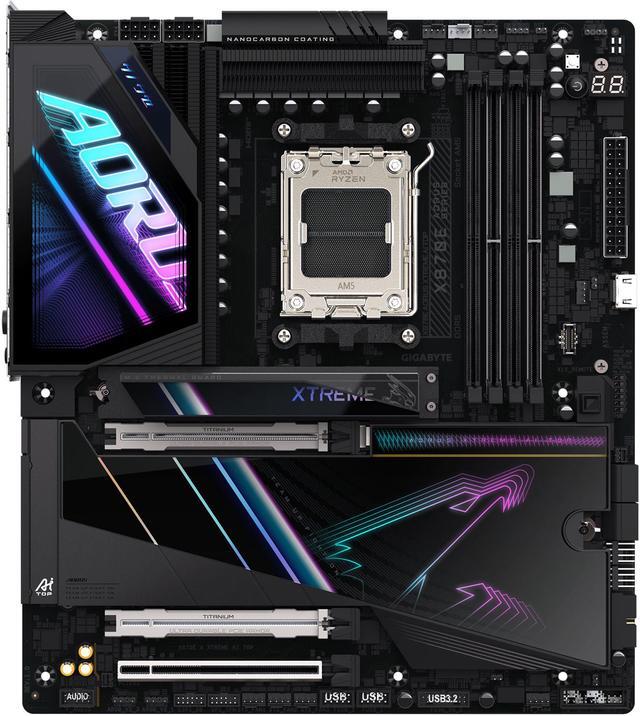

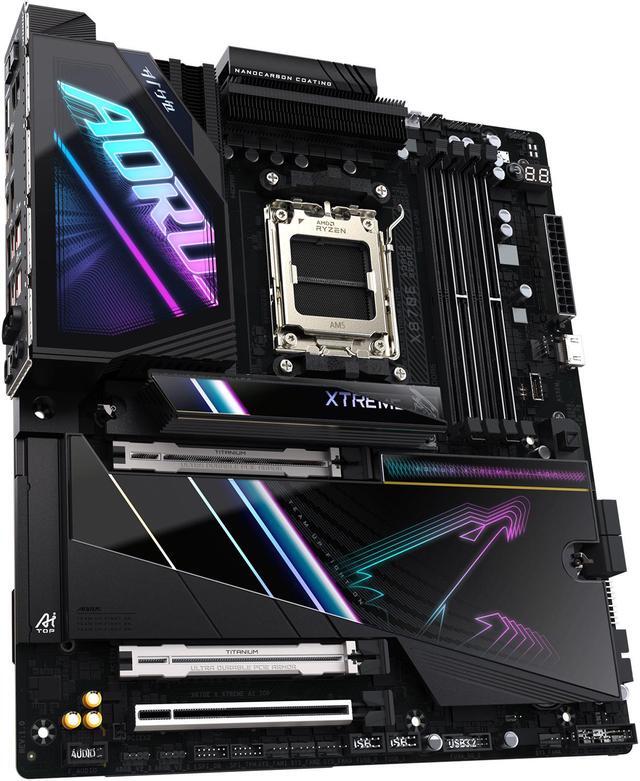

GIGABYTE X870E AORUS XTREME AI TOP AMD AM5 LGA 1718 Motherboard, E-ATX, DDR5, 4x M.2, PCIe 5.0, USB4, WIFI7, 10GbE LAN, EZ-Latch, 5-Year Warranty
- AMD Socket AM5: Supports AMD Ryzen 9000 / Ryzen 8000 / Ryzen 7000 Series Processors
- DDR5 Compatible: 4*DIMMs with AMD EXPO Support
- Power Design: 18+2+2, 110A Smart Power Stage
- Thermals: VRM and M.2 Thermal Guard
- Connectivity: PCIe 5.0, 4x M.2 Slots, Dual USB4, Front and Rear USB-C, Sensor Panel Link
- DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, Wi-Fi EZ-Plug, EZ-Debug Zone
- Networking: WIFI7, 5GbE LAN
- 5-Year Warranty
+
+
Specs
Reviews (487)
Learn more about the GIGABYTE X870E AORUS XTREME AI TOP
| Brand | GIGABYTE |
|---|---|
| Model | X870E AORUS XTREME AI TOP |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870E |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 4400 / DDR5 4800 / DDR5 5200 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 |
| Maximum Memory Supported | 256GB |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x8 mode * The PCIEX8 slot becomes unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used. |
|---|---|
| PCI Express 4.0 x16 | Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2) * The PCIEX2 slot shares bandwidth with the M2E_SB connector. The PCIEX2 slot becomes unavailable when a device is installed in the M2E_SB connector |
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2D_SB, M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2E_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors |
|---|---|
| SATA RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 5.1 Channels |
| LAN Chipset | 2 x Marvell AQtion AQC113C 10GbE LAN chips |
|---|---|
| Max LAN Speed | 2 x 10Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | BLUETOOTH 5.3 |

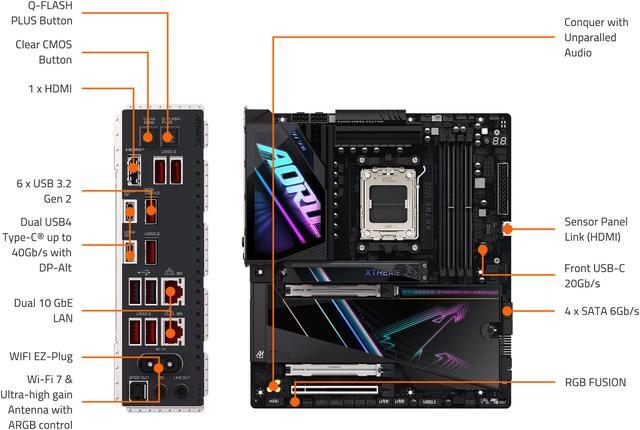

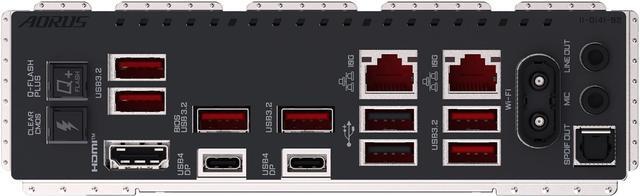

| Back I/O Ports | 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x HDMI port (Note) 2 x USB4 USB Type-C ports (DisplayPorts (Note)) 6 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 2 x antenna connectors (2T2R) 1 x optical S/PDIF Out connector 2 x audio jacks (Note) Actual support may vary by CPU. |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 2 x temperature sensor headers 1 x front panel header 1 x front panel audio header 1 x noise detection header 1 x HDMI port (Note) 1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Voltage Measurement Points (Note) Actual support may vary by CPU. |
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 10.6" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| BIOS Feature | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|---|---|
| Windows 11 | Windows 11 64-bit |
| Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|---|
| Parts | 5 Years |
|---|---|
| Labor | 5 Years |
| Date First Available | December 16, 2024 |
|---|
