Up to 40m, LKV714Pro 1x4 HDMI Splitter Extender Device 1080P@60HZ Over CAT6/6A/7/8 Enternet Cable, Transmission up to 131ft with Loop-Out Local Display,Support IR Remote Control,EDID Function
- 1x4 HDMI Extender Splitter: -- Extend and display one video on four different HDMI monitors over CAT6/6A/7/8 cable simultaneously; Includes 1 transmitter, 4 receivers and 1 power adapters
- Long Distance Transmission: -- Transmit video up to 40m (131ft) at 1080p@60Hz ;Supports 480i/480p/720p/1080i/1080p at 60Hz video resolutions and surround sound up to 7.1-channel or stereo digital audio; Compatible with HDCP compliant devices & content
- Loop-out Function: --HDMI LOOP-OUT for local display or monitoring function
- Support EDID Function: -- Automatic identification of front-end and back-end signal and built-in six EDID resolution option, allows the video source to send out a video signal that is supported by the monitor automatically
- IR Remote Control: -- Support 20~60Hz IR pass back, Allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward command over a CAT6/6A/7/8 cable for convenience
+
+
Overview
Specs
Reviews
LKV714PRO

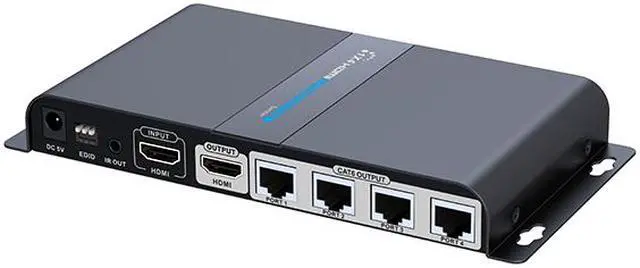

This HDMI extender splitter includs one transmitter and four receivers, extend 1 HDMI source to 4 HDMI displays over single CAT6/6a/7 cable up to 40m/131ft. The highest resolution supported is 1920×1080@60Hz, and it supports IR passback, EDID pass through and only one power adapter for the transmitter is needed, the Receiver is powered by the transmitter over CAT6 cable. Ideal solution for HDMI exhibition, Video conference and show center, ect.
Features:

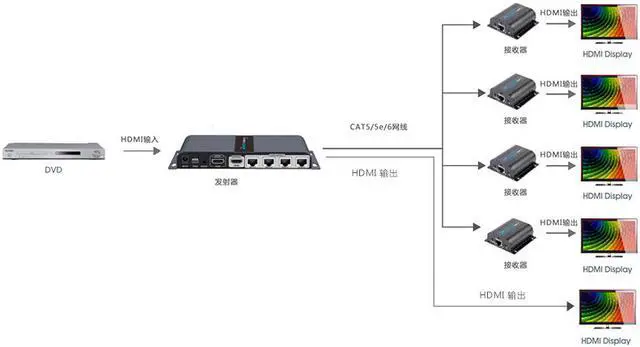

1. Distribute 1 HDMI source to 4 HDMI displays over network cable simultaneously.
2. Support one HDMI Loop-out.
3. Compatible with CAT6/6a/7 network cables.
4. The transmission distance is up to 40m/131ft.
5. The highest resolution supported is 1920x1080@60Hz.
6. Support 20~60Hz IR pass back.
7. Support EDID Setting function.
8. Support power from transmitter to receiver unit over the CAT6 cable.
9. Plug and play.
10. Wall-mounted function, easy installation.

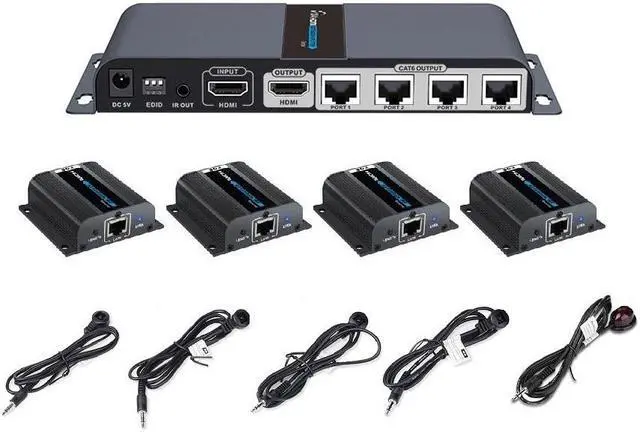

Package Included:
1 x HDMI Transmitter Unit
4 x HDMI Receiver Unit
4 x IR Receiver cable
1 x IR Blaster cable
1 x AC 110~240V power supplier
1 x User manual
This HDMI extender splitter includs one transmitter and four receivers, extend 1 HDMI source to 4 HDMI displays over single CAT6/6a/7 cable up to 40m/131ft. The highest resolution supported is 1920×1080@60Hz, and it supports IR passback, EDID pass through and only one power adapter for the transmitter is needed, the Receiver is powered by the transmitter over CAT6 cable. Ideal solution for HDMI exhibition, Video conference and show center, ect.
Features:
1. Distribute 1 HDMI source to 4 HDMI displays over network cable simultaneously.
2. Support one HDMI Loop-out.
3. Compatible with CAT6/6a/7 network cables.
4. The transmission distance is up to 40m/131ft.
5. The highest resolution supported is 1920x1080@60Hz.
6. Support 20~60Hz IR pass back.
7. Support EDID Setting function.
8. Support power from transmitter to receiver unit over the CAT6 cable.
9. Plug and play.
10. Wall-mounted function, easy installation.
Package Included:
1 x HDMI Transmitter Unit
4 x HDMI Receiver Unit
4 x IR Receiver cable
1 x IR Blaster cable
1 x AC 110~240V power supplier
1 x User manual
