DC Switching Power supply 800W output 12/24/36/48V DC Power Supply Switch(0-70V)

Industrial Power Supply
1PCSX 800W 12/24/36/48V Switching Power Supply

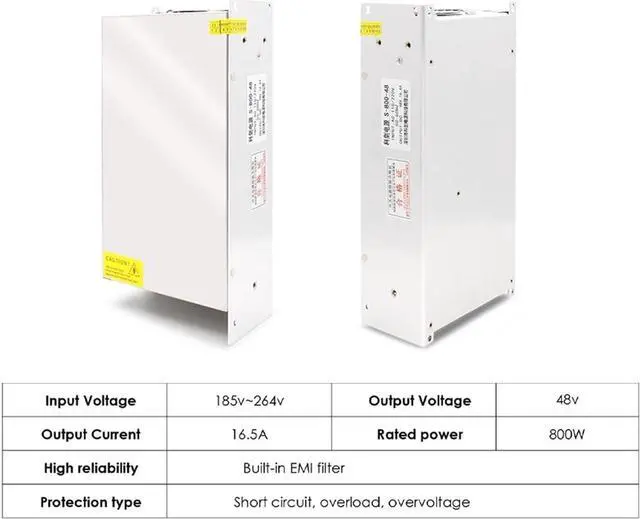

Basic parameter:
.High reliability: built-in EMI filter
.Wide voltage input: 185-264V
.High stability: full load aging
.Product certification: CE FCC
.Protection function: overcurrent/overvoltage/short circuit protection
.Quality assurance: lifetime warranty

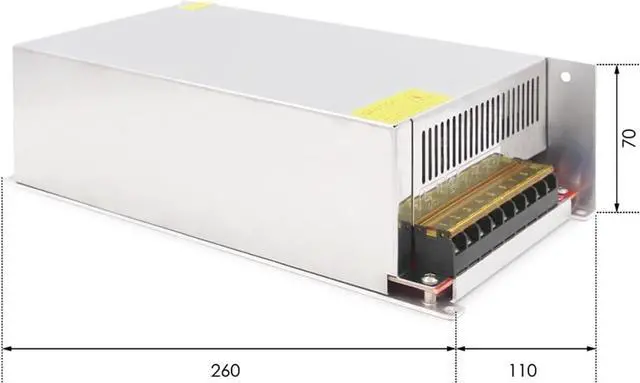

.Product size: 260 × one hundred and ten × 70(m)
AC input voltage range: 185~264VAC
<; 0.7mA/230VAC
DC output voltage: 48V
DC output current
Power grid adjustment rate (at full load) ± 0.5%
Adjustable range of output voltage: ± 10%
Output overcurrent protection: 110~130%
Output overvoltage protection: 115~150%
Insulation strength: I/P to O/P: 3.0KVAC/1 minute
I/P to O/P: 1.5KVAC/1 minute
I/P to O/P: 0.5KVAC/1 minute
Rise time: 50ms at full load (typical value)
Holding time: 20 ms at full load (typical value)
Working environment: -10 ~+50 , 20%~93% RH (without condensation)
Storage environment: -20 ~+85 , 20%~95% RH (without condensation)
Safety standards: Comply with GB4943, UL60950, EN60950
EMC standards: Comply with GB9254, EN55022 ClassB, EN55024, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11

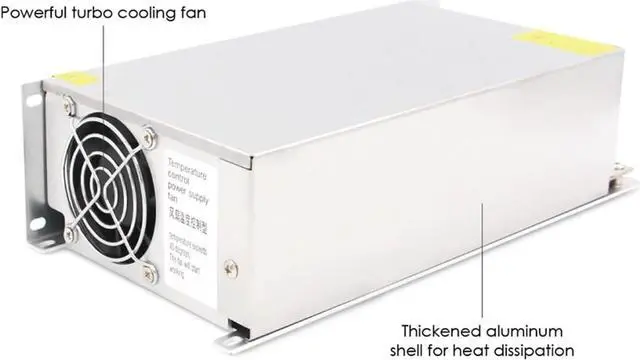

Cooling form: fan cooling
Advantage:
1. Shell - Made of aviation aluminum material, rainproof, corrosion-resistant, and rust .
2. Sufficient material usage - using electronic components to ensure stable operation of the power supply.
3. Three major protection functions - overload protection, over voltage protection, and short circuit protection.
Application:
Suitable for various stepper motors, servo motors, security monitoring power supplies, and can be used as outdoor light box power supplies.
Matters needing attention:
1. Choose the appropriate power to prolong the lifespan of the power supply. Please choose a model with a 20% higher output power rating than the electrical appliance. For example, for 80W applia
