dc Power Supply Adjustable DC Power Supply 30V 10A LED Lab Power Supply 60V 5A Voltage Regulator Stabilizer Switching Source (Color : 4Digits 60V 5A)
- Set the voltage or current you want more accurately.
- This makes it more convenient for you to use the power supply.
- When a short circuit occurs, the variable DC power supply will stop output and send out an alarm to remind you. Bench power supply also have safety protections such as overvoltage, overcurrent, overheating and overload.
- dc power supply is the best choice for beginners or professional electricians.
- VERSATILE USAGE - Compact and lightweight, doesn't take up of space, ideal for a variety of applications such as school lab experiments, cell phone repair, electronics production assurance specifications, and lab measurements.
+
+
Overview
Specs
Reviews
INTRODUCTION:

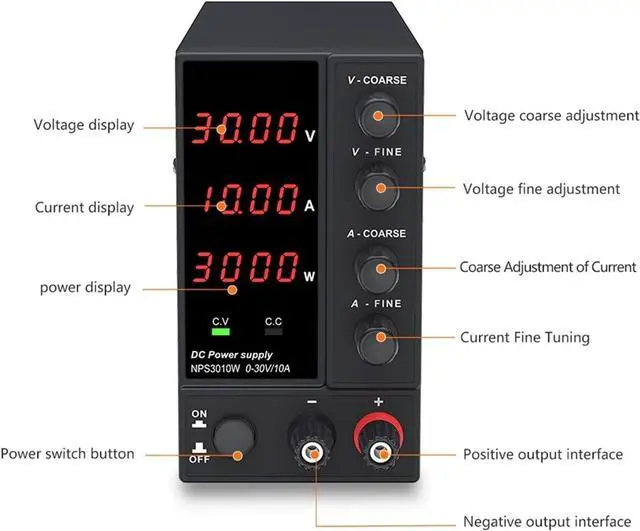

The series of switching power supplies for measuring instrument have ruled out the inconvenience of bigvolume and heavyweight of a traditional power supply possess.Four adjustment buttons,The output voltage and current respectively is controlled by two variable resistors with coarse and fine regulation for morehandy and precise adjustment.
1.Have complete operating protection function.over temperature protection,overload protection,short circuit protection.
2.Small size, low ripple,light weight and high power density,Highly efficient.
3.Voltage stabilization, current limiting, simple operation.
4.Constant pressure and constant current switch automatically.

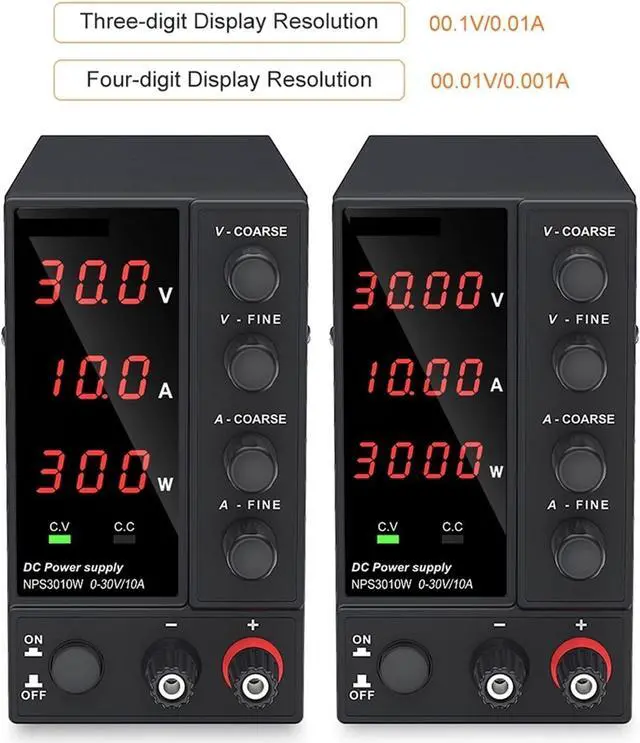

5.Three LED display of voltage, current and power, high precision.

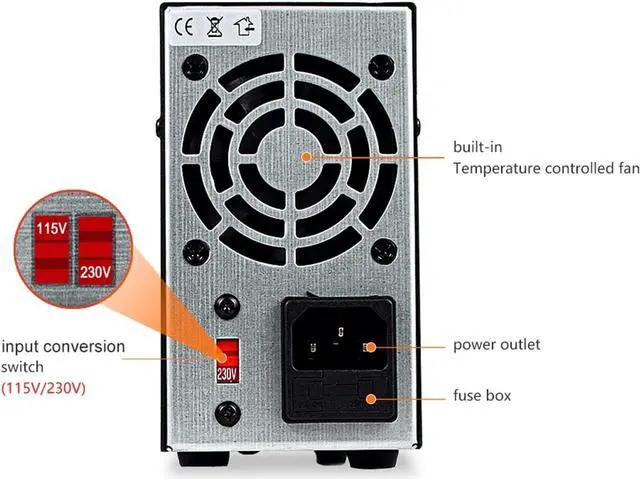

6.Temperature controlled fan heat dissipation, low noise, long life.
7.Four potentiometer more precise adjustment.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
11.AC 110v and 220v can work, rest assured to choose.
Model
NPS306W
NPS3010W

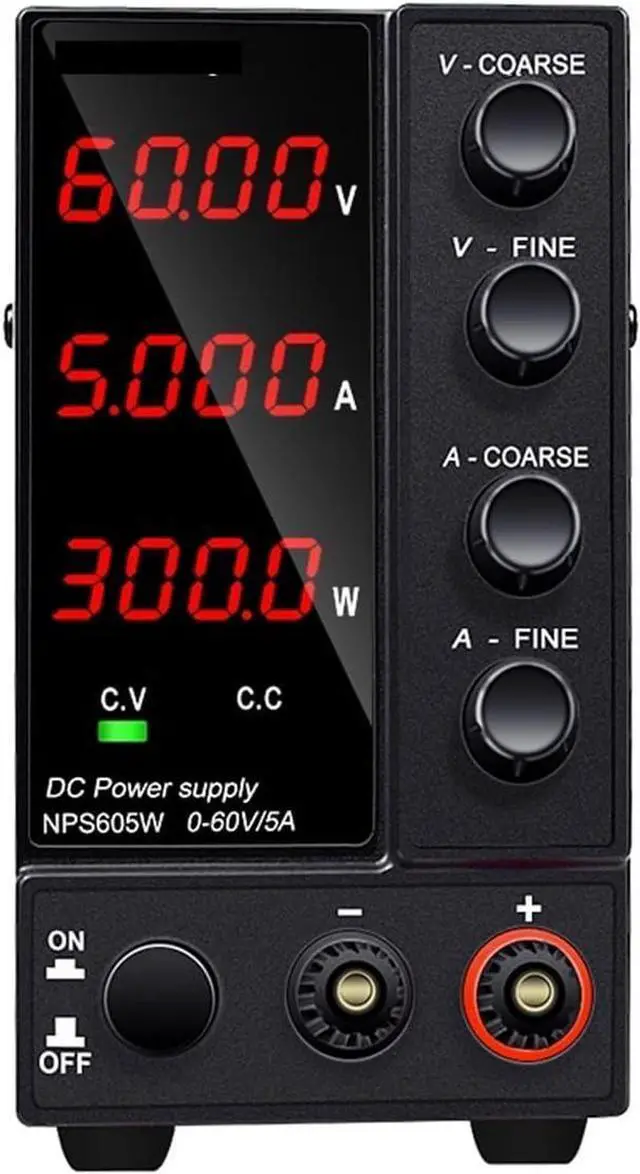

NPS605W
NPS1203W
Output Power
180W
300W
300W
360W
Output voltage
0~30V
0~30V
0~60V
0~120V
Output current
0~6A
0~10A
0~5A
0~3A
working environment
input voltage:AC230V/115V±10%;50Hz/60Hz
Working temperature:0-40;relative humidity:<;80%RH
Storage temperature:-10-70;relative humidity:<;70%RH
Constant voltage CV
Voltage stability:0.1%±3mV
Load stability:0.2%±3mV
Ripple voltage:0.5%Vp-p
0 to rated voltage continuously adjustable
constant current CC
Current stability:0.1%±3mA
Load stability:0.2%±3mA
Ripple current:0.5%Vp-p
Recovery time:500S
Temperature coefficient:100ppm/
0 to rated current continuously adjustable
display
0.4 inch red threedigit display
The series of switching power supplies for measuring instrument have ruled out the inconvenience of bigvolume and heavyweight of a traditional power supply possess.Four adjustment buttons,The output voltage and current respectively is controlled by two variable resistors with coarse and fine regulation for morehandy and precise adjustment.
1.Have complete operating protection function.over temperature protection,overload protection,short circuit protection.
2.Small size, low ripple,light weight and high power density,Highly efficient.
3.Voltage stabilization, current limiting, simple operation.
4.Constant pressure and constant current switch automatically.
5.Three LED display of voltage, current and power, high precision.
6.Temperature controlled fan heat dissipation, low noise, long life.
7.Four potentiometer more precise adjustment.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
11.AC 110v and 220v can work, rest assured to choose.
Model
NPS306W
NPS3010W
NPS605W
NPS1203W
Output Power
180W
300W
300W
360W
Output voltage
0~30V
0~30V
0~60V
0~120V
Output current
0~6A
0~10A
0~5A
0~3A
working environment
input voltage:AC230V/115V±10%;50Hz/60Hz
Working temperature:0-40;relative humidity:<;80%RH
Storage temperature:-10-70;relative humidity:<;70%RH
Constant voltage CV
Voltage stability:0.1%±3mV
Load stability:0.2%±3mV
Ripple voltage:0.5%Vp-p
0 to rated voltage continuously adjustable
constant current CC
Current stability:0.1%±3mA
Load stability:0.2%±3mA
Ripple current:0.5%Vp-p
Recovery time:500S
Temperature coefficient:100ppm/
0 to rated current continuously adjustable
display
0.4 inch red threedigit display
